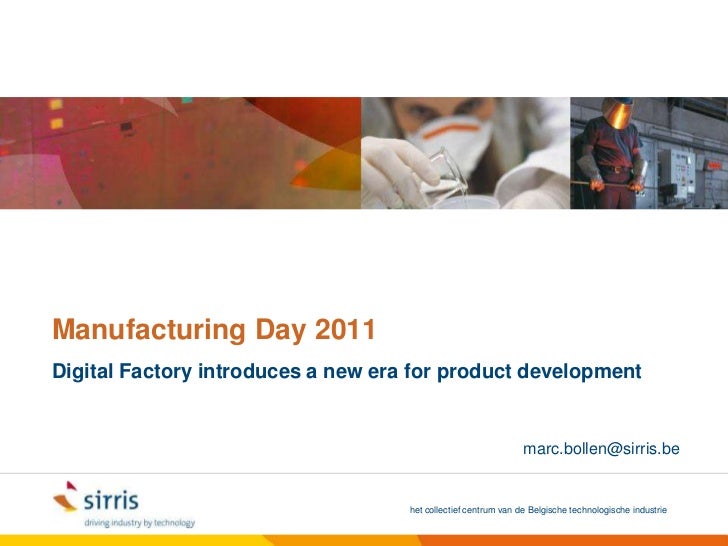

ManufacturingDay 2011<br />Digital Factory introduces a new era for product development<br />marc.bollen@sirris.be<br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />2<br />Product Development<br />The Goal<br />Bring the pr...
withlimited resources
withlimited time
and changingpriorities
on a daily basis</li></li></ul><li>10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />3<br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />4<br />#1<br />Start now and create<br />yourstrategic Dig...
Rule #1: Start Now!<br />What are the strategicoptions?<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br...
1.1 Set Strategic Goals <br />Time To Market<br />First Time ThroughRate<br />CustomerSatisfaction<br />Product Performanc...
1.2 Analyse CurrentProcesses<br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />8<br />'When we understand this slide, we'll have won the ...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />9<br />1.2 Analyse CurrentProcesses<br />ActiveVOS,  Adept...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />10<br />Issue<br />1.3 DefineActions<br />Impact<br />Impr...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />11<br />1.4 Prioritiseactions<br />Impact<br />Size = inve...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />12<br />1.5 Action-types<br />X<br />X<br /><ul><li>Elimin...
Increase efficiency
Minimiseiteration-effects</li></li></ul><li>10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />13<br />#2<br ...
2.1 Digitiseyourprocesses<br />CAAD<br />CAD<br />CADD<br />CAE<br />CAM<br />CAPP<br />CAQ<br />CAR<br />CAS<br />CASE<br...
2.1 Technologies<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />15<br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />16<br />A photorealisticrendered picture  createdwith  POV...
2.2 QuyOrthopedicMilling Services (1)<br />Original Process<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be ...
Average Quality
High Cost
Labour Intensive</li></li></ul><li>2.2 QuyOrthopedicMilling Services (2)<br />DigitisedProcess<br />10-5-2011<br />© Sirri...
2.3 Simulation of rainpenetration (1)<br />Original Process<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be ...
2.3 Simulation of rainpenetration (2)<br />New Process<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br ...
No straight forward model to apply all the physics<br />	(rain droplets, wind driven motion in fluid domain, droplet accum...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />22<br />#3<br />Topmanagement has to support the improveme...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />23<br />Room filledwithpeoplewho care.<br />
3.1 Manage the project<br />Allocate resources (PM)<br />Plan learning (and setback) curve<br />Monitor KPI <br />Adjustim...
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />25<br />#4<br />Modularise, Configure, <br />Automate !<br />
Customer<br />Archive<br />InternalSales<br />Search forsimilar offers<br />Offerte<br />ERP<br />Calculation Software<br ...
Customer<br />Archive<br />InternalSales<br />Modified Offer<br />Gewijzigde Offerte<br />ERP<br />Calculation Software<br...
Customer<br />Archive<br />Order<br />Modified Offer<br />Orderconfirmation<br />Delay<br />ERP<br />Planning / Production...
3.2 Manuals (1)<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />29<br />Provide CAD-linkages.<br />
3.3 Modularity, standardisation<br />10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />30<br />Actions<br />...
Conceptual Design (8)
Systemdesign ( 20)
Detaildesign (100)</li></ul>Leadtimedecreases 50% <br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />31<br />#5<br />Collaborate !<br />
10-5-2011<br />© Sirris | www.sirris.be | info@sirris.be |<br />32<br />5.1 InternalCollaboration (1)<br />PDM<br />CMS<br...
Atos Origin sets out its ambition to be a zero email company within three years (07/02/2011)<br />By 2013, more than half ...
