Real World Dependency Injection
          Stephan Hochdörfer, bitExpert AG




"Dependency Injection is a key element of a...
About me
 Founder of bitExpert AG, Mannheim

 Field of duty
         
           Department Manager of Research Labs
  ...
Agenda
1.   What is Dependency Injection?

2.   Real World examples

3.   Pros & Cons

4.   Questions
What is Dependency Injection?




     "Dependency Injection is probably one of the most dead simple
      design pattern ...
What is Dependency Injection?




     "Dependency Injection is probably one of the most dead simple
      design pattern ...
What is Dependency Injection?



What is Dependency Injection?

 Popularized by Martin Fowler in 2004

 Technique for su...
What is Dependency Injection?



Problems of Dependencies

 Code is very tightly coupled
        
          Hard to re-u...
What is Dependency Injection?



Simple Dependency



                                Main    Required
                   ...
What is Dependency Injection?



Complex Dependency


                                           Required
                ...
What is Dependency Injection?



Very complex Dependency
                                           Database

            ...
What is Dependency Injection?



Very complex Dependency
                                           Database

            ...
What is Dependency Injection?



Very complex Dependency
                                           Database

            ...
What is Dependency Injection?



How to Manage Dependencies?
What is Dependency Injection?



How to Manage Dependencies?




               You don`t need to. The Framework does it a...
What is Dependency Injection?



Types of Dependency Injection

Type 1: Interface injection

 <?php

 class MySampleServic...
What is Dependency Injection?



Types of Dependency Injection

Type 2: Setter injection

 <?php

 class MySampleService i...
What is Dependency Injection?



Types of Dependency Injection

Type 3: Constructor injection

 <?php

 class MySampleServ...
What is Dependency Injection?



 Configuration Types

  Type 1: Annotations

  <?php

  class MySampleService implements ...
What is Dependency Injection?



Configuration Types

Type 2: External configuration via XML, JSON, YAML, ...

 <?xml vers...
What is Dependency Injection?



Configuration Types

 Type 3: PHP Configuration

 <?php
 class BeanCache extends bF_Beanf...
Agenda
1.   What is Dependency Injection?

2.   Real World examples

3.   Pros & Cons

4.   Questions
Real world examples




      "High-level modules should not depend on low-level modules.
                   Both should d...
Real World examples



Unittesting made easy

 <?php
 require_once 'PHPUnit/Framework.php';

 class ServiceTest extends PH...
Real World examples



One class, multiple configurations

                                            Implementation

   ...
Real World examples



Mocking external services


       Consumer                   Connector                  Webservice...
Real World examples



Mocking external services

                                  alternative                    Local
 ...
Real World examples



Clean, readable code
<?php

class Promio_Action_News_Delete extends bF_Mvc_Action_AAction {
     /*...
Real World examples



No framework dependency
<?php

class MySampleService implements IMySampleService {
  /**
   * @var ...
Real World examples



Cache, Cache, Cache!
 180



 160



 140



 120



 100



  80



  60



  40



  20



  0
  ...
Agenda
1.   What is Dependency Injection?

2.   Real World Examples

3.   Pros & Cons

4.   Questions
Pros & Cons



Benefits

 Good for agile development
        
          Reducing amount of code
        
          Help...
Pros & Cons



Cons

 To many different implementations, no standard today!
       
         Bucket, Crafty, FLOW3, Imin...
Agenda
1.   What is Dependency Injection?

2.   Pros & Cons

3.   Real World examples

4.   Questions
Real World Dependency Injection - PFCongres 2010
Upcoming SlideShare
Loading in...5
×

Real World Dependency Injection - PFCongres 2010

1,658

Published on

Published in: Technology
0 Comments
2 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
1,658
On Slideshare
0
From Embeds
0
Number of Embeds
2
Actions
Shares
0
Downloads
10
Comments
0
Likes
2
Embeds 0
No embeds

No notes for slide

Transcript of "Real World Dependency Injection - PFCongres 2010"

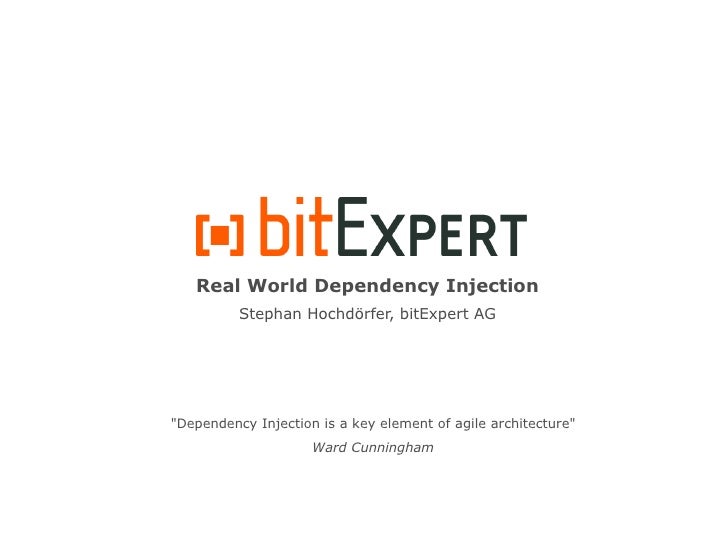

  1. 1. Real World Dependency Injection Stephan Hochdörfer, bitExpert AG "Dependency Injection is a key element of agile architecture" Ward Cunningham
  2. 2. About me  Founder of bitExpert AG, Mannheim  Field of duty  Department Manager of Research Labs  Head of Development for bitFramework  Focusing on  PHP  Generative Programming  Contact me  @shochdoerfer  S.Hochdoerfer@bitExpert.de
  3. 3. Agenda 1. What is Dependency Injection? 2. Real World examples 3. Pros & Cons 4. Questions
  4. 4. What is Dependency Injection? "Dependency Injection is probably one of the most dead simple design pattern [...] but it is also one of the most difficult one to explain well." Fabien Potencier
  5. 5. What is Dependency Injection? "Dependency Injection is probably one of the most dead simple design pattern [...] but it is also one of the most difficult one to explain well." Fabien Potencier
  6. 6. What is Dependency Injection? What is Dependency Injection?  Popularized by Martin Fowler in 2004  Technique for supplying external dependencies to a component  Main idea: Ask for things, do not look for things!  Three elements  Dependant / Consumer  Dependencies, e.g. service objects  Injector / Container
  7. 7. What is Dependency Injection? Problems of Dependencies  Code is very tightly coupled  Hard to re-use code  Hard to test code, no isolation possible  Difficult to maintain  What is affected when code changes?  Boilerplate configuration code within Business logic
  8. 8. What is Dependency Injection? Simple Dependency Main Required class class
  9. 9. What is Dependency Injection? Complex Dependency Required class Main Required class class Required class
  10. 10. What is Dependency Injection? Very complex Dependency Database Required class External Main Required resource class class Required class Required Required Webservice class class
  11. 11. What is Dependency Injection? Very complex Dependency Database Required class External Main Required resource class class Required class Required Required Webservice class class
  12. 12. What is Dependency Injection? Very complex Dependency Database Required class External Main Required resource class class Required class Required Required Webservice class class
  13. 13. What is Dependency Injection? How to Manage Dependencies?
  14. 14. What is Dependency Injection? How to Manage Dependencies? You don`t need to. The Framework does it all!
  15. 15. What is Dependency Injection? Types of Dependency Injection Type 1: Interface injection <?php class MySampleService implements IMySampleService, IApplicationContextAware { /** * @var IApplicationContext */ private $oCtx; public function setApplicationContext(IApplicationContext $poCtx) { $this->oCtx = $poCtx; } } ?>
  16. 16. What is Dependency Injection? Types of Dependency Injection Type 2: Setter injection <?php class MySampleService implements IMySampleService { /** * @var ISampleDao */ private $oSampleDao; public function setSampleDao(ISampleDao $poSampleDao) { $this->oSampleDao = $poSamleDao; } } ?>
  17. 17. What is Dependency Injection? Types of Dependency Injection Type 3: Constructor injection <?php class MySampleService implements IMySampleService { /** * @var ISampleDao */ private $oSampleDao; public function __construct(ISampleDao $poSampleDao) { $this->oSampleDao = $poSamleDao; } } ?>
  18. 18. What is Dependency Injection? Configuration Types Type 1: Annotations <?php class MySampleService implements IMySampleService { /** * @var ISampleDao */ private $oSampleDao; /** * @Inject */ public function __construct(ISampleDao $poSampleDao) { $this->oSampleDao = $poSamleDao; } } ?>
  19. 19. What is Dependency Injection? Configuration Types Type 2: External configuration via XML, JSON, YAML, ... <?xml version="1.0" encoding="UTF-8" ?> <beans xmlns="http://www.bitexpert.de/schema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.bitexpert.de/schema/ http://www.bitexpert.de/schema/bitFramework-beans.xsd"> <bean id="SampleDao" class="SampleDao"> <constructor-arg value="app_sample" /> <constructor-arg value="iSampleId" /> <constructor-arg value="BoSample" /> </bean> <bean id="SampleService" class="MySampleService"> <constructor-arg ref="SampleDao" /> </bean> </beans>
  20. 20. What is Dependency Injection? Configuration Types Type 3: PHP Configuration <?php class BeanCache extends bF_Beanfactory_Container_PHP_ACache { protected function createSampleDao() { $oBean = new SampleDao('app_sample', 'iSampleId', 'BoSample'); return array("oBean" => $oBean, "bSingleton" => "1"); } protected function createMySampleService() { $oBean = new MySampleService($this->getBean('SampleDao')); return array("oBean" => $oBean, "bSingleton" => "1"); } ?>
  21. 21. Agenda 1. What is Dependency Injection? 2. Real World examples 3. Pros & Cons 4. Questions
  22. 22. Real world examples "High-level modules should not depend on low-level modules. Both should depend on abstractions." Robert C. Martin
  23. 23. Real World examples Unittesting made easy <?php require_once 'PHPUnit/Framework.php'; class ServiceTest extends PHPUnit_Framework_TestCase { public function testSampleService() { $oSampleDao = $this->getMock('ISampleDao'); // run test case $oService = new MySampleService($oSampleDao); $bReturn = $oService->doWork(); // check assertions $this->assertTrue($bReturn); } } ?>
  24. 24. Real World examples One class, multiple configurations Implementation Live Working <?xml version="1.0" encoding="UTF-8" ?> <beans xmlns="http://www.bitexpert.de/schema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.bitexpert.de/schema/ http://www.bitexpert.de/schema/bitFramework-beans.xsd"> <bean id="ExportLive" class="MyApp_Service_ExportManager"> <constructor-arg ref="DAOPageLive" /> </bean> <bean id="ExportWorking" class="MyApp_Service_ExportManager"> <constructor-arg ref="DAOPageWorking" /> </bean> </beans>
  25. 25. Real World examples Mocking external services Consumer Connector Webservice IConnector interface <?xml version="1.0" encoding="UTF-8" ?> <beans xmlns="http://www.bitexpert.de/schema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.bitexpert.de/schema/ http://www.bitexpert.de/schema/bitFramework-beans.xsd"> <bean id="Consumer" class="MyApp_Service_Consumer"> <constructor-arg ref="Connector" /> </bean> </beans>
  26. 26. Real World examples Mocking external services alternative Local Consumer Connector filesystem IConnector interface <?xml version="1.0" encoding="UTF-8" ?> <beans xmlns="http://www.bitexpert.de/schema" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://www.bitexpert.de/schema/ http://www.bitexpert.de/schema/bitFramework-beans.xsd"> <bean id="Consumer" class="MyApp_Service_Consumer"> <constructor-arg ref="AltConnector" /> </bean> </beans>
  27. 27. Real World examples Clean, readable code <?php class Promio_Action_News_Delete extends bF_Mvc_Action_AAction { /** * @var Promio_Service_INewsManager */ private $oNewsManager; public function __construct(Promio_Service_INewsManager $poNewsManager) { $this->oNewsManager = $poNewsManager; } protected function execute(bF_Mvc_Request $poRequest) { try { $this->oNewsManager->delete((int) $poRequest->getVar('iNewsId')); } catch(bF_Service_ServiceException $oException) { } $oMaV = new bF_Mvc_ModelAndView($this->getSuccessView(), true); return $oMaV; } } ?>
  28. 28. Real World examples No framework dependency <?php class MySampleService implements IMySampleService { /** * @var ISampleDao */ private $oSampleDao; public function __construct(ISampleDao $poSampleDao) { $this->oSampleDao = $poSamleDao; } public function getSample($piSampleId) { try { return $this->oSampleDao->readByPrimaryKey((int) $piSampleId); } catch(DaoException $oException) { } } } ?>
  29. 29. Real World examples Cache, Cache, Cache! 180 160 140 120 100 80 60 40 20 0 XML no Caching XML with Caching PHP PHP compiled Requests per Second meassured via Apache HTTP server benchmarking tool
  30. 30. Agenda 1. What is Dependency Injection? 2. Real World Examples 3. Pros & Cons 4. Questions
  31. 31. Pros & Cons Benefits  Good for agile development  Reducing amount of code  Helpful for Unit testing  Loose coupling  Least intrusive mechanism  Switching implementations by changing configuration  Clean view on the code  Separate configuration from code  Getting rid of boilerpate configuration code
  32. 32. Pros & Cons Cons  To many different implementations, no standard today!  Bucket, Crafty, FLOW3, Imind_Context, PicoContainer, Pimple, Phemto, Stubbles, Symfony 2.0, Sphicy, Solar, Substrate, XJConf, Yadif, Zend_Di (Proposal), Lion Framework, Spiral Framework, Xyster Framework, …  No JSR 330 for PHP  Simple Containers vs. fully-stacked Framework  No dependency from application to Container!  Developers need to be aware of configuration ↔ runtime
  33. 33. Agenda 1. What is Dependency Injection? 2. Pros & Cons 3. Real World examples 4. Questions
