MySQL Labs :
Multi Source Replication

Shivji Kumar Jha,
Software Developer,
MySQL Replication Team

1

| Copyright © 2013...

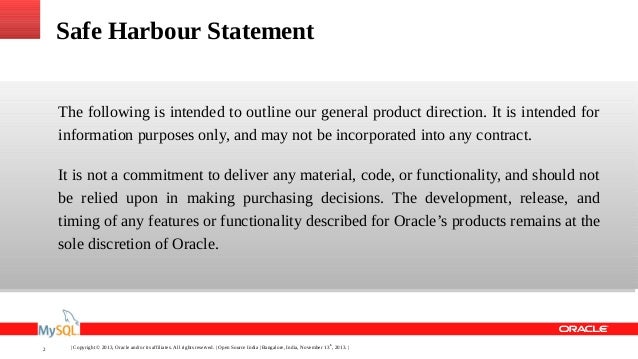

Safe Harbour Statement
The following is intended to outline our general product direction. It is intended for
information ...

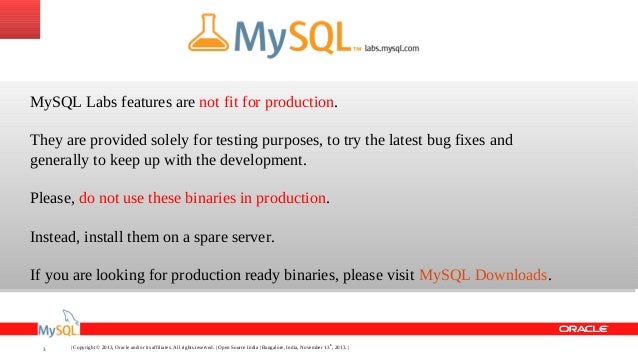

MySQL Labs features are not fit for production.
They are provided solely for testing purposes, to try the latest bug fixes...


Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...

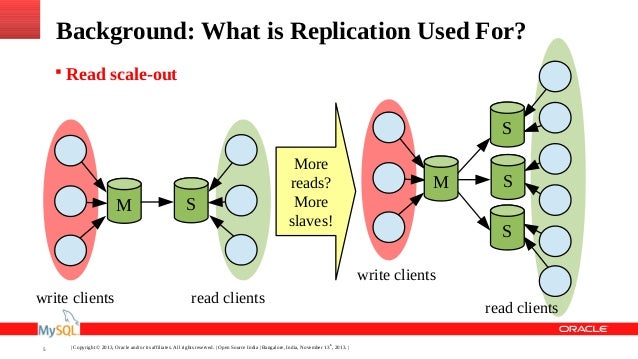

Background: What is Replication Used For?
 Read scale-out

S

M

S

More
reads?
More
slaves!

M

S
S

write clients
write...
What about Write scale-out?

M?
M

More
writes?
More
Masters?

M?
M?

write clients
Enter MySQL Fabric ...
6

| Copyright ...
Background: What is Replication Used For?

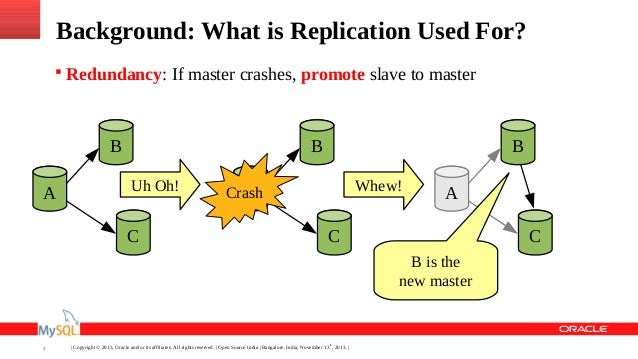

 Redundancy: If master crashes, promote slave to master

B
A

B
Uh Oh!

C

B
Wh...
Background: What is Replication Used For?

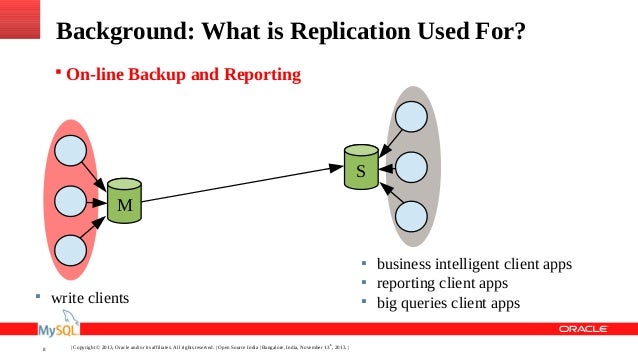

 On-line Backup and Reporting

S
M




write clients



8

| Copyright © 201...

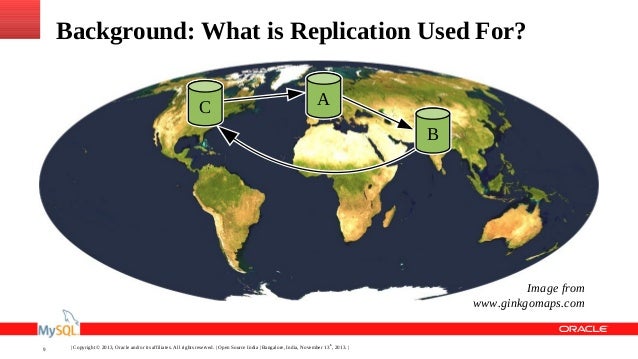

Background: What is Replication Used For?
A
C

A
B
B
C

Image from
www.ginkgomaps.com

9

| Copyright © 2013, Oracle and/o...


Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...
Multi-Source Replication: Introduction

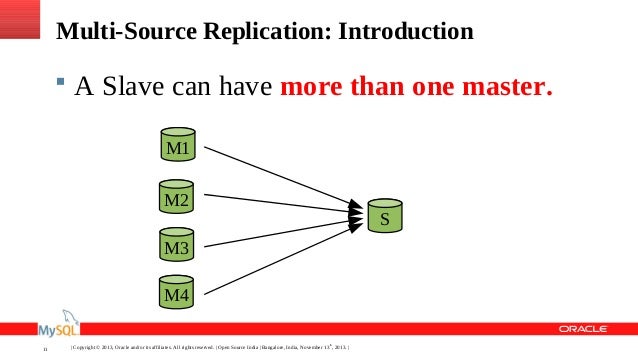

 A Slave can have more than one master.
M1
M2
M3
M4
11

| Copyright © 2013, Oracle...
Multi-Source Replication: Introduction
 A Slave can have more than one master.
db1

12

M1

| Copyright © 2013, Oracle an...
Multi-Source Replication: Introduction
 A Slave can have more than one master.
db1
db2

13

M1
M2

| Copyright © 2013, Or...

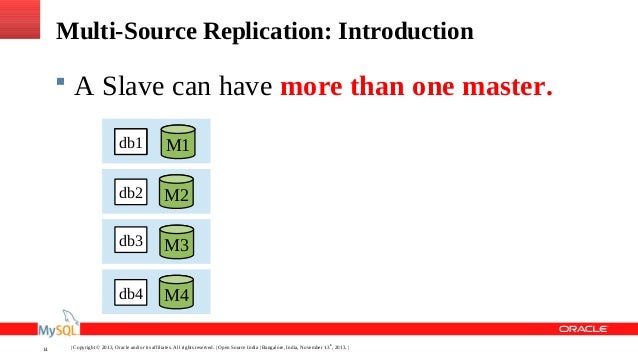

Multi-Source Replication: Introduction
 A Slave can have more than one master.
db1
db2

M2

db3

M3

db4

14

M1

M4

| C...

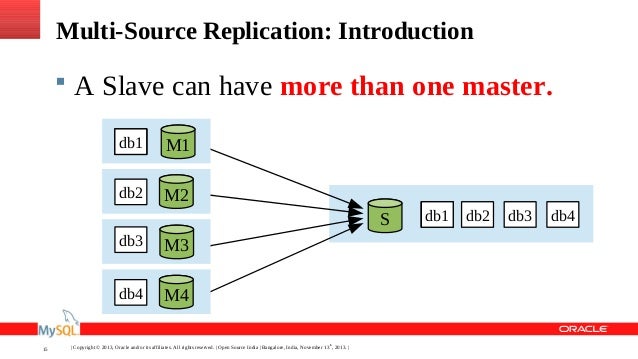

Multi-Source Replication: Introduction
 A Slave can have more than one master.
db1

M1

db2

M2
S

db3
db4

15

M3
M4

| ...


Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...

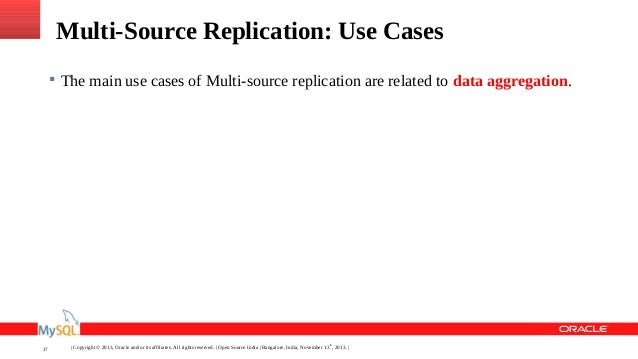

Multi-Source Replication: Use Cases
 The main use cases of Multi-source replication are related to data aggregation.

17
...
Multi-Source Replication: Use Cases
Database 1

M1
Database 2

Database 1, 2, 3

M2
Database 3

M3

18

| Copyright © 2013...
Multi-Source Replication: Use Cases
Shard 1

M
Shard 2

Full table

M
Shard 3

M

19

| Copyright © 2013, Oracle and/or it...


Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...
Multi-Source Replication: More details..
 Slave can have more than one

master.

M1

– Receive transactions from

several...
Multi-Source Replication: What is a Channel?
 A channel is an an abstraction for a sender-receiver-applier path.

Client
...

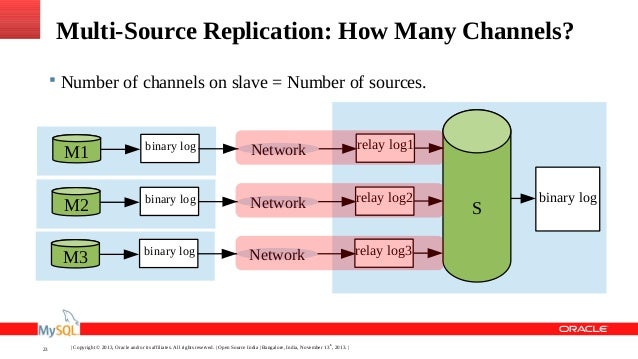

Multi-Source Replication: How Many Channels?
 Number of channels on slave = Number of sources.

M1

Network

relay log1

...
Multi-Source Replication: Slave Appliers
 Each channel has its own single-threaded slave applier.

M1

Network

relay log...

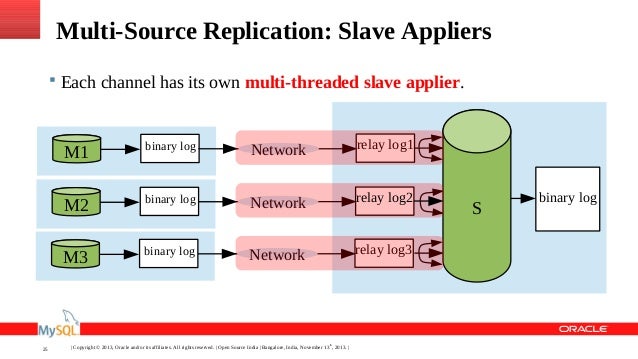

Multi-Source Replication: Slave Appliers
 Each channel has its own multi-threaded slave applier.

M1

Network

relay log1...

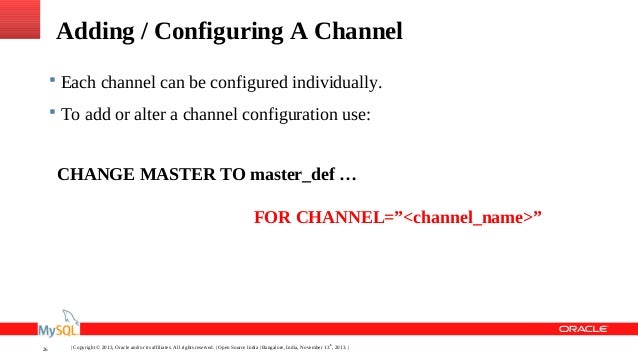

Adding / Configuring A Channel
 Each channel can be configured individually.
 To add or alter a channel configuration us...

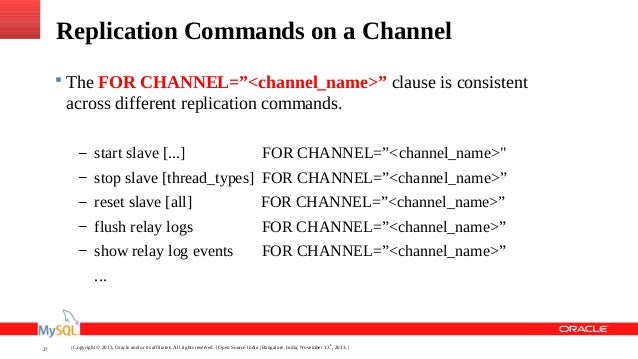

Replication Commands on a Channel
 The FOR CHANNEL=”<channel_name>” clause is consistent

across different replication co...

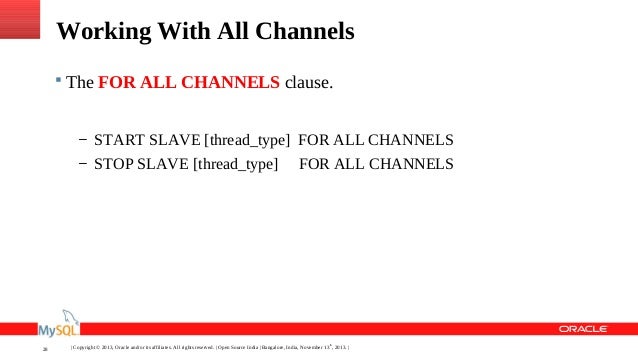

Working With All Channels
 The FOR ALL CHANNELS clause.

– START SLAVE [thread_type] FOR ALL CHANNELS
– STOP SLAVE [threa...
Compatibility With Other Replication Features
Multi-Threaded Slaves
Global Transaction Identifiers

Yes

Semi-Synchronous ...


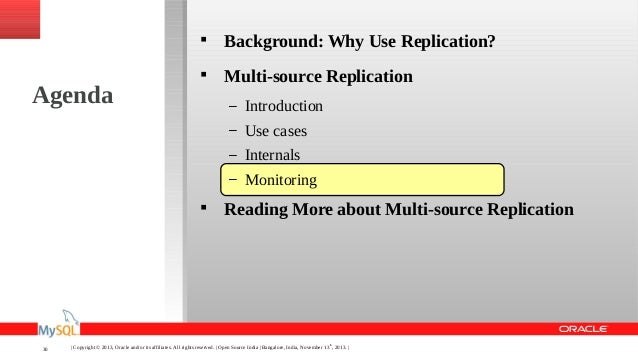

Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...
Replication Monitoring: P_S Replication Tables
Slave Status

Connection
Configuration

Connection
Status

Execution
Config...
Replication Monitoring: P_S Replication Tables

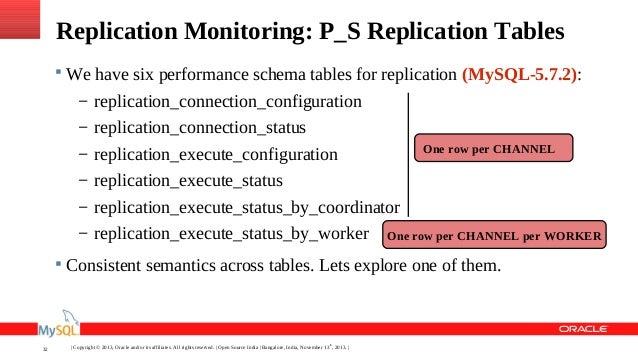

 We have six performance schema tables for replication (MySQL-5.7.2):
– re...

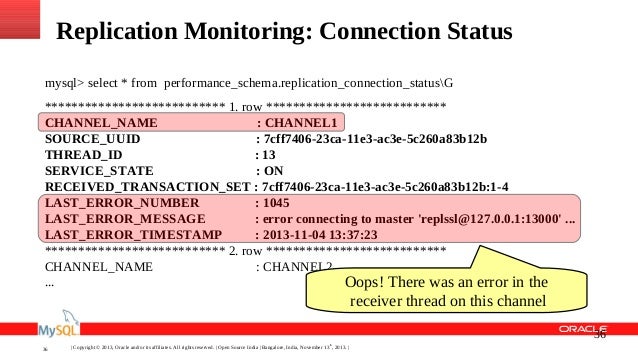

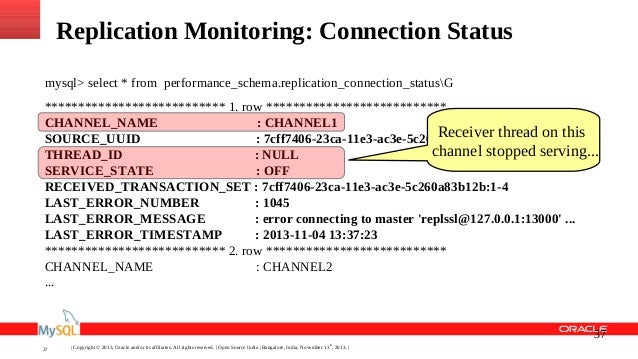

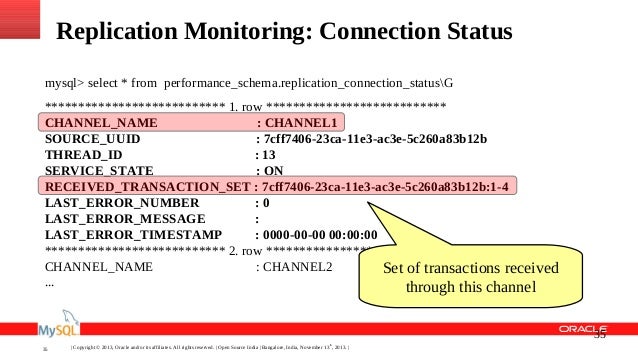

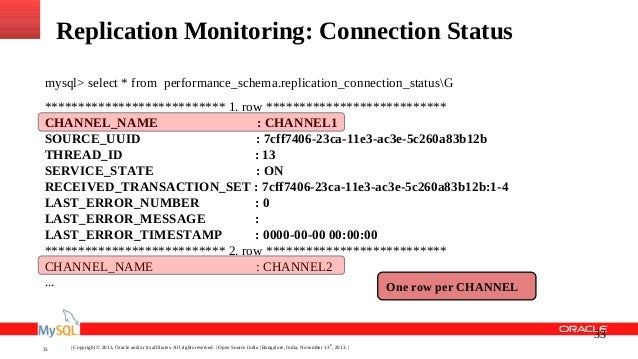

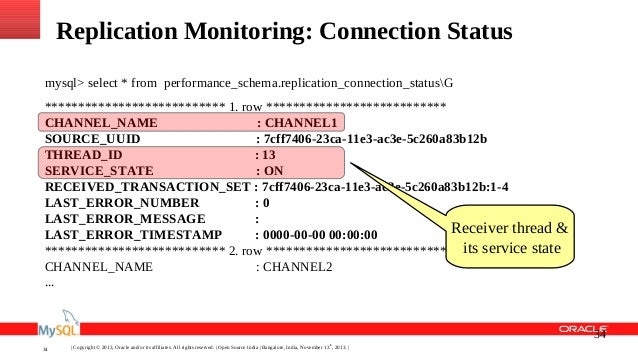

Replication Monitoring: Connection Status
mysql> select * from performance_schema.replication_connection_statusG
*********...
Replication Monitoring: Connection Status
mysql> select * from performance_schema.replication_connection_statusG
*********...
Replication Monitoring: Connection Status
mysql> select * from performance_schema.replication_connection_statusG
*********...
Replication Monitoring: Connection Status
mysql> select * from performance_schema.replication_connection_statusG
*********...
Replication Monitoring: Connection Status
mysql> select * from performance_schema.replication_connection_statusG
*********...


Agenda

Background: Why Use Replication?



Multi-source Replication
– Introduction
– Use cases
– Internals
– Monitori...

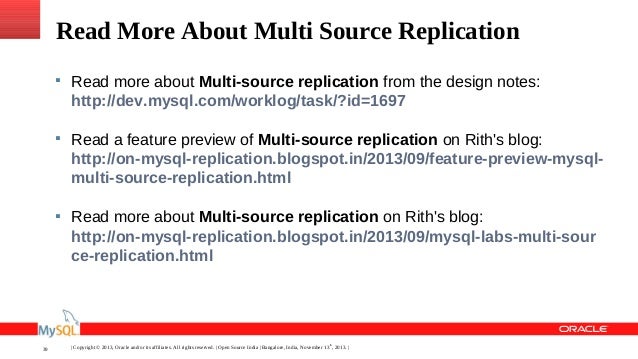

Read More About Multi Source Replication






39

Read more about Multi-source replication from the design notes:
http...
Read More About Multi Source Replication




40

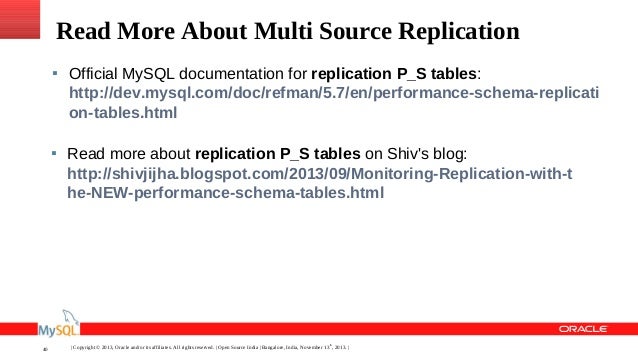

Official MySQL documentation for replication P_S tables:
http://dev.mys...
