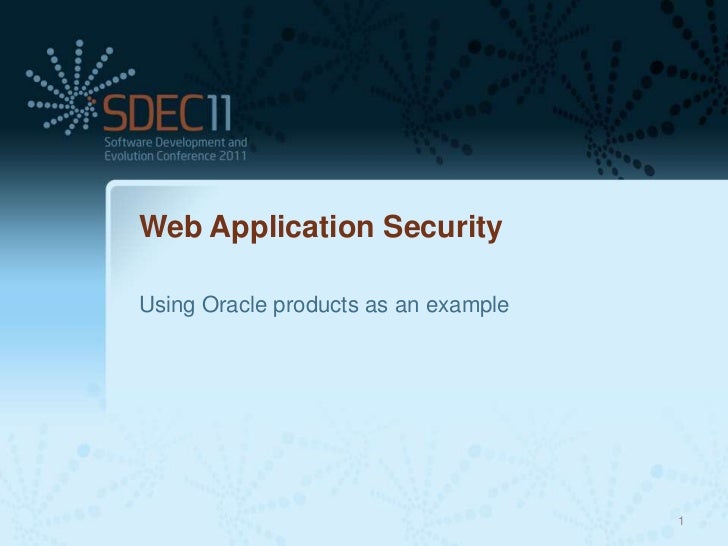

Web Application SecurityUsing Oracle products as an example                                      1
Syllabus• It seems that organizations are taking security more and  more seriously these days. One motivator is avoiding  ...
Setting the stage …• Who is in the audience? Which one are you?   • Architect   • Database Administrator (DBA)   • Develop...
What’s the big deal?  We have some challenges …• Technology is more susceptible and more complicated   • unwanted system a...
Legal stuff …• Legal questions can delay a project   • submit questions early as possible   • get feedback early as possib...
LEAN AgileManage         Did someone say something about         Security?                                           6
Web Application Architecture                               7
Step 1• www.TeenagerExpenses.mb.ca• Ask the Domain Name Server to provide a machine  readable address, call an Internet Pr...
Step 2• www.TeenagerExpenses.mb.ca = 233.168.324.234                                                 9
Step 3• Reverse Proxy (Oracle’s WebCache)   • Guard at the door into the architecture   • In the middle of the DMZ sandwic...
Step 4• The Web Application Server is the brains with all the  business logic --- it knows what to with the HTTP GET  requ...
Step 5• The server needs to first get a list of teenagers, and so,  get it from the server responsible for persisting  inf...
Step 6• Teenager Result Set:   • Raelene   • Jenna                         13
Step 7• Let’s send HTTP Response of HTML:  <Label>Teenager Name:</Label>  <SelectionBox> <Selection>Raelene</Selection>   ...
Step 8         15
Step 9         16
Web Application Architecture                               17
Web Application Architecture                               18
Audit Columns• Every table in the database include the following  columns:   •   A_CREATED_BY   •   A_CREATED_TIMESTAMP   ...
Web Application ArchitectureWe now going to concentrate on the Database.Will talk about:     • Virtual Private Databases  ...
Database Tables• TEENAGER    TEENAGER_ID      TEENAGER_NAME                  1 Raelene                  2 Jenna• EXPENSE  ...
Raelene is allowed to see this …• TEENAGER     TEENAGER_ID     TEENAGER_NAME                   1 Raelene                  ...
Jenna is allowed to see this …• TEENAGER     TEENAGER_ID     TEENAGER_NAME                   1 Raelene                   2...
A VPD• A Virtual Private Database (VPD) = restricts access on  horizontal slices• Oracle Label Security is an implementati...
Who can view/edit what data?• Label Security allows you to create a policy on the  TEENAGER_ID                        TEEN...
Database Tables with Label Security column added …• TEENAGER    TEENAGER_ID      TEENAGER_NAME                  1 Raelene ...
Jenna will get a different answer than Raelene and the Parents! • TEENAGERSELECT sum(amount)FROM EXPENSE        TEENAGER_I...
Jenna will get a different answer than Raelene and the Parents! • TEENAGERSELECT sum(amount)FROM EXPENSE        TEENAGER_I...
Parents type in … • TEENAGERSELECT sum(amount)FROM EXPENSE        TEENAGER_ID     TEENAGER_NAME                      1 Rae...
… and this what happens under the covers: • TEENAGERSELECT sum(amount)FROM EXPENSE        TEENAGER_ID      TEENAGER_NAME  ...
DBMS Triggers are used for INSERTs and UPDATEs  • TEENAGERINSERT (TEENAGER_ID, DETAILS, AMOUNT, DATE)VALUES (2,        TEE...
Label Security can have up to 3 groupings                       TEENAGER                         _ID = 1 100             E...
Take a break …• A story about University …                               33
Web Application Architecture                               34
LDAPOracle OAM & OID• LDAP = Lightweight Directory Access Protocol• Oracle Internet Directory is an implementation of  dir...
Oracle LDAP ComponentsAll the “green” servers support the LDAP responsibilities. Oracle Access Manager(OAM) is the main in...
Web Application ArchitectureHow the LDAP interacts with the Web Application Server?                                       ...
Oracle LDAP Interfaces                         38
Web Application Architecture                               39
Simplified Web Application Architecture                                          40
Simplified Web Application Architecture• HTTP Server – Oracle’s MOD_OC4J• Web Application Container – Oracle’s OC4J … and ...
Web Server interactions with LDAP The “Happy Path” …The Browser makes a HTTP Request, via interaction #1.The HTTP Server l...
Web Server interactions with LDAP The “Happy Path” continued …In this “Happy Path” scenario the user has alreadyauthentica...
Web Server interactions with LDAP The “Happy Path” continued …The authorization rules are enforced in two different places...
Authorization and Role-based Security                                        45
Web Server interactions with LDAP The “Happy Path” continued …The authorization rules are enforced in two different places...
Authorization and Role-based Security       User    –       Role   –      Feature• Can be tricky. Can’t control the number...
Authorization and Role-based Security       User    –       Role   –      Feature• Can be tricky. Can’t control the number...
Authorization and Role-based Security• Features – Pick the number of features wisely, keep  them to a minimum and understa...
Web Server interactions with LDAP The “Unhappy Path” …The “unhappy” path is one where the user has not loggedin yet. The W...
Web Server interactions with LDAP Log out …Your web applications will point to a logout page in the SSOapplication. It can...
Web Application Architecture The Report Server                               52
Oracle BI Publisher Report Server• It has its own built-in security that doesn’t work directly  with OAM – Read up on how ...
Web Application Architecture  Database connections                               54
Database Connections• Perform adequate performance tests on this interactions• Because we implemented a VPD at a low level...
(If we have time …)1. Creating a log of access – find out if one is needed   early in the project2. Web Analytics – find o...
Web Application SecurityUsing Oracle products as an example        By: Jonathan Wagner, October 2011        jwagner@proteg...
