Maps, mashups and metadata:geospatial standards for access and retrieval

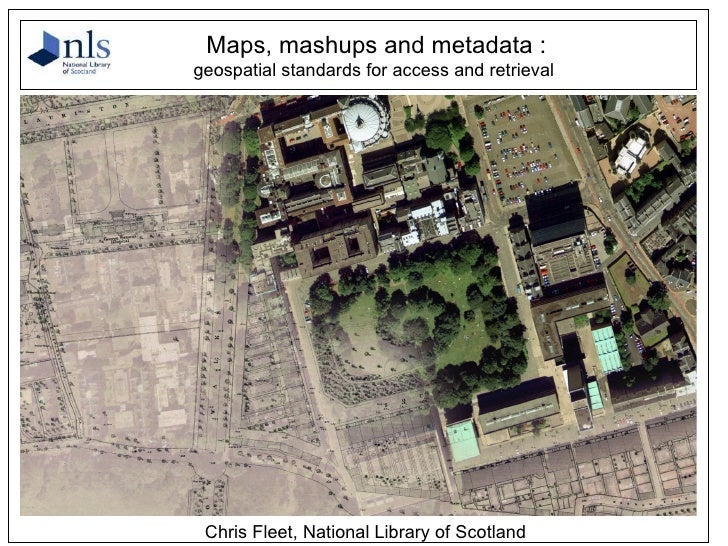

  1. 1. Chris Fleet, National Library of Scotland <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  2. 2. <ul><li>Geo 2.0 - geospatial applications and data </li></ul><ul><li>Organisations </li></ul><ul><li>Standards Web Map Service Tile Map Service </li></ul><ul><li>Retrieving geo-referenced mapping - selected examples </li></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  3. 3. 1843 mapping mashups (January 2009) http://www.programmableweb.com/tag/mapping
  4. 4. Everything 2.0 - 273 Geo 2.0 initiatives http://bobstumpel.blogspot.com/search/label/GEO 2.0
  5. 5. 2. Open source spatial organisations The Open Geospatial Consortium (OGC) - an international consortium of companies, government agencies and universities who collaborate to develop publicly available interface specifications. eg. Web Map Service. ( www.opengeospatial.org ) The Open Source Geospatial Foundation, or OSGeo , is a not-for-profit organisation whose mission is to support and promote the collaborative development of open geospatial technologies and data. eg. Tile Map Service. OpenLayers (openlayers.org) (www.osgeo.org ) <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  6. 6. <ul><li>3. Standards </li></ul><ul><li>OGC’s Web Map Service </li></ul><ul><ul><li>(www.opengeospatial.org/standards/wms) </li></ul></ul><ul><li>OSGeo’s Tile Map Service </li></ul><ul><ul><li>(wiki.osgeo.org/wiki/Tile_Map_Service_Specification) </li></ul></ul><ul><li>KML (Keyhole Markup Language) </li></ul><ul><ul><li>(code.google.com/apis/kml/documentation/) </li></ul></ul><ul><li>Javascript / AJAX </li></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  7. 7. 3. Standards - OGC’s Web Map Service WMS defines standard protocols for requesting geo-referenced mapping as a URL string: http://geo.nls.uk/wmsconnector/com.esri.wms.Esrimap?SERVICE=WMS &VERSION=1.1.1 &REQUEST=GetMap &LAYERS=Scotland_Small,OS_Quarter,Bart_Half,OS_Popular &STYLES= &SRS=EPSG:4326 &BBOX= -9.25805308169, 54.4515932002, -0.605194997975, 60.8904036625 &WIDTH=900 &HEIGHT=900 &FORMAT=image/png &reaspect=false <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  8. 8. <ul><li>3. Standards - OGC’s Web Map Service </li></ul><ul><li>The Google maps API can easily display an overlay through WMS requests: </li></ul><ul><ul><li> // WMS Server address </li></ul></ul><ul><ul><li>var WMS_NLS = 'http://geo.nls.uk:80/wmsconnector/com.esri.wms.Esrimap?';                 // Create WMSSpec var NLS = createWMSSpec(WMS_NLS, 'NLS', 'NLS', 'Scotland_Small,OS_Quarter,Bart_Half,OS_Popular,36,37,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,67,55,56,58,59,60,61,62,63,64,65,66,36,57,68,69,70', 'default','image/jpeg', &quot;1.1.1&quot;);                 // Create a transparent overlay on a Google MapSpec var G_MAP_NLS = createWMSOverlaySpec(G_NORMAL_MAP, NLS, &quot;Historic&quot;, &quot;Historic&quot;);                 // var map = new GMap(document.getElementById(&quot;map&quot;), mapSpecs); map.addMapType(G_MAP_NLS); </li></ul></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  9. 9. NLS WMS delivering 1930s historical mapping: (geo.nls.uk/os6inch/google.html)
  10. 15. Gazetteer for Scotland – mashup using NLS’ Web Map Service layers (www.geo.ed.ac.uk/scotgaz/gaztitle.html)
  11. 16. 3. Standards - OSGeo’s Tile Map Service Much faster results by pre-creating tiles using the Tile Map Service <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  12. 17. (www.maptiler.org/google-maps-coordinates-tile-bounds-projection/)
  13. 18. Tiles of Bartholomew half-inch and OS Popular edition 1930s mosaics http://geo.nls.uk/maps/small/7/62/88.png
  14. 19. 3. Standards - OSGeo’s Tile Map Service Much faster results by pre-creating tiles using the Tile Map Service Format: server-and-url/zoom/x/y.png eg. http://geo.nls.uk/maps/11/1092/1397.png Javascript in Google maps file: var tilelayer = new GTileLayer(GCopyrightCollection(''), mapMinZoom, mapMaxZoom); var mercator = new GMercatorProjection(mapMaxZoom+1); tilelayer.getTileUrl = function(tile,zoom) { if ((zoom < mapMinZoom) || (zoom > mapMaxZoom)) { return &quot;/img/none.png&quot;; } var ymax = 1 << zoom; var y = ymax - tile.y -1; var tileBounds = new GLatLngBounds( mercator.fromPixelToLatLng( new GPoint( (tile.x)*256, (tile.y+1)*256 ) , zoom ), mercator.fromPixelToLatLng( new GPoint( (tile.x+1)*256, (tile.y)*256 ) , zoom ) ); if (mapBounds.intersects(tileBounds)) { return zoom+&quot;/&quot;+tile.x+&quot;/&quot;+y+&quot;.png&quot;; } else { return &quot;/img/none.png&quot;; } } <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  15. 20. MapTiler - open source overlay generator (www.maptiler.org/)
  16. 21. MapCruncher – map geo-referencing and tiling tool (research.microsoft.com/en-us/um/redmond/projects/mapcruncher/)
  17. 22. (geo.nls.uk/maps/glasgow1857/openlayers.html)
  18. 23. Landscape, Environment & History MSc course – Edinburgh University Google maps mashup with historical NLS maps of Edinburgh
  19. 26. (geo.nls.uk/maps/newpopular/google.html)
  20. 27. (geo.nls.uk/maps/lomond_gdal/googlemaps.html)
  21. 30. <ul><li>4. Retrieving geo-referenced mapping – selected examples </li></ul><ul><ul><li>Geo-referenced MARC authority records </li></ul></ul><ul><ul><li>DIGMAP </li></ul></ul><ul><ul><li>Geo-referenced source mapping </li></ul></ul><ul><ul><li>WMS Get Capabilities and TMS tilemapresource.xml </li></ul></ul><ul><ul><li>MapSynthesizer </li></ul></ul><ul><ul><li>CygNUS </li></ul></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  22. 31.   USERS INFORMATION indexed database records - locations Gazetteers - eg. addresses - burghs placenames - parishes counties counties postcodes geo-referenced historical maps Maps - zoomable geographic Catalogue subject headings interface etc. / auto-geo-referencing (current and historical maps) Geographical Co-ordinates Eg. Points or Regions   Geo-referenced search and retrieval using co-ordinates
  23. 32. <ul><li>4. Retrieving geo-referenced mapping </li></ul><ul><li> Geo-referenced MARC authority records </li></ul><ul><ul><li>4.1. Authority records for Minnesota </li></ul></ul><ul><ul><li>Authority record for Minnesota: n 79021675 </li></ul></ul><ul><ul><li>035 -- ‡a (OCoLC)oca00255473 </li></ul></ul><ul><ul><li>040 -- ‡a DLC ‡b eng ‡c DLC ‡d DLC ‡d WaU </li></ul></ul><ul><ul><li>043 -- ‡a n-us-mn </li></ul></ul><ul><ul><li>151 -- ‡a Minnesota </li></ul></ul><ul><ul><li>667 -- ‡a AACR 1 form: Minnesota. </li></ul></ul><ul><ul><li>781 -0 ‡z Minnesota </li></ul></ul><ul><ul><li>034 for the bounding box would be: </li></ul></ul><ul><ul><li>034 -- ‡d W097.5000 ‡e W089.0000 ‡f N049.5000 ‡g N043.0000 $2 [code for Minnesota </li></ul></ul><ul><ul><li>Geographic Data Clearinghouse] </li></ul></ul><ul><ul><li>Authority record for Todd County, Minn.: 81093353 </li></ul></ul><ul><ul><li>035 -- ‡a (OCoLC)oca00638538 </li></ul></ul><ul><ul><li>040 -- ‡a DLC ‡b eng ‡c DLC ‡d WaU </li></ul></ul><ul><ul><li>043 -- ‡a n-us-mn </li></ul></ul><ul><ul><li>151 -- ‡a Todd County (Minn.) </li></ul></ul><ul><ul><li>451 -- ‡w nnaa ‡a Todd Co., Minn. </li></ul></ul><ul><ul><li>781 -0 ‡z Minnesota ‡z Todd County </li></ul></ul><ul><ul><li>034 for the bounding box would be: </li></ul></ul><ul><ul><li>034 -- ‡d W095.1400 ‡e W094.6500 ‡f N046.3800 ‡g N045.7600 $2 [code for Minnesota </li></ul></ul><ul><ul><li>Geographic Data Clearinghouse] </li></ul></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  24. 33. DIGMAP Project - Discovering our Past World with Digitised Maps eContentplus Project: 2005-8 (portal.digmap.eu/)
  25. 37. <ul><li>4. Retrieving geo-referenced mapping – selected examples </li></ul><ul><ul><li>Geo-referenced MARC authority records </li></ul></ul><ul><ul><li>DIGMAP </li></ul></ul><ul><ul><li>Geo-referenced source mapping </li></ul></ul><ul><ul><li>WMS Get Capabilities and TMS tilemapresource.xml </li></ul></ul><ul><ul><li>MapSynthesizer </li></ul></ul><ul><ul><li>CygNUS </li></ul></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  26. 44. 4. Retrieving geo-referenced mapping - WMS GetCapabilities eg. http://geo.nls.uk/wmsconnector/com.esri.wms.Esrimap/NLS?Request=GetCapabilities <?xml version=&quot;1.0&quot; encoding=&quot;UTF-8&quot;?> <!DOCTYPE WMT_MS_Capabilities SYSTEM &quot;http://schemas.opengis.net/wms/1.1.1/WMS_MS_Capabilities.dtd&quot;> <WMT_MS_Capabilities version=&quot;1.1.1&quot;> <Service> <Name>OGC:WMS</Name> <Title>Web Map Service NLS</Title> <Abstract>ArcIMS 9.2.0 NLS Web Map Service</Abstract> <KeywordList> <Keyword>ArcIMS</Keyword> </KeywordList> <OnlineResource xmlns:xlink=&quot;http://www.w3.org/1999/xlink&quot; xlink:href=&quot;http://193.130.15.4:80/wmsconnector/com.esri.wms.Esrimap/NLS?&quot; xlink:type=&quot;simple&quot;/> cont… <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  27. 45. 4. Retrieving geo-referenced mapping - WMS GetCapabilities <ContactInformation> <ContactPersonPrimary> <ContactPerson/> <ContactOrganization/> </ContactPersonPrimary> <ContactPosition/> <ContactAddress> <AddressType>postal</AddressType> <Address/> <City/> <StateOrProvince/> <PostCode/> <Country/> </ContactAddress> <ContactVoiceTelephone/> <ContactFacsimileTelephone/> <ContactElectronicMailAddress/> </ContactInformation> <Fees>none</Fees> cont… <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  28. 46. 4. Retrieving geo-referenced mapping - WMS GetCapabilities <Name>0</Name> <Title>Mini</Title> <SRS>EPSG:4326</SRS> <LatLonBoundingBox minx=&quot;-9.4974214273&quot; miny=&quot;49.7666002469&quot; maxx=&quot;3.6338914748&quot; maxy=&quot;61.5821267789&quot;/> </Layer> <Name>1</Name> <Title>Scotland_Small</Title> <SRS>EPSG:4326</SRS> <LatLonBoundingBox minx=&quot;-8.8991773696&quot; miny=&quot;54.3197736752&quot; maxx=&quot;-0.0406149313&quot; maxy=&quot;61.0333698894&quot;/> </Layer> cont… <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  29. 47. 4. Retrieving geo-referenced mapping – TMS tilemapresource.xml   <?xml version=&quot;1.0&quot; encoding=&quot;utf-8&quot; ?> <TileMap version=&quot; 1.0.0 &quot; tilemapservice=&quot; http://tms.osgeo.org/1.0.0 &quot;>   <Title> Ordnance Survey 1:1056 Town Plan of Edinburgh mosaic, 1876-7 </Title>   <Abstract />   <SRS> EPSG:900913 </SRS>   <BoundingBox minx=&quot; 55.92116542336204 &quot; miny=&quot; -3.24989585974644 &quot; maxx=&quot; 55.99966056322133 &quot; maxy=&quot; -3.12835862947301 &quot; />   <Origin x=&quot; 55.92116542336204 &quot; y=&quot; -3.24989585974644 &quot; />   <TileFormat width=&quot; 256 &quot; height=&quot; 256 &quot; mime-type=&quot; image/png &quot; extension=&quot; png &quot; /> <TileSets profile=&quot; mercator &quot;>   <TileSet href=&quot; 11 &quot; units-per-pixel=&quot; 292.45173230329510 &quot; order=&quot; 11 &quot; />   <TileSet href=&quot; 12 &quot; units-per-pixel=&quot; 584.90346460659021 &quot; order=&quot; 12 &quot; />   <TileSet href=&quot; 13 &quot; units-per-pixel=&quot; 1169.80692921318040 &quot; order=&quot; 13 &quot; />   <TileSet href=&quot; 14 &quot; units-per-pixel=&quot; 2339.61385842636080 &quot; order=&quot; 14 &quot; />   <TileSet href=&quot; 15 &quot; units-per-pixel=&quot; 4679.22771685272160 &quot; order=&quot; 15 &quot; />   <TileSet href=&quot; 16 &quot; units-per-pixel=&quot; 9358.45543370544330 &quot; order=&quot; 16 &quot; />   <TileSet href=&quot; 17 &quot; units-per-pixel=&quot; 18716.91086741088700 &quot; order=&quot; 17 &quot; />   <TileSet href=&quot; 18 &quot; units-per-pixel=&quot; 37433.82173482177300 &quot; order=&quot; 18 &quot; />   <TileSet href=&quot; 19 &quot; units-per-pixel=&quot; 74867.64346964354600 &quot; order=&quot; 19 &quot; />   <TileSet href=&quot; 20 &quot; units-per-pixel=&quot; 149735.28693928709000 &quot; order=&quot; 20 &quot; />   </TileSets>   </TileMap> <ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  30. 48. MapSynthesizer “a prototype user interface for browsing, searching, and discovering information in a world with millions of maps online” (research.microsoft.com/en-us/um/people/jelson/mapcruncher/mapsynthesizer/)
  31. 49. ‘ Connecting Your Geographies’ (CYGnus) Project - “Getting beyond the silos”
  32. 50. ‘ Connecting Your Geographies’ (CYGnus) Project - Technical Overview http://maps.google.com/maps?q=http://cygnus.geos.ed.ac.uk/cgi_bin/cygnus.pl?CRS=EN%26x=326760%26y=672785%26sg=400%26grm=1000%26hs=150%26rcahms=150%26nls=100%26par=100
  33. 54. <ul><li>4. Retrieving geo-referenced mapping – GeoTIFF metadata </li></ul><ul><ul><li>Driver: GTiff/GeoTIFF </li></ul></ul><ul><ul><li>Files: c:Lomond_S_export.tif </li></ul></ul><ul><ul><li>Size is 6643, 7930 </li></ul></ul><ul><ul><li>Coordinate System is: </li></ul></ul><ul><ul><li>PROJCS[&quot; Projection Name = Transverse Mercator Units = meters GeoTIFF Units = meters&quot;, </li></ul></ul><ul><ul><li>GEOGCS[&quot;OSGB 1936&quot;, </li></ul></ul><ul><ul><li>DATUM[&quot;OSGB_1936&quot;, </li></ul></ul><ul><ul><li>SPHEROID[&quot;Airy 1830&quot;,6377563.396,299.3249646000044, </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;7001&quot;]], </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;6277&quot;]], </li></ul></ul><ul><ul><li>PRIMEM[&quot;Greenwich&quot;,0], </li></ul></ul><ul><ul><li>UNIT[&quot;degree&quot;,0.0174532925199433], </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;4277&quot;]], </li></ul></ul><ul><ul><li>PROJECTION[&quot;Transverse_Mercator&quot;], </li></ul></ul><ul><ul><li>PARAMETER[&quot;latitude_of_origin&quot;,49], </li></ul></ul><ul><ul><li>PARAMETER[&quot;central_meridian&quot;,-2], </li></ul></ul><ul><ul><li>PARAMETER[&quot;scale_factor&quot;,0.999601272], </li></ul></ul><ul><ul><li>PARAMETER[&quot;false_easting&quot;,400000], </li></ul></ul><ul><ul><li>PARAMETER[&quot;false_northing&quot;,-100000], </li></ul></ul><ul><ul><li>UNIT[&quot;metre&quot;,1, </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;9001&quot;]]] </li></ul></ul><ul><ul><li>Origin = (228721.187000000010000,701502.853000000000000) </li></ul></ul><ul><ul><li>Pixel Size = (3.000000000000000,-3.000000000000000) </li></ul></ul><ul><ul><li>Metadata: </li></ul></ul><ul><ul><li>AREA_OR_POINT=Area </li></ul></ul><ul><ul><li>TIFFTAG_SOFTWARE=IMAGINE TIFF Support </li></ul></ul><ul><ul><li>Copyright 1991 - 1999 by ERDAS, Inc. All Rights Reserved </li></ul></ul><ul><ul><li>@(#)$RCSfile: etif.c $ $Revision: 1.10.1.9.1.9.2.11 $ $Date: 2004/09/15 18:42:01EDT $ </li></ul></ul><ul><ul><li>TIFFTAG_XRESOLUTION=1 </li></ul></ul><ul><ul><li>TIFFTAG_YRESOLUTION=1 </li></ul></ul><ul><ul><li>TIFFTAG_RESOLUTIONUNIT=1 (unitless) </li></ul></ul><ul><ul><li>Image Structure Metadata: </li></ul></ul><ul><ul><li>INTERLEAVE=PIXEL </li></ul></ul><ul><ul><li>Corner Coordinates: </li></ul></ul><ul><ul><li>Upper Left ( 228721.187, 701502.853) ( 4d45'34.02&quot;W, 56d10'31.42&quot;N) </li></ul></ul><ul><ul><li>Lower Left ( 228721.187, 677712.853) ( 4d44'39.21&quot;W, 55d57'42.74&quot;N) </li></ul></ul><ul><ul><li>Upper Right ( 248650.187, 701502.853) ( 4d26'19.41&quot;W, 56d10'55.71&quot;N) </li></ul></ul><ul><ul><li>Lower Right ( 248650.187, 677712.853) ( 4d25'30.96&quot;W, 55d58'6.83&quot;N) </li></ul></ul><ul><ul><li>Center ( 238685.687, 689607.853) ( 4d35'30.87&quot;W, 56d 4'19.55&quot;N) </li></ul></ul><ul><ul><li>Band 1 Block=64x64 Type=Byte, ColorInterp=Red </li></ul></ul><ul><ul><li>Band 2 Block=64x64 Type=Byte, ColorInterp=Green </li></ul></ul><ul><ul><li>Band 3 Block=64x64 Type=Byte, ColorInterp=Blue </li></ul></ul><ul><ul><li>Maps, mashups and metadata : </li></ul></ul><ul><ul><li>geospatial standards for access and retrieval </li></ul></ul>
  34. 55. Geo-referenced map information - GeoTIFF coordinates WMS TMS Mashup Future standards ? Prioritise long-term geo-referenced map information for multiple outputs <ul><ul><li>Driver: GTiff/GeoTIFF </li></ul></ul><ul><ul><li>Files: c:Lomond_S_export.tif </li></ul></ul><ul><ul><li>Size is 6643, 7930 </li></ul></ul><ul><ul><li>Coordinate System is: </li></ul></ul><ul><ul><li>PROJCS[&quot; Projection Name = Transverse Mercator Units = meters GeoTIFF Units = meters&quot;, </li></ul></ul><ul><ul><li>GEOGCS[&quot;OSGB 1936&quot;, </li></ul></ul><ul><ul><li>DATUM[&quot;OSGB_1936&quot;, </li></ul></ul><ul><ul><li>SPHEROID[&quot;Airy 1830&quot;,6377563.396,299.3249646000044, </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;7001&quot;]], </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;6277&quot;]], </li></ul></ul><ul><ul><li>PRIMEM[&quot;Greenwich&quot;,0], </li></ul></ul><ul><ul><li>UNIT[&quot;degree&quot;,0.0174532925199433], </li></ul></ul><ul><ul><li>AUTHORITY[&quot;EPSG&quot;,&quot;4277&quot;]], </li></ul></ul><ul><ul><li>etc.! </li></ul></ul>
  35. 56. NLS Historical Map Overlays (geo.nls.uk/maps)

×
