Terrastore - A document database for developers

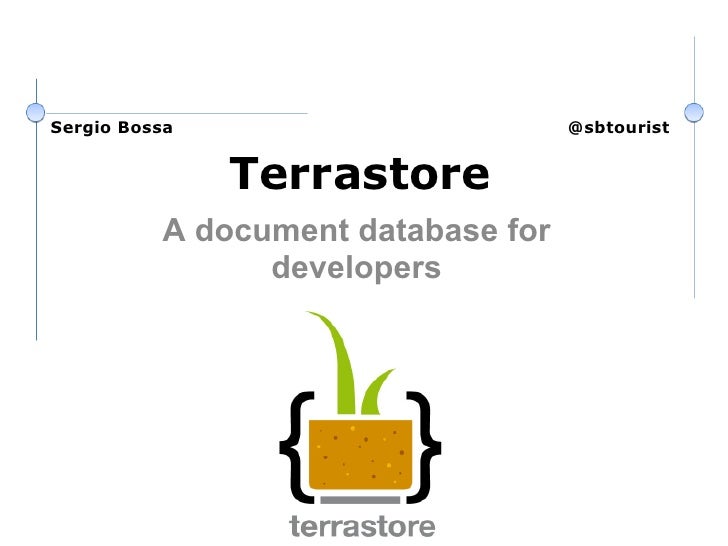

  1. 1. Sergio Bossa @sbtourist Terrastore A document database for developers
  2. 2. About Me Software architect and engineer Gioco Digitale (online gambling and casinos). Long time open source enthusiast and contributor Spring. Taconite. Terracotta. Actorom, Terrastore ... (Micro)-Blogger http://twitter.com/sbtourist http://sbtourist.blogspot.com
  3. 3. NOSQL ... what? 1998 Just a tiny non-relational database. 2009 Non-relational databases as a replacement for relational ones? Nowadays ... Not Only SQL. Use the right tool for your job.
  4. 4. NOSQL ... why? When you're in troubles with ... Data Model. Relational mismatch. Variable schema. Data Access Patterns. Expensive joins. Denormalized data. Scalability. More data. More processing.
  5. 5. No SQL, Yes ... ? Heterogeneity. Key/Value based. Voldemort. Document based. MongoDB. Riak. Terrastore. Column based. Cassandra. HBase. Graph based. Neo4J.
  6. 6. Terrastore! Document Store. Ubiquitous. Consistent. Distributed. Scalable. Written in Java. Based on Terracotta. Open Source. Apache-licensed.
  7. 7. Your data, your documents { "name" : "Sergio", "surname" : "Bossa", "twitter" : "@sbtourist" }
  8. 8. Access everywhere
  9. 9. Keep consistent
  10. 10. Distribute as a single cluster
  11. 11. Distribute as multiple clusters
  12. 12. But ... Why Terrastore?!?!
  13. 13. Make ...
  14. 14. Simple things easy
  15. 15. Complex things possible ( almost ;)
  16. 16. Get started in seconds One command installation and startup ... $> ant -f terrastore-install.xml quickstart -Dquickstart.dir=...
  17. 17. Easy installation Master: $> ant -f terrastore-install.xml single-master -Dmaster.server.port 9510 -Dinstall.dir=... Server: $> ant -f terrastore-install.xml server -Dinstall.dir=...
  18. 18. No complex configuration Master: $master>./start.sh Server: $server>./start.sh --master --httpHost --httpPort --nodeHost --nodePort ...
  19. 19. No impedence mismatch Java: public class Character { private String name; private List<Character> friends; private List<Character> foes; // ... } Json: {"name" : "Spider-man", "friends" : [{"name" : "Iceman"}] "foes" : [{"name" : "Kingpin"}]}
  20. 20. Simple basic operations Put documents in buckets ... PUT /bucket/key Content-Type: application/json {...} Get documents from buckets ... GET /bucket/key Content-Type: application/json {...}
  21. 21. Range queries Find documents in bucket with keys in a given range ... GET /bucket/range?comparator=comparator_name& startKey=start_key& endKey=end_key& timeToLive=max_age Content-Type: application/json {...}
  22. 22. Built-in comparators Lexicographical Ascendant. Descendant. Numerical. Ascendant. Descendant.
  23. 23. What if ... custom comparators? @AutoDetect(name="my-comparator") public class MyComparator implements terrastore.store.operators.Comparator { public int compare(String key1, String key2) { // ... } }
  24. 24. Predicate queries Find documents in bucket satisfying a given predicate condition ... GET /bucket/predicate? predicate=type:expression Content-Type: application/json {...}
  25. 25. Conditional put/get Conditionally put documents in buckets ... PUT /bucket/key? predicate=type:expression Content-Type: application/json {...} Conditionally get documents from buckets ... GET /bucket/key? predicate=type:expression Content-Type: application/json {...}
  26. 26. Built-in predicate conditions JXPapth Based on X-Path. Find people whose name is 'Sergio': jxpath:/name[.='Sergio'] JavaScript Applies a JavaScript-like condition. Find people whose name is 'Sergio': js:value.name=='Sergio'
  27. 27. What if ... custom conditions? @AutoDetect(name="my-condition") public class MyCondition implements terrastore.store.operators.Condition { public boolean isSatisfied(String key, Map<String, Object> value, String expression) { // ... } }
  28. 28. Server-side updates Atomically execute complex updates to a document ... PUT /bucket/key/update?function=function_name& timeout=timeout_value Content-Type: application/json {...}
  29. 29. Built-in update functions Atomic Counters Atomically increment/decrement/set-up one or more counters. Merge Merge the stored document with provided values. JavaScript custom update Update the stored document by executing a user- provided javascript function.
  30. 30. What if ... custom functions? @AutoDetect(name="my-function") public class MyFunction implements terrastore.store.operators.Function { public Map<String, Object> apply(String key, Map<String, Object> value, Map<String, Object> parameters) { // ... } }
  31. 31. Easy scale-out A command line parameter: $server>./start.sh --master --ensemble And a json configuration file: { "localCluster" : "apple", "discoveryInterval" : 5000, "clusters" : ["apple", "orange"], "seeds" : {"orange" : "192.168.1.2:6001"} }
  32. 32. DSL-like Java APIs Fluent APIs. Http-based. Transparent (yet configurable) object conversion. // Create client: TerrastoreClient client = new TerrastoreClient("http://localhost:8080", new HTTPConnectionFactory()); // Create object: Person sbtourist = new Person("Sergio Bossa”, "sbtourist") // Put: client.bucket("people").key("1").put(person); // Get: sbtourist = client.bucket("people").key("1").get(Person.class);
  33. 33. Support for other languages Clojure http://github.com/sbtourist/terrastore-cloj Python http://dnene.bitbucket.org/docs/pyterrastore Scala http://github.com/ssuravarapu/Terrastore-Scala-Client http://github.com/teigen/terrastore-scala Easy to add more!
  34. 34. Pure Javascript Web Console
  35. 35. More! Backup Import/export documents to/from buckets. Events management Get notified of document updates. Third-party products integration. Write-behind. ActiveMQ integration for higher reliability. Custom data partitioning Retain control of where your data is placed. Indexing and searching Terrastore-Search. ElasticSearch integration. Cross-origin resource sharing support Integrate with browser-based clients.
  36. 36. Now that I have an hammer ... Don't go blinded. Use the right tool for the job! Terrastore is best suited for: Data hot spots. Computational data. Complex, rich or variable data. Throw-away data.
  37. 37. Final words ... engaging. Explore http://code.google.com/p/terrastore Download http://code.google.com/p/terrastore/downloads/list Hack http://code.google. com/p/terrastore/source/checkout Participate http://groups.google.com/group/terrastore- discussions Enjoy!
  38. 38. Q&A Contact me on: http://twitter.com/sbtourist

×
