  • 1. Kinematics Graphical Analysis of Motion
  • 2. Distance-time graph

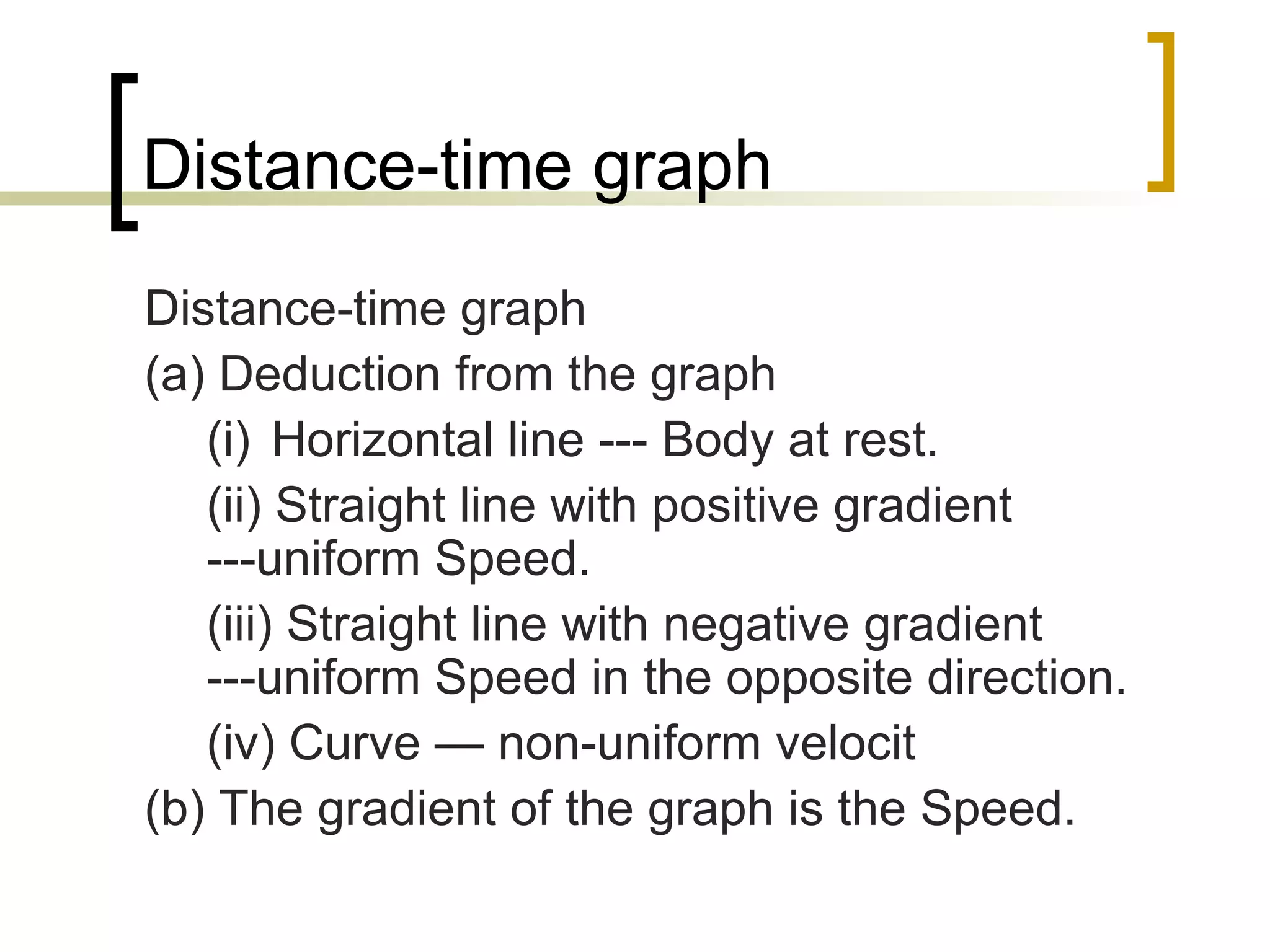

    • Distance-time graph
    • (a) Deduction from the graph
    • (i) Horizontal line --- Body at rest.
    • (ii) Straight line with positive gradient ---uniform Speed.
    • (iii) Straight line with negative gradient ---uniform Speed in the opposite direction.
    • (iv) Curve — non-uniform velocit
    • (b) The gradient of the graph is the Speed.

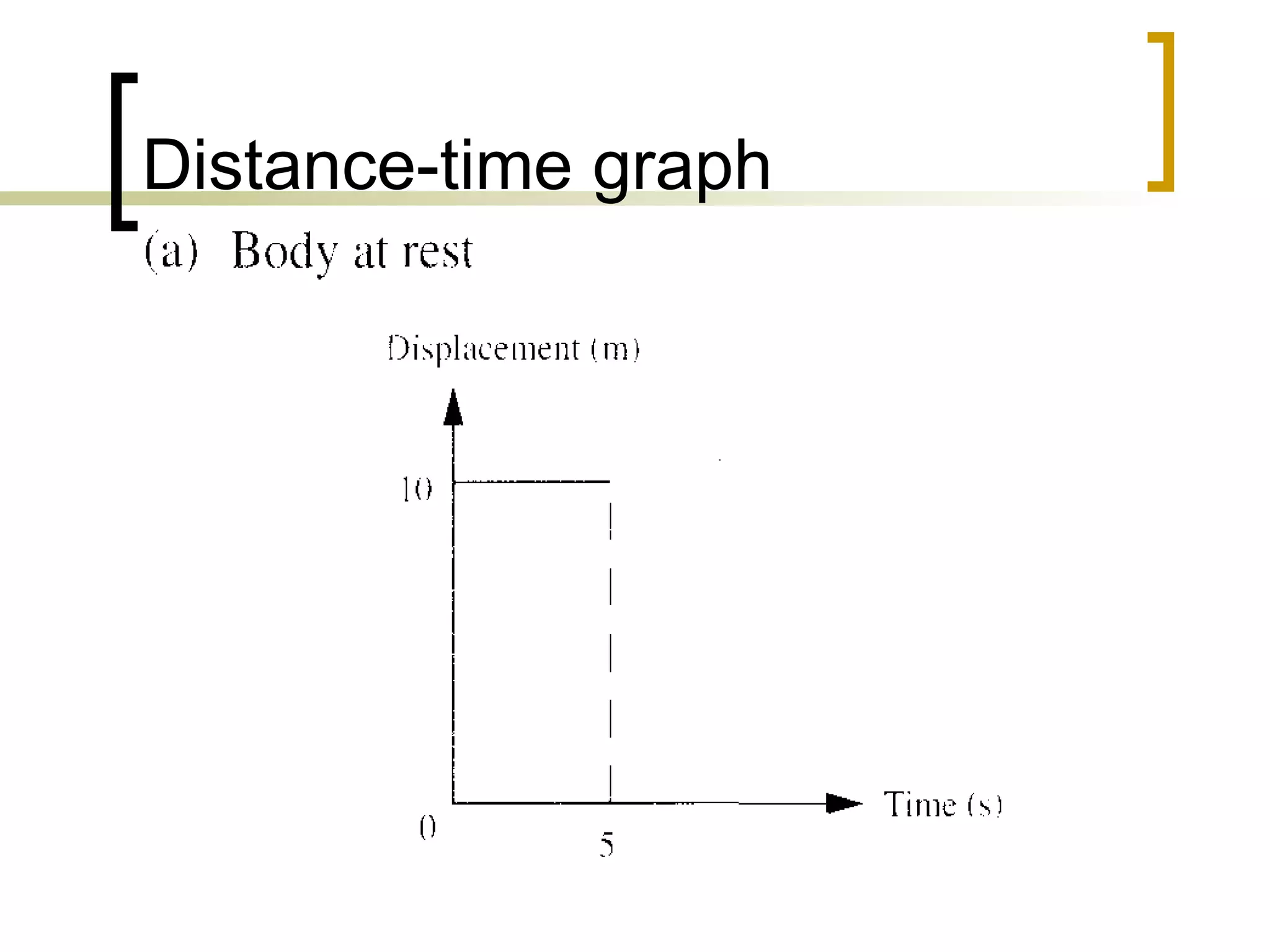

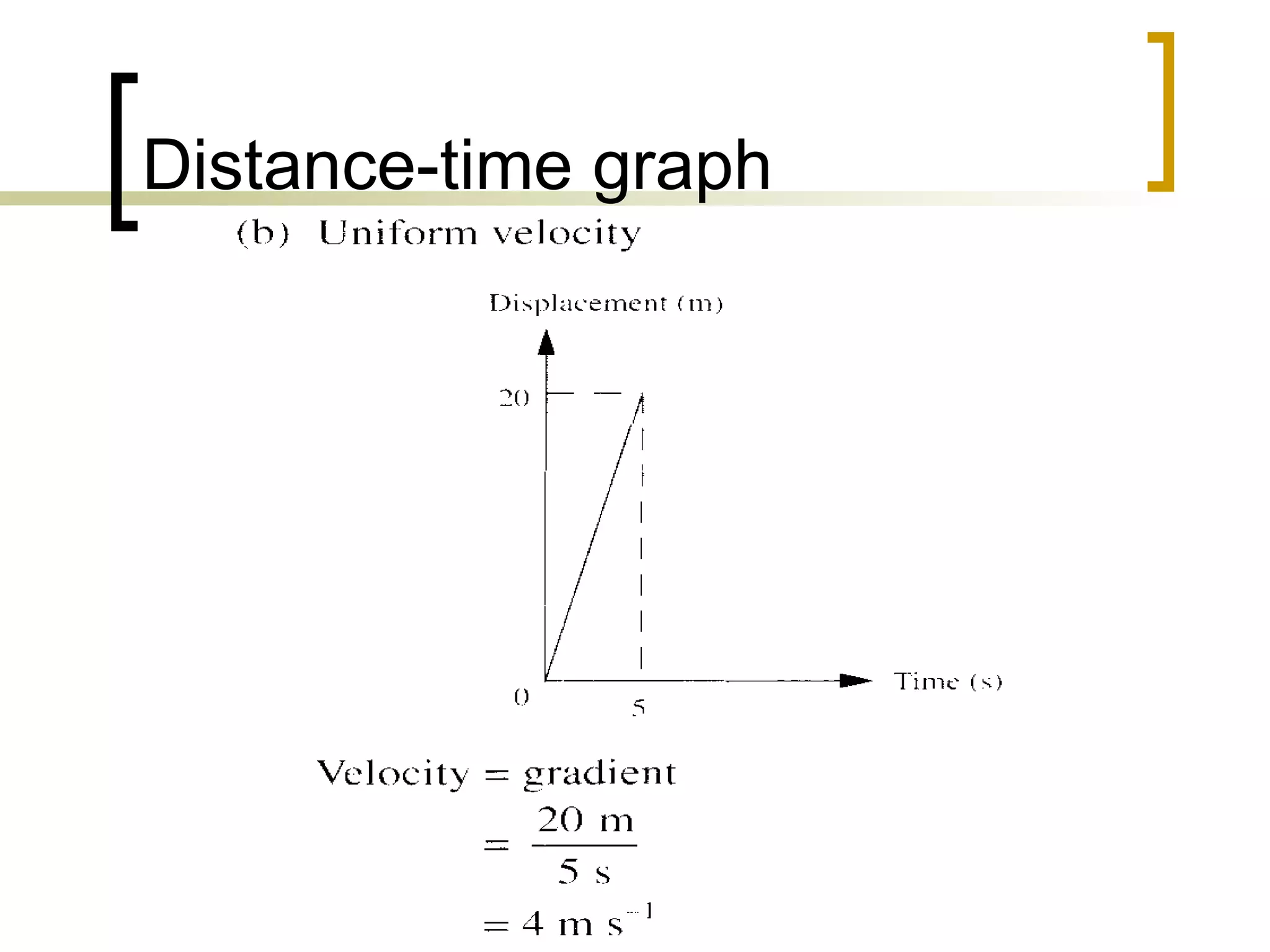

  • 3. Distance-time graph

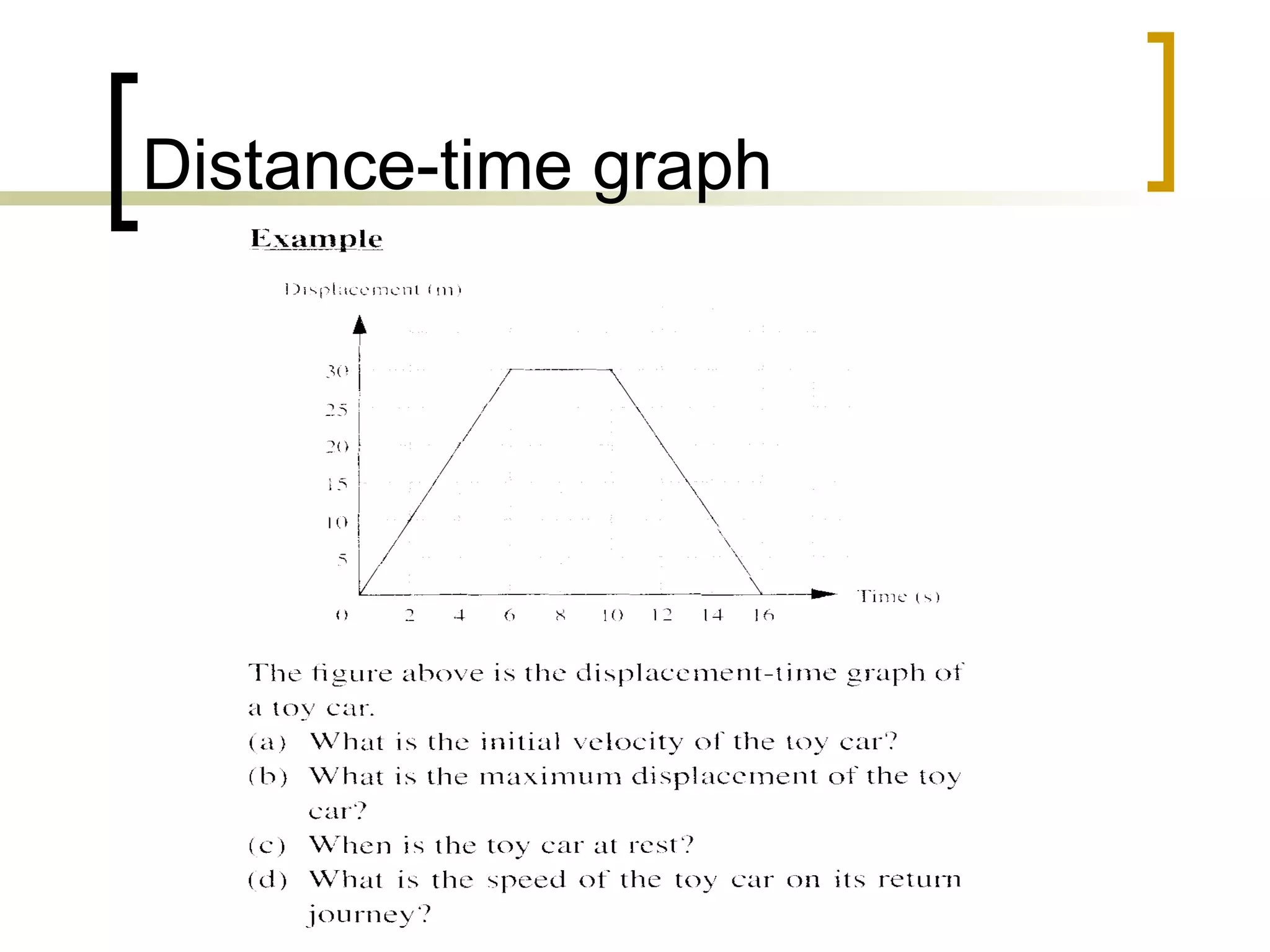

  • 4. Distance-time graph

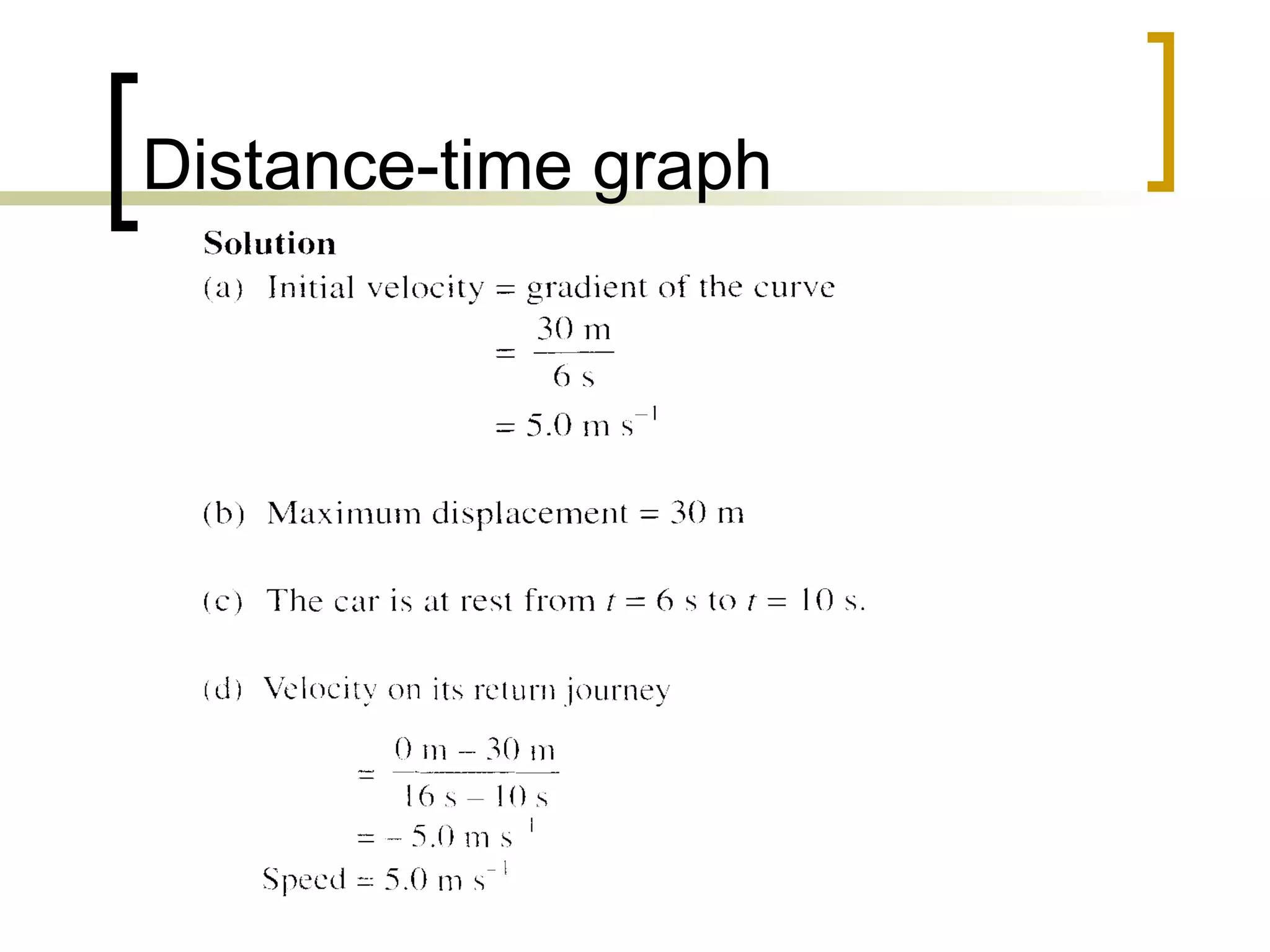

  • 5. Distance-time graph
  • 6. Distance-time graph

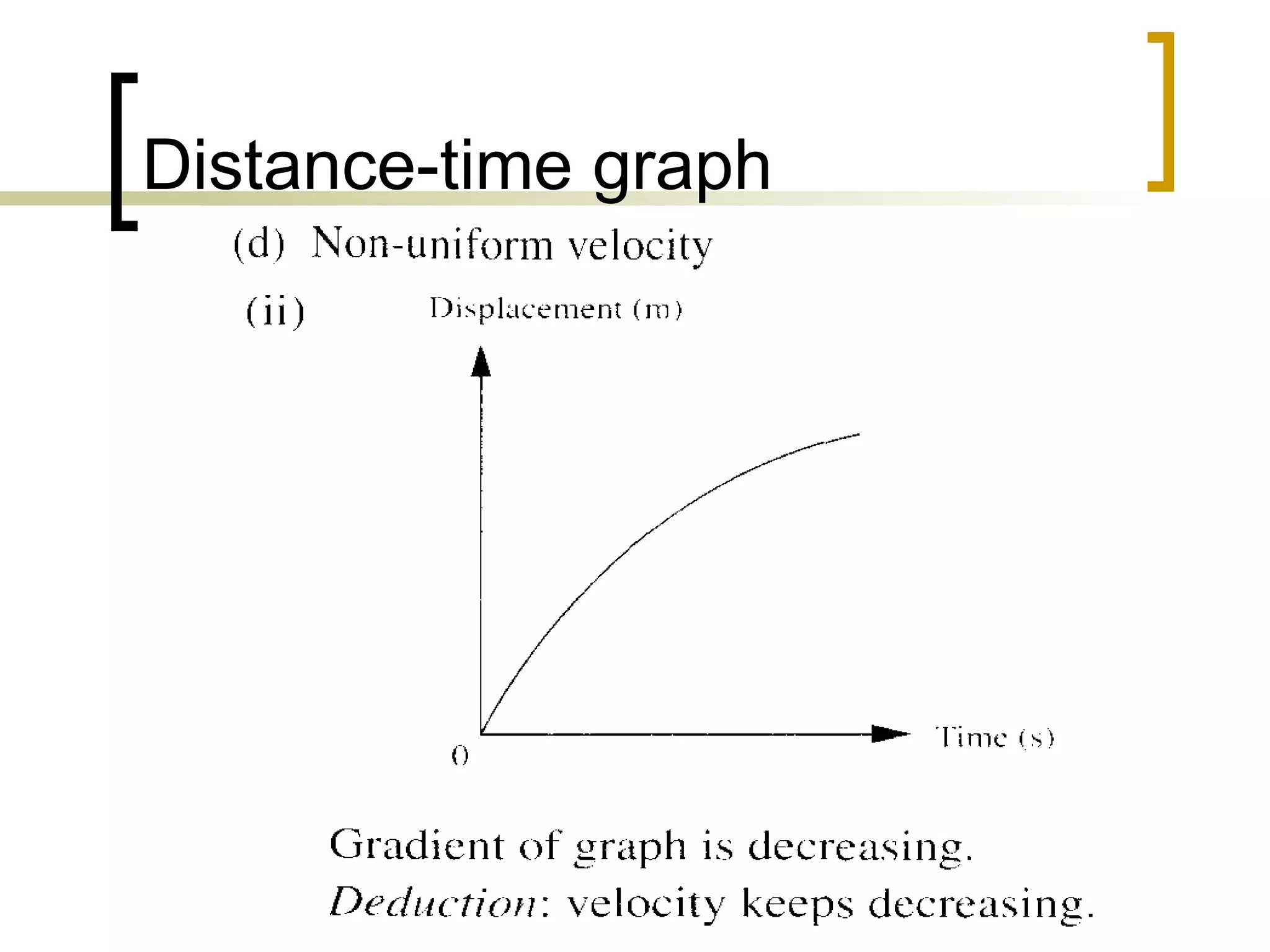

  • 7. Distance-time graph

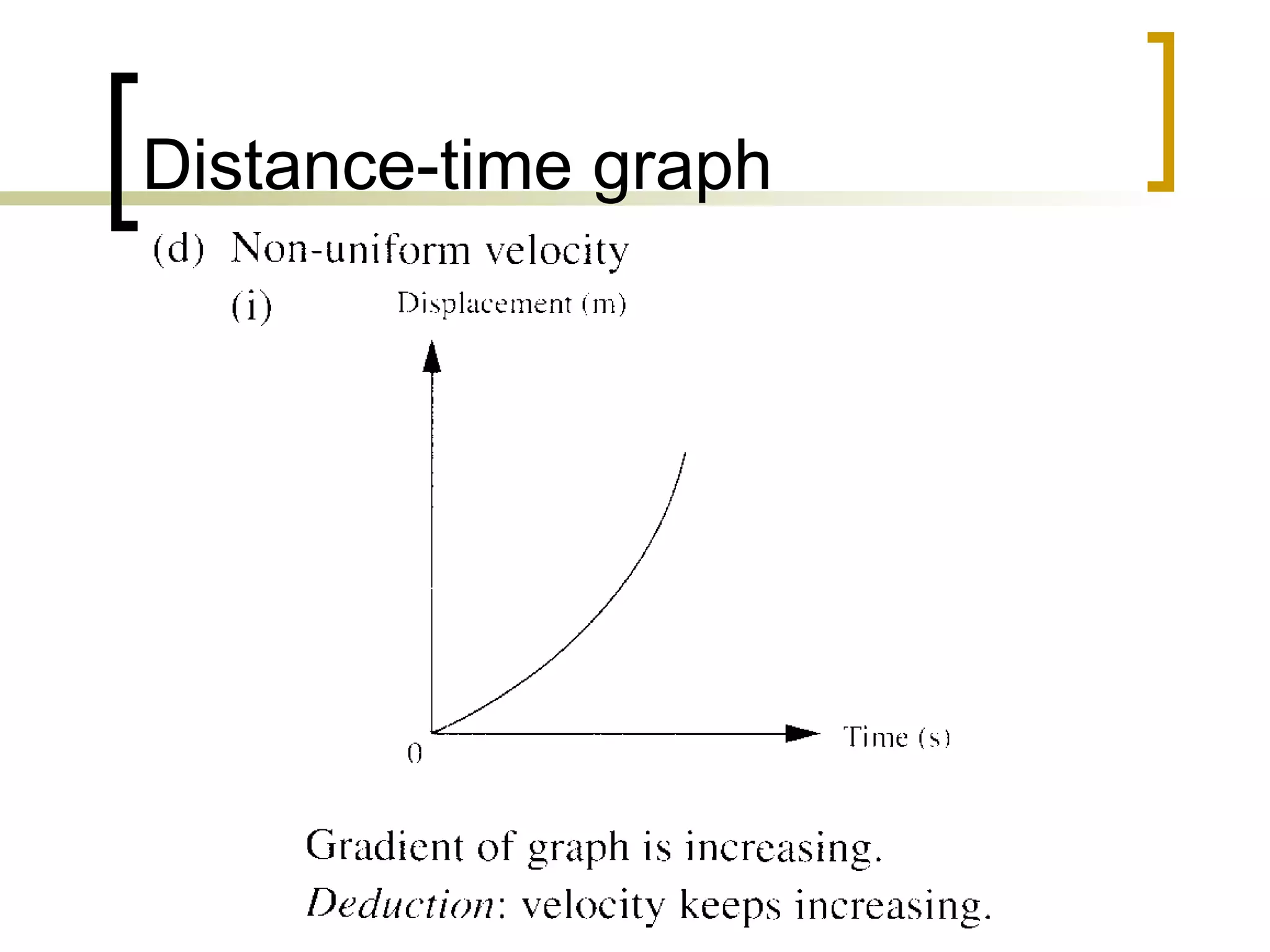

  • 8. Distance-time graph
  • 9. Distance-time graph
  • 10. Speed-time graph

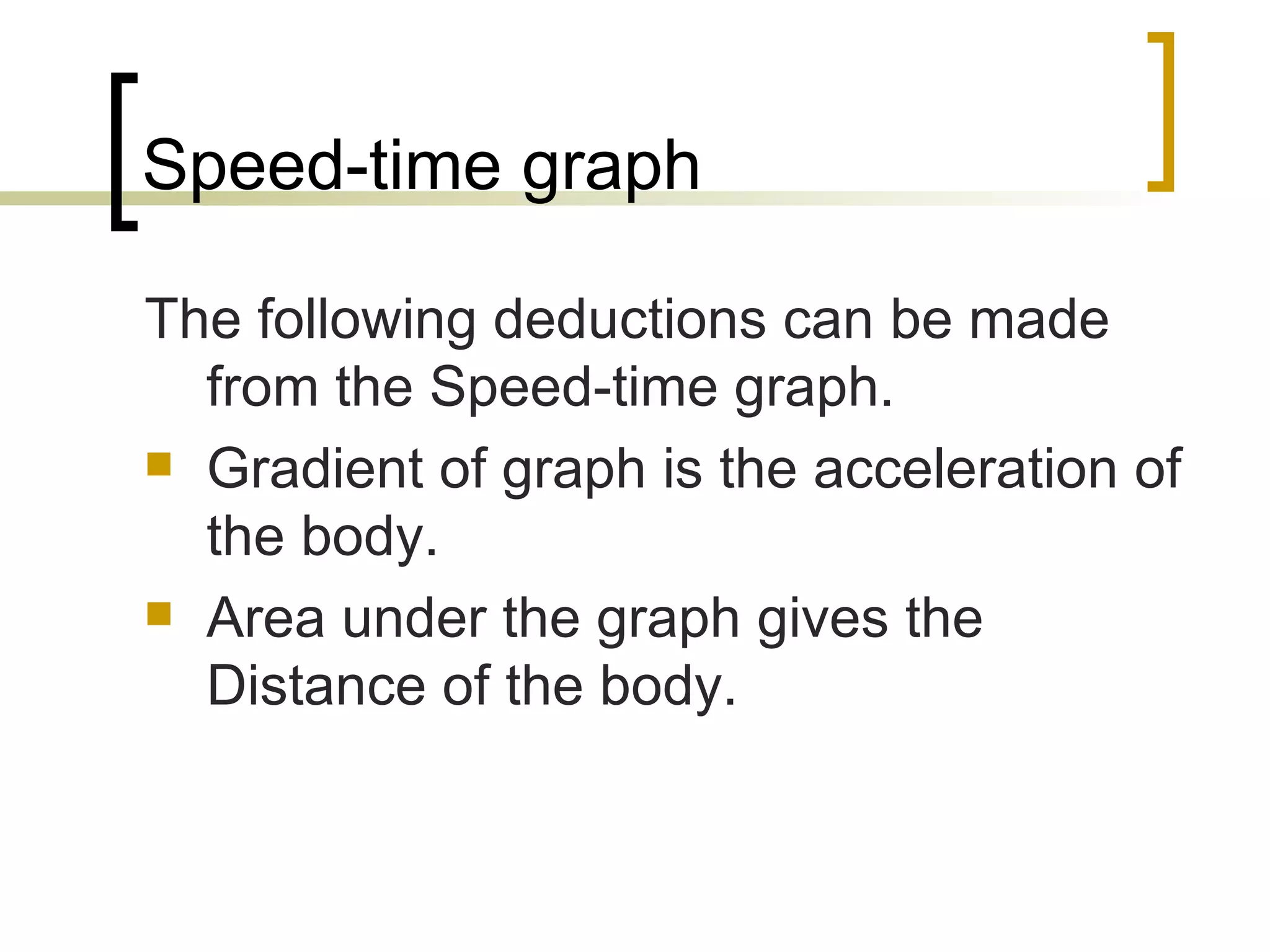

    • The following deductions can be made from the Speed-time graph.
    • Gradient of graph is the acceleration of the body.
    • Area under the graph gives the Distance of the body.

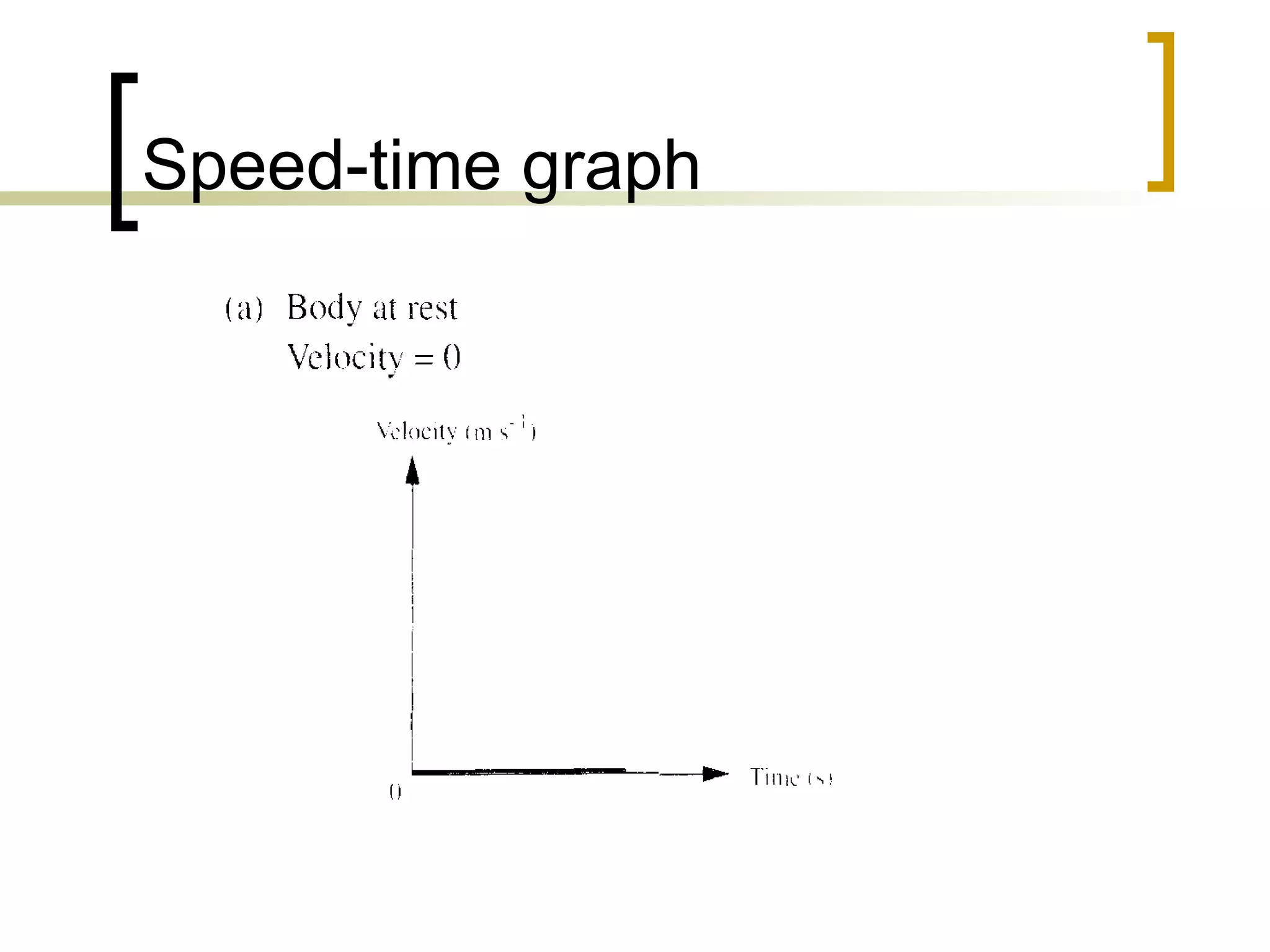

  • 11. Speed-time graph
  • 12. Speed-time graph

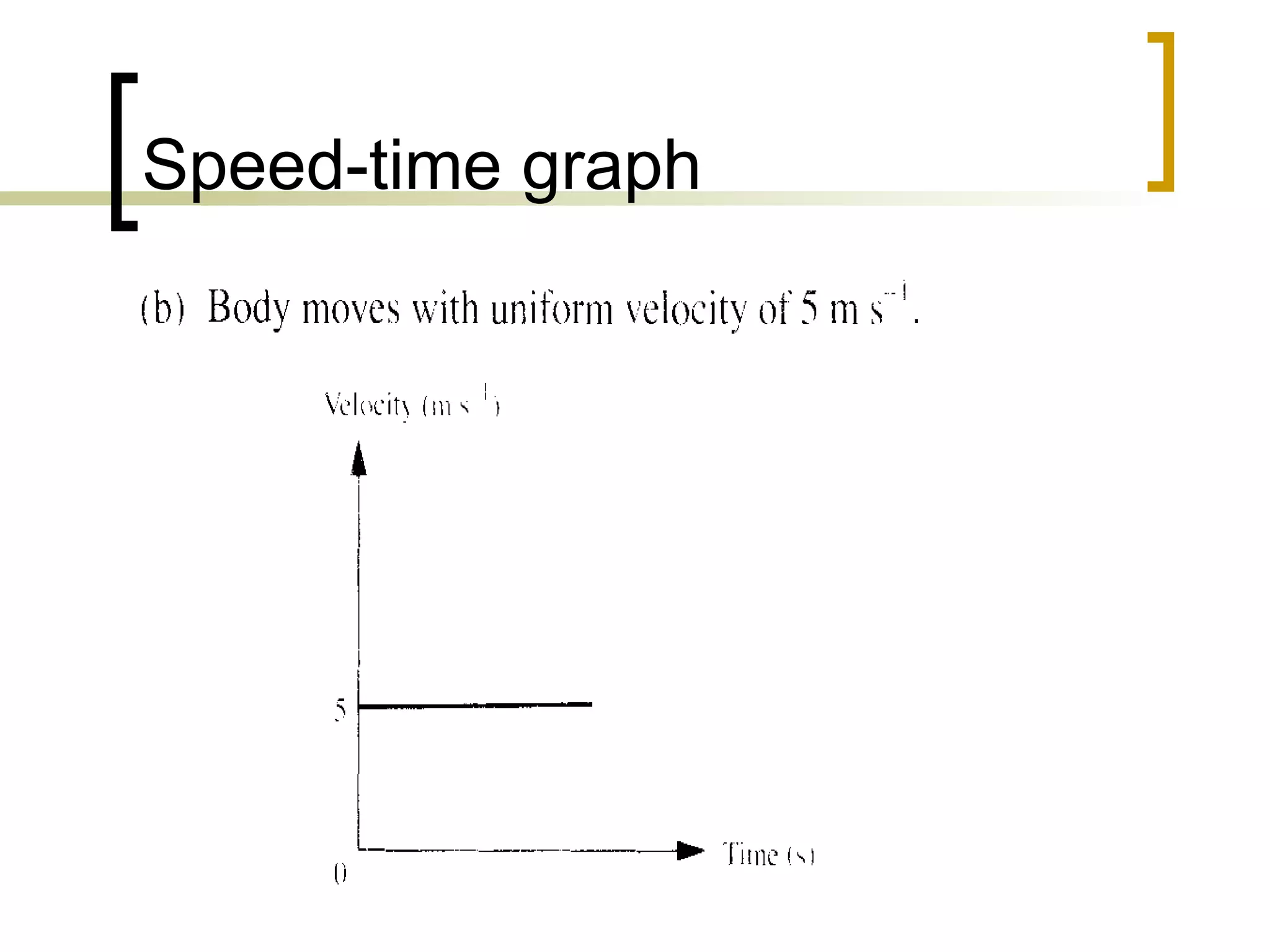

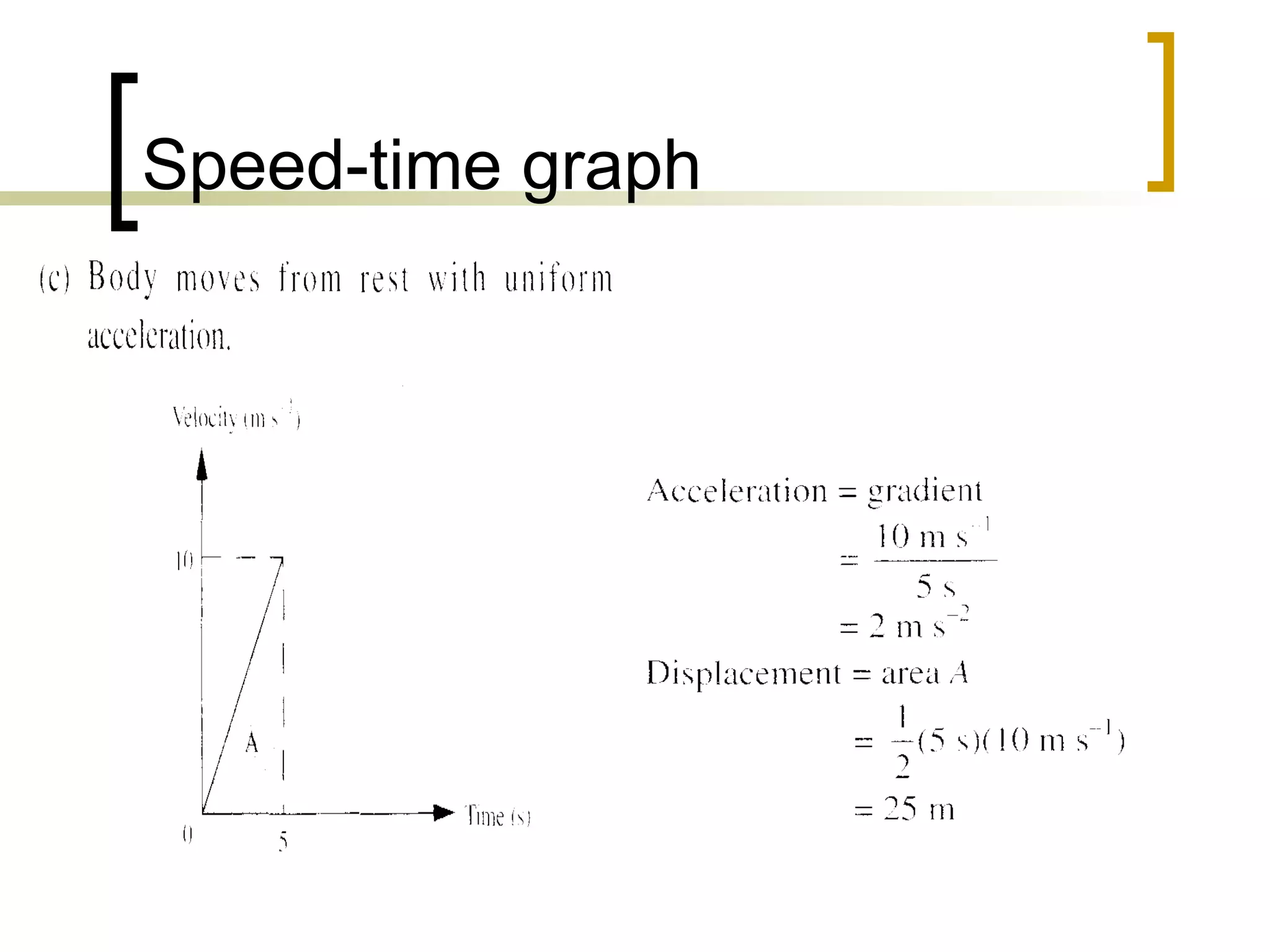

  • 13. Speed-time graph

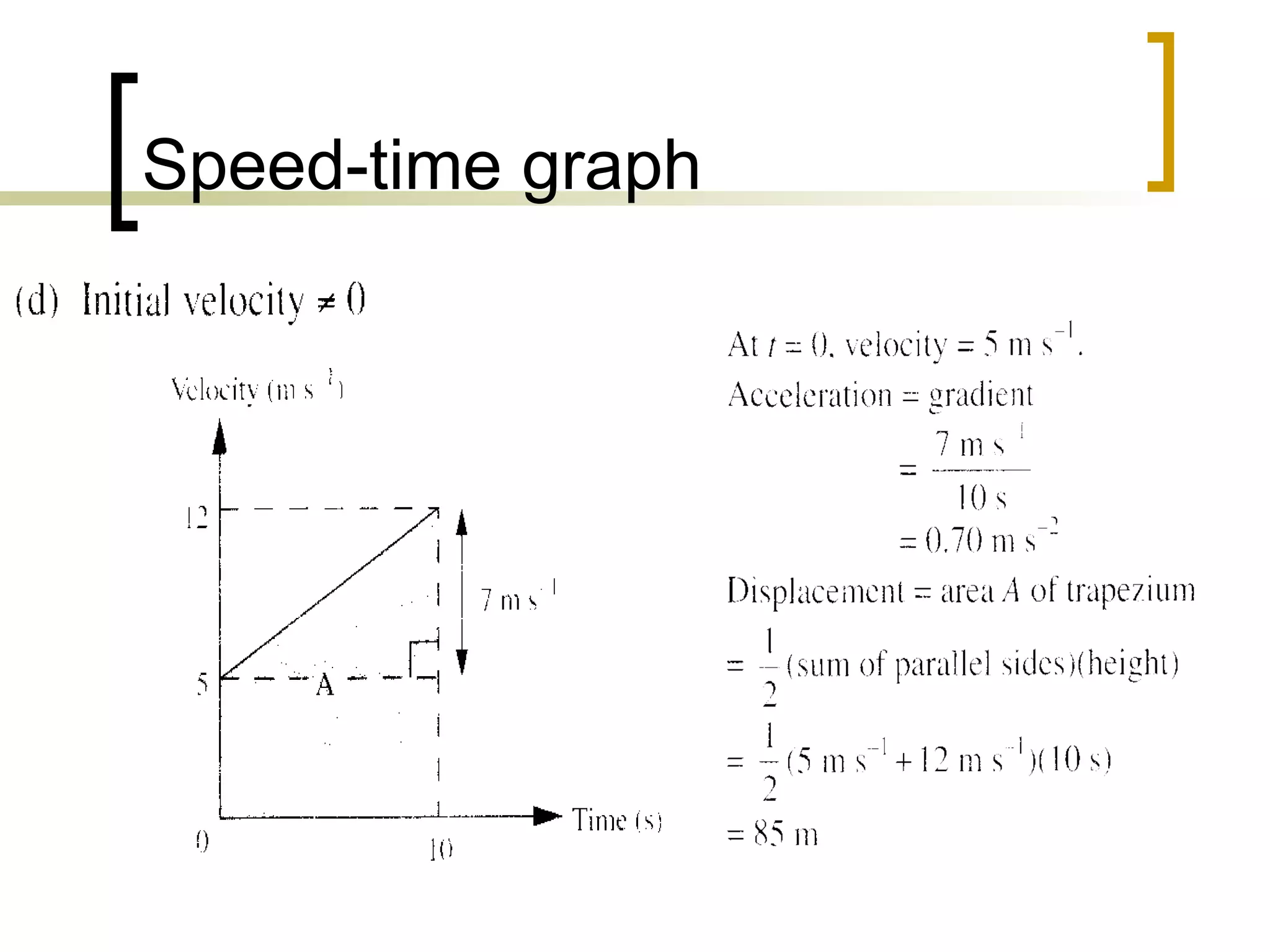

  • 14. Speed-time graph

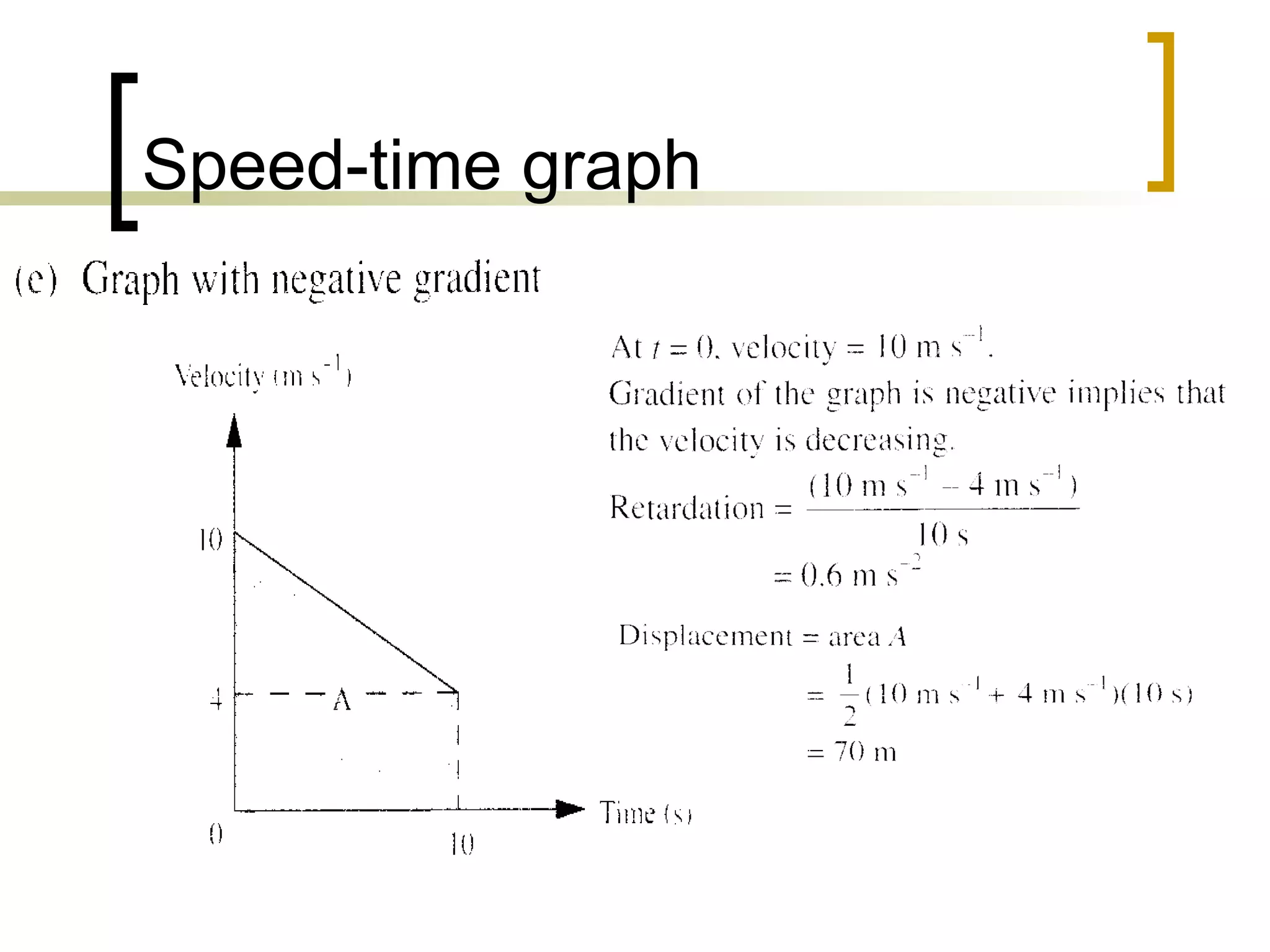

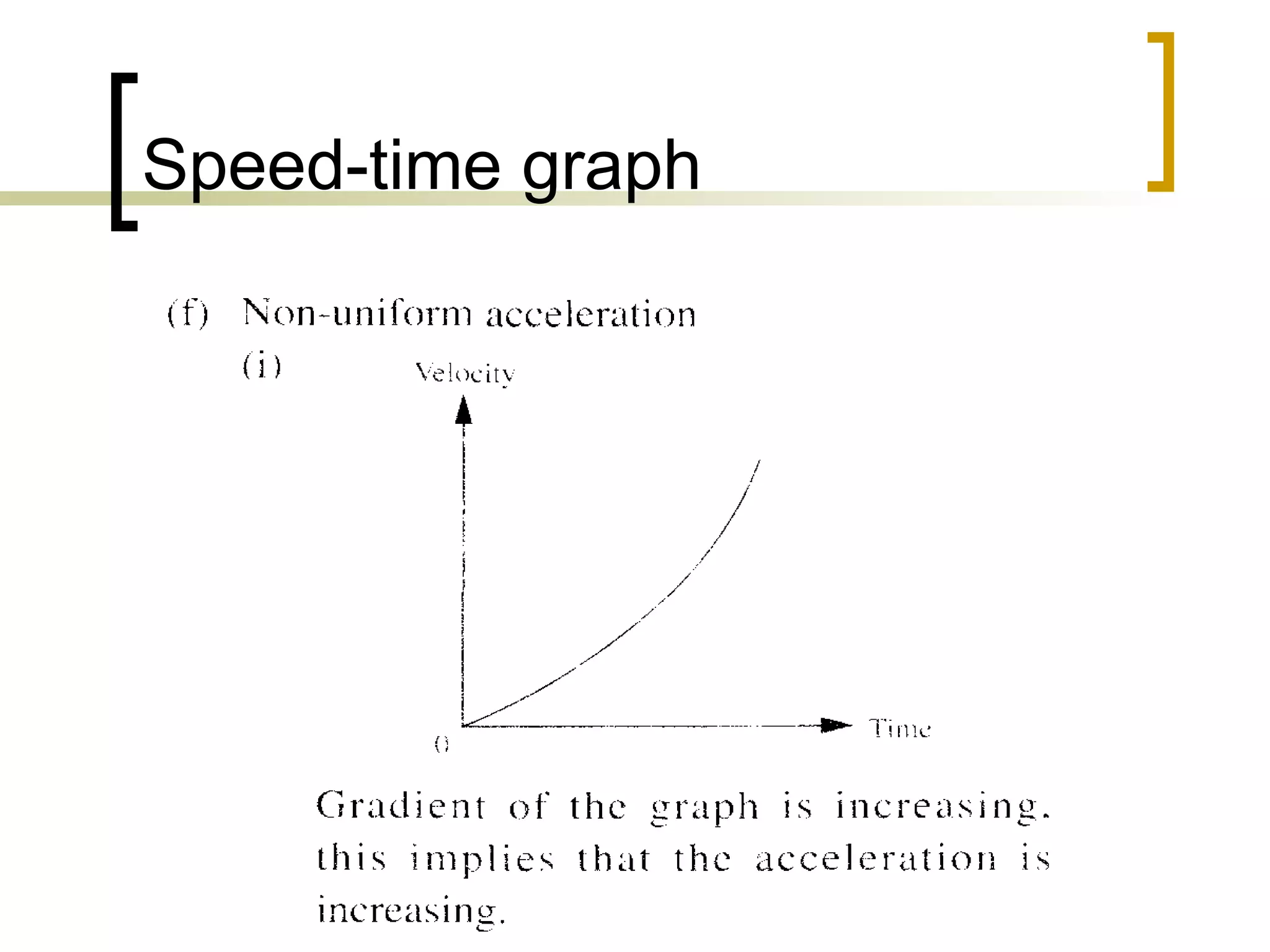

  • 15. Speed-time graph

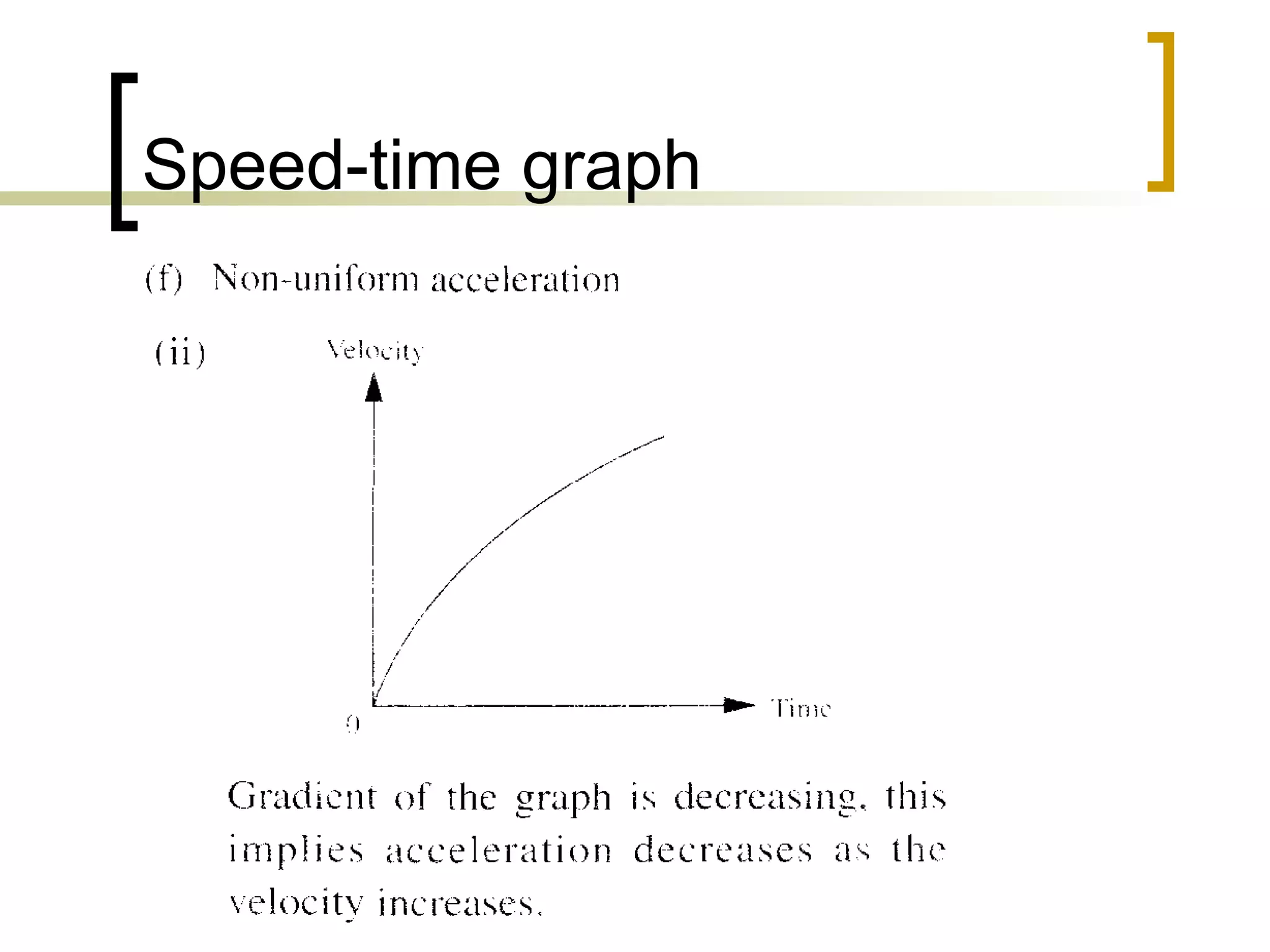

  • 16. Speed-time graph
  • 17. Speed-time graph
  • 18. Speed-time graph
  • 19. Speed-time graph
  • 20. Speed-time graph

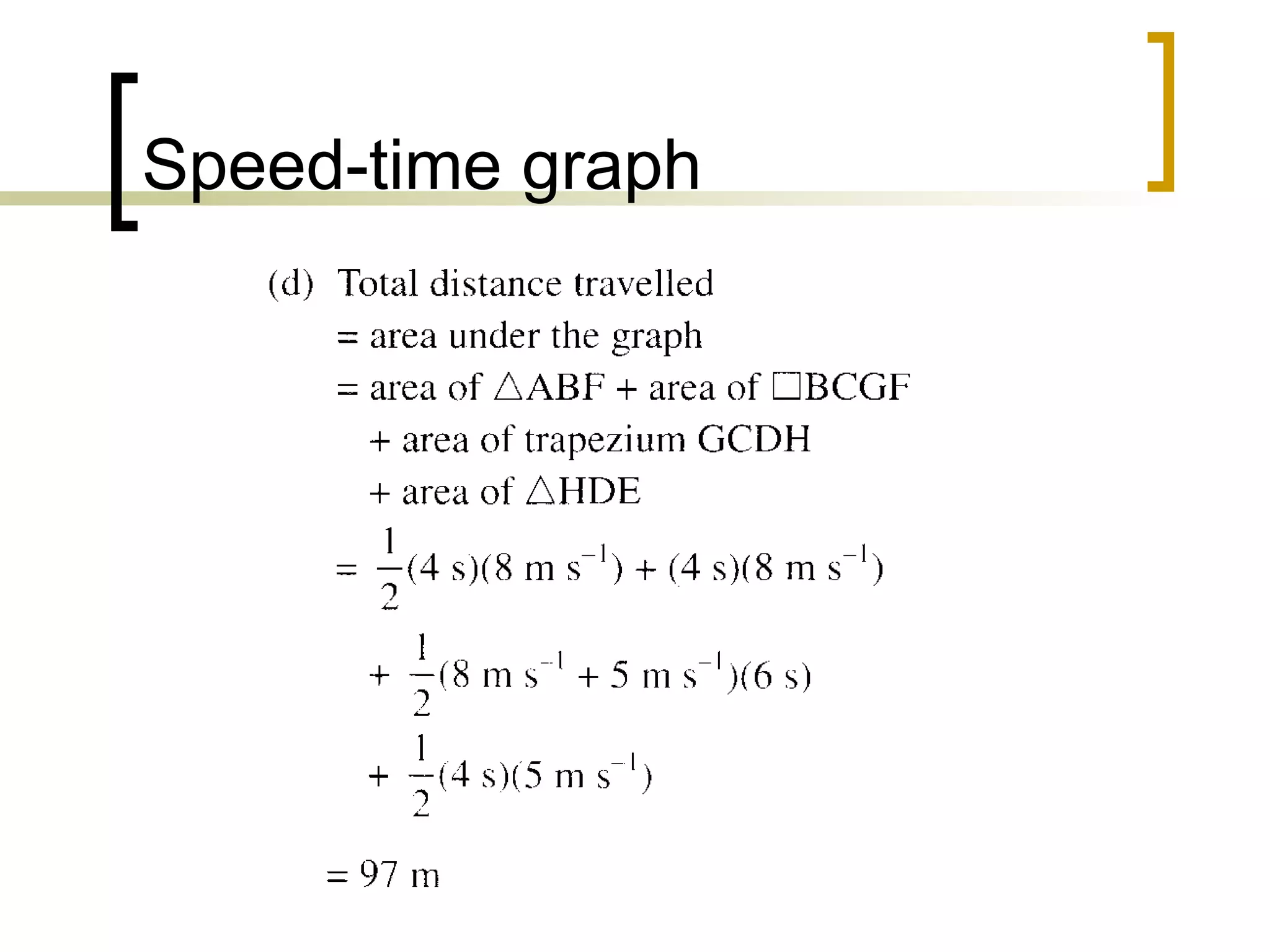

  • 21. Speed-time graph

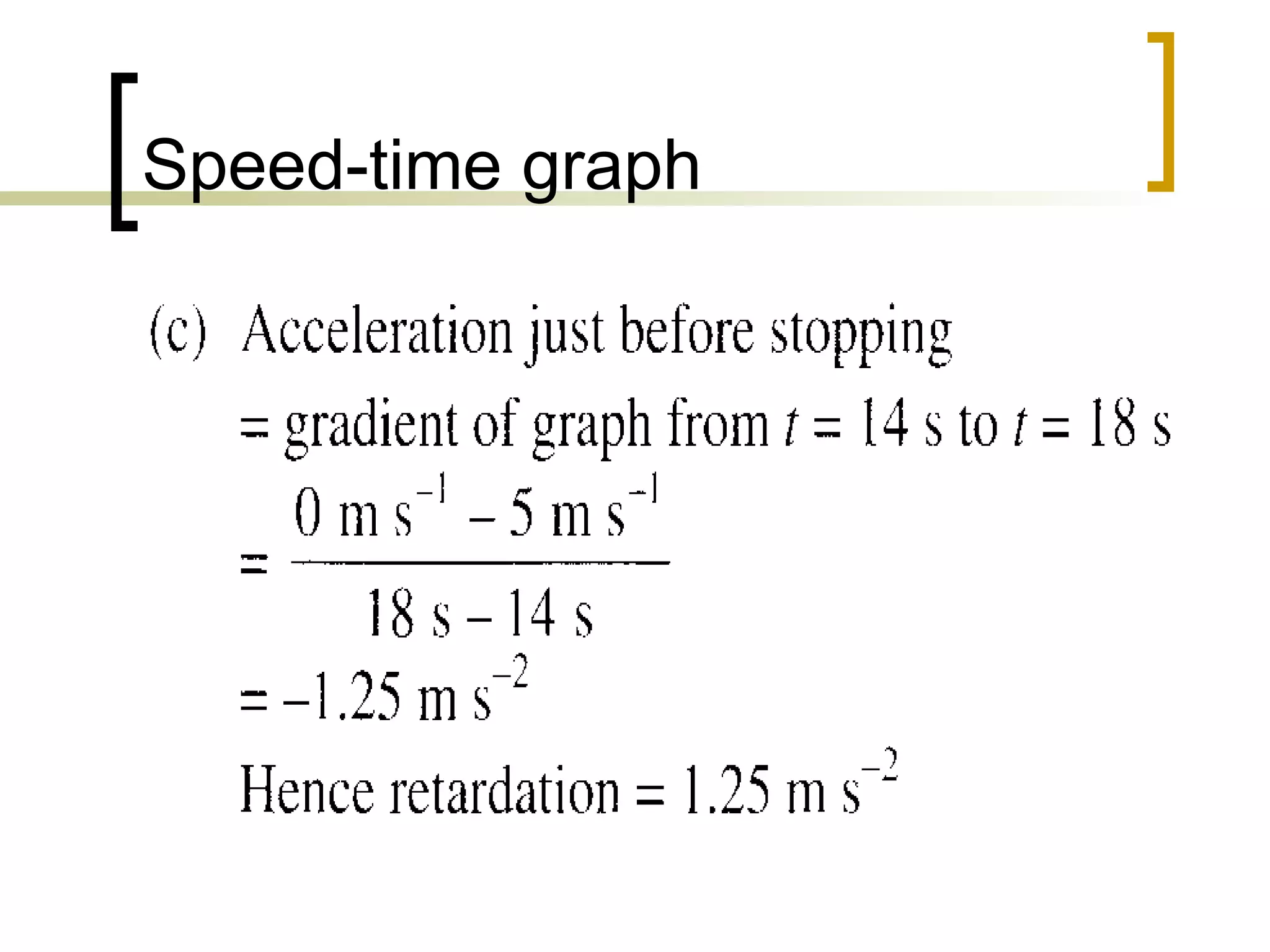

  • 22. Speed-time graph
  • 23. Speed-time graph

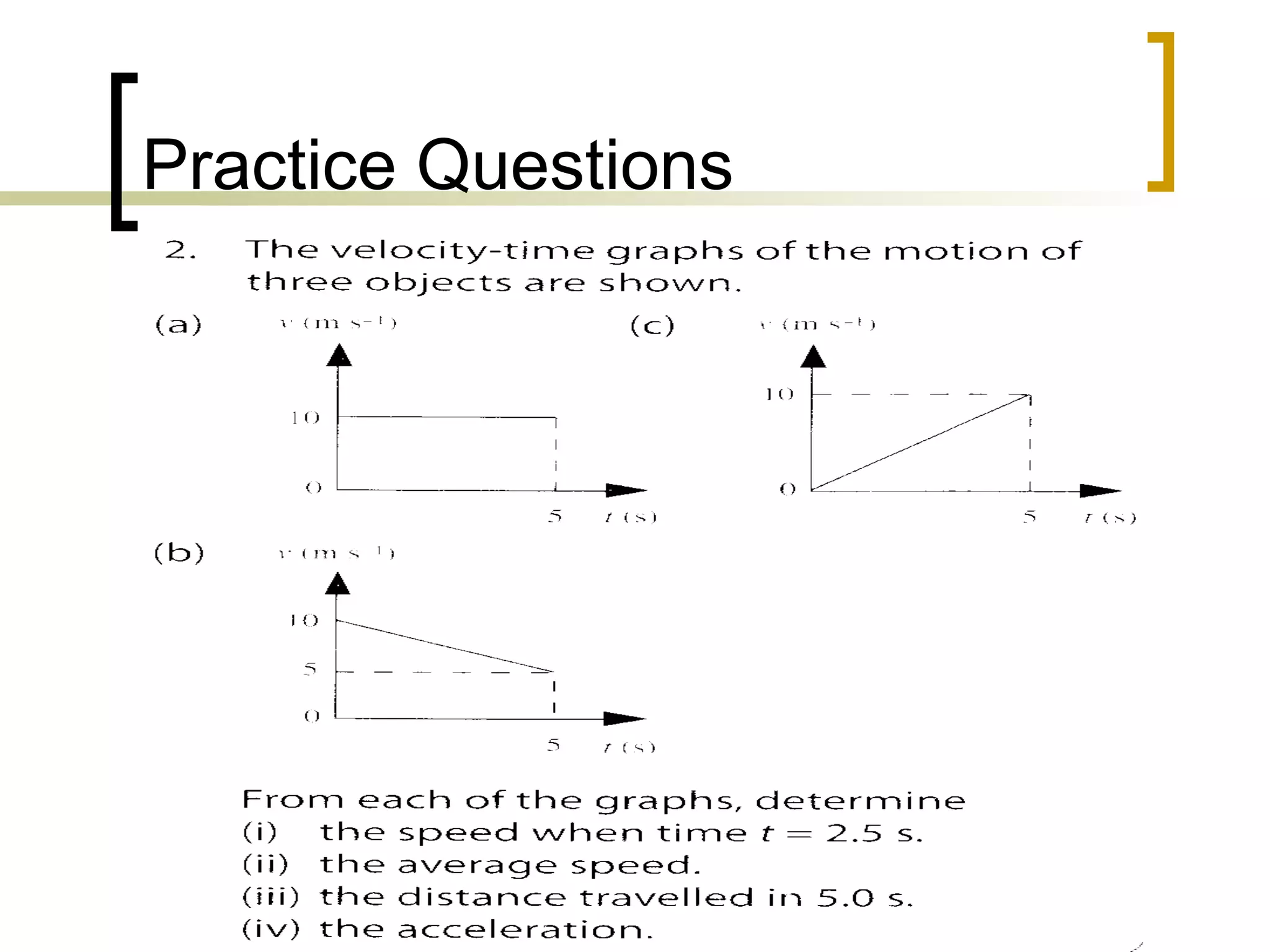

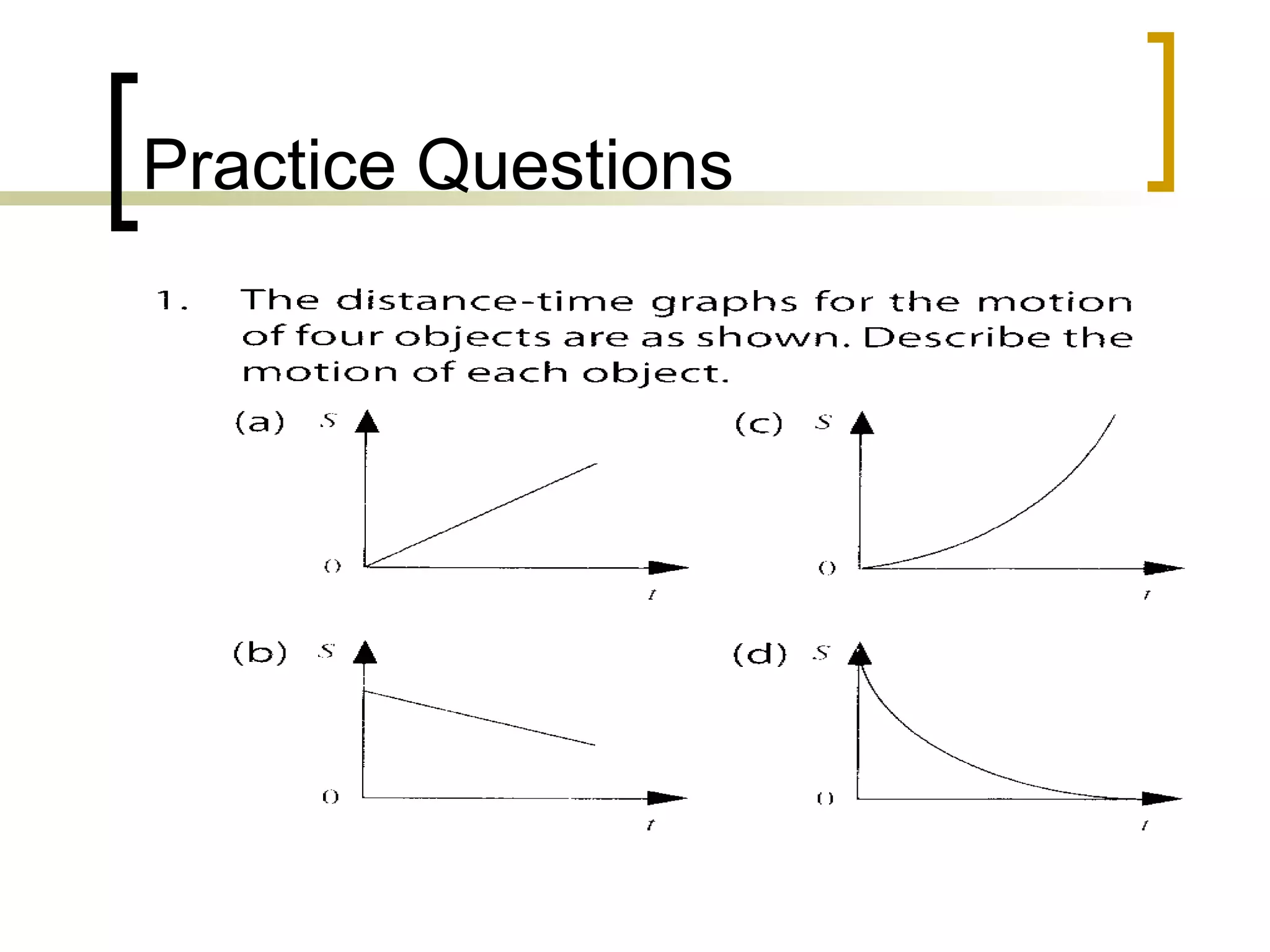

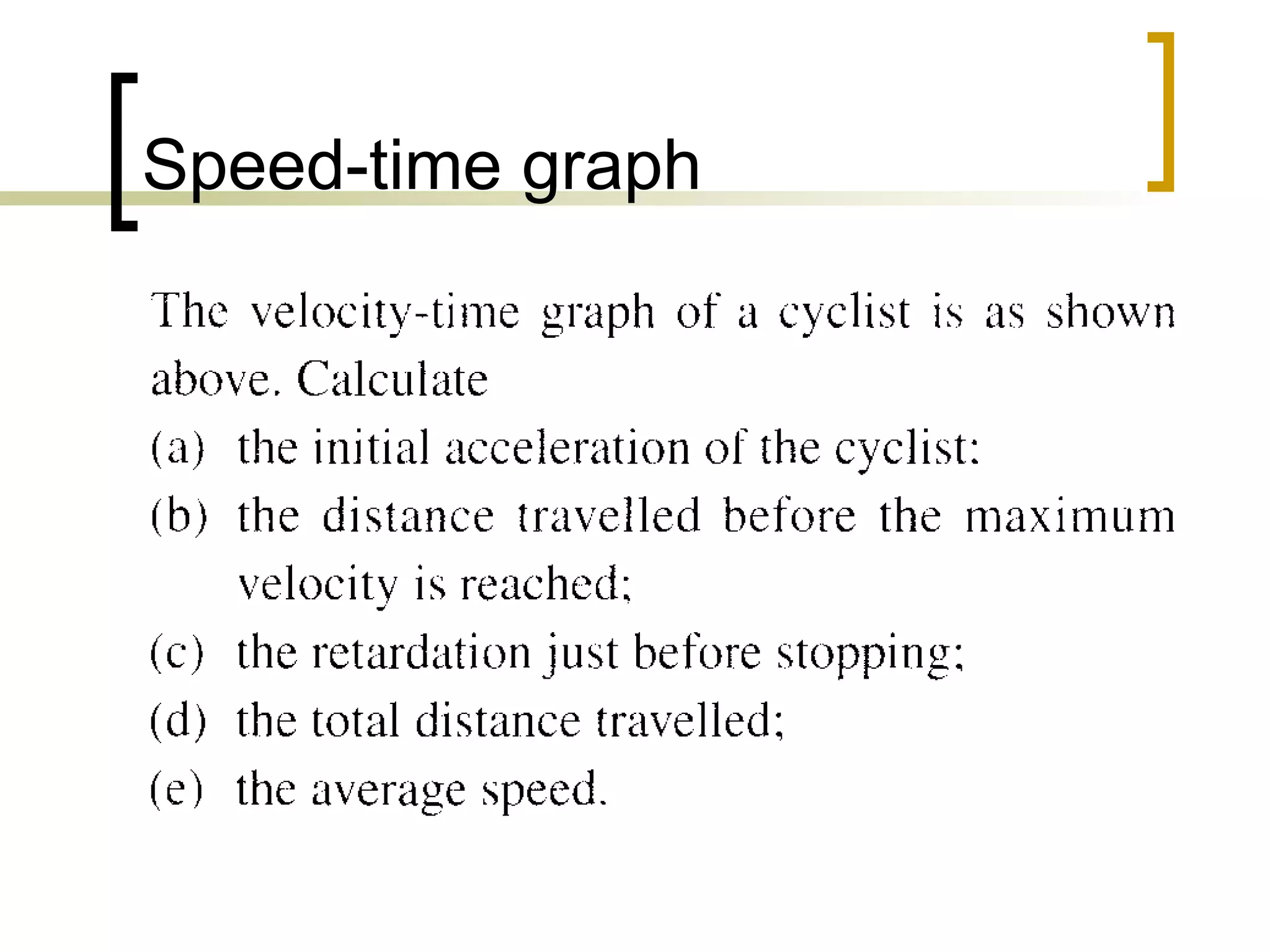

  • 24. Practice Questions
  • 25. Practice Questions

×
