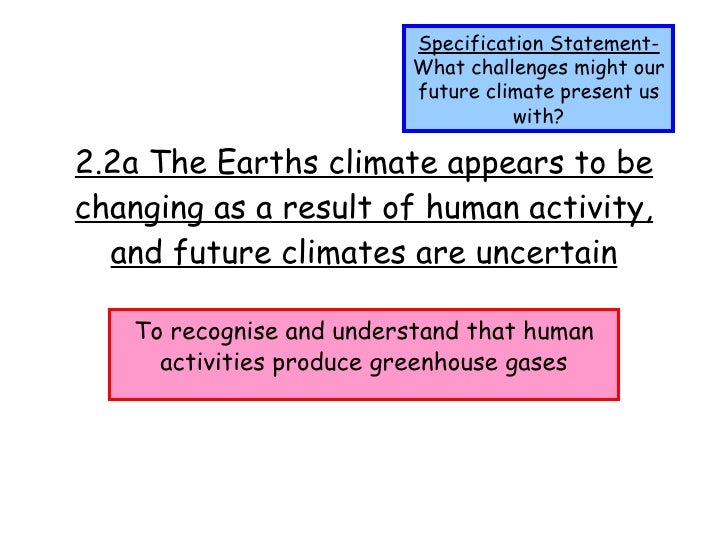

2.2a The Earths climate appears to be changing as a result of human activity, and future climates are uncertain To recogni...
What is the message?
Name as many Greenhouse gases as you can: <ul><li>In order, Earth's most abundant greenhouse gases are: </li></ul><ul><li>...

<ul><li>Greenhouse gases greatly affect the temperature of the Earth; without them, Earth's surface would be on average ab...
<ul><li>Water vapour is the most abundant of the greenhouse gases, and is the dominant contributor to the natural greenhou...
Carbon dioxide (CO2), <ul><li>Carbon dioxide is released into the atmosphere through both natural and human processes. Nat...
Methane (CH4)   <ul><li>Which comes from both natural and human sources, is an extremely powerful warming agent - even mor...
Nitrous Oxide <ul><li>O therwise known as &quot;laughing gas,&quot; is a long-lived warming gas, persisting in the atmosph...
Ozone  <ul><li>Ozone is a highly reactive molecule composed of three atoms of oxygen.  </li></ul><ul><li>Ozone concentrati...
Halocarbons <ul><li>Compounds of human origins used primarily as cooling agents, propellants, and cleaning solvents in a b...
Task <ul><li>Summarise the information about greenhouse gases into a mind map, START OFF LIKE THIS-  </li></ul>GREENHOUSE ...




<ul><li>Describe the differences between the main source of emissions for the 3 main GHG </li></ul>Summarise the main caus...

In 1980 there were 16 billion tonnes of carbon dioxide emissions made worldwide; emissions in 1980 were 70% of the carbon ...
Carbon dioxide causes roughly 60% of the ‘enhanced greenhouse effect’ or global warming resulting from certain gases emitt...
Between 1980 and 2000, 72% of territories increased their emissions of carbon dioxide, totalling 6.6 billion tonnes a year...
Between 1980 and 2000, roughly 58 territories decreased their annual carbon dioxide emissions. Together these territories ...
Greenhouse gases trap heat in the earth’s atmosphere, causing it to warm up. The greenhouse gases shown here are carbon di...
The main agricultural contributions to greenhouse gases are  methane and nitrous oxide . Methane is produced by animals an...
Sulphur dioxide is released when fossil fuels containing sulphur are burned, the amount released is shown here. It is also...
Among the gases that burning fuels produce are nitrogen oxides. Traffic fumes are a major source of these gaseous combinat...
Chlorofluorocarbons, often abbreviated to CFCs, have two major negative environmental effects: they deplete the ozone laye...
This map shows estimated carbon damage due to emissions. Carbon damage is estimated by the World Bank as being US$20 per t...
Task <ul><li>Which countries are the biggest contributors to CO2 emissions? </li></ul><ul><li>What about the other GHG? Su...
Future scenarios <ul><li>Use the text book to draw a line graph showing the relationship between greenhouse gas emissions ...
