OpenLink Virtuoso – RDF Views Exposing SQL Data as RDF
OpenLink Virtuoso Universal Server <ul><li>Cross-platform server for SQL, XML and RDF data management </li></ul><ul><li>In...
Virtuoso RDF Views <ul><li>Expose pre-existing relational data as virtual RDF graphs </li></ul><ul><li>Available for query...
Northwind Demo Database <ul><li>Tables include: </li></ul>Demo.demo.Orders Demo.demo.Customers varchar(24) varchar(24) var...
Northwind Demo Database: RDF View Definition Extract <ul><li>prefix northwind: <http://www.openlinksw.com/schemas/northwin...
Northwind Demo Database: RDF View Definition Extract <ul><li>prefix northwind: <http://www.openlinksw.com/schemas/northwin...
Northwind Demo Database: Customer Table to RDF Entity Mapping Orders Table Germany Country 030 - 0074321 Phone 12209 Posta...
Northwind Demo Database: RDF Browser View – Customer
Northwind Demo Database: RDF Browser View – Order
Example: Product Portfolio – Table View
Example: Product Portfolio – RDF View
Meta-Schema Language <ul><li>RDF Views =  </li></ul><ul><ul><li>Virtuoso RDF Meta-Schema +  </li></ul></ul><ul><ul><li>Met...
MSL Building Blocks <ul><li>Main building blocks: </li></ul><ul><ul><li>Quad map patterns </li></ul></ul><ul><ul><li>IRI c...
Organizational Enhancements <ul><li>Make it easier to administer large sets of quad map patterns </li></ul><ul><li>Group m...
Quad Map Pattern <ul><li>Basic unit of meta schema </li></ul><ul><li>Defines transformation from one set of relational col...
Quad Map Pattern - Example <ul><li>graph <http://www.openlinksw.com/oplweb> </li></ul><ul><li>subject p:product_iri (oplwe...
Named Quad Map Patterns <ul><li>graph <http://www.openlinksw.com/oplweb> </li></ul><ul><li>{ </li></ul><ul><li>p:product_i...
Group Map Patterns <ul><li>Quad map patterns for the same graph can be grouped together into a  group map pattern </li></u...
Quad Storage <ul><li>Quad storage = a named set of quad patterns </li></ul><ul><li>Compartmentalizes the RDF to SQL mappin...
IRI Classes – Creating IRIs from Keys <ul><li>IRI class – constructs a subject IRI for each primary key column value </li>...
IRI Classes – Format Strings <ul><li>sparql </li></ul><ul><li>prefix prd: <http://www.openlinksw.com/schemas/oplweb/produc...
IRI Classes – Complex Conversions <ul><li>For more complex conversions, functions can be specified that assemble and disas...
Literal classes / Identity classes <ul><li>Non-key columns normally form the object of a triple </li></ul><ul><li>Object c...
Quad Pattern Construction Rules <ul><li>An RDF View is defined by combining the building blocks described so far into a co...
A Simple RDF View Definition <ul><li>prefix p: http://www.openlinksw.com/schemas/oplweb/product# </li></ul><ul><li>prefix ...
Additional Meta Schema Language Features <ul><li>Table aliases </li></ul><ul><li>SQL selection and SQL joins through filte...
Table Aliases <ul><li>Provide a concise alternative to fully qualified table names in map patterns </li></ul><ul><li>Decla...
SQL Selection & Joins Through Filters <ul><li>SQL Projection </li></ul><ul><ul><li>Not always desirable to expose all the ...
SQL Selection <ul><li>A quad map pattern can include a  condition </li></ul><ul><ul><li>i.e. a boolean SQL expression </li...
Associating Filters with Table Aliases <ul><li>An alternative to specifying filter conditions directly in quad patterns is...
SQL Joins <ul><li>As well as filtering, a quad map pattern condition can also specify join criteria </li></ul><ul><li>Mult...
Upcoming SlideShare
Loading in …5
×

RDF Views of SQL Data Power Point Presentation - 1

6,015 views
5,840 views

Published on

RDF Views of SQL Data Power Point Presentation

Published in: Technology, Business
0 Comments
5 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
6,015
On SlideShare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
0
Comments
0
Likes
5
Embeds 0
No embeds

No notes for slide

RDF Views of SQL Data Power Point Presentation - 1

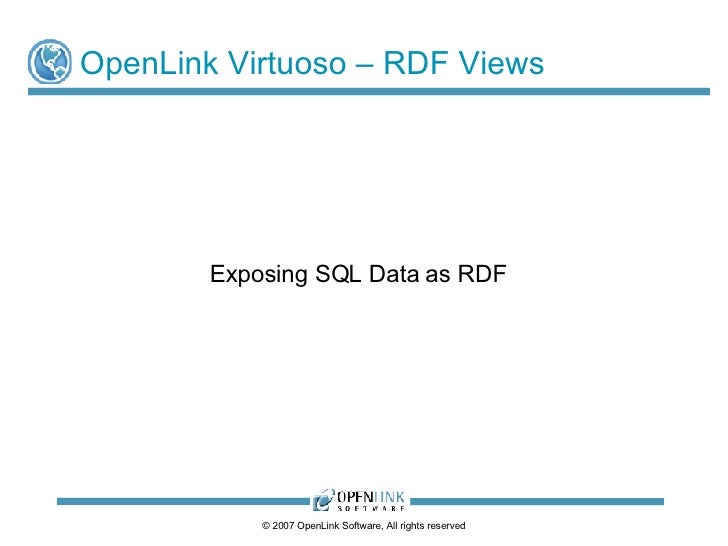

  1. 1. OpenLink Virtuoso – RDF Views Exposing SQL Data as RDF
