Facebook’s Petabyte Scale Data
       Warehouse using Hive and Hadoop




Wednesday, January 27, 2010
Why Another Data Warehousing System?




                               Data, data and more data
                         ...
Trends Leading to More Data




Wednesday, January 27, 2010
Trends Leading to More Data




                              Free or low cost of user services




Wednesday, January 27,...
Trends Leading to More Data




                              Free or low cost of user services



                Realiza...
Deficiencies of Existing Technologies




Wednesday, January 27, 2010
Deficiencies of Existing Technologies



         Cost of Analysis and Storage on proprietary systems
         does not su...
Deficiencies of Existing Technologies



         Cost of Analysis and Storage on proprietary systems
         does not su...
Deficiencies of Existing Technologies



         Cost of Analysis and Storage on proprietary systems
         does not su...
Lets try Hadoop…

   Pros
        – Superior in availability/scalability/manageability
        – Efficiency not that grea...
What is HIVE?

   A system for managing and querying structured data built
    on top of Hadoop
        – Map-Reduce for ...
Why SQL on Hadoop?
  hive> select key, count(1) from kv1 where key > 100 group by
      key;

  vs.

  $ cat > /tmp/reduce...
Data Flow Architecture at Facebook




Wednesday, January 27, 2010
Data Flow Architecture at Facebook




        Web Servers




Wednesday, January 27, 2010
Data Flow Architecture at Facebook




        Web Servers           Scribe MidTier




Wednesday, January 27, 2010
Data Flow Architecture at Facebook


                                                     Filers

        Web Servers     ...
Data Flow Architecture at Facebook


                                                     Filers

        Web Servers     ...
Data Flow Architecture at Facebook


                                                                     Filers

        ...
Data Flow Architecture at Facebook


                                                                     Filers

        ...
Data Flow Architecture at Facebook


                                                                      Filers

       ...
Data Flow Architecture at Facebook


                                                                      Filers

       ...
Scribe & Hadoop Clusters @ Facebook

   Used to log data from web servers

   Clusters collocated with the web servers

...
Hadoop & Hive Cluster @ Facebook

   Hadoop/Hive cluster
        –   8400 cores
        –   Raw Storage capacity ~ 12.5PB...
Hive & Hadoop Usage @ Facebook

   Statistics per day:
     – 12 TB of compressed new data added per day
     – 135TB of ...
Hive & Hadoop Usage @ Facebook

   Types of Applications:
        – Reporting
               Eg: Daily/Weekly aggregatio...
More about HIVE




Wednesday, January 27, 2010
Data Model


                              Name                        HDFS Directory



   Table                      pvs...
Hive Query Language
   SQL
        –   Sub-queries in from clause
        –   Equi-joins (including Outer joins)
        ...
Optimizations
 Joins try to reduce the number of map/reduce jobs needed.
 Memory efficient joins by streaming largest ta...
Hive: Open & Extensible

   Different on-disk storage(file) formats
        – Text File, Sequence File, …
   Different s...
Existing File Formats
                              TEXTFILE     SEQUENCEFILE   RCFILE

     Data type                text...
Map/Reduce Scripts Examples

     add file page_url_to_id.py;
     add file my_python_session_cutter.py;
     FROM
    ...
UDF Example
      add jar build/ql/test/test-udfs.jar;
      CREATE TEMPORARY FUNCTION testlength AS
       'org.apache....
Comparison of UDF/UDAF/UDTF v.s. M/R scripts

                              UDF/UDAF/UDTF        M/R scripts

     languag...
Interoperability: Interfaces

   JDBC
        – Enables integration with JDBC based SQL clients
   ODBC
        – Enable...
Interoperability: Microstrategy

   Beta integration with version 8
   Free form SQL support
   Periodically pre-comput...
Operational Aspects on Adhoc cluster

   Data Discovery
        – coHive
               Discover tables
               ...
HiPal & CoHive (Not open source)




Wednesday, January 27, 2010
Open Source Community

   Released Hive-0.4 on 10/13/2009
   50 contributors and growing
   11 committers
        – 3 e...
Powered by Hive




Wednesday, January 27, 2010
Upcoming SlideShare
Loading in...5
×

Facebooks Petabyte Scale Data Warehouse using Hive and Hadoop

43,697

Published on

Facebooks Petabyte Scale Data Warehouse using Hive and Hadoop.

More info here
http://www.royans.net/arch/hive-facebook/

Published in: Technology, Business
2 Comments
47 Likes
Statistics
Notes
  • http://dbmanagement.info/Tutorials/Apache_Hive.htm
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Interesting stuff...
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
No Downloads
Views
Total Views
43,697
On Slideshare
0
From Embeds
0
Number of Embeds
37
Actions
Shares
0
Downloads
1,008
Comments
2
Likes
47
Embeds 0
No embeds

No notes for slide

Transcript of "Facebooks Petabyte Scale Data Warehouse using Hive and Hadoop"

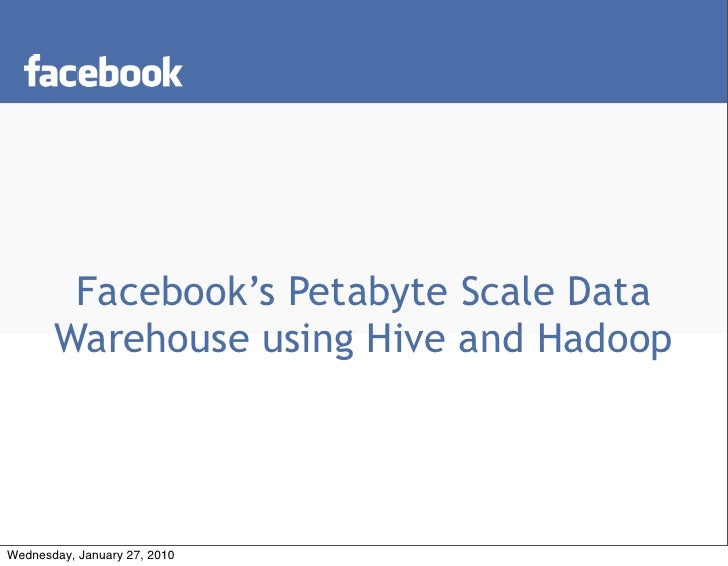

  1. 1. Facebook’s Petabyte Scale Data Warehouse using Hive and Hadoop Wednesday, January 27, 2010
