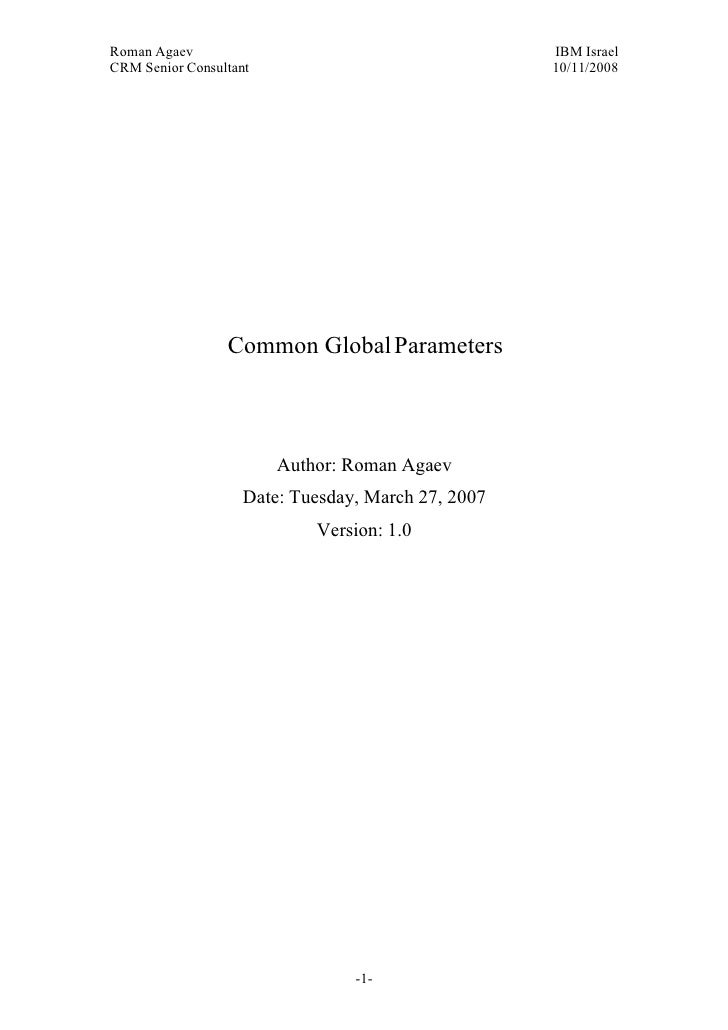

Roman Agaev, M.Sc, PMP
Owner, Supra Information Technology ltd.




                  Common Global Parameters



                          Author: Roman Agaev
                    Date: Tuesday, March 27, 2007




                                   - - 1
Roman Agaev, M.Sc, PMP
Owner, Supra Information Technology ltd.

                                                     Contents
1 Abstract.......................................................................................................................4
2 Analysis.......................................................................................................................4
3 Design.........................................................................................................................5
4 Conclusion...................................................................................................................6
  4.1 Usage Examples...............................................................................................6
5 Appendixes..................................................................................................................6




                                                         - - 2
Figures
Figure 2-1: Global parameters object.............................................................................4
         Figure 4-2: Global parameter – SetPrameter, FindParameter, ResetParameter,
GetEntirePicutre.............................................................................................................6



                                                       Tables
Table 3-1: System parameters module's layers decomposition......................................5
1Abstract
This essay takes as its purpose analysis and design of custom global parameters
module. The meaning of custom global parameter is data that shared across all
processes within the user session, in addition the information can be written to the
database.
The module provides an ability of data retrieval, its appending, and its flushing.


2Analysis
The global parameters module must give an opportunity of shared data management
among the processes within the user session, when the main purpose of such data is
being a run time parameters.
The following diagram presents object diagram of needed business layer:

Figure 2-1: Global parameters object




The module must include several elements from database, business, and graphic user
interface layers:
    •Applet
    •View
    •BC (Business Component) – contains several methods and based on custom
        VBC1
    •BS (Business Service) – contains several methods delegated by underlied
        business component


1
 For further information please refer to "Common VBC paradigm" in Appendixes section of the
document
3Design
The analysis can be handled using a single stand alone module definition. The module
will include several elements from every one of three application tiers:
       Graphic User Interface Layer
               •View – System Parameters View
               •Applet - System Parameters List Applet
       Business Layer
               •Business Object – System Parameters
               •Business Component – System Parameters with methods
                        SetParameter() – creates new entry
                        FindParameter() – makes a search across parameters in order to
                            find out the appropriate parameter that answers on search
                            specification
                        ResetParameter() – resets the data of given parameter
                        GetEntirePicture() – retrieves the entire picture of populated
                            parameters as hierarchy. The hierarchy can be presented within
                            the appropriate applet.
               •Business Service – Global Parameters BS2 encapsulates delegated
                   methods of Business Component
The following table demonstrates those elements per layer:

Table 3-1: System parameters module's layers decomposition
     Layer               Element Type         Element Name       Element Attributes
Business                Business             Global Parameters Name
                        Component
                                                                  Value

                        Business Object      Global Parameters Global Parameters


                        Business Service     Global Parameters SetParameter
                                             BS                   FindParameter
                                                                  ResetParameter
                                                                  GetEntirePicture
Graphic User            Applet               Global Parameter
Interface                                    List Applet

2
    Cacheable business service
Layer           Element Type         Element Name            Element Attributes
                    View                 Global Parameter
                                         View


4Conclusion
Current essay provides a new sight over the old problem, how to store cross processes
parameters and effectively use them during the session of system users. The pattern
can be used in many applications like CTI phone book, XSLT etc.

4.1Usage Examples
The following figures demonstrate proposed solution examples:

Figure 4-2: Global parameter – SetPrameter, FindParameter, ResetParameter, GetEntirePicutre




5Appendixes
   "Workflow usage best practices" (Roman Agaev)
   "Common VBC paradigm" (Roman Agaev)
   "Common error handling mechanism" (Roman Agaev)
