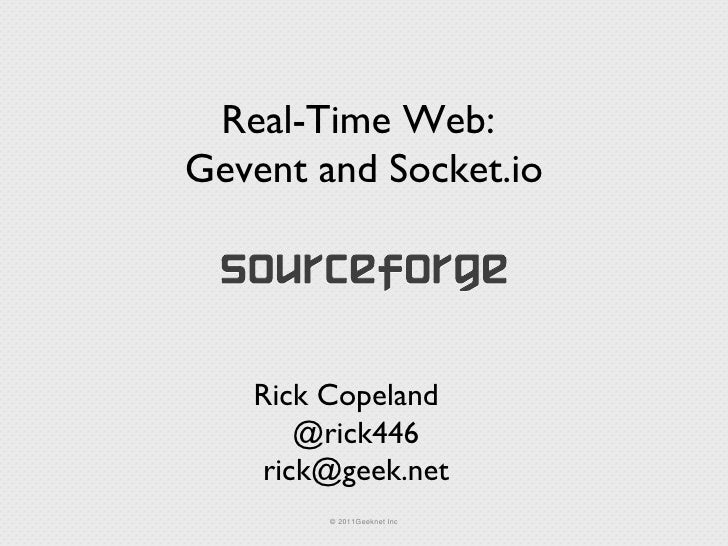

  • 1. Real-Time Web: Gevent and Socket.io Rick Copeland @rick446 [email_address]
  • 2.
    • Getting started with Gevent
    • AJAX, push, WebSockets, wha?
    • ZeroMQ for fun and multiprocessing
    • Putting it all together
  • 3. A (very) Brief Survey of Python Asynchronous Programming
    • AsynCore
      • In stdlib, used for stdlib SMTP server
      • Nobody cares about it anymore 
    • Twisted
      • Large community, vast amounts of code
      • Callbacks hurt my brain
    • Stackless
      • Cool, cooperative multithreading
      • Needs a custom Python
    • Event-based green threads
      • Like stackless, but in regular Python
      • Know when you yield
  • 4. Let’s Go Green: Async that Doesn’t Hurt Your Brain
    • Greenlets: Cooperative, lightweight threads
    • Very forgiving – mutexes rarely needed
    • Use it for IO!
  • 5. Gevent: Greenlets
    • Spawn helpers
      • spawn(my_python_function, *args, **kwargs)
      • Also spawn_later(), spawn_link(), etc.
    • Greenlet class
      • Like threads but cooperative
      • Useful properties: .get(), .join(), .kill(), .link()
    • Timeouts
      • Timeout(seconds, exception).start()
    • Pools: for limiting concurrency, use Pool.spawn
  • 6. Gevent: Communication
    • Event
      • set()
      • clear()
      • wait()
    • Queue
      • Modeled after Queue.Queue
      • .get()
      • .put()
      • __iter__()
      • PriorityQueue, LifoQueue, JoinableQueue
  • 7. Gevent: Networking
    • “ Green” versions of sockets, select(), ssl, and dns
    • Quick and dirty:
    import gevent.monkey gevent .monkey.patch_all()
  • 8. Gevent: Servers
    • Simple callback interface
    • Creates one greenlet per connection (but remember, that’s OK!)
    def handle(socket, address): print 'new connection!’ server = StreamServer( ( '127.0.0.1', 1234), handle) # creates a new server server .start() # start accepting new connections
  • 9. Gevent: WSGI
    • gevent.wsgi
      • Fast (~4k requests/s)
      • No streaming, pipelining, or ssl 
    • gevent.pywsgi:
      • Full featured
      • Slower (“only” 3k requests/s)
    from gevent import pywsgi def hello_world(env, start_response): start_response( '200 OK', [('Content-Type', 'text/html')]) yield '<b>Hello world</b>’ server = pywsgi.WSGIServer( ( '0.0.0.0', 8080), hello_world) server .serve_forever()
  • 10.
    • Getting started with Gevent
    • AJAX, push, WebSockets, wha?
    • ZeroMQ for fun and multiprocessing
    • Putting it all together
  • 11. What is the real-time web?
    • No page refreshes
    • Server push
    • Examples: chat, realtime analytics, …
    • Implementation
      • Flash (eww…)
      • Polling (2x eww…)
      • Long polling (wow – that’s clever :-/ )
      • HTML5 WebSockets ( Super-easy! Awesome! Security vulnerabilities! Immature spec! )
  • 12. SocketIO to the Rescue “ Socket.IO aims to make realtime apps possible in every browser and mobile device, blurring the differences between the different transport mechanisms.”
  • 13. Socket.io Example <script src=&quot;/socket.io/socket.io.js&quot; ></script> <script> var socket = io.connect( 'http://localhost'); socket.on('news', function (data) { console.log(data); socket.emit( 'my other event’, { my : 'data' }); }); </script>
  • 14. gevent_socketio def hello_world(environ, start_response): if not environ[ 'PATH_INFO'] .startswith( '/socket.io'): return serve_file(environ, start_response) socketio = environ[ 'socketio'] while True: socketio .send( 'Hello, world') gevent .sleep( 2)
  • 15.
    • Getting started with Gevent
    • AJAX, push, WebSockets, wha?
    • ZeroMQ for fun and multiprocessing
    • Putting it all together
  • 16. ZeroMQ Overview
    • C library with Python bindings
    • ZMQ “sockets” are message based, delivery is via a dedicated communication thread
    • ZMQ transports (tcp, inproc, unix, multicast)
    • ZMQ socket types
      • REQ/RES
      • PUSH/PULL
      • PUB/SUB
  • 17. pyzmq and gevent_zmq
    • pyzmq works great for threading
    • gevent_zmq is necessary for gevent (single-threaded)
    • Be careful when forking or otherwise using multiprocessing!
      • Gevent has a global “hub” of greenlets
      • ZeroMQ has a global thread & “context” for communication
      • Best to wait till done forking before initializing ZeroMQ
  • 18. ZeroMQ: bind/connect and pub/sub
    • from gevent_zeromq import zmq
    • context = zmq.Context()
    • sock_queue = context.socket(zmq.PUB)
    • sock_queue.bind( 'inproc://chat')
    zmq_sock = context.socket(zmq.SUB) zmq_sock.setsockopt(zmq.SUBSCRIBE, &quot;&quot;) zmq_sock .connect( 'inproc://chat')
  • 19.
    • Getting started with Gevent
    • AJAX, push, WebSockets, wha?
    • ZeroMQ for fun and multiprocessing
    • Putting it all together
  • 20. WebChat: Design Incoming Greenlet ZMQ send Outgoing Greenlet Socket.io ZMQ recv JSON Messages JSON Messages Socket.io
  • 21. WebChat: HTML <h1> Socket.io Chatterbox </h1> <div id=&quot;status&quot; style=&quot;border:1px solid black;&quot; > Disconnected </div> <form> <input id=&quot;input&quot; style=&quot;width: 35em;&quot; > </form> <div id=&quot;data&quot; style=&quot;border:1px solid black;&quot; > </div> <script src=&quot;/js/jquery.min.js&quot; ></script> <script src=&quot;/js/socket.io.js&quot; ></script> <script src=&quot;/js/test.js&quot; ></script>
  • 22. WebChat: Javascript Setup ( function () { // Create and connect socket var socket = new io.Socket( 'localhost'); socket.connect(); // Socket status var $status = $( '#status'); socket.on('connect', function () { $status.html( '<b>Connected: ' + socket.transport.type + '</b>'); }); socket.on('error', function () { $status.html( '<b>Error</b>'); }); socket.on('disconnect', function () { $status.html( '<b>Closed</b>'); });
  • 23. WebChat: Javascript Communication // Send data to the server var $form = $( 'form'); var $input = $( '#input'); $form.bind('submit', function () { socket.send($input.val()); $input.val( ''); return false ; }); // Get data back from the server var $data = $( '#data'); socket.on('message', function (msg) { msg = $.parseJSON(msg) ; var u = msg.u || 'SYSTEM’; $data.prepend($( '<em>' + u + '</em>: ' + msg.m + '<br/>')); }); })();
  • 24. WebChat: Server def chat(environ, start_response): if not environ[ 'PATH_INFO'] .startswith( '/socket.io): return serve_file(environ, start_response) socketio = environ[ 'socketio'] #... handle auth ... zmq_sock = context.socket(zmq.SUB) zmq_sock.setsockopt(zmq.SUBSCRIBE, &quot;&quot;) zmq_sock .connect( 'inproc://chat') greenlets = [ gevent.spawn(incoming, uname, socketio), gevent.spawn(outgoing, zmq_sock, socketio) ] gevent .joinall(greenlets)
  • 25. WebChat: Greenlets def incoming(uname, socketio): while True: for part in socketio .recv(): sock_queue.send(json.dumps( dict( u =uname, m=part))) def outgoing(zmq_sock, socketio): while True: socketio.send(zmq_sock.recv())
  • 26. Get the Code! Socket.io http://socket.io MIT License Chatterbox http://sf.net/u/rick446/pygotham Apache License ZeroMQ http://www.zeromq.org LGPL License Gevent http://gevent.org MIT License
  • 27. Rick Copeland @rick446 [email_address]
