Light Gauge Steel

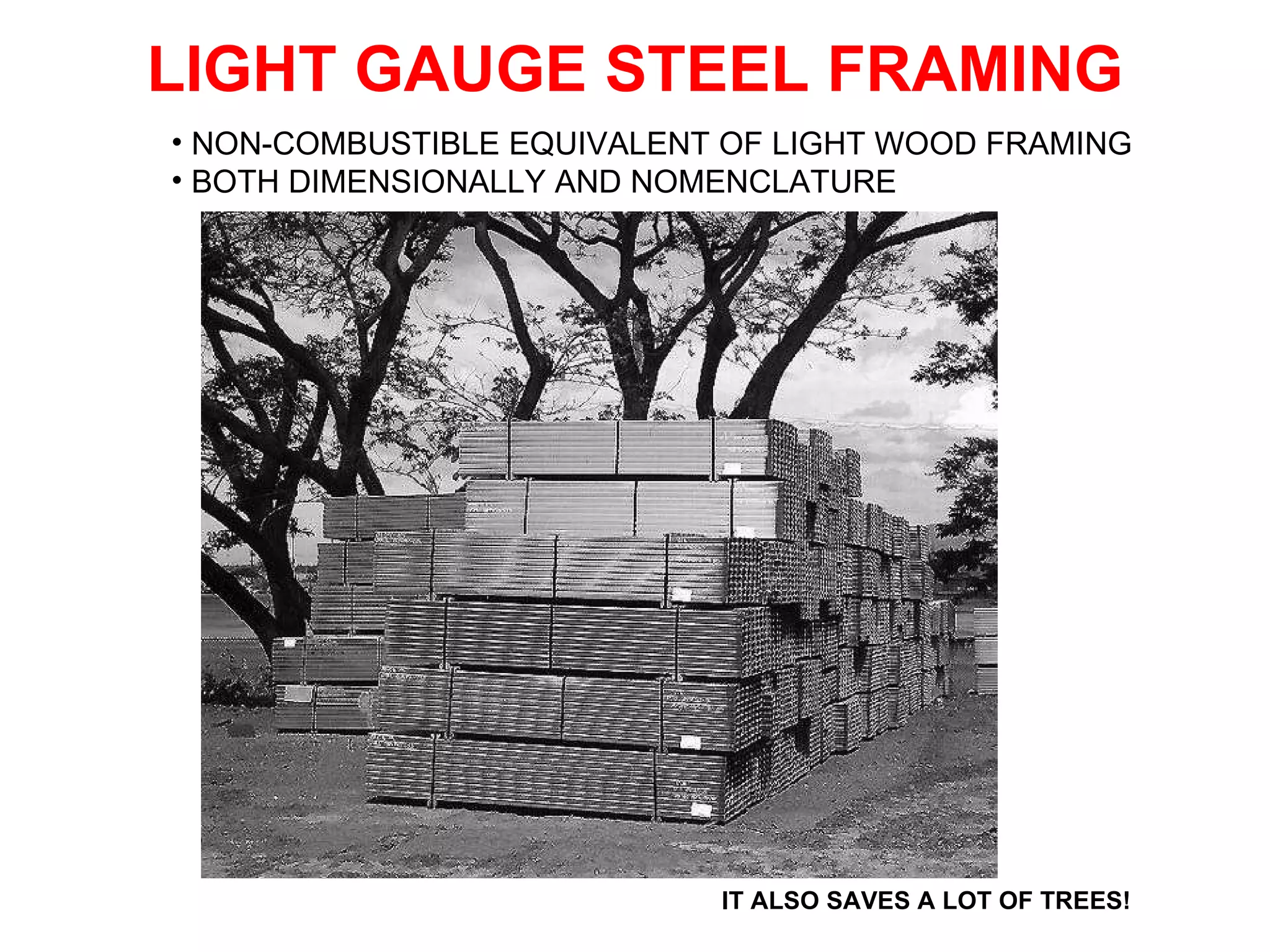

  1. 1. LIGHT GAUGE STEEL FRAMING IT ALSO SAVES A LOT OF TREES! <ul><li>NON-COMBUSTIBLE EQUIVALENT OF LIGHT WOOD FRAMING </li></ul><ul><li>BOTH DIMENSIONALLY AND NOMENCLATURE </li></ul>

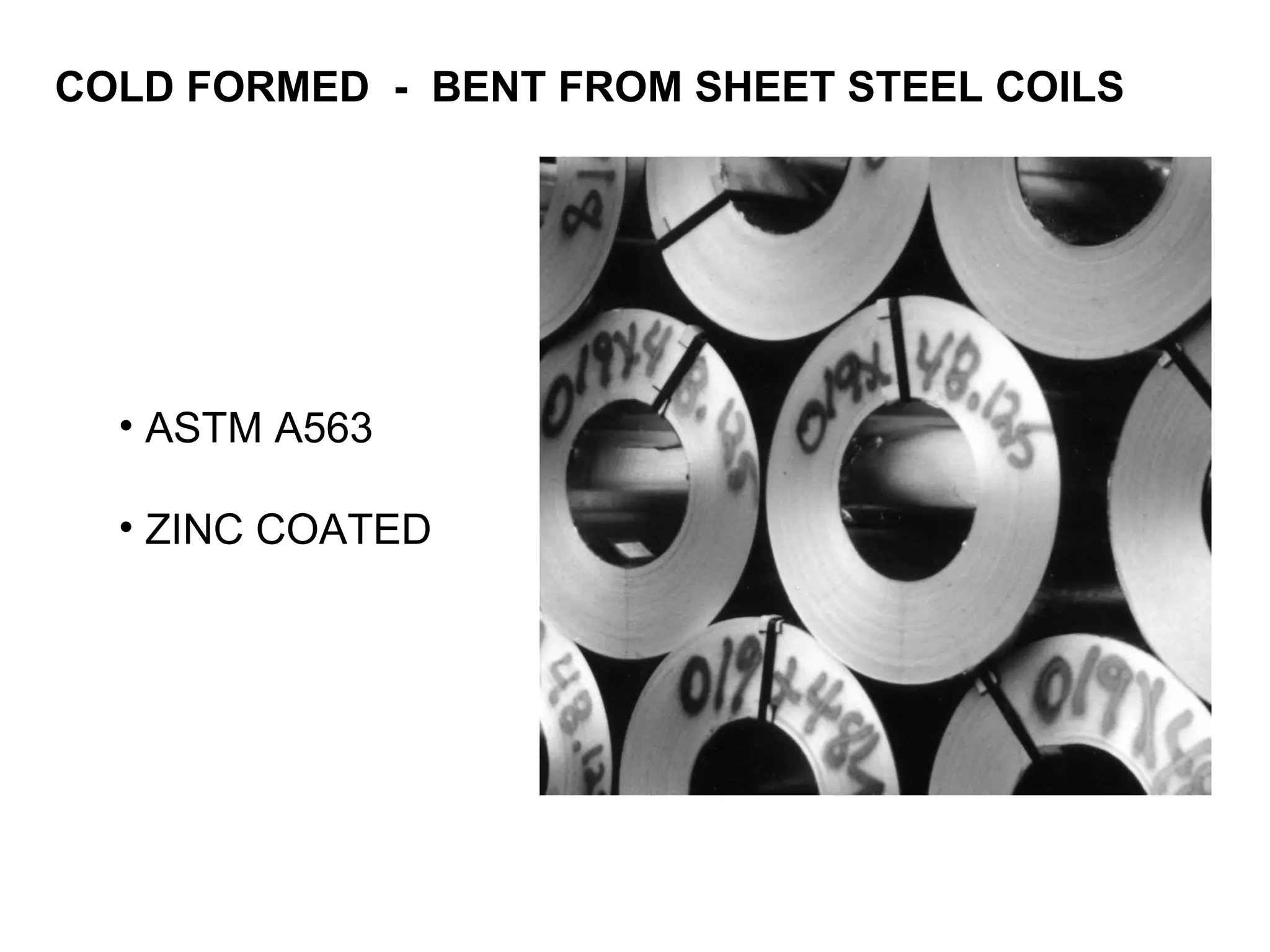

  2. 2. COLD FORMED - BENT FROM SHEET STEEL COILS <ul><li>ASTM A563 </li></ul><ul><li>ZINC COATED </li></ul>

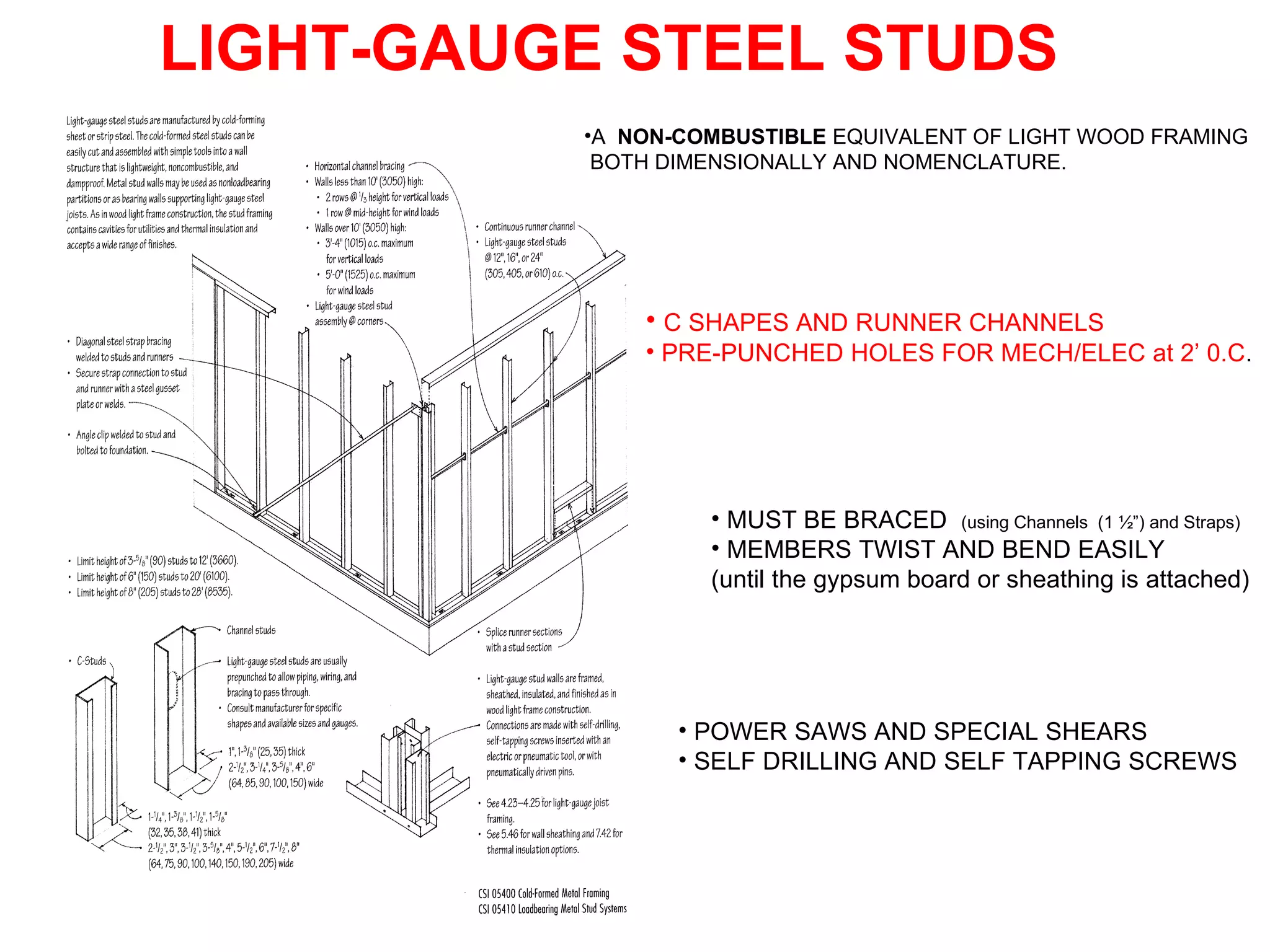

  3. 3. LIGHT-GAUGE STEEL STUDS <ul><li>A NON-COMBUSTIBLE EQUIVALENT OF LIGHT WOOD FRAMING </li></ul><ul><li>BOTH DIMENSIONALLY AND NOMENCLATURE. </li></ul><ul><li>C SHAPES AND RUNNER CHANNELS </li></ul><ul><li>PRE-PUNCHED HOLES FOR MECH/ELEC at 2’ 0.C . </li></ul><ul><li>POWER SAWS AND SPECIAL SHEARS </li></ul><ul><li>SELF DRILLING AND SELF TAPPING SCREWS </li></ul><ul><li>MUST BE BRACED (using Channels (1 ½”) and Straps) </li></ul><ul><li>MEMBERS TWIST AND BEND EASILY </li></ul><ul><li>(until the gypsum board or sheathing is attached) </li></ul>

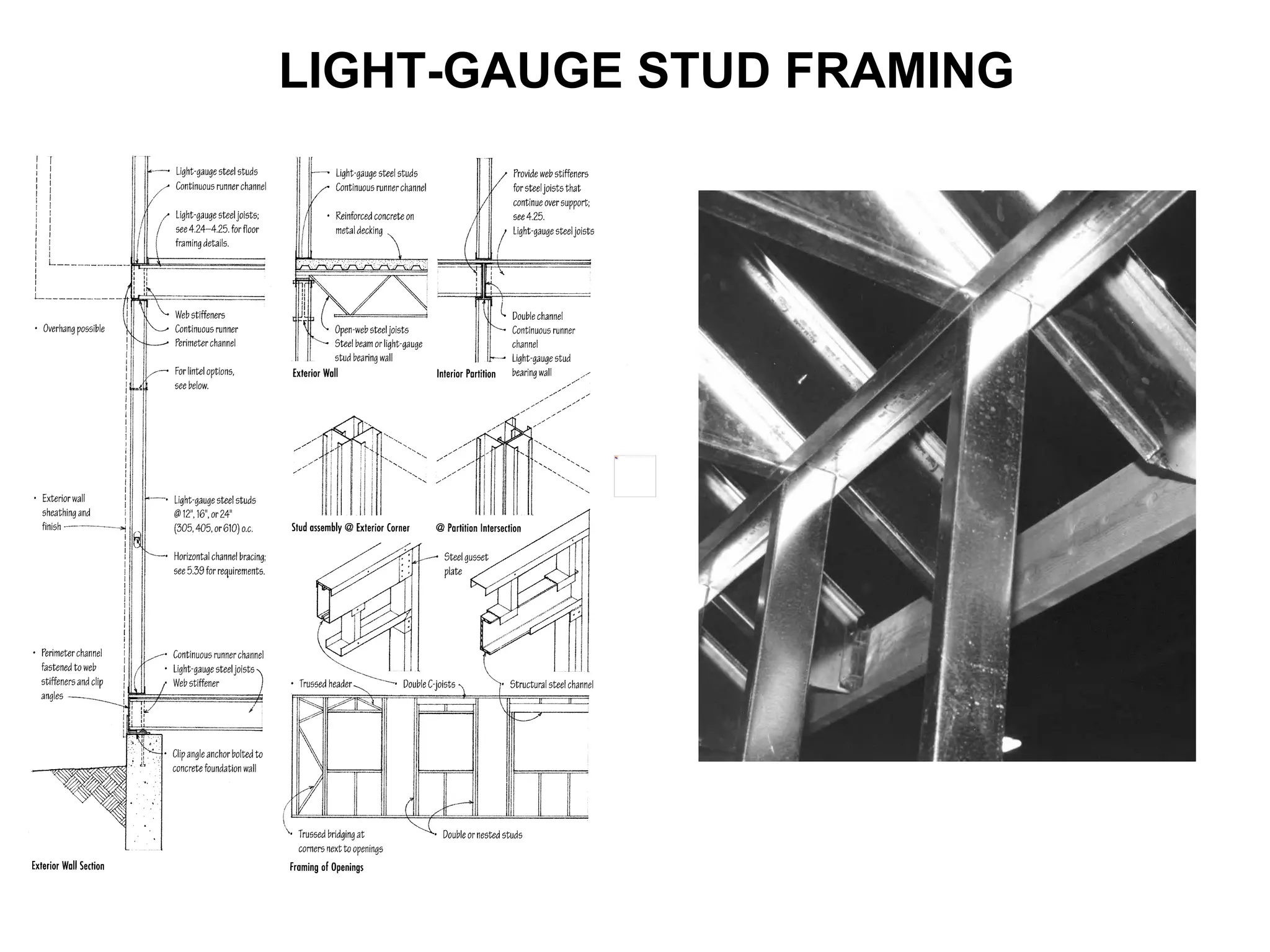

  4. 4. LIGHT-GAUGE STUD FRAMING

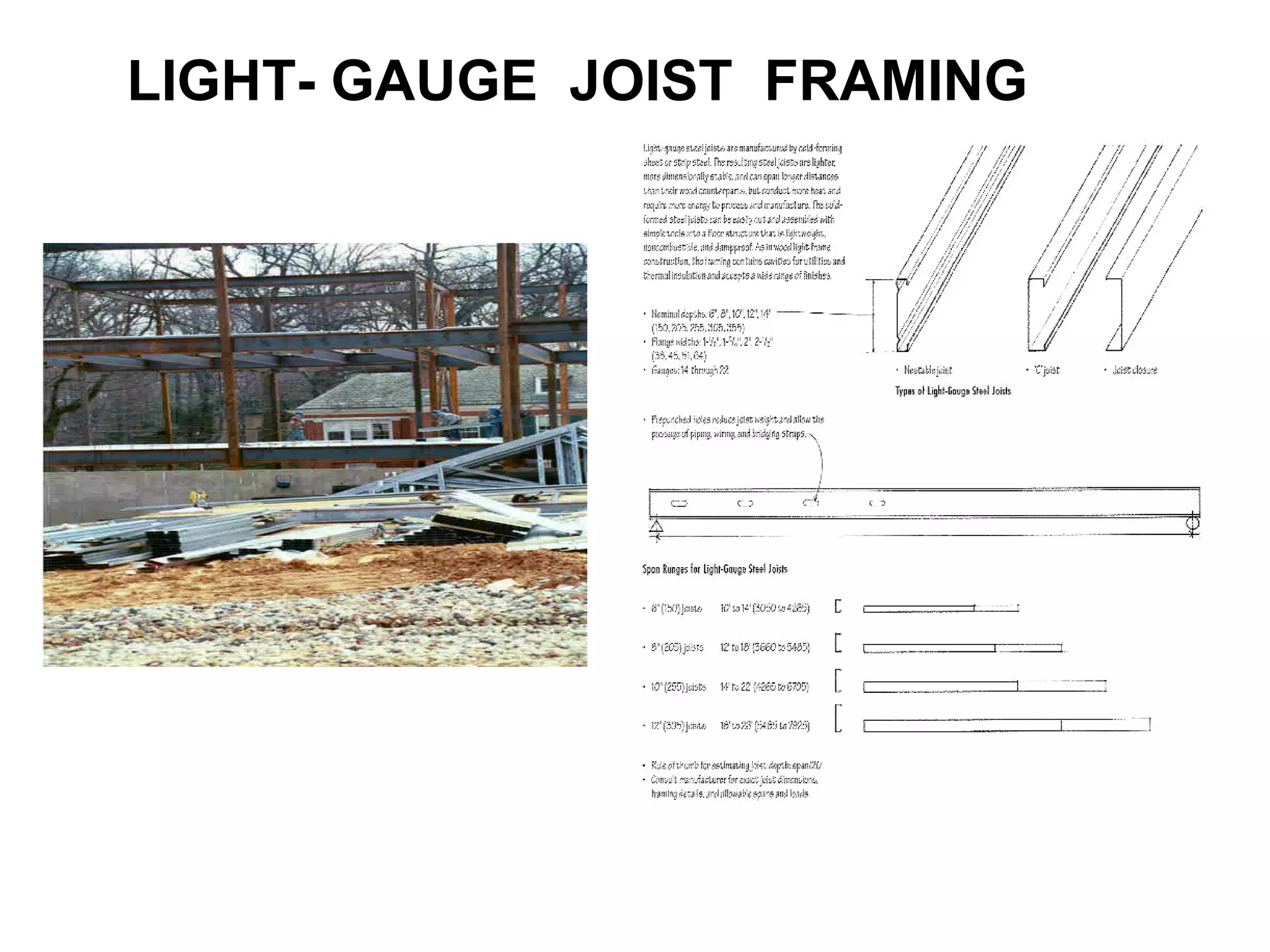

  5. 5. LIGHT- GAUGE JOIST FRAMING
  6. 6. LIGHT GAUGE JOIST FRAMING

×
