- 1. Slope

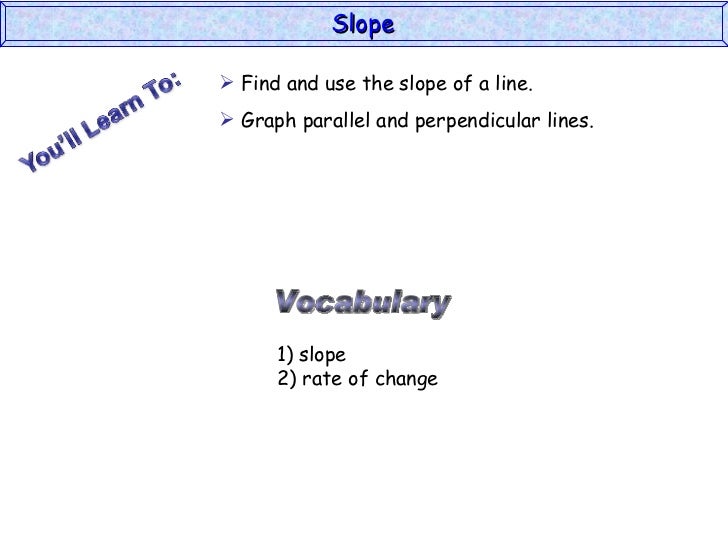

- 2. Vocabulary <ul><li>Find and use the slope of a line. </li></ul><ul><li>Graph parallel and perpendicular lines. </li></ul>1) slope 2) rate of change Slope
- 3. If the pilot doesn’t change something, he / she will not make it home for Christmas. Would you agree?
- 4. Consider the options: 1) Keep the same slope of his / her path.
- 5. Consider the options: 1) Keep the same slope of his / her path.
- 6. Consider the options: 1) Keep the same slope of his / her path. Not a good choice!
- 7. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up.
- 8. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up.
- 9. Consider the options: 1) Keep the same slope of his / her path. Not a good choice! 2) Go straight up. Not possible! This is an airplane, not a helicopter.
- 10. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle.

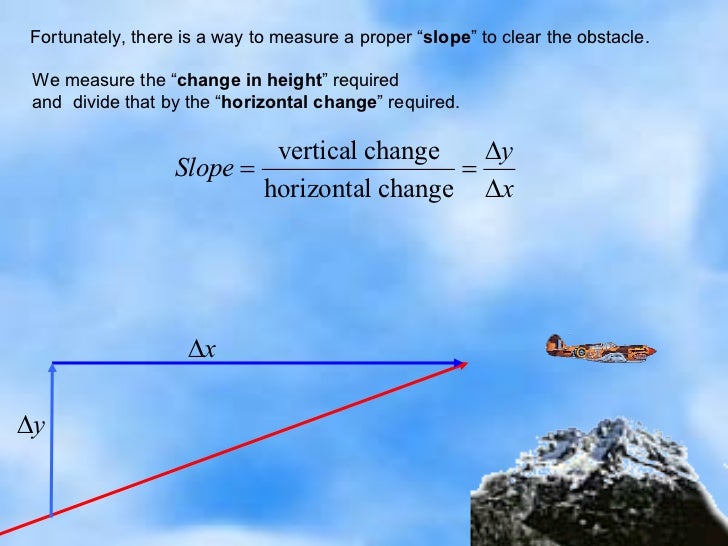

- 11. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 12. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 13. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 14. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 15. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 16. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.
- 17. Fortunately, there is a way to measure a proper “ slope ” to clear the obstacle. We measure the “ change in height ” required and divide that by the “ horizontal change ” required.

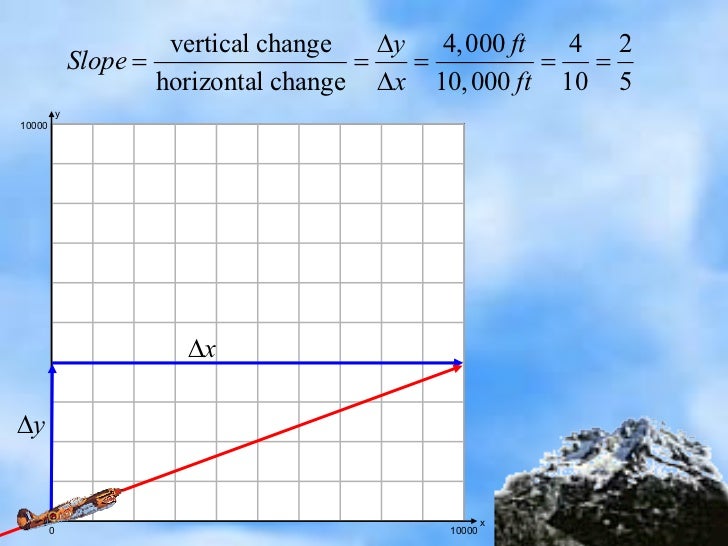

- 18. y x 10000 10000 0 0

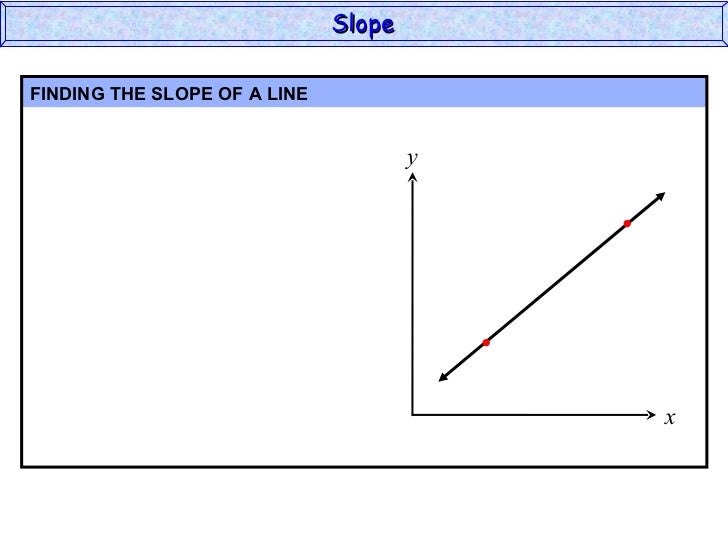

- 19. FINDING THE SLOPE OF A LINE Slope x y

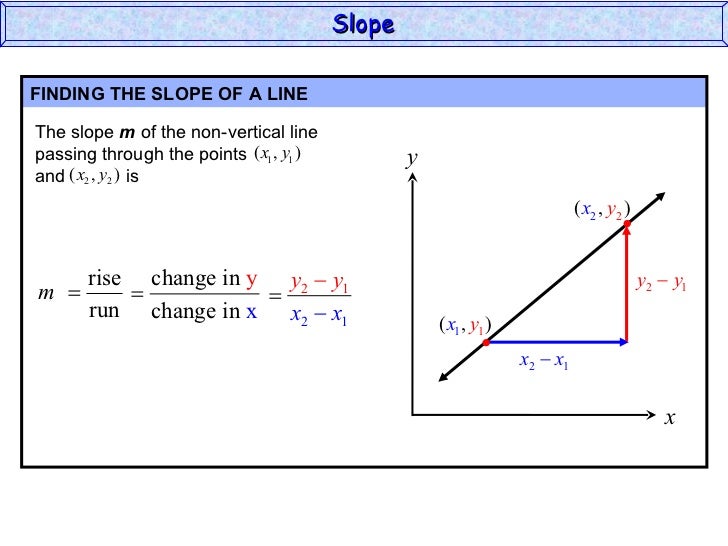

- 20. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is
- 21. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

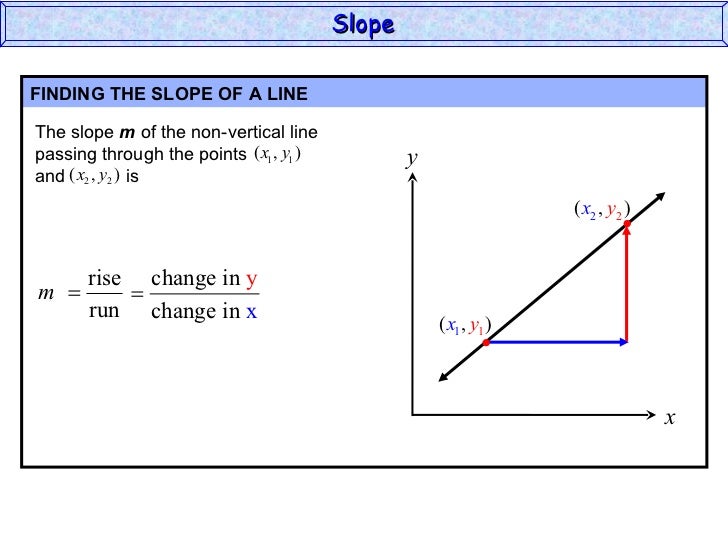

- 22. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is
- 23. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is
- 24. FINDING THE SLOPE OF A LINE Slope x y The slope m of the non-vertical line passing through the points and is

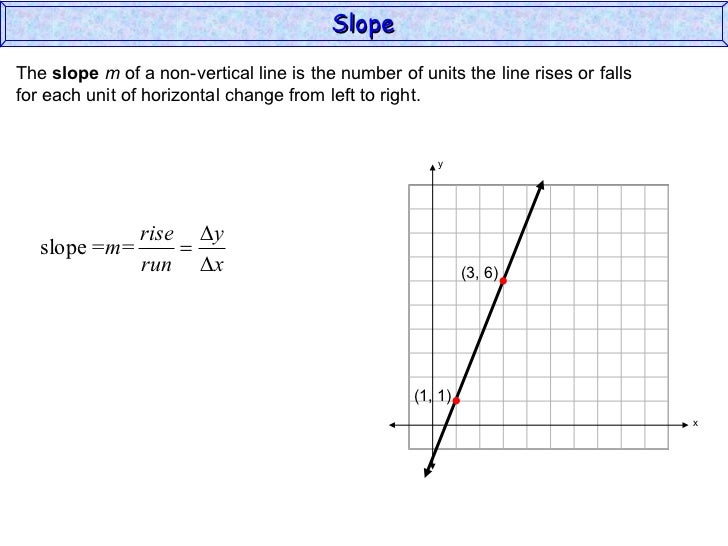

- 25. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)
- 26. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)

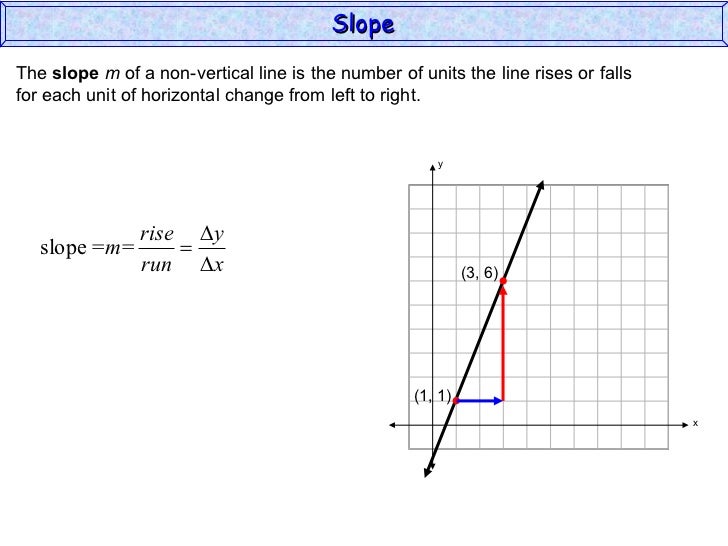

- 27. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. Slope y x (1, 1) (3, 6)

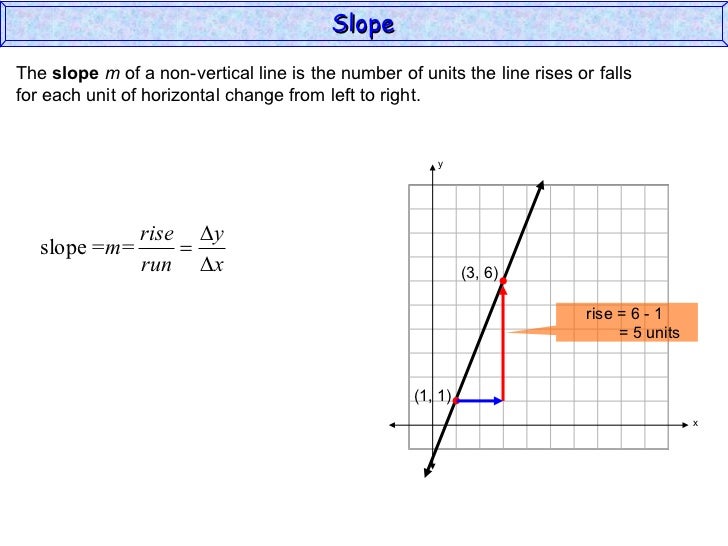

- 28. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)

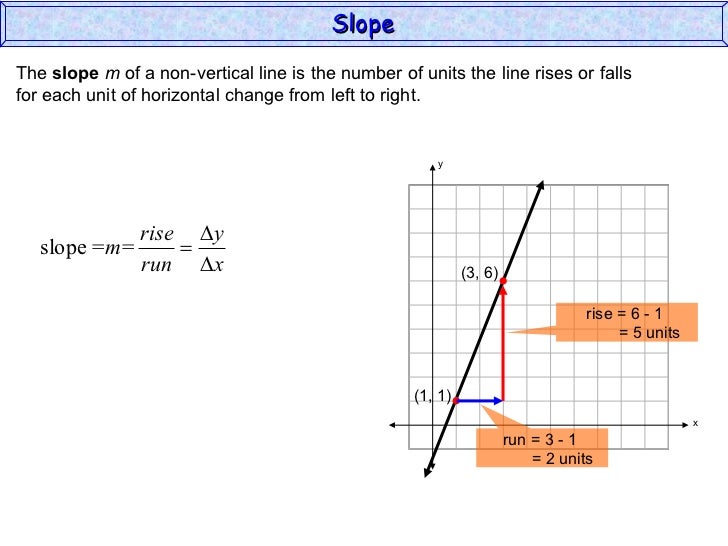

- 29. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. run = 3 - 1 = 2 units rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)
- 30. The slope m of a non-vertical line is the number of units the line rises or falls for each unit of horizontal change from left to right. run = 3 - 1 = 2 units rise = 6 - 1 = 5 units Slope y x (1, 1) (3, 6)

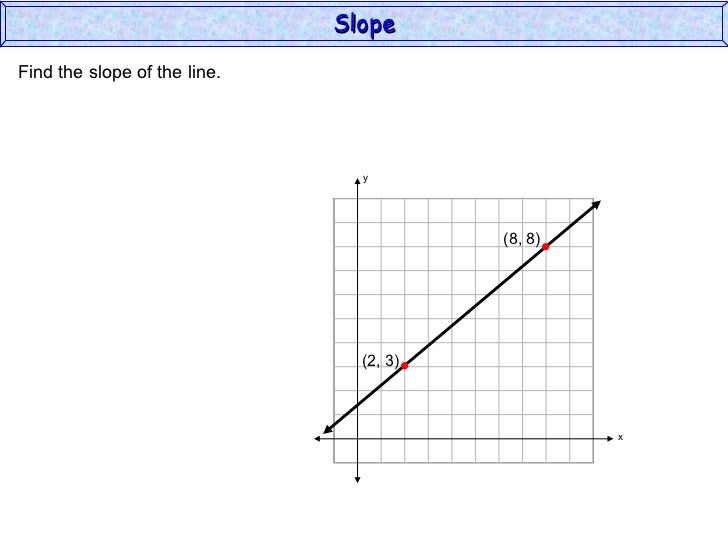

- 31. Slope Find the slope of the line. y x (2, 3) (8, 8)
- 32. Slope Find the slope of the line. y x (2, 3) (8, 8)
- 33. Slope Find the slope of the line. run = 8 - 2 = 6 units rise = 8 - 3 = 5 units y x (2, 3) (8, 8)

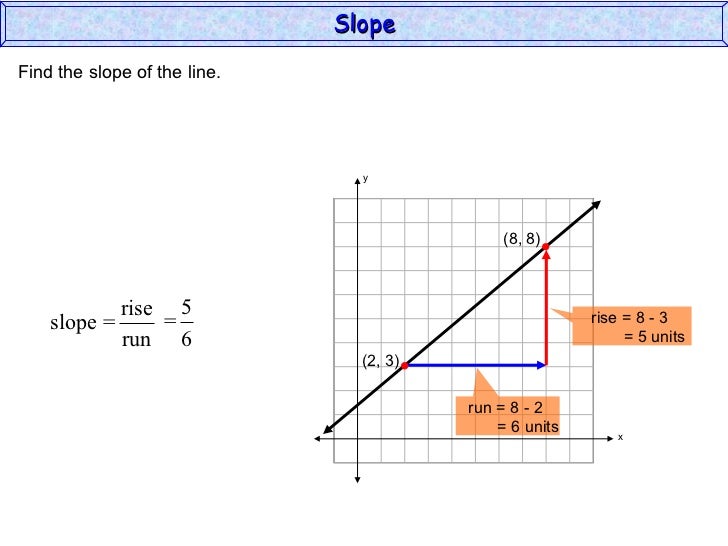

- 34. Slope Find the slope of the line. run = 8 - 2 = 6 units rise = 8 - 3 = 5 units y x (2, 3) (8, 8)

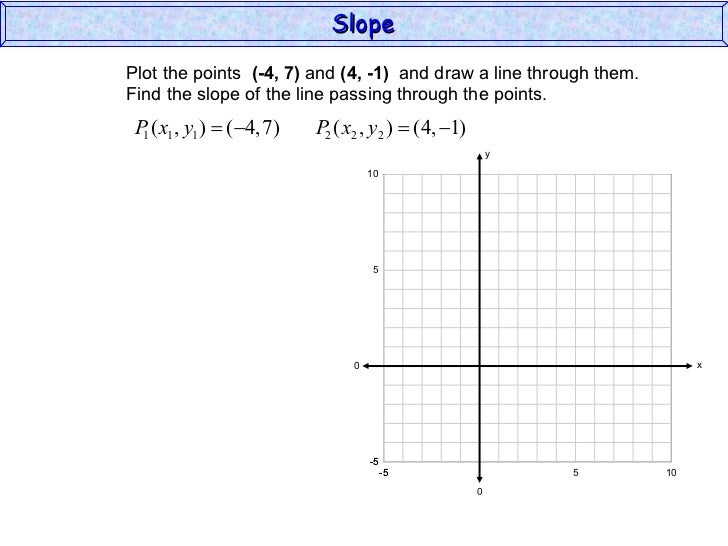

- 35. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

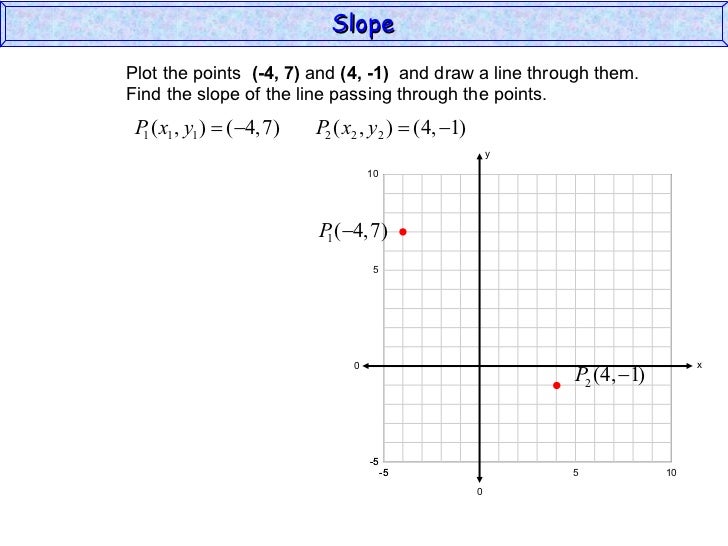

- 36. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

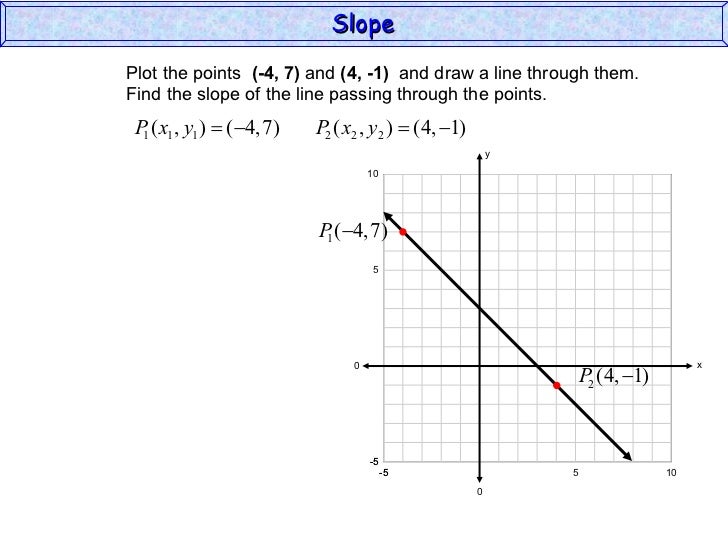

- 37. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5
- 38. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5
- 39. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5

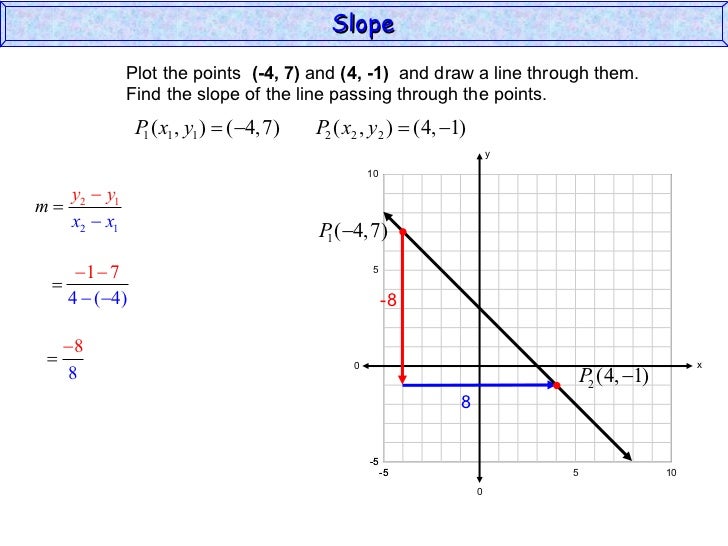

- 40. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8
- 41. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8

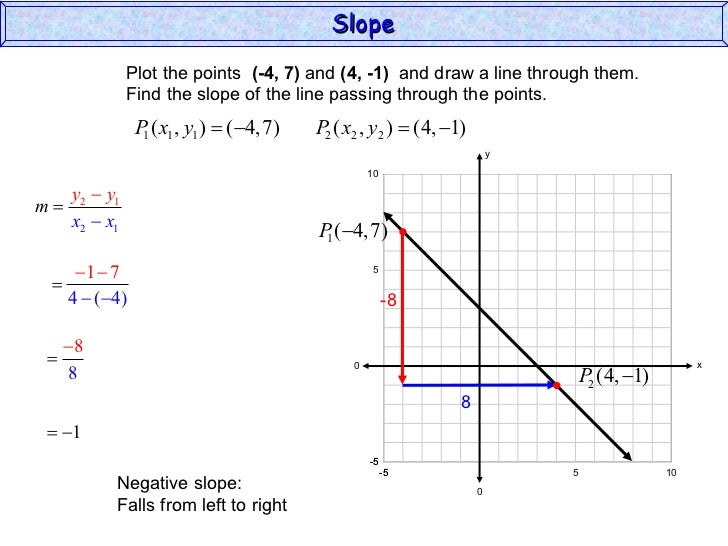

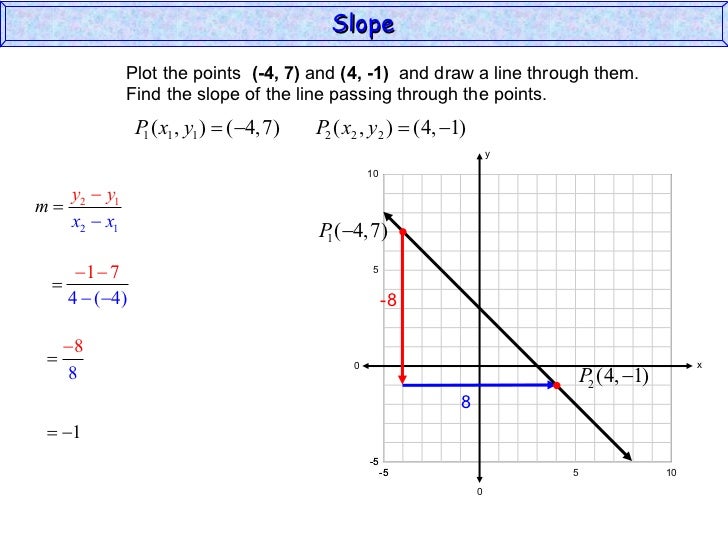

- 42. Plot the points (-4, 7) and (4, -1) and draw a line through them. Find the slope of the line passing through the points. Negative slope: Falls from left to right Slope y x 10 0 -5 -5 5 -5 10 -5 0 5 -8 8

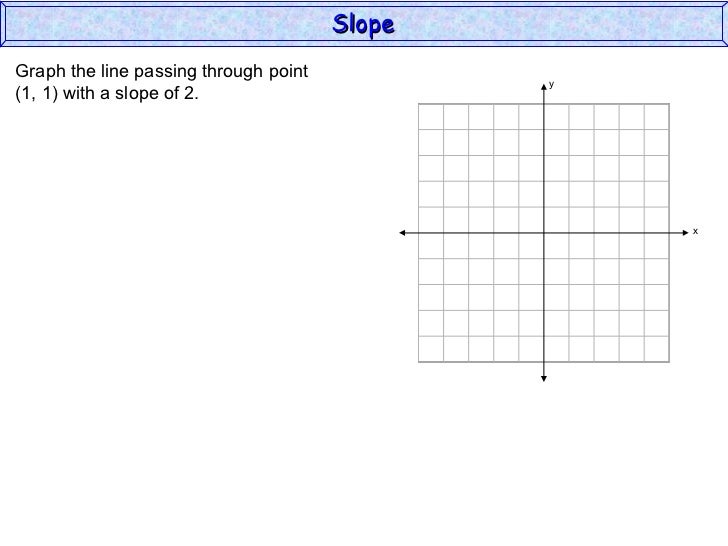

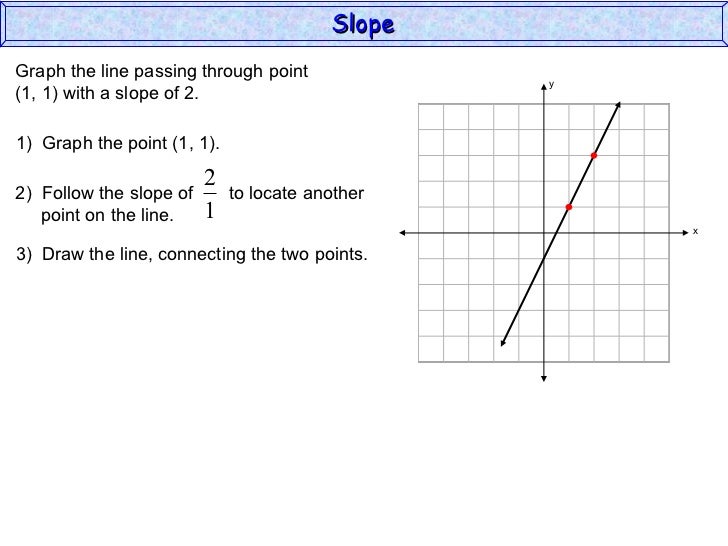

- 43. Graph the line passing through point (1, 1) with a slope of 2. Slope y x
- 44. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x

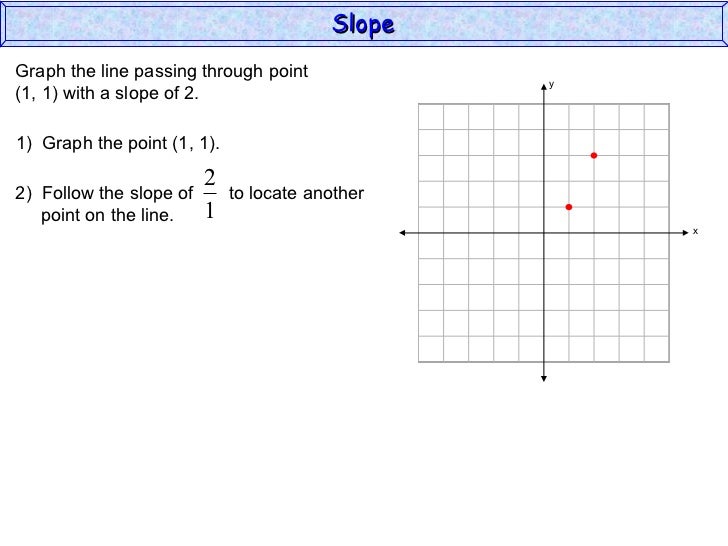

- 45. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.
- 46. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.
- 47. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.
- 48. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). Slope y x 2) Follow the slope of to locate another point on the line.
- 49. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). 3) Draw the line, connecting the two points. Slope y x 2) Follow the slope of to locate another point on the line.
- 50. Graph the line passing through point (1, 1) with a slope of 2. 1) Graph the point (1, 1). 3) Draw the line, connecting the two points. Slope y x 2) Follow the slope of to locate another point on the line.

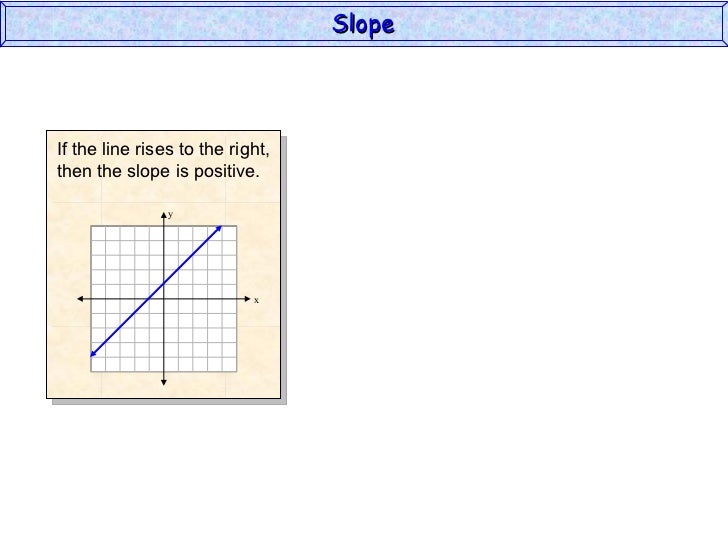

- 51. y x If the line rises to the right, then the slope is positive. Slope
- 52. y x If the line rises to the right, then the slope is positive. Slope

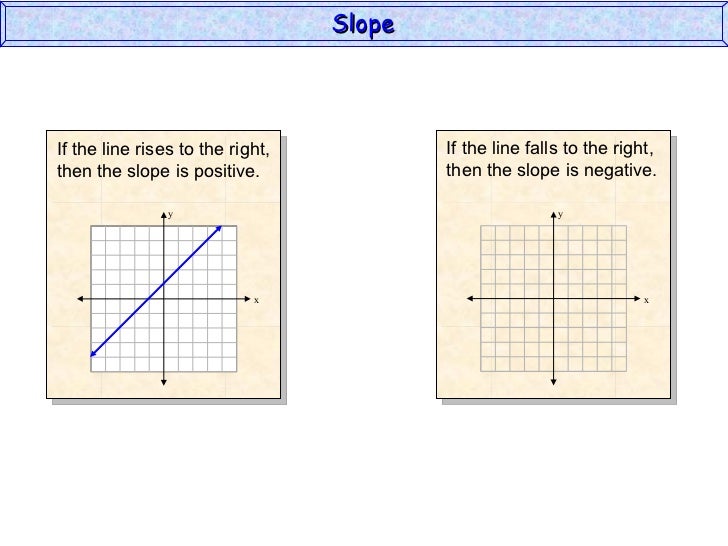

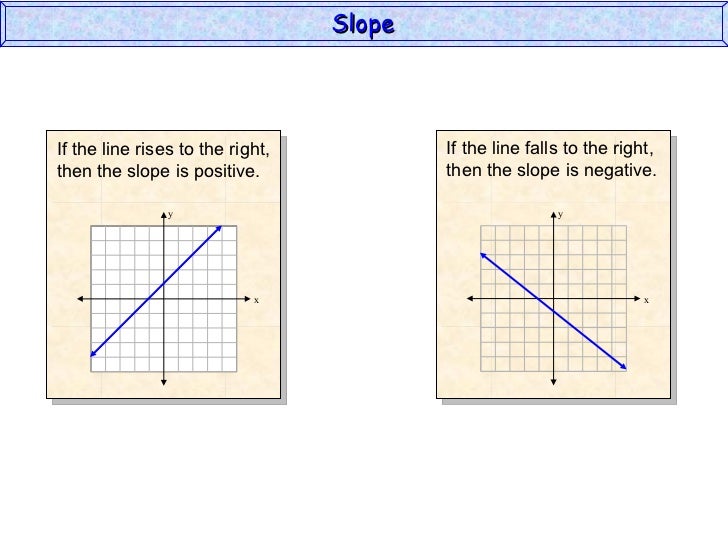

- 53. y x If the line rises to the right, then the slope is positive. Slope y x If the line falls to the right, then the slope is negative.
- 54. y x If the line rises to the right, then the slope is positive. Slope y x If the line falls to the right, then the slope is negative.
- 55. Slope y x If the line is horizontal, then the slope is zero.

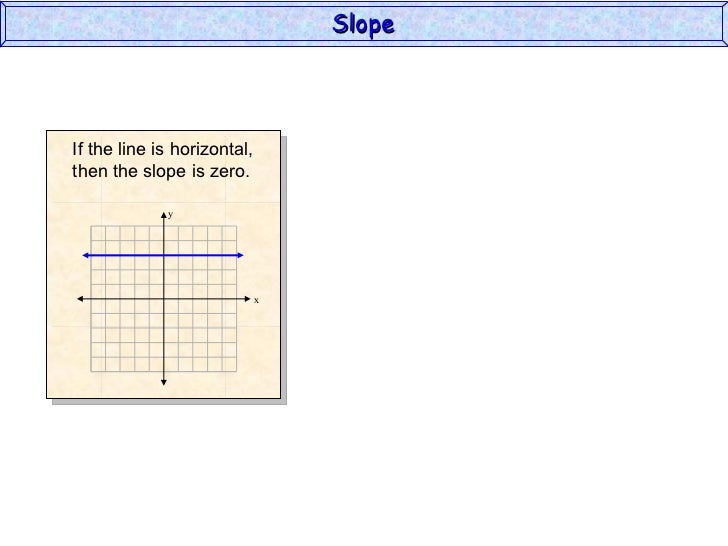

- 56. Slope y x If the line is horizontal, then the slope is zero.

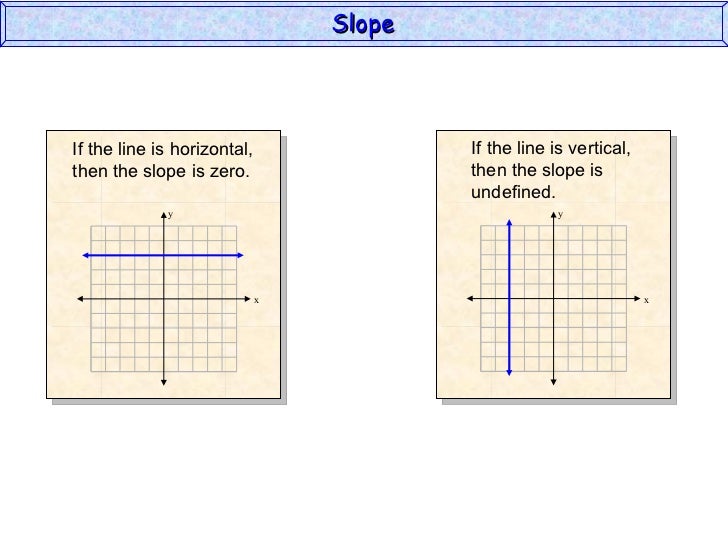

- 57. Slope y x If the line is horizontal, then the slope is zero. y x If the line is vertical, then the slope is undefined.
- 58. Slope y x If the line is horizontal, then the slope is zero. y x If the line is vertical, then the slope is undefined.

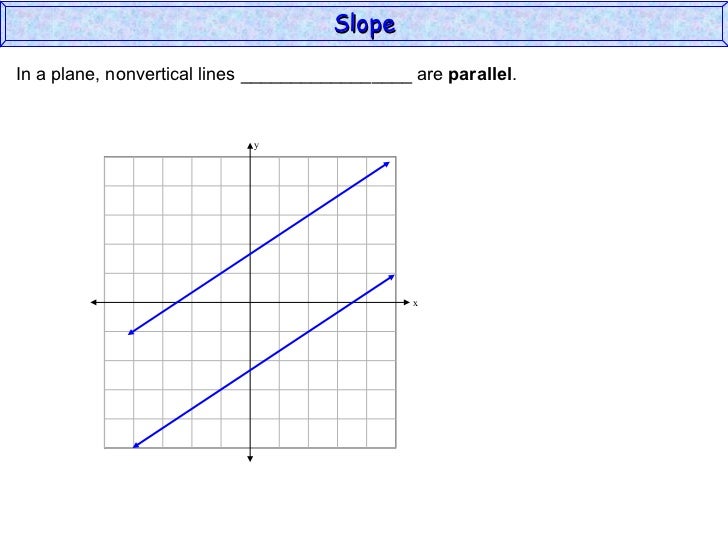

- 59. Slope In a plane, nonvertical lines _________________ are parallel . y x

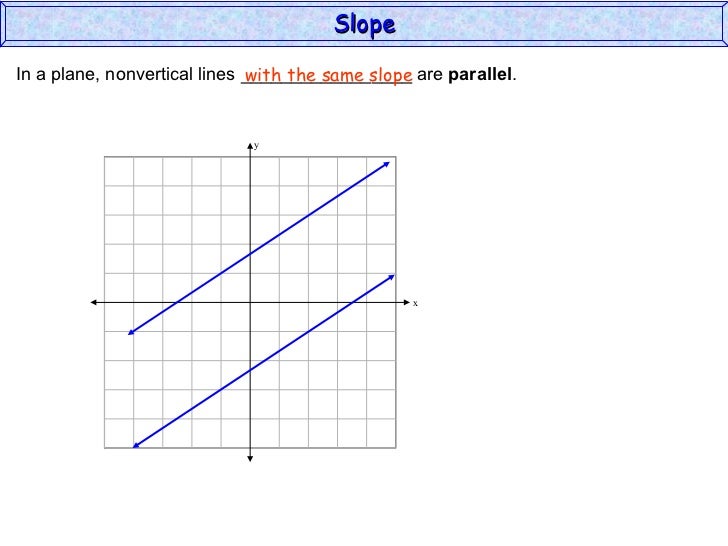

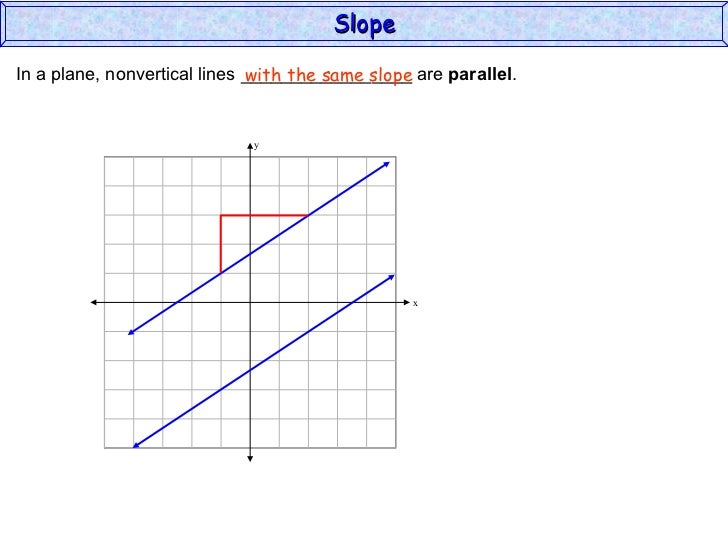

- 60. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x

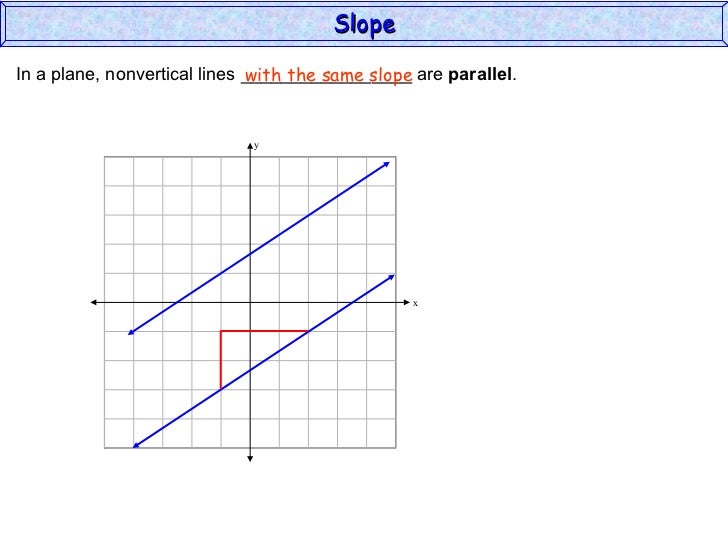

- 61. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x
- 62. Slope In a plane, nonvertical lines _________________ are parallel . with the same slope y x

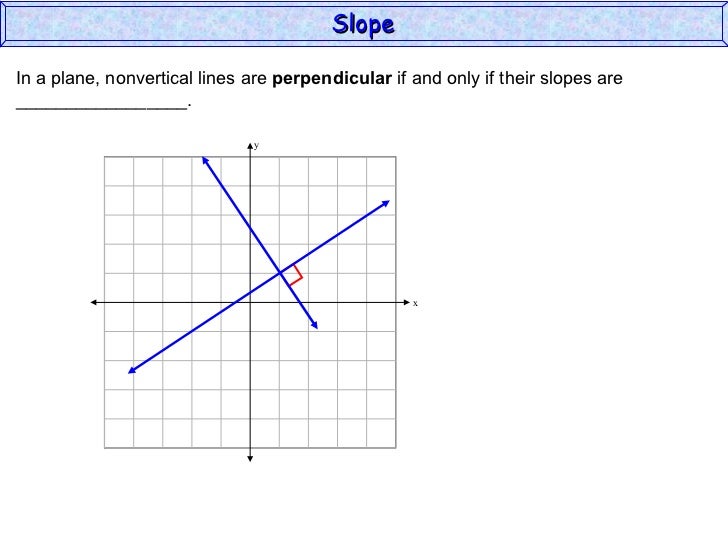

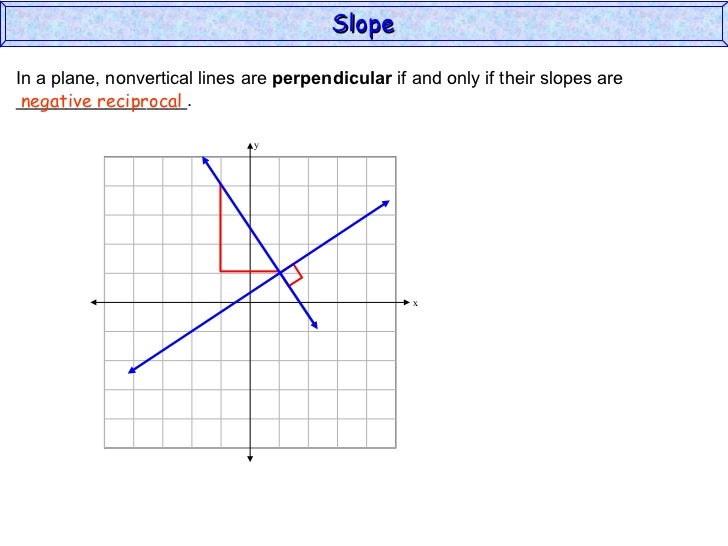

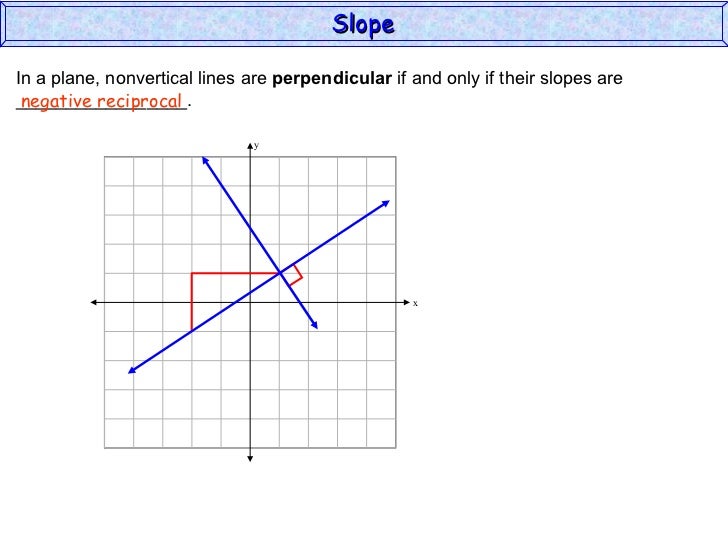

- 63. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. Slope y x

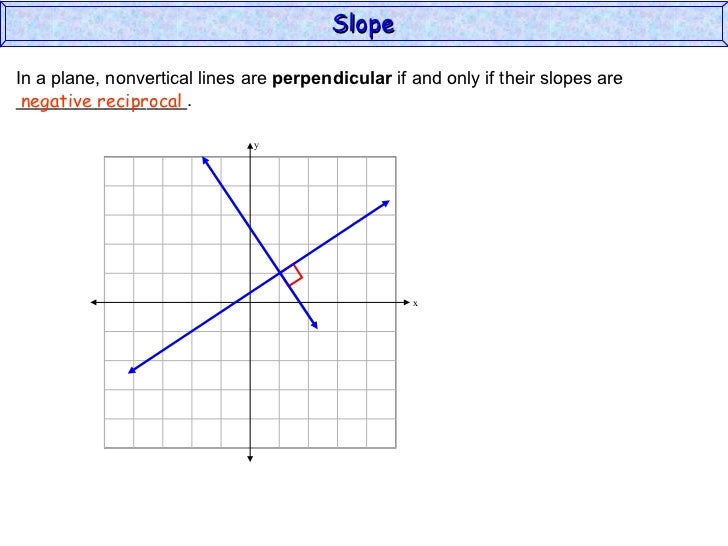

- 64. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x
- 65. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x
- 66. In a plane, nonvertical lines are perpendicular if and only if their slopes are _________________. negative reciprocal Slope y x
- 67. Slope End of Lesson
- 68. Credits PowerPoint created by Using Glencoe’s Algebra 2 text, © 2005 Robert Fant http://robertfant.com
