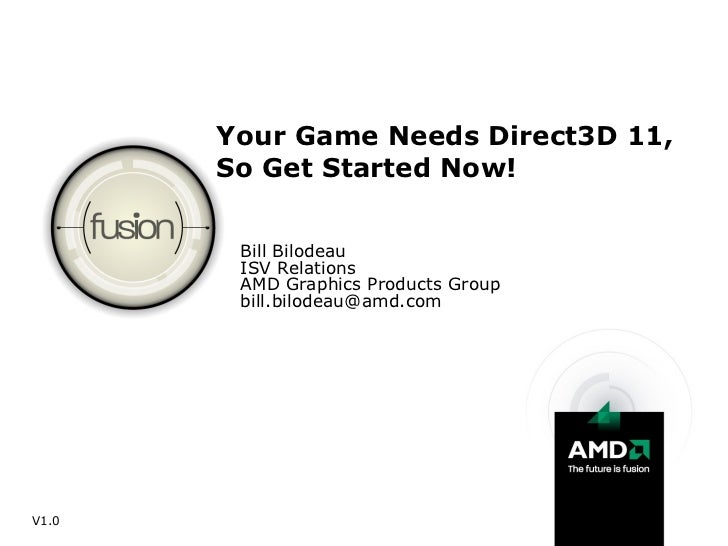

Your Game Needs Direct3D 11, So Get Started Now! <ul><li>Bill Bilodeau </li></ul><ul><li>ISV Relations </li></ul><ul><li>A...
Topics covered in this session <ul><ul><li>Why your game needs Direct3D 11 </li></ul></ul><ul><ul><li>Porting to Direct 3D...
<ul><li>Faster Rendering -> More Rendering -> Better Graphics </li></ul><ul><ul><li>Direct3D 11 can make rendering more ef...
<ul><ul><li>Superset of Direct 3D 10.1 </li></ul></ul><ul><ul><ul><li>Gather() function speeds up texture fetches </li></u...
<ul><li>You can run Direct3D 11 on downlevel hardware </li></ul><ul><ul><li>If you stay within the feature level of the de...
Porting to Direct3D 11 in the real world <ul><li>Frostbite Engine </li></ul><ul><li>Johan Anderson </li></ul><ul><li>Rende...
Frostbite DX11 port <ul><ul><li>Starting point </li></ul></ul><ul><ul><ul><li>Cross-platform engine (PC, Xenon, PS3) </li>...
Temporary switchable DX10/DX11 wrappers #ifdef DICE_D3D11_ENABLE #include <External/DirectX/Include/d3d11.h> #else #includ...
Switchable DX10/DX11 support examples // using D3D10 requires dxgi.lib and D3D11 beta requires dxgi_beta.lib and if we // ...
Mapping buffers on DX10 vs DX11 #ifdef DICE_D3D11_ENABLE D3D11_MAPPED_SUBRESOURCE mappedResource; DICE_SAFE_DX(m_deviceCon...
Frostbite DX11 parallel dispatch <ul><li>The Killer Feature  for reducing CPU rendering overhead! </li></ul><ul><ul><li>~9...
Frostbite DX11 - Other HW features of interest <ul><li>Short term / easy: </li></ul><ul><ul><li>Read-only depth buffers. S...
Frostbite DX11 port – Questions? ? [email_address] from: igetyourfail.com
<ul><li>Advantages of Hardware Tessellation </li></ul><ul><ul><li>An extremely compact representation of a surface </li></...
<ul><li>3 Tessellation Stages </li></ul><ul><ul><li>2 Programmable Stages </li></ul></ul><ul><ul><ul><li>Hull Shader </li>...
<ul><li>Hull Shader </li></ul><ul><li>Operates in 2 phases </li></ul><ul><ul><li>“Control point phase” allows conversion f...
<ul><li>Tessellator Stage </li></ul><ul><li>Fixed Function Stage </li></ul><ul><ul><li>Generates new vertices within each ...
<ul><li>Domain Shader </li></ul><ul><li>Evaluates the surface at each vertex </li></ul><ul><ul><li>Uses the control points...
<ul><li>ATI Tessellator </li></ul><ul><ul><li>A new fixed function stage </li></ul></ul><ul><ul><li>Can be used for protot...
Comparison: D3D 9 vs D3D 11 Tessellator <ul><ul><li>Various Algorithms can be implemented on both </li></ul></ul><ul><ul><...
Alternate Tessellation Method <ul><li>Instanced Tessellation (Gruen 2005) </li></ul><ul><ul><li>Does not require dedicated...
<ul><ul><li>Allows you to bypass the entire graphics pipeline for GPGPU programming </li></ul></ul><ul><ul><ul><li>Post-pr...
Compute Shader: Threads <ul><ul><li>A thread is the basic CS processing element </li></ul></ul><ul><ul><li>A “thread group...
Compute Shader: Threads and Thread Groups <ul><ul><li>pDev11->Dispatch(3, 2, 1); // D3D API call </li></ul></ul><ul><ul><l...
Compute Shader: Thread Group Shared Memory <ul><ul><li>Shared between threads </li></ul></ul><ul><ul><ul><li>Think of it a...
<ul><li>Compute Shaders are available on some D3D 10 Hardware </li></ul><ul><ul><li>CS 4.x is a subset of CS 5.0 </li></ul...
CS 4.x Limitations <ul><li>Limitations </li></ul><ul><ul><li>Max number of threads per group is 768 total </li></ul></ul><...
CS 4.0 Example: HDR Tone Map Reduction Rendered HDR Image 1D Buffer 1D Buffer 8 8 Final Result
CS 4.0 Example: HDR Tone Map Reduction <ul><li>C++ Code: </li></ul><ul><li>CompileShaderFromFile( L&quot;ReduceTo1DCS.hlsl...
CS 4.0 Example: HDR Tone Map Reduction <ul><li>#define blocksize 8 </li></ul><ul><li>#define blocksizeY 8 </li></ul><ul><l...
CS 4.0 Example: HDR Tone Map Reduction <ul><li>if ( GI < stride ) </li></ul><ul><li>accum[GI] += accum[stride+GI]; </li></...
Comparison: CS 4.x vs CS 5.0 <ul><li>CS 4.x is great to have but CS 5.0 will be better </li></ul><ul><ul><li>Better perfor...
<ul><li>Multithreaded Rendering </li></ul><ul><ul><li>Render calls are now part of the “Immediate” context or the “Deferre...
New Direct3D 11 feature: Multithreading Immediate Deferred Deferred   Thread 1   Thread 2   Thread 3   DrawPrim DrawPrim D...
Deferred Contexts <ul><li>Deferred contexts are intended to run in separate threads </li></ul><ul><ul><li>One immediate co...
New Direct3D 11 feature: Multithreading <ul><li>Multithreaded Resources </li></ul><ul><ul><li>Resources can be created wit...
<ul><li>Multithreading is implemented in the Direct3D 11 runtime </li></ul><ul><ul><li>Independent of driver or hardware <...
Comparison of Multithreading on D3D 11 vs Downlevel Hardware  <ul><li>This is primarily a performance issue </li></ul><ul>...
<ul><li>Fetches 4 point-sampled values in a single texture instruction </li></ul><ul><ul><li>Better/faster shadow kernels ...
<ul><li>Gather() is part of Direct3D 11 SM 4.1 </li></ul><ul><ul><li>Works on all Direct3D 10.1 hardware </li></ul></ul><u...
<ul><li>Consider doing the port in stages </li></ul><ul><ul><li>Use the HAL when you can  </li></ul></ul><ul><ul><ul><li>S...
<ul><li>A simple port from D3D 9 to D3D 11 will not perform well </li></ul><ul><ul><li>Hopefully we’ve all learned this le...
<ul><li>Constant Buffers </li></ul><ul><ul><li>Group constants into buffers by frequency of update </li></ul></ul><ul><ul>...
Direct3D 10 programming review <ul><li>Texture Updates </li></ul><ul><ul><li>Call Map() with the DO_NOT_WAIT flag to updat...
<ul><li>Fairly easy port from Direct3D 10 to D3D 11 with 10 or 10.1 device feature level </li></ul><ul><ul><li>You can sti...
<ul><li>Multithreading </li></ul><ul><ul><li>Requires changes to your rendering code </li></ul></ul><ul><ul><li>Add Window...
Adding in new Direct3D 11 features <ul><li>Compute Shader </li></ul><ul><ul><li>Post Processing </li></ul></ul><ul><ul><ul...
<ul><li>Add new features that require Direct3D 11 hardware </li></ul><ul><ul><li>Not too difficult, since you’ve already d...
<ul><li>Direct 3D 11 features will improve your game </li></ul><ul><ul><li>Multithreading, Compute Shader, Tessellation an...
<ul><li>Johan Andersson, DICE – advice on porting to D3D 11 </li></ul><ul><li>Nicholas Thibieroz, AMD – Compute Shader </l...
<ul><li>Trademark Attribution </li></ul><ul><li>AMD, the AMD Arrow logo and combinations thereof are trademarks of Advance...
