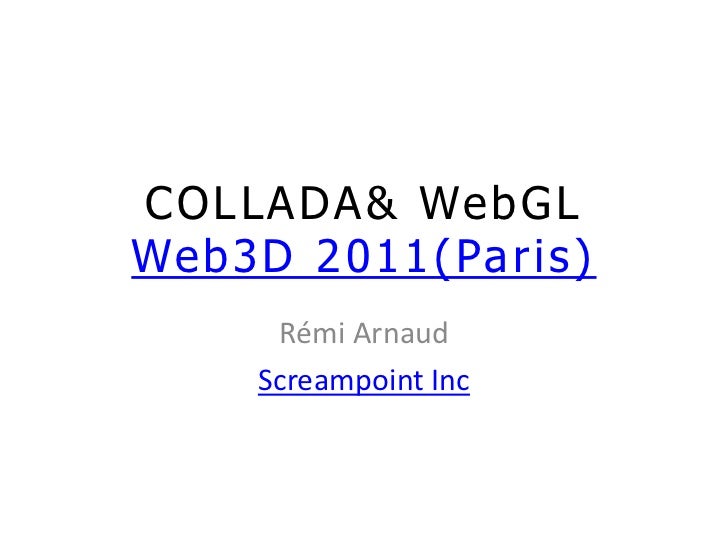

  • 1. COLLADA& WebGLWeb3D 2011(Paris)
    Rémi Arnaud
    Screampoint Inc
  • 2. Agenda
    Déja-vu? (thx to Tony Parisi for the slides)
    COLLADA
    WebGL
    Going from COLLADA to WebGL
  • 3. “History repeats itself, first as tragedy, second as farce.”
    --Karl Marx
  • 4. Web 3D: A Brief History
    Intermediate
    Format
    + XML,
    Skinning,
    Programmable Pipeline,
    Multitexturing, …
    In-Browser Rendering
    + Animation,
    Scripting,
    Interactivity
    Cautious Optimism
    Built In
    GPU
    @mpesce #ZOMG #Winning!
    Model +
    Hyperlink in a Page
    Raging Indifference
    Competing Standards
    Proprietary Platforms
    “Virtual Worlds”
    “Gaming” Redefined
    More important stuff:
    Web 2.0
    Mass Disillusionment
    No Broadband
    No GPUs
    No Killer App
    Warring Factions
    More important stuff: Web 1.0
    Eager Enthusiasm
    @mpesce #WTF? #Winning!
  • 5. http://www.gameenginegems.net/geg2.php
  • 6. WebGL and other technologies
    3D with Java (HW accelerated)
    OpenGL binding (JSR-231), OpenGL ES (JSR-184)
    Did not prevail
    3D with Flash
    Papervision3D, Sandy3D, Away3D and now HW acceleration with Molehill (available) http://labs.adobe.com/technologies/flashplatformruntimes/incubator/features/molehill.html
    Between 1 and 2 Billions installations of flash player
    3D with plug-in
    Unity extremely popular. +500,000 SDK downloads, +50 Millions of plug-in download
    Cross platform (iOS, Android, Xbox, Wii, PS3, …)
    Splendid world editing tool (includes scripting)
    Google Native Client
    Direct access (with a protection layer) to OpenGL ES HW acceleration
    Other native apps… smartphones 600% growth, more and more users see internet only through their phone/tablet device.
  • 7. COLLADA
    XML encoding for 3D assets
    Geometry, Materials, Shaders, Animation, Skin/Bones, Physics, B-Rep*, IK*
    Intermediate format – for the tool chain(including conditioning / optimizer)
    Tool interchange format
    COLLADA available for most if not all modeling tools
    COLLADA & X3D white paper
    http://www.khronos.org/collada/presentations/Developing_Web_Applications_with_COLLADA_and_X3D.pdf
    * COLLADA 1.5
  • 8.
  • 9. COLLADA is everywhere
    Max, Maya, Softimage (Autodesk dominance)
    through fbx sub-standard support
    opencollada.org plug-ins
    Cinema4D, Lightwave, Blender, Modo …..
    Google warehouse, 3dvia
    Google Earth, Sketchup
    Microstation, AutoCAD, Catia …
    But not very well implemented
    Not a single adopter (conformance test)
  • 10. http://downloads.akpeters.com/product.asp?ProdCode=2876
    COLLADA reference manuscript
  • 11. libraries
    Data elements are grouped by feature. A document may contain one or more libraries. User is free to organize documents/collections.
    geometries
    materials, effects
    images
    animations
    animation clips
    controllers
    cameras
    lights
    nodes
    scenes
    physics (models, materials, scenes)
  • 12. COLLADA reference card page 1
  • 13. assets
    COLLADA defines where assets can be defined
    The <COLLADA> element <asset> is mandatory, optional everywhere else
    Assets are defined in their own coordinate system
    COLLADA reference card page 1
  • 14. scenes
    A COLLADA document can contain several scenes, or none.
    Can contain physic scene
    Only one ‘visual_scene’ reference the specific scene to be visualized by default.
    This is because 99% of modelers do not know how to handle multiple scenes.
  • 15. nodes
    Nodes define a local coordinate system, hierarchy transform
    Nodes have no semantic, they do not convey a specific action.
    (i.e. no LOD, switch… nodes)
    Maybe they should have been called ‘places’
    Transforms in a node are to applied in the same order they appear.
  • 16. transform hierarchy
    <node>
    <rotate>
    <translate>
    <instance_geometry>
    .. Is same transform as ..
    <node>
    <rotate>
    <node>
    <translate>
    <instance_geometry>
    COLLADA reference card page 2
  • 17. id and names
    id are used to reference an element, when instancing for example. They have to be UNIQUE in a document
    name are used to store human readable information. It’s like a <extra> tag. names are not unique, the type has been relaxed in 1.5 (xs:NCName has too many restrictions)
    COLLADA reference card page 2
  • 18. Example 1: documents are tiles
    tile_1.dae
    tile_2.dae
    Id = A
    Id = A
    tile_1.dae#A tile_2.dae#A
  • 19. Example 2: using name to group
    tile_1.dae
    id = A
    name = arrow
    id = B
    name = arrow
    arrow = tile_1.dae#A + tile_1.dae#B
  • 20. instances
    Instances are basic building block of COLLADA
    nodes define local coordinate system where geometry is instanced
    nodes, with their attached geometry can be instanced. They can be stored in the node library rather than enumerated in the scene
    Instanced elements can be modified at binding point
    e.g. material bind is done when instancing a geometry
  • 21. Notice the <extra> element to store application specific data.
    COLLADA reference card page 2
  • 22. techniques
    technique_common is mandatory. Default rendering mode
    other rendering techniques are optional, there can be many (glsl, hlsl, mobile, PS3…)
  • 23. Common rendering techniques
    COLLADA reference card page 4
  • 24. Binding materials
    (daenotepad)
  • 25. COLLADA reference card page 6
  • 26. Geometry – e.g. triangles
    COLLADA reference card page 2
  • 27. dataflow
    COLLADA reference card page 3
  • 28. http://www.crcpress.com/product/isbn/9781568814322
    e.g. daenotepad
    https://github.com/RemiArnaud/DAE-notepad
  • 29. WebGL
    WebGL is OpenGL ES 2.0 for javascript
    Rendering with OpenGL ES 2.0 requires the use of shaders. Shadersmust be loaded with a source string (shaderSource), compiled (compileShader), and attached to a program (attachShader) which must be linked (linkProgram) and then used (useProgram).
  • 30. WebGL Reference Card page 2
  • 31. InitWebGL (J3DI.js)
    function initWebGL(canvasName, vshader, fshader, attribs, clearColor, clearDepth)
    {
    var canvas = document.getElementById(canvasName);
    vargl = canvas.getContext("webgl");
    if (!gl) {
    alert("No WebGL context found");
    return null;
    }
    // create our shaders
    varvertexShader = loadShader(gl, vshader); *** see ‘Load Shader’ slide
    varfragmentShader = loadShader(gl, fshader); *** see ‘Load Shader’ slide
    if (!vertexShader || !fragmentShader)
    return null;
    // Create the program object
    gl.program = gl.createProgram();
    if (!gl.program)
    return null;
    // Attach our two shaders to the program
    gl.attachShader (gl.program, vertexShader);
    gl.attachShader (gl.program, fragmentShader);
  • 32. // Bind attributes
    for (var i in attribs)
    gl.bindAttribLocation (gl.program, i, attribs[i]);
    // Link the program
    gl.linkProgram(gl.program);
    // Check the link status
    var linked = gl.getProgramParameter(gl.program, gl.LINK_STATUS);
    if (!linked) {
    // something went wrong with the link
    var error = gl.getProgramInfoLog (gl.program);
    gl.console.log("Error in program linking:"+error);
    gl.deleteProgram(gl.program);
    gl.deleteProgram(fragmentShader);
    gl.deleteProgram(vertexShader);
    return null;
    }
    gl.useProgram(gl.program);
    gl.clearColor(clearColor[0], clearColor[1], clearColor[2], clearColor[3]);
    gl.clearDepth(clearDepth);
    gl.enable(gl.DEPTH_TEST);
    gl.enable(gl.BLEND);
    gl.blendFunc(gl.SRC_ALPHA, gl.ONE_MINUS_SRC_ALPHA);
    return gl;
    }
  • 33. Load Shader
    function loadShader(ctx, shaderId)
    {
    varshaderScript = document.getElementById(shaderId);
    if (!shaderScript) {
    ctx.console.log("*** Error: shader script '"+shaderId+"' not found");
    return null;
    }
    if (shaderScript.type == "x-shader/x-vertex")
    varshaderType = ctx.VERTEX_SHADER;
    else if (shaderScript.type == "x-shader/x-fragment")
    varshaderType = ctx.FRAGMENT_SHADER;
    else {
    ctx.console.log("*** Error: shader script '"+shaderId+"' of undefined type '"+shaderScript.type+"'");
    return null;
    }
  • 34. // Create the shader object
    varshader = ctx.createShader(shaderType);
    if (shader == null) {
    ctx.console.log("*** Error: unable to create shader '"+shaderId+"'");
    return null;
    }
    // Load the shader source
    ctx.shaderSource(shader, shaderScript.text);
    // Compile the shader
    ctx.compileShader(shader);
    // Check the compile status
    var compiled = ctx.getShaderParameter(shader, ctx.COMPILE_STATUS);
    if (!compiled) {
    // Something went wrong during compilation; get the error
    var error = ctx.getShaderInfoLog(shader);
    ctx.console.log("*** Error compiling shader '"+shaderId+"':"+error);
    ctx.deleteShader(shader);
    return null;
    }
    return shader;
    }
  • 35. Array Buffers
    function makeBox(ctx)
    {
    // vertex coords array
    var vertices = new Float32Array(
    [ 1, 1, 1, -1, 1, 1, -1,-1, 1, 1,-1, 1, …..
    );
    // normal array
    varnormals = new Float32Array(
    [ 0, 0, 1, 0, 0, 1, 0, 0, 1, 0, 0, 1, ….
    // texCoord array
    vartexCoords = new Float32Array(
    [ 1, 1, 0, 1, 0, 0, 1, 0 ,….
    // index array
    var indices = new Uint8Array(
    [ 0, 1, 2, 0, 2, 3, ….
    );
    varretval = { };
    retval.normalObject = ctx.createBuffer();
    ctx.bindBuffer(ctx.ARRAY_BUFFER, retval.normalObject);
    ctx.bufferData(ctx.ARRAY_BUFFER, normals, ctx.STATIC_DRAW);
    retval.texCoordObject= ctx.createBuffer();
    ctx.bindBuffer(ctx.ARRAY_BUFFER, retval.texCoordObject);
    ctx.bufferData(ctx.ARRAY_BUFFER, texCoords, ctx.STATIC_DRAW);
    retval.vertexObject = ctx.createBuffer();
    ctx.bindBuffer(ctx.ARRAY_BUFFER, retval.vertexObject);
    ctx.bufferData(ctx.ARRAY_BUFFER, vertices, ctx.STATIC_DRAW);
    ctx.bindBuffer(ctx.ARRAY_BUFFER, null);
    retval.indexObject = ctx.createBuffer();
    ctx.bindBuffer(ctx.ELEMENT_ARRAY_BUFFER, retval.indexObject);
    ctx.bufferData(ctx.ELEMENT_ARRAY_BUFFER, indices, ctx.STATIC_DRAW);
    ctx.bindBuffer(ctx.ELEMENT_ARRAY_BUFFER, null);
    retval.numIndices = indices.length;
    return retval;
    }
  • 36. Buffer Objects
    WebGL reference card – page 1
  • 37. Typed Array
    http://www.khronos.org/registry/typedarray/specs/latest/
  • 38. Texture
    //
    // loadImageTexture
    //
    // Load the image at the passed url, place it in a new WebGLTexture object and return the WebGLTexture.
    //
    function loadImageTexture(ctx, url)
    {
    var texture = ctx.createTexture();
    texture.image = new Image();
    texture.image.onload = function() { doLoadImageTexture(ctx, texture.image, texture) }
    texture.image.src = url;
    return texture;
    }
    function doLoadImageTexture(ctx, image, texture)
    {
    ctx.bindTexture(ctx.TEXTURE_2D, texture);
    ctx.texImage2D(ctx.TEXTURE_2D, 0, ctx.RGBA, ctx.RGBA, ctx.UNSIGNED_BYTE, image);
    ctx.texParameteri(ctx.TEXTURE_2D, ctx.TEXTURE_MAG_FILTER, ctx.LINEAR);
    ctx.texParameteri(ctx.TEXTURE_2D, ctx.TEXTURE_MIN_FILTER, ctx.LINEAR);
    ctx.texParameteri(ctx.TEXTURE_2D, ctx.TEXTURE_WRAP_S, ctx.CLAMP_TO_EDGE);
    ctx.texParameteri(ctx.TEXTURE_2D, ctx.TEXTURE_WRAP_T, ctx.CLAMP_TO_EDGE);
    ctx.bindTexture(ctx.TEXTURE_2D, null);
    }
  • 39. WebGL reference card page 2
  • 40. Pointers
    http://www.khronos.org/webgl/
    Public email list
    http://www.khronos.org/developers/library/siggraph2006/OpenKODE_Course/03_GLSL-for-OpenGL-ES.pdf
    http://learningwebgl.com
    http://planet-webgl.org/
    http://www.webglcamp.com
    ….
  • 41. Middleware
    https://github.com/greggman/tdl
    http://scenejs.org/
    https://github.com/mrdoob/three.js/
    http://alteredqualia.com/
    http://code.google.com/p/o3d/
    http://senchalabs.github.com/philogl/
    Lessons
    http://www.everyday3d.com/j3d/
    …..
  • 42. Going from COLLADA to WebGL
  • 43. Loading COLLADA (or X3D)
    Spore COLLADA viewer (client XML parser)
    xml.evaluate(XPATH)
    Javascript XML cheat sheet http://weblogs.asp.net/rrobbins/archive/2008/09/10/javascript-xml-cheat-sheet.aspx
    Google O3D – preprocessed to json
    http://code.google.com/p/o3d/wiki/ColladaConverter
    O3D mod – (client XML parser)
    2010 http://www.colladawebviewer.com/
    2011 http://capstone.azurenet.net/web3d/demo/
    Scene js – (server preprocessed)
    http://scenejs.wikispaces.com/scenejs-pycollada (server side python)
    http://pycollada.github.com/ (PyCollada)
    X3dom – (client DOM)
    X3D integrated in the Xhtml page http://www.x3dom.org/
  • 44. Typical (COLLADA) xml ‘model’
    http://scenejsorg.ipage.com/dist/curr/extr/examples/tron-tank/extras/tron-tank-model.dae
  • 45. XML & XHTML
    varfloat_array=textValue.split(/s+/).map(parseFloat);
    DOM (jquery) allow for fast tree parsing/modifications
    Direct XML export (POST/PUT) to server
  • 46. Typical json ‘model’
    https://github.com/mrdoob/three.js/blob/master/examples/obj/Suzanne.js
    myData = JSON.parse(text, function (key, value) {
    if (value && typeof value === 'object') {… return value; }});
    Need convention for attributes vs value, not easy to go back to XML
  • 47. Typed Array loading
    function onLoad(){   var canvas = document.getElementById("lesson01-canvas");   initGL(canvas);                                    varxmlhttp = new XMLHttpRequest();   xmlhttp.open("GET", "cube.bm", true);   xmlhttp.responseType = "arraybuffer";               xmlhttp.onload = function()    {      var buffer = xmlhttp.response;      gl.bindBuffer(gl.ARRAY_BUFFER, buffer);                      // Reading Data      var v1 = new Float32Array(buffer);                     alert(v[0]);  // This works fine.   }   xmlhttp.send();                        }
  • 48.
  • 49. Google Body
    Javascript / WebGL / tdl library
    Meshes grouped by texture – 63 draw calls, 1800+ elements
    Index and attribute array merged (65K max)
    16-bits fixed point for pos, normal, textcoords
    Watch http://www.youtube.com/watch?v=vsHHNClzJPg
  • 50. Simple, Fast, Compact Meshes for WebGL
    Won Chun (@won3d on Twitter)
    Google Web Search Infrastructure
    JSON / XML        :-(
    ASCII v. Binary    :-)
    Quantization        :-)
    Compression :-)
  • 51. What is REST ?
    Roy Fielding dissertation (2000) http://www.ics.uci.edu/~fielding/pubs/dissertation/rest_arch_style.htm
    Representational State Transfer (REST) is an architecture, not a standard.
    REST is based on http, xml, uristandards
    REST is everywhere already
    twitter API http://dev.twitter.com/doc
    Dropbox API https://www.dropbox.com/developers/docs
    Google MAP API Web services http://code.google.com/apis/maps/documentation/webservices/index.html
    ….
  • 52. 6 constraints for a RESTful API
    • Client–server Clients are separated from servers by a uniform interface. Clients are not concerned with data storage, Servers are not concerned with the user interface or user state. Servers and clients may also be replaced and developed independently, as long as the interface is not altered.
    • 53. Stateless Client context is not stored on the server between requests. Each request from any client contains all of the information necessary to service the request, and any session state is held in the client. The server can be stateful; this constraint merely requires that server-side state be addressable by URL as a resource
    • 54. Cacheable As on the World Wide Web, clients are able to cache responses. Responses must therefore, implicitly or explicitly, define themselves as cacheable, or not, to prevent clients reusing stale or inappropriate data in response to further requests. Well-managed caching partially or completely eliminates some client–server interactions, further improving scalability and performance.
    • 55. Layered system A client cannot ordinarily tell whether it is connected directly to the end server, or to an intermediary along the way. Intermediary servers may improve system scalability by enabling load balancing and by providing shared caches. They may also enforce security policies.
    • 56. Code on demand Servers are able to temporarily extend or customize the functionality of a client by transferring logic to it that it can execute. Examples of this may include client-side scripts such as JavaScript.
    • 57. Uniform interface The uniform interface between clients and servers simplifies and decouples the architecture, which enables each part to evolve independently. The four guiding principles of this interface are:Identification of resources (e.g. URI), Manipulation of resources, Self-descriptive messages, Hypermedia as the engine of application state
    http://http://en.wikipedia.org/wiki/Representational_State_Transfer
  • 58. methods
    PUT and DELETE are defined to be idempotent - multiple identical requests should have the same effect as a single request
    POST is not necessarily idempotent, and therefore sending an identical POST request multiple times may further affect state or cause further side effects
    See also HEAD, OPTIONS and TRACE methods
    Potential use:
    http://www.w3.org/Protocols/rfc2616/rfc2616-sec9.html
  • 59. What is REST 3D ?
    3D as a web service
    http://rest3d request
    Web Server
    Client application
    Response document
    Cloud Storage
  • 60. Multiple services – same API
    Web Server
    Web Server
    Web Server
    Client application
    Cloud Storage
    Cloud Storage
    Cloud Storage
  • 61. Multiple applications
    Client application
    Web Server
    Web Server
    Web Server
    Client application
    Cloud Storage
    Cloud Storage
    Cloud Storage
    Client application
  • 62. rest 3d methods
    Potential use model:
    http://www.w3.org/Protocols/rfc2616/rfc2616-sec9.html
  • 63. Use case 1 – content gathering
    Program interface to content repositories. Current state requires human in the loop, and content creation tool to explore the model.
    http://sketchup.google.com/3dwarehouse/
    http://www.3dvia.com/
    http://www.3dcadbrowser.com/
    http://www.3d02.com/
    http://www.turbosquid.com/

  • 64. Use case 1 – content gathering
    • search – return models matching with metadata search
    • 65. browse – Avoid downloading all the 3D models that matches the search, this feature provides information about the models such as number of polygons, date, tool used to create the model, …
    • 66. traverse – explore the model hierarchy, and sub parts or/and categories.
    • 67. dependencies - list all the dependencies, for instance the list of textures, shaders, or other parts of the model
    • 68. filter – select only the parts needed by the client. Allows for texture/3D LOD selection, paging…
    • 69. download – get selected subset of the model in a specific format.
  • Use case 2 – collaborative browsing/viewing
    • search – return models matching with metadata search
    • 70. scene – Create a scene and position the models in the scene
    • 71. viewer – extend the client with a viewer application (<embed>) of the created scene.
    • 72. collaborate – enable multiple applications/users to interact with the scene
    • 73. store – store the created scene for others to discover
    • 74. link– provide a URL to the scene
  • Use case 3 – content repository
    Content gathering API plus:
    • create– add models to the content repository
    • 75. update – modify an existing model
    • 76. version – server list all the different versions available, with metadata
    • 77. diff / merge – provide tools to show the difference between versions
    • 78. process – provide tools to process the models, mesh optimization, texture atlas,
    • 79. convert – covert a model from one format to another as a web service.
  • insert your use case here
    Join the discussion:
    http://groups.google.com/group/3d-rest
    http://rest3d.org
  • 80. Leaving the REST to YOU?
    Official web page
    www.rest3d.org
    Join the discussion:
    http://groups.google.com/group/3d-rest

×
