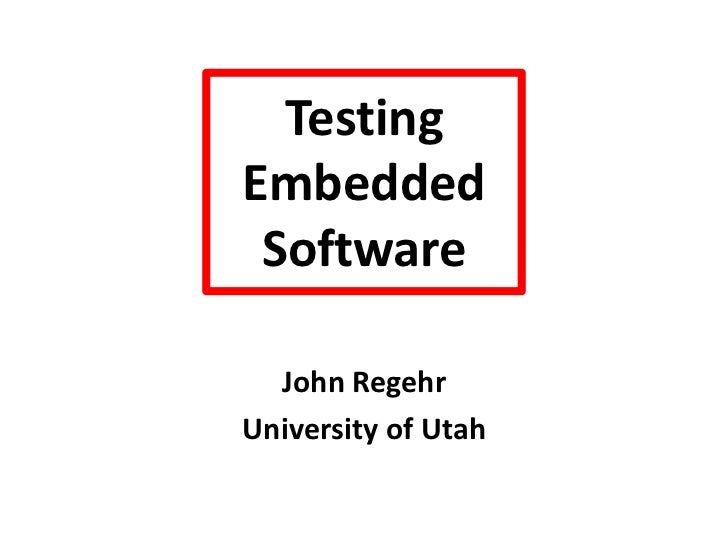

Testing EmbeddedSoftware<br />John Regehr<br />University of Utah<br />
“Over 15 billion ARM based chips shipped to date”<br />[ARM web site, 2011]<br />“The microcontroller market is forecast t...
3<br />
Diverse!<br />4<br />
Diverse!<br />I have 6 pins and 32 bytes of RAM<br />5<br />
Diverse!<br />6<br />
Diverse!<br />7<br />
Diverse!<br />I am quad core @ 1.5 GHz and have a GPU <br />8<br />
Usually there are multiple processors<br />On-chip networks<br />In-device networks<br />Distributed systems<br />Resource...
Continuously interact with the world through I/O devices<br />May be little abstraction of HW<br />Probably using both int...
Sensor network  -> 103–105 LOC<br />Modern airplane -> 106–107 LOC <br />Hybrid vehicle -> 107–108 LOC<br />How do we get ...
Software on many individual processors is small<br />Permits aggressive analysis and testing<br />Constrained domain simpl...
The “Real System Problem”<br />Many interesting embedded codes are proprietary<br />Necessary tools may be expensive or no...
Consequently, academic embedded work may be…<br />Forced to use small, contrived examples<br />Out of tune with industry<b...
Consequently, academic embedded work may be…<br />Forced to use small, contrived examples<br />Out of tune with industry<b...
Arduino<br />Arduino Uno:<br />8-bit AVR processor @ 16 MHz<br />2 KB RAM<br />~$30<br />Emphasis is on interfacing<br />1...
Arduino<br />Nice IDE + libraries + C/C++<br />Minimal abstraction of the embedded processor<br />18 new books in 2011<br ...
<ul><li> Simulators and model checkers for AVR code exist
 Very few Arduino tool papers exist
 This is a big opportunity</li></ul>Arduino<br />Nice IDE + libraries + C/C++<br />Minimal abstraction of the embedded pro...
TinyOS<br />OS and middleware support for sensor networks<br />Sensing<br />Collection and dissemination<br />Localization...
TinyOS<br />“Motes” based on a variety of MCUs<br />Cost $50 – $200<br />Good simulators exist<br />There are a few books<...
TinyOS<br /><ul><li> ~100 tool papers
 Many open problems</li></ul>“Motes” based on a variety of MCUs<br />Cost $50 – $200<br />Good simulators exist<br />There...
Android<br />OS + middleware for smart phones / tablets<br />ARM based hardware running Linux<br />Much less constrained t...
Android<br />Application code in Java<br />Great tools<br />Tons of books<br />23<br />
Android<br /><ul><li> < 100 tool papers
 Most are very recent
 This is not a scary platform</li></ul>Application code in Java<br />Great tools<br />Tons of books<br />24<br />
ROS – Robot Operating System<br />Linux-based infrastructure for programming robots<br />Primary abstraction is graph of c...
ROS – Robot Operating System<br /><ul><li> Very few ROS tool papers exist</li></ul>Linux-based infrastructure for programm...
Plenty of other open embedded platforms exist<br />FreeRTOS<br />Contiki<br />Pacemaker Challenge<br />Etc.<br />Embarrass...
So, let’s test some embedded software<br />But what are we testing for?<br />28<br />
Properties / Oracles<br />Temporal safety<br />Deadlines<br />Or just responsiveness<br />Memory safety<br />Contracts / a...
Worst-Case Execution Time<br />What is the upper bound on execution time for a piece of code?<br />We care because the wor...
True WCET<br />Number of executions<br />Execution time<br />Conservative WCET<br />Longest observed ET #2<br />Longest ob...
32<br />+<br />=<br />printf()<br />pthread_attr_setstacksize (&attr, &mystacksize);<br />HANDLE WINAPI CreateThread( <br ...
Stack Overflow in TinyOS<br />33<br />4 KB<br />
Stack Overflow in TinyOS<br />34<br />main()<br />4 KB<br />
Stack Overflow in TinyOS<br />35<br />main()<br />irq 0<br />4 KB<br />
Stack Overflow in TinyOS<br />36<br />main()<br />irq 0<br />4 KB<br />irq 1<br />
Stack Overflow in TinyOS<br />37<br />main()<br />irq 0<br />4 KB<br />irq 1<br />
Stack Overflow in TinyOS<br />38<br />Not the same thing as buffer overflow!<br />Type safe language doesn’t solve this pr...
Eliminating Stack Overflow<br />Testing is hard<br />Need to drive code to its WC stack depth<br />Interrupt coincidences ...
Estimate WC stack depth of each sequential flow, handling<br />Indirect branches<br />Recursion<br />Loads into the stack ...
41<br />in      r24, 0x3f    ; r24 <- CPU status <br />                       register<br />cli                  ; disable...
Stack analysis tool deployed in the TinyOS distribution<br />Results are typically much larger than worst observed stack d...
Need… more… oracles…<br />43<br />
TinyOS applications are built using components<br />Interface requirements documented but not checked<br />Interface misus...
We augmented nesC with contracts<br />Dynamic checking reasonable efficient<br />Found some long-standing bugs<br />45<br />
nesC is not type safe<br />Memory safety bugs in TinyOS are difficult<br />We ported an existing safe C dialect<br />Found...
47<br />Code size<br />35%<br />13%<br />-11%<br />
