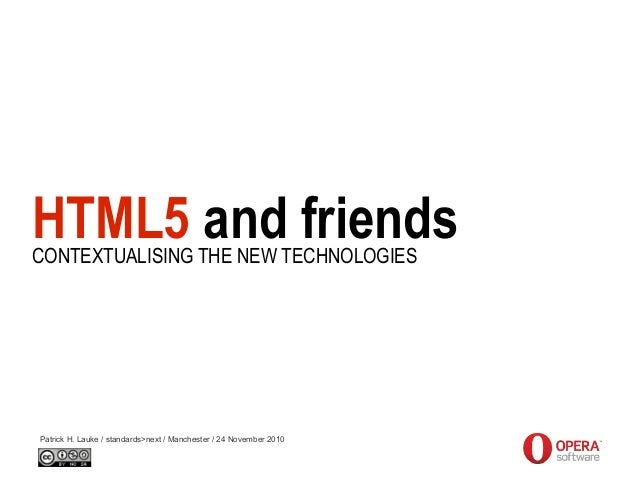

HTML5 and friends Patrick H. Lauke / standards>next / Manchester / 24 November 2010 CONTEXTUALISING THE NEW TECHNOLOGIES
Web Evangelist at Opera
...should I use HTML5 today?
www.textfiles.com/underconstruction
"there is already a lot of excitement for HTML5, but it’s a little too early to deploy it because we’re running into inter...
http://www.flickr.com/photos/24374884@N08/4603715307/
HTML5…without the hype?
A brief history of HTML5 1999 HTML 4.01 2000 XHTML 1.0
2004 W3C focus on XHTML 2.0 …the future is XML-based! http://www.flickr.com/photos/craiga/17071467/
WHATWGWeb Hypertext Application Technology Working Group
2007 W3C HTML5 WG
“...extending the language to better support Web applications [...] This puts HTML in direct competition with other techno...
HTML5 does not replace HTML 4.01 / XHTML 1.0
HTML5 has more bling!
HTML5 specification for browser developers (how to interpret markup/code – no more reverse engineering) for authors: HTML5...
1. syntax/semantic 2. forms 3. multimedia
1. syntax/semantic 2. forms 3. multimedia
HTML5 standardises current browser behaviour (e.g. “relaxed” coding rules)
the dirty secret of the doctype
XHTML 1.0<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Strict//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-strict.dtd">
HTML5 <!DOCTYPE html>
<meta charset=”utf-8” /> <meta charset=utf-8> <MeTa CHarSet=utf-8>
<style type=”text/css”> </style> <script type=”text/javascript”> </script>
<style type=”text/css”> </style> <script type=”text/javascript”> </script>
<!doctype html> <title>Minimal HTML5</title>
new elemente for more accurate semantics
Top 20 class names 1. footer 11. button 2. menu 12. main 3. style1 13. style3 4. msonormal 14. small 5. text 15. nav 6. co...
Top 20 id names 1. footer 11. search 2. content 12. nav 3. header 13. wrapper 4. logo 14. top 5. container 15. table2 6. m...
unambiguous and machine readable ...e.g. screenreaders?
new and old browsers “support” these (although some need a little extra help) header, footer, … { display: block; }
Internet Explorer <9 needs extra training wheels document.createElement('header'); document.createElement('footer'); … htt...
1. syntax/semantics 2. forms 3. multimedia
improved form elements because the web is more interactive
jqueryui.com
rich form elements – without faking them in JS <input type=”date”> <input type=”time”> <input type=”month”> <input type=”w...
types und attributes with built-in validation <input … required> <input type=”tel”> <input type=”email”> <input type=”url”...
1. syntax/semantics 2. forms 3. multimedia
making your site Fonzie compliant...
<video>
Adobe Flash currently most common video delivery mechanism
<object width="425" height="344"> <param name="movie" value="http://www.youtube.com/v/9sEI1AUFJKw&hl=en &fs=1&"></param> <...
<video src="video.webm" controls autoplay loop preload poster="poster.jpg" width="320" height="240"> <a href="video.webm">...
video as native object ● behaves like any other HTML element ● keyboard accessibility out-of-the-box
powerful (simple) API
www.w3.org/TR/html5/video.html#media-elements
controlling <video> with JavaScript var v = document.getElementById('player'); v.play(); v.pause(); v.volume = … ; v.curre...
events fired by <video> var v = document.getElementById('player'); v.addEventListener('loadeddata', function() { … }, true...
video formats the big debate?
HTML5 does not specify video container/codec (same as with images in HTML 4?)
MP4 / H.264 ubiquitous, patent encumbered, licensing/royalties
Ogg Theora free and open, no licensing fees not many tools for it, not web optimised
WebM / VP8 open and royalty-free, web-optimised support by hardware and software vendors
providing multiple sources <video controls autoplay poster="…" width="…" height="…"> <source src="movie.mp4" type="video/m...
flash fallback for older browsers http://camendesign.com/code/video_for_everybody
<video controls autoplay poster="…" width="…" height="…"> <source src="movie.mp4" type="video/mp4" /> <source src="movie.w...
<audio>
audio...exactly the same as video <audio src=”music.mp3” controls autoplay … ></audio> <audio controls autoplay> <source s...
<canvas>
canvas = “scriptable images” <canvas width="…" height="…"></canvas>
canvas has standard API methods for drawing ctx = canvas.getContext("2d"); ctx.fillRect(x, y, width, height); ctx.beginPat...
canvas accessibility?
video, audio and canvas on all devices without plugins (Java / Flash / Silverlight not ubiquitous)
HTML5 (and friends) has lots more APIs for developers (for powerful client-side apps)
isgeolocationpartofhtml5.com
geolocation navigator.geolocation.getCurrentPosition(success, error); navigator.geolocation.watchCurrentPosition(success, ...
offline detection... window.addEventListener('online', function(){ … }, true); window.addEventListener('offline', function...
is it all safe to use, right now?
www.youtube.com/html5
don't do browser sniffing http://www.flickr.com/photos/timdorr/2096272747/
feature-detection progressive enhancement, graceful degradation http://diveintohtml5.org/everything.html
feature-detection for audio/video if (!!document.createElement('video').canPlayType;) { … } if (!!document.createElement('...
patching older browsers github.com/Modernizr/Modernizr/wiki/HTML5-Cross-browser-Polyfills
sublimevideo.net
videojs.com
www.happyworm.com/jquery/jplayer
HTML5 as Flashkiller?
not a question of HTML5 replacing Flash...
giving developers a choice!
...should I use HTML5 today?
“The future is already here – it's just not very evenly distributed” William Gibson
www.opera.com/developer people.opera.com/patrickl/presentations/standards-next_24.11.2010/standards-next_24.11.2010.pdf pa...
