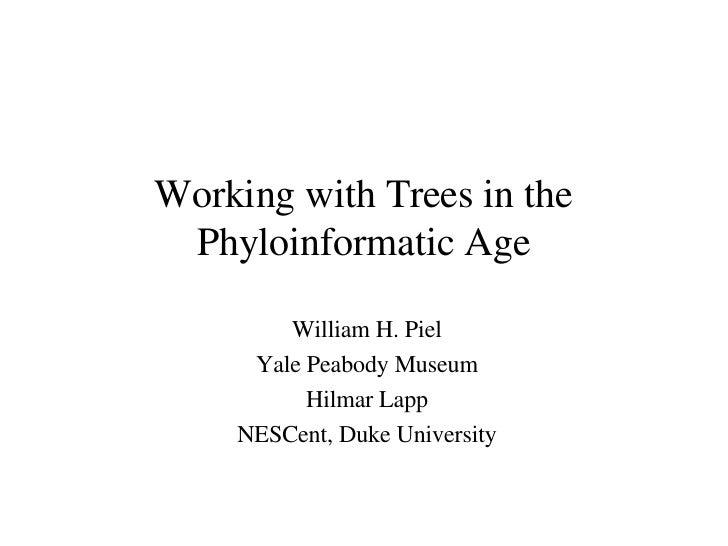

Working with Trees in the Phyloinformatic Age William H. Piel Yale Peabody Museum Hilmar Lapp NESCent, Duke University
Dealing with the Growth of Phyloinformatics <ul><li>Trees: Too Many </li></ul><ul><ul><li>Search, organize, triage, summar...
Searching Stored Tree <ul><li>Path Enumerations </li></ul><ul><li>Nested Sets </li></ul><ul><li>Adjacency Lists </li></ul>...
Dewey system: A B C D E 0.1 0.1.1 0.1.2 0.2 0.2.1 0.2.1.1 0.2.1.2 0.2.2 0
Find clade for: Z = (<C S +D s ) Find common pattern starting from left SELECT *  FROM nodes WHERE (path LIKE “0.2.1%”); 0...
<ul><li>ATreeGrep </li></ul><ul><ul><li>Uses special suffix indexing to optimize speed </li></ul></ul><ul><ul><li>Shasha, ...
Searching Stored Tree <ul><li>Path Enumerations </li></ul><ul><li>Nested Sets </li></ul><ul><li>Adjacency Lists </li></ul>...
Depth-first traversal scoring each node with a lef and right ID A B C D E 2 3 5 8 9 10 12 15 1 4 6 7 17 11 13 16 18 14
SELECT *  FROM nodes INNER JOIN nodes AS include ON (nodes.left_id BETWEEN include.left_id AND include.right_id) WHERE inc...
<ul><li>PhyloFinder </li></ul><ul><ul><li>Duhong Chen  et al. </li></ul></ul><ul><ul><li>http://pilin.cs.iastate.edu/phylo...
Searching Stored Tree <ul><li>Path Enumerations </li></ul><ul><li>Nested Sets </li></ul><ul><li>Adjacency Lists </li></ul>...
A B C D E 1 2 3 4 5 6 7 8 9 - 1 - - 2 1 A 3 2 B 4 2 - 6 5 - 5 1 C 7 6 E 9 5 D 8 6
SQL Query to find parent node of node “D”: SELECT * FROM nodes AS parent INNER JOIN nodes AS child ON (child.parent_id = p...
Searching Stored Tree <ul><li>Path Enumerations </li></ul><ul><li>Nested Sets </li></ul><ul><li>Adjacency Lists </li></ul>...
Searching trees by distance metrics:  USim distance Wang, J. T. L., H. Shan, D. Shasha and W. H. Piel. 2005. Fast Structur...
Searching Stored Tree <ul><li>Path Enumerations </li></ul><ul><li>Nested Sets </li></ul><ul><li>Adjacency Lists </li></ul>...
Transitive Closure <ul><li>Finding paths between vertices on a graph </li></ul><ul><li>DB2 and Oracle have special functio...
Dealing with the Growth of Phyloinformatics <ul><li>Trees Too Many </li></ul><ul><ul><li>Search, organize, triage, summari...
BioSQL:  http://www.biosql.org/ Schema for persistent storage of sequences and features tightly integrated with BioPerl (+...
CREATE TABLE node_path ( child_node_id integer, parent_node_id integer, distance integer); Index of all paths from ancesto...
SELECT pA.parent_node_id FROM  node_path pA, node_path pB, nodes nA, nodes nB WHERE pA.parent_node_id = pB.parent_node_id ...
SELECT pA.parent_node_id FROM  node_path pA, node_path pB, nodes nA, nodes nB WHERE pA.parent_node_id = pB.parent_node_id ...
SELECT pA.parent_node_id FROM  node_path pA, node_path pB, nodes nA, nodes nB WHERE pA.parent_node_id = pB.parent_node_id ...
SELECT e.parent_id AS parent, e.child_id AS child, ch.node_label, pt.tree_id FROM node_path p, edges e, nodes pt, nodes ch...
SELECT DISTINCT t.tree_id, t.name FROM node_path p, nodes ch, trees t WHERE ch.node_id = p.child_node_id AND ch.tree_id = ...
SELECT qry.tree_id, MIN(qry.name) AS &quot;tree_name&quot; FROM ( SELECT DISTINCT ON (n.node_id) n.node_id, t.tree_id, t.n...
SELECT t.tree_id, t.name FROM trees t INNER JOIN (SELECT DISTINCT ON (inN.tree_id) inP.parent_node_id, inN.tree_id FROM no...
Matching a whole tree means querying for all clades (A, B) but not C, D, E (C, D) but not A, B, E (C, D, E) but not A, B A...
Dealing with the Growth of Phyloinformatics <ul><li>Trees Too Many </li></ul><ul><ul><li>Search, organize, triage, summari...
(((Sus_scrofa, Hippopotamus),Balaenoptera),Equus_caballus) vs ((Sus_scrofa, (Hippopotamus,Balaenoptera)),Equus_caballus) M...
Even if with perfectly-resolved OTUs, you will still fail to hit relevant trees: Sus scrofa Hippopotamus Balaenoptera Equu...
Step 1: for each clade all trees in database, run a stem query on a classification tree (e.g. NCBI) Stem Queries: Node 2: ...
Rename nodes according to their deepest stem query… Gorilla gorilla Homo sapiens Pan troglodytes Macaca sinica Macaca nigr...
Dealing with the Growth of Phyloinformatics <ul><li>Trees Too Many </li></ul><ul><ul><li>Search, organize, triage, summari...
PhyloWidget <ul><li>Greg Jordan </li></ul><ul><ul><li>Google Summer of Code student </li></ul></ul><ul><ul><li>Nick Goldma...
Thanks
