Foresight Presentation Transcript

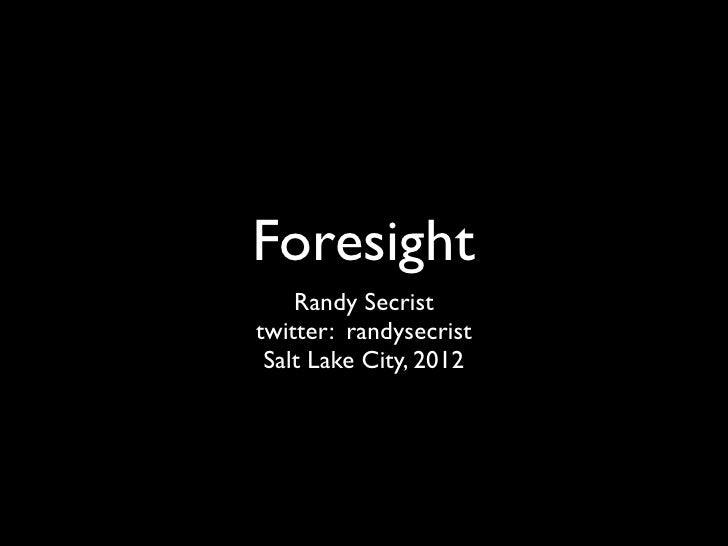

Foresight Randy Secristtwitter: randysecrist Salt Lake City, 2012
Deﬁnition1. an act of the power of foreseeing : PRESCIENCE2. provident care : PRUDENCE < had the foresight to invest money wisely3. an act of looking forward; a view forward
Why Foresight?• Needed a name to identify the software that was supporting various clinical protocols.• Blaze (initially used internal to FS) was somebody else’s software product.
The CDSS Problem• Monitor (in near real time) clinical events as they occur.• Provide a home for clinical logic that is shared across applications.• Provide solutions for surfacing outcomes to business staff.
The CDSS Problem• Monitor (in near real time) clinical events as they occur.• Provide a home for clinical logic that is shared across enterprise applications.• Provide solutions for surfacing outcomes to business staff.
Foresight is not a ...• rete based inference engine.• business process / workﬂow manager.• message broker.• alert service.• scheduling system.• web server.
Foresight is ...• A message oriented rule engine that uses triggers and state to invoke and execute rules & associated logic.• A way to build ﬁnite state machines.• Generates, updates, and tracks outcomes.• Extensible via modules and plugins.
Foresight is ...• Good at integrating with different systems and working with different model types.• Slightly different in implementation depending on which fork is being discussed.• A ﬂexible system that can still go many different directions.
Timeline 2002 2003 2006 Collaboration Fork Help 2 Production LineInitial Dev using Removal of BlazeBlaze Advisor by Investigation of Drools Fair Issac MOM -> CEO 2008 2012
Timeline Version 1.0 2006 Version 2.0Collaboration Fork 2008 2010 2012 Foresight Dev ECIS Helix / Qualibria EMR Dev
Milestones• Version 2.0 ran against production data for a period of time under the Moxie umbrella.• Timeline demonstrates a 6 year branch• Work from 2006 to 2008 removed technical debt from the ﬁrst 4 years.• Proven integration against several EMR Systems and Clinical Model Frameworks.
Key Differences
Foresight 1.0• Deploys inside of Oracle Weblogic• No common datasource abstraction.• One large code tree that used ANT.• Primarily a in-house only application.
Foresight 1.0• Event Polling against speciﬁc DBMS.• Basic Rule Module API• Out of band cleanup jobs• Rule States loosely deﬁned, and use internal object cache.• Security Abstraction for Outcome Routing
Foresight 1.0• Translation Maps• List based driver (service) architecture for conﬁguration and internal services.• Did not use xpath for rule mapper strategy. Used CEPath which had limited search capabilities.
Harvesting a Framework• We noticed that Foresight code fell into one of three categories • Code specific to the execution engine. • Code specific to a particular EMR system. • Code specific to a particular clinical domain.• So we split Foresight into parts.
Foresight 2.0• Uses embedded Jetty for HTTP.• Added common datasource abstraction.• Added common message broker abstraction.*• Split code into several parts; uses MVN.• Designed to be modular.
Foresight 2.0• Event Poll model removed. Push only.• Cleaner Rule Module API• No more clean up jobs.• No more rule state cache.• Simpliﬁed security abstraction for outcome routing.
Foresight 2.0• No more translation maps.• Graph based driver (service) architecture for conﬁguration and internal services.• Xpath based Rule Mapper Strategy.• Windows based administration client.• Windows based alert viewer.
Foresight Applications Modules Extensions Foresight Core
Foresight Applications Modules Modules Extensions Foresight Core
Foresight Abstractions• Foresight Core• Foresight Extensions• Foresight Rule Modules
Foresight Core Abstractions• Event (message) processing system.• Hot swappable rule module framework.• Support for different database backends.
Foresight Extension Abstractions• Spring Extensions• Deﬁne new services that leverage core which are EMR speciﬁc.
Foresight Rule Modules• Extensible Rule Modules• Test Harness• Client APIs
Foresight Parts• fs-shared• fs-server• fs-io_*• fs-logging• fs-wsclient• fs-site
Foresight Parts• fs-annotations• fs-ﬁlters• fs-mock• fs-xﬁre
EMR Speciﬁc Stuff• fs-qualibria_ext• fs-qualibria_modules
Foresight Binaries• fs-server-rpm• fs-server-zip
Foresight Boot Order• Foresight run from command line, controls logging.• Foresight starts Jetty• Jetty starts spring app context.• Spring app context loads Foresight services.
Core Conﬁg Files• fs-server/src/main/resources/com/gehc/ce/ foresight/service
Foresight Services• Gateway• Process Manager• Rule Manager• Module Loader• Thread Pool
External Tools
RabbitMQ from vmWare• Written in Erlang• Manages data in motion.• CAP Oriented• Elastic Horizontal Scaling• Alternatives: [ Redis, ActiveMQ ]
Riak from Basho• Written in Erlang• Manages data at rest.• Eventual Consistency / CAP• Elastic / Horizontal Scaling• Alternatives: [ Cassandra, MySQL ]
Questions?
Thank You!• Randy Secrist• randy.secrist@gmail.com• twitter: randysecrist
