Therapeutic Gases - Oxygen www.freelivedoctor.com
Oxygen Oxygen , water, and food are of fundamental importance to the animal organism. Of these three basic essentials for ...
Normal Oxygenation <ul><li>Oxygen  moves down a stepwise series of partial pressure gradients from the inspired air to the...
Normal Oxygenation <ul><li>Blood Oxygen Content </li></ul><ul><ul><li>Oxygen  in blood is carried primarily in chemical co...
Oxygen Deprivation <ul><li>Hypoxia  is the term used to denote insufficient oxygenation of the tissues.  </li></ul>www.fre...
Causes of Hypoxia <ul><li>Prepulmonary Hypoxia .  Hypoxia can be caused by inadequate delivery of  oxygen   to the lung.  ...
Causes of Hypoxia <ul><li>Pulmonary Hypoxia  -  abnormal pulmonary function can impair oxygenation of the blood. </li></ul...
Causes of Hypoxia <ul><li>Postpulmonary Hypoxia  –  </li></ul><ul><ul><li>inadequate delivery of  oxygen  to tissues may b...
<ul><ul><li>the tissues may be unable to extract or utilize sufficient  oxygen . This may result from an unusually high me...
Effects of Hypoxia <ul><li>Respiration </li></ul><ul><li>Cardiovascular System </li></ul><ul><li>Central Nervous System </...
Respiration <ul><li>Ventilatory rate and depth progressively increase during hypoxia as a result of stimulation of carotid...
Cardiovascular System <ul><li>Cardiac output increases with hypoxia as a result of increased heart rate and decreased peri...
CNS <ul><li>The CNS is  least  able to tolerate hypoxia. Hypoxia is accompanied initially by decreased intellectual capaci...
Cellular and Metabolic Effects <ul><li>Delivery of  oxygen  to mitochondria slows as the partial pressure gradient from ca...
Adaptation to Hypoxia <ul><li>Long-term hypoxia results in adaptive physiological changes </li></ul><ul><ul><li>increased ...
<ul><li>Acute exposure - &quot;mountain sickness“ </li></ul><ul><ul><li>a syndrome characterized initially by headache, na...
Effects of Oxygen Inhalation <ul><li>The primary use for inhalation of  oxygen  is to reverse the effects of hypoxia; othe...
Respiration <ul><li>Inhalation of  oxygen  at 1 atmosphere or above causes a small degree of respiratory depression in nor...
<ul><li>Carbon dioxide is carried by blood in the form of bicarbonate. This mechanism of carbon dioxide transfer operates ...
Oxygen Toxicity <ul><li>Oxygen  toxicity probably results from an increased production of reactive species such as superox...
Effects on CNS <ul><li>Central Nervous System .  CNS  oxygen  toxicity does not occur when the partial pressure of inspire...
<ul><li>The effect on the central nervous system : </li></ul><ul><li>muscle twitching and spasm  </li></ul><ul><li>nausea ...
Respiratory Tract <ul><li>Pulmonary system first to exhibit toxicity; Symptoms of pulmonary oxygen poisoning begin slowly ...
<ul><li>Pulmonary function changes to hyperoxic O2 exposures include:  1. decreases in inspiratory and expiratory lung vol...
Effects on Eye <ul><li>At increased atmospheric pressures, vision may be affected. Symptoms may include photophobia, ambly...
Therapeutic Uses <ul><li>Correction of Hypoxia </li></ul><ul><li>Reduction of the Partial Pressure of an Inert Gas </li></...
Upcoming SlideShare
Loading in...5
×

Therapeutic gases

3,549

Published on

0 Comments
2 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
3,549
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
132
Comments
0
Likes
2
Embeds 0
No embeds

No notes for slide

Transcript of "Therapeutic gases"

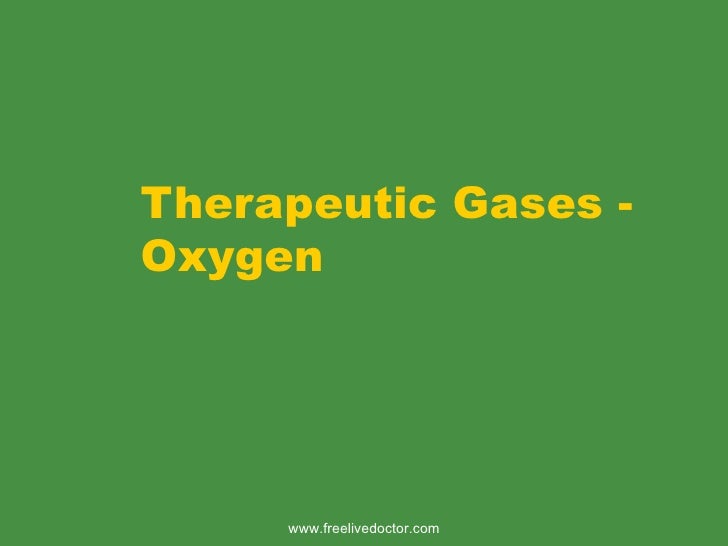

  1. 1. Therapeutic Gases - Oxygen www.freelivedoctor.com
  2. 2. Oxygen Oxygen , water, and food are of fundamental importance to the animal organism. Of these three basic essentials for the maintenance of life, the deprivation of oxygen leads to death most rapidly. Therapy with oxygen is useful or necessary for life in several diseases and intoxications that interfere with normal oxygenation of the blood or tissues. www.freelivedoctor.com
  3. 3. Normal Oxygenation <ul><li>Oxygen moves down a stepwise series of partial pressure gradients from the inspired air to the body's cells and their mitochondria. Air normally contains 20.9% oxygen , equivalent (at normal barometric pressure) to a partial pressure of 159 mm Hg </li></ul>www.freelivedoctor.com
  4. 4. Normal Oxygenation <ul><li>Blood Oxygen Content </li></ul><ul><ul><li>Oxygen in blood is carried primarily in chemical combination with hemoglobin and to a small extent in physical solution in plasma. </li></ul></ul><ul><ul><li>When fully saturated, each gram of hemoglobin binds about 1.3 ml of oxygen . </li></ul></ul><ul><ul><li>Hemoglobin is about 98% saturated when air is breathed under normal circumstances </li></ul></ul>www.freelivedoctor.com
  5. 5. Oxygen Deprivation <ul><li>Hypoxia is the term used to denote insufficient oxygenation of the tissues. </li></ul>www.freelivedoctor.com
  6. 6. Causes of Hypoxia <ul><li>Prepulmonary Hypoxia . Hypoxia can be caused by inadequate delivery of oxygen to the lung. </li></ul><ul><ul><li>results from inadequate ventilation brought about by airway obstruction (laryngospasm, bronchospasm), muscular weakness (disease or neuromuscular-blocking drugs), or impaired respiratory drive [central nervous system (CNS) disease, opioids, anesthetics]. </li></ul></ul>www.freelivedoctor.com
  7. 7. Causes of Hypoxia <ul><li>Pulmonary Hypoxia - abnormal pulmonary function can impair oxygenation of the blood. </li></ul><ul><ul><li>mismatch between ventilation and perfusion- ( e.g., adult respiratory distress syndrome, asthma, emphysema). </li></ul></ul><ul><ul><li>thickened barrier to diffusion and intrapulmonary shunting of venous blood (fibrosis, pulmonary edema). </li></ul></ul>www.freelivedoctor.com
  8. 8. Causes of Hypoxia <ul><li>Postpulmonary Hypoxia – </li></ul><ul><ul><li>inadequate delivery of oxygen to tissues may be the result of low cardiac output (shock), maldistribution of cardiac output (sepsis, vascular occlusion) </li></ul></ul><ul><ul><li>an inadequate concentration of oxygen in arterial blood (anemia, hemoglobinopathies, carbon monoxide poisoning). </li></ul></ul>www.freelivedoctor.com
  9. 9. <ul><ul><li>the tissues may be unable to extract or utilize sufficient oxygen . This may result from an unusually high metabolic demand (thyrotoxicosis, hyperpyrexia) or to malfunction of cellular enzyme systems (cyanide poisoning). </li></ul></ul>www.freelivedoctor.com
  10. 10. Effects of Hypoxia <ul><li>Respiration </li></ul><ul><li>Cardiovascular System </li></ul><ul><li>Central Nervous System </li></ul><ul><li>Cellular and Metabolic Effects </li></ul>www.freelivedoctor.com
  11. 11. Respiration <ul><li>Ventilatory rate and depth progressively increase during hypoxia as a result of stimulation of carotid and aortic chemoreceptors; minute ventilation almost doubles when normal individuals inspire gas with a PO 2 of 50 mm Hg </li></ul>www.freelivedoctor.com
  12. 12. Cardiovascular System <ul><li>Cardiac output increases with hypoxia as a result of increased heart rate and decreased peripheral vascular resistance. </li></ul><ul><li>Severe hypoxia, however, can produce bradycardia and, ultimately, circulatory failure. </li></ul>www.freelivedoctor.com
  13. 13. CNS <ul><li>The CNS is least able to tolerate hypoxia. Hypoxia is accompanied initially by decreased intellectual capacity and impaired judgment and psychomotor ability; this state progresses to confusion and restlessness and ultimately to stupor, coma, and death as the Pa O2 decreases below 30 to 40 mm Hg. </li></ul>www.freelivedoctor.com
  14. 14. Cellular and Metabolic Effects <ul><li>Delivery of oxygen to mitochondria slows as the partial pressure gradient from capillaries to tissues decreases. </li></ul><ul><li>At a mitochondrial PO 2 of less than about 1 mm Hg, aerobic metabolism stops, and the less efficient anaerobic pathways of glycolysis become responsible for the production of cellular energy. </li></ul><ul><li>The cellular concentrations of Na + , Ca 2+ , and H + increase, leading to cell death. </li></ul>www.freelivedoctor.com
  15. 15. Adaptation to Hypoxia <ul><li>Long-term hypoxia results in adaptive physiological changes </li></ul><ul><ul><li>increased numbers of pulmonary alveoli, increased concentrations of hemoglobin in blood and myoglobin in muscle, and a decreased ventilatory response to hypoxia </li></ul></ul><ul><ul><li>Short-term exposure to altitude produces similar adaptive changes </li></ul></ul>www.freelivedoctor.com
  16. 16. <ul><li>Acute exposure - &quot;mountain sickness“ </li></ul><ul><ul><li>a syndrome characterized initially by headache, nausea, dyspnea, and impaired judgment, progressing to pulmonary and cerebral edema </li></ul></ul><ul><ul><li>Mountain sickness is treated by inhalation of oxygen , descent to lower altitude, or by an increase in ambient pressure. Treatment with diuretics (carbonic anhydrase inhibitors) and steroids also may be helpful. </li></ul></ul>www.freelivedoctor.com
  17. 17. Effects of Oxygen Inhalation <ul><li>The primary use for inhalation of oxygen is to reverse the effects of hypoxia; other consequences usually are minor. However, when oxygen is breathed in excessive amounts, toxic effects can occur </li></ul>www.freelivedoctor.com
  18. 18. Respiration <ul><li>Inhalation of oxygen at 1 atmosphere or above causes a small degree of respiratory depression in normal subjects, presumably as a result of loss of tonic chemoreceptor activity. </li></ul><ul><li>Within a few minutes, ventilation increases because of a paradoxical increase in the tension of carbon dioxide in tissues. </li></ul>www.freelivedoctor.com
  19. 19. <ul><li>Carbon dioxide is carried by blood in the form of bicarbonate. This mechanism of carbon dioxide transfer operates more readily when a hydrogen ion acceptor, such as deoxyhemoglobin (a stronger base than oxyhemoglobin), is available. </li></ul><ul><li>Oxygen at a high PO 2 , (e.g., during hyperbaric oxygenation), the amount of physically dissolved oxygen may be sufficient to satisfy the requirements of tissue. </li></ul><ul><li>little or no oxygen is extracted from oxyhemoglobin, and deoxyhemoglobin is not formed. </li></ul><ul><li>Carbon dioxide is then buffered less efficiently, and the PCO 2 of the tissues rises by several mm Hg. </li></ul>www.freelivedoctor.com
  20. 20. Oxygen Toxicity <ul><li>Oxygen toxicity probably results from an increased production of reactive species such as superoxide anion, singlet oxygen , hydroxyl radical, and hydrogen peroxide. The oxidative damage initiated by these substances is propagated by lipid peroxidation and ultimately involves all components of the cell. Cell injury and death are presumed to result from loss of membrane integrity. </li></ul>www.freelivedoctor.com
  21. 21. Effects on CNS <ul><li>Central Nervous System . CNS oxygen toxicity does not occur when the partial pressure of inspired oxygen is less than 2 atmospheres; its occurrence is thus limited to a small number of hyperbaric applications. CNS toxicity is observed before pulmonary toxicity when oxygen is administered at partial pressures above 2.5 atmospheres </li></ul><ul><li>characterized by convulsions, which may be preceded by visual symptoms or muscular twitching </li></ul>www.freelivedoctor.com
  22. 22. <ul><li>The effect on the central nervous system : </li></ul><ul><li>muscle twitching and spasm </li></ul><ul><li>nausea and vomiting </li></ul><ul><li>dizziness </li></ul><ul><li>vision (tunnel vision) and hearing difficulties (tinnitus) </li></ul><ul><li>twitching of facial muscles </li></ul><ul><li>irritability, confusion and a sense of impending doom </li></ul><ul><li>trouble breathing, anxiety </li></ul><ul><li>unusual fatigue </li></ul><ul><li>incoordination </li></ul><ul><li>convulsion. </li></ul>www.freelivedoctor.com
  23. 23. Respiratory Tract <ul><li>Pulmonary system first to exhibit toxicity; Symptoms of pulmonary oxygen poisoning begin slowly as a substernal irritation that becomes progressively more intense and widespread along with  with increased coughing.  Uncontrollable coughing occurs in severe cases, symptoms originating in the trachea and major bronchi associated with a constant burning sensation, which is worsened by inspiration. </li></ul>www.freelivedoctor.com
  24. 24. <ul><li>Pulmonary function changes to hyperoxic O2 exposures include: 1. decreases in inspiratory and expiratory lung volumes 2. decreases in flow rates 3. decreases in carbon monoxide diffusing capacity 4. decrease in  lung compliance. </li></ul>www.freelivedoctor.com
  25. 25. Effects on Eye <ul><li>At increased atmospheric pressures, vision may be affected. Symptoms may include photophobia, amblyopia, mydriasis, bilateral progressive constriction of visual acuity was found after breathing pure oxygen for four and one-half hours at normal atmospheric pressures. </li></ul>www.freelivedoctor.com
  26. 26. Therapeutic Uses <ul><li>Correction of Hypoxia </li></ul><ul><li>Reduction of the Partial Pressure of an Inert Gas </li></ul><ul><li>Oxygen as a Diluent </li></ul><ul><li>Hyperbaric Oxygen Therapy </li></ul>www.freelivedoctor.com
