T25 kg upright 11 base 10cm

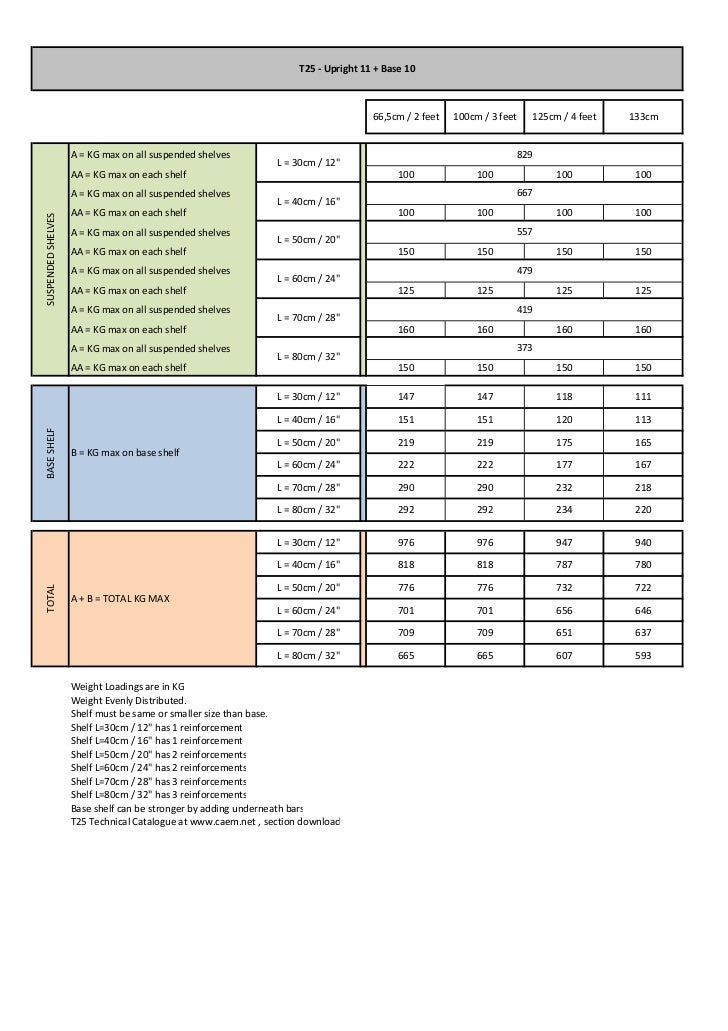

T25 - Upright 11 + Base 10 66,5cm / 2 feet 100cm / 3 feet 125cm / 4 feet 133cm A = KG max on all suspended shelves 829 L = 30cm / 12" AA = KG max on each shelf 100 100 100 100 A = KG max on all suspended shelves 667 L = 40cm / 16" AA = KG max on each shelf 100 100 100 100SUSPENDED SHELVES A = KG max on all suspended shelves 557 L = 50cm / 20" AA = KG max on each shelf 150 150 150 150 A = KG max on all suspended shelves 479 L = 60cm / 24" AA = KG max on each shelf 125 125 125 125 A = KG max on all suspended shelves 419 L = 70cm / 28" AA = KG max on each shelf 160 160 160 160 A = KG max on all suspended shelves 373 L = 80cm / 32" AA = KG max on each shelf 150 150 150 150 L = 30cm / 12" 147 147 118 111 L = 40cm / 16" 151 151 120 113BASE SHELF L = 50cm / 20" 219 219 175 165 B = KG max on base shelf L = 60cm / 24" 222 222 177 167 L = 70cm / 28" 290 290 232 218 L = 80cm / 32" 292 292 234 220 L = 30cm / 12" 976 976 947 940 L = 40cm / 16" 818 818 787 780 L = 50cm / 20" 776 776 732 722TOTAL A + B = TOTAL KG MAX L = 60cm / 24" 701 701 656 646 L = 70cm / 28" 709 709 651 637 L = 80cm / 32" 665 665 607 593 Weight Loadings are in KG Weight Evenly Distributed. Shelf must be same or smaller size than base. Shelf L=30cm / 12" has 1 reinforcement Shelf L=40cm / 16" has 1 reinforcement Shelf L=50cm / 20" has 2 reinforcements Shelf L=60cm / 24" has 2 reinforcements Shelf L=70cm / 28" has 3 reinforcements Shelf L=80cm / 32" has 3 reinforcements Base shelf can be stronger by adding underneath bars T25 Technical Catalogue at www.caem.net , section download
