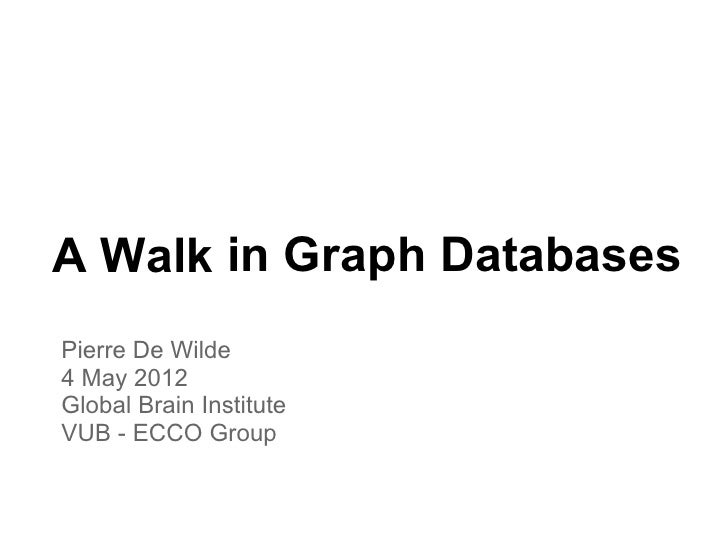

A Walk in Graph DatabasesPierre De Wilde4 May 2012Global Brain InstituteVUB - ECCO Group
The Law of the Hammer       If the only tool you have is a hammer,             everything looks like a nail.          Abra...
The Law of the Relational Database    If the only tool you have is a relational database,               everything looks l...
doesntOne size fits all                    Scalability issue                      Scale up                      Scale out ...
NoSQL ?! No SQL ? Not only SQL !                Scalability solutions                  Key-value stores                  C...
Query language for relational databases                  SQL               ISUD or CRUD
Traversal           graphQuery language for relational databases       Gremlin is a graph traversal language
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Graph        G = (V, E)                 --. .-. .- .--. ....
One graph doesnt fit all    Marko A. Rodriguez and Peter Neubauer - Constructions from Dots and Lines - 2010
Property graph    A property graph is a directed, labeled, attributed, multi graph.
Anatomy of a vertex                      A vertex is composed of                      - an unique identifier (id)         ...
Anatomy of an edge                     An edge is composed of                     - an unique identifier (id)             ...
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Graph database
Key feature of a graph database      Index-free adjacency
Some graph database vendors                   Neo4j from Neo Technology                   http://neo4j.org/               ...
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
TinkerPop      Open source project in the graph space
TinkerPop family          https://github.com/tinkerpop
Gremlin                           $ gremlin.sh                                    ,,,/                                    ...
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Connect to a graph database                    gremlin> g = new TinkerGraph(name)                    gremlin> g = new Neo4...
Add a vertex / an edge                     gremlin> v1 = g.addVertex()                     gremlin> v2 = g.addVertex()    ...
Update a vertex                  gremlin> v = g.getVertex(1)                  ==>v[1]                  gremlin> v.getPrope...
Update an edge                 gremlin> e = g.getEdge(8)                 ==>e[8][1-knows->4]                 gremlin> e.ge...
Remove a vertex                  gremlin> v = g.getVertex(3)                  ==>v[3]                  gremlin> g.removeVe...
Remove an edge                 gremlin> e = g.getEdge(10)                 ==>e[10][4-created->5]                 gremlin> ...
Disconnect from the graph database                   gremlin> g.shutdown()
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Graph traversal                  Jump                  - from vertex to edge                  - from edge to vertex       ...
Graph traversal: starting the traversal                      gremlin> g.v(1)                      ==>v[1]
Graph traversal: outgoing edges                    gremlin> g.v(1).outE                    ==>e[7][1-knows->2]            ...
Graph traversal: incoming vertices                    gremlin> g.v(1).outE.inV                    ==>v[2]                 ...
Graph traversal: outgoing edges (cont.)                     gremlin> g.v(1).outE.inV.outE                     ==>e[10][4-c...
Graph traversal: incoming vertices (cont.)                     gremlin> g.v(1).outE.inV.outE.inV                     ==>v[...
Graph traversal: ending the traversal                     gremlin> g.v(1).outE.inV.outE.inV.outE
Graph traversal: starting vertex                     gremlin> g.v(1)                     ==>v[1]
Graph traversal: adjacent vertices                     gremlin> g.v(1).out                     ==>v[2]                    ...
Graph traversal: adjacent vertices (cont.)                     gremlin> g.v(1).out.out                     ==>v[5]        ...
Graph traversal: starting vertex                     gremlin> g.v(1)                     ==>v[1]
Graph traversal: labeled outgoing edges                    gremlin> g.v(1).outE(created)                    ==>e[9][1-crea...
Graph traversal: labeled adjacent vertices                     gremlin> g.v(1).outE(created).inV                     ==>v[...
Graph traversal: labeled adjacent (cont.)                     gremlin> g.v(1).out(created).in(created)                    ...
Graph traversal and ...                      index                      transform                      filter             ...
Graph traversal and index                    gremlin> g.idx(vertices)[[name:marko]]                    ==>v[1]
Graph traversal and transform                    gremlin> g.v(1).outE.label.dedup                    ==>knows             ...
Graph traversal and filter                      gremlin> g.v(1).out(knows).age                      ==>27                 ...
Graph traversal and compute                   gremlin> g.v(1).outE.weight                   ==>0.5                   ==>1....
Graph traversal and manipulate                    gremlin> g.v(1).outE.sideEffect{it.                    weight+=0.1}.weig...
Graph traversal and loop                    gremlin> g.v(1).out.loop(1){it.loops<3}                    ==>v[5]            ...
Graph traversal and path                    gremlin> g.v(1).outE.inV.path                    ==>[v[1], e[7][1-knows->2], v...
Global traversal: in-degree distribution                      gremlin> m=[:].withDefault{0}; g.V.                      sid...
Walk is ending               flexible       Gremlin is a graph traversal language
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Linked Data          http://www.w3.org/DesignIssues/LinkedData.html
Linked Data cloud Linking Open Data cloud diagram, by Richard Cyganiak and Anja Jentzsch. http://lod-cloud.net/
Linked Data initiative                http://freeyourmetadata.org/
Linked Data and Gremlin                        +                     +gremlin> g = new SparqlRepositorySailGraph("http://d...
Map of walk              Warm up                Property Graph                Graph Database              Walk with Gremli...
Graph and Brain
Global Graph                     Internet             =>         net of computers   Word Wide Web                         ...
Thank you
http://tinkerpop.com         Logos created by Ketrina Yim for TinkerPop geeks        Images created by Flickr Creative Com...
