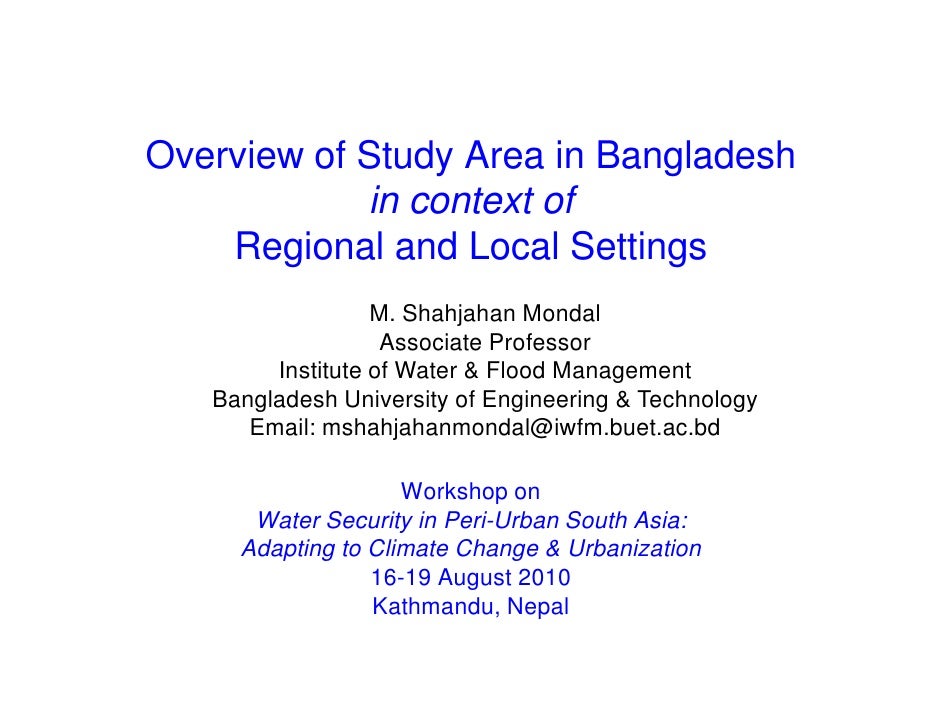

Overview of Study Area in Bangladesh
            in context of
    Regional and Local Settings
                  M. Shahja...
GBM Basins
• Bangladesh is the lower
  riparian of the GBM
  basins
• 91% flows
• Ganges contribution is
  37%
• SW part o...
SW Bangladesh
• Sundarbans – largest
  continuous mangrove
  ecosystem & a
  ramsar world heritage
  site
• Mongla Port – ...
Existing Problems
• 28% of the population live in the coastal area
• Water logging
• Coastal Embankment Project (CEP) was ...
Existing Problems
• The occurrence of cyclone,
  storm surge and flood
• The 1991 cyclone left 150
  thousand people dead
...
Existing Problems
• Coastal zone is low lying with 62% of the land below 3
  m & 86% below 5 m above msl.
• Due to 88 cm S...
Khulna City
• 3rd largest city
• Located on the right bank
  of the Bhairab-Rupsha,
  one of the most important
  distribu...
History
• Declared as Pourashava in 1884
• Until partition of India in 1947, Khulna was a sleepy little
  district town, o...
History (con…)
• Newsprint mills, shipyard, jute mills, match factories,
  hardboard mills were established
• Khulna was g...
Strategic Importance of Khulna
• The location of Khulna in the heart of the SW coastal
  region has given it many advantag...
Khulna City Corporation
• in 1990 with 5 thanas &
  31 wards
• one-fourth is city core
• Densely populated;
  contains mul...
Urban Drainage Problem


    Drainage system in KCC
 is towards the Mayur River
  Drainage system is
 open
  Total length ...
Geological & Hydrological Setting
• Topographically, the city slopes towards west
  but regionally towards south.
• The av...
Urban Geomorphology of Khulna City
                                     LAND FORMS AND INFERRED SEDIMENTARY ENVIRONMENT AN...
Contemporary Water Management Issues in Khulna
                    City

•   Drinking water crisis
•   Lowering of GWT
•  ...
Drinking Water Crisis

• Present water supply is mainly from groundwater
  sources drawn from both DTW & STW
• Water suppl...
Lowering of GWT

During the dry season, 50% of DTWs become
inoperative.
Poor Drainage System

• Drainage system is not good
   – Improper slope, inadequate sections & inadequate outlets
   – Lac...
Water Logging due to Poor Drainage System

In Khulna city, 38% of households regularly experience
short-duration logging.
...
Groundwater Quality

• The aquifer system is hydraulically connected to the
  Bay of the Bengal & the surrounding rivers.
...
Groundwater Quality of KCC area
                                           Bangladesh
                    Parameters   Ave...
Surface Water Quality
                Seasonal variation of the Bhairab Water Quality
   SL No.                         Pr...
Solid Waste Management

• Solid waste generation in Khulna City is 450 tons a day.
• KCC is responsible (33%)
• NGOs, CBOs...
Climate Change Vulnerability

• International Institute for Development and Environment
  on "Climate Change and the Urban...
Urban Planning

• KDA was created as a semi-autonomous body in 1961
• under the Ministry of Housing and Public Works
• Pla...
Mayur River
• Derelict river
• It flows to the NW side of the
  Khulna city
• It separates Dumuria thana
  from the city
•...
Mayur River
• It receives all types of
  municipal & industrial
  wastes
• 18 canals & drains to
  drain out effluents
• S...
Other Water Related Issues of KCC

  Tropical cyclone and storm surge

  Inundation of freshwater sources during
cyclonic ...
Other Water Related Issues of KCC

  Pollution of rivers and ponds from untreated
urban and industrial effluents

  Hangin...
Peri-Urban Areas in & around KCC

                           Peri-urban areas

                           Urban areas
Peri-Urban area:
               Identification & issues
• KWASA coverage is one-
  third of the area
• DTWs were not sunk ...
Peri-Urban area
• Khals are water logged, leased out
• Some are polluted
• Siltation & encroachment
Peri-Urban area
• KCC planned to lift 9 MG
  of GW from Phultala area
  with 40 DTWs
• The project came to a
  halt in 200...
Visited area
• Rupsha F. Ghat
Visited area
•   Md. Nagar
•   Agricultural until 2000
•   Not many people
•   Rainfed agriculture
•   Land value
    – Tk...
Visited area
• 10-vent regulator at
  Tetultala
• To prevent salt water
  intrusion
• No coordination between
  BWDB & loc...
Visited area
•   KWASA is looking for alternative source of water
•   Natural drainage is towards the Mayur River
•   Silt...
Visited area
• Sea level rise could delay discharge from the
  drainage system in low-lying areas
• Flooding by contaminat...
Thank you
• At every section of an estuary, salinity varies with the
  state of tide and also with the up land flow. Bangladesh
  ha...
• Rajbond Trenching Ground Site: It is at
  present the only official dumping site, 25
  acres in area situated at a dista...
Problem of Solid Waste Management

On-payment door to door collection of household
garbage covers about 17% households by ...
