    Asadmin Webinar 12 Feb 2009 Asadmin Webinar 12 Feb 2009 Presentation Transcript

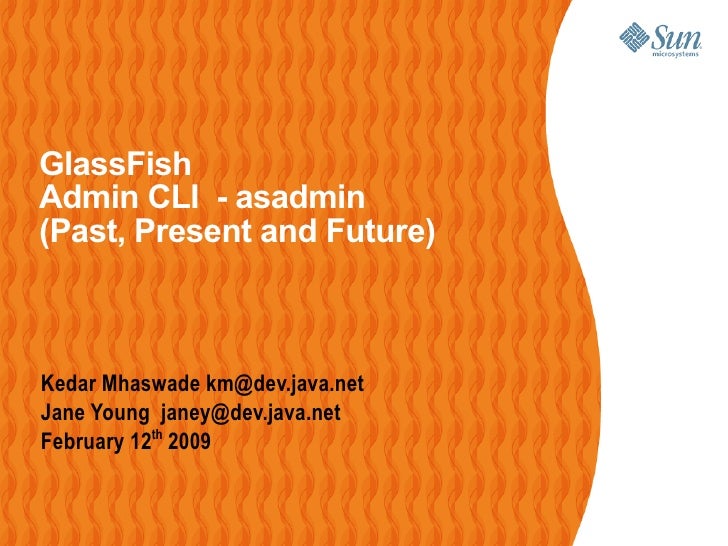

    • GlassFish Admin CLI - asadmin (Past, Present and Future) Kedar Mhaswade km@dev.java.net Jane Young janey@dev.java.net February 12th 2009
    • Agenda • What asadmin is ... • GlassFish V2.x asadmin • What GlassFish V2 asadmin Lacked • Enter GlassFish V3 • Interactive Command Development • Exciting Features Planned • References • Questions? 2
    • What asadmin is ... Asadmin is: > Well, a Hidden Gem ;) > Extensive, Powerful, Scriptable Administrative Command Line Interface for GlassFish CLIP Compliant Grammar > A Very Stable Interface Countless Scripts Depend on it Savior for Automated Test Scripts 3
    • What asadmin is … (Quiz Time) Did you know? > Asadmin Manages Multiple Domains > Securely Administers on Single Port Speaks Beloved (?) HTTP > Has ~ 250 Commands (+/-) > Has a DSL (well, sort of) in Dotted Names Number of Commands is Reduced Cryptic Till You Get Them > Has a Minimal Shell 4
    • What asadmin is … (Architecture, sort of) Server Software is Complex, Needs Setup Commands (Local) Create-domain, create-node-agent ... Server Management Commands (Remote) Server Implements Most Commands Parsed Command Line + RPC Transport is HTTP Admin Admin Server (DAS) CLI Server (DAS) 5
    • GlassFish V2.x asadmin A Java HTTP/JMX Client to DAS Several Generic JMX Commands Uses JSR-160 (Little-Known) Implementation HTTP/S Has Parsing Framework and Commands Used Elsewhere (cli-framework) Some Form of Pluggability OpenESB Integration CLIDescriptor.xml 6
    • GlassFish V2.x asadmin Provides CRUD Support (Configuration) Generic Set/Get/List Monitoring (vmstat/prstat) Super-set of GUI Properties Files Not Just Domain.xml Keyword Search/Manpages List Set/Get Integration Database Operating System (SMF) 7
    • What it Lacks ... •Rather Monolithic >Hard to Extend, Plug Commands In >Not Dynamic •A Powerful/Useful Shell >Too Many Commands to Remember and Key-in! •Integration with Scripting Languages •Separation of Options (Command, asadmin) 8
    • Enter V3 (Prelude) 9
    • Changes in v3 asadmin Server Became Pluggable/Modular Asadmin Had to Follow A Rigorous Look at Command A Command Line With a Grammar A Set of Options and Operands (Parameters) A Java Class Implementing Functionality Adequate Hooks Into Infrastructure Data Transfer Between Client and Server Strings, Baby! 10
    • Changes in v3 asadmin – II Command Line Remains Parsing Moves to Server A General Purpose Injection Manager Injects Params into Object A Command is a POJO with AdminCommand Annotation A Set of @Params @AdminCommand (name=”mycmd”) A Report Filled In public class FooCommand { @Param String name; //--name @Param String value; // -- value @Param Boolean enabled; // public void execute(AdminCommandContext Context) { …} } 11
    • Changes in v3 asadmin – III Data Transfer A Simple Get/Post HTTP Request Get for URI Post for FileUpload Grizzly Adapter at the Server End java.util.Manifest (Yikes!) Coming Back Other Formats Totally Possible (hk2-agent) 12
    • Changes in v3 asadmin – IV As a Result, You as a Command Developer (and App Server Enhancer) Create Your Module/Container/Whatever Identify Admin Commands and Name Them Create Pojo's With @Param(s) Write Business Logic and Return the Result Drop in Module.jar in /modules Folder Run asadmin mycmd –opt1=v1 –opt2=v2 ... Forget Command Line Parsing And Get CLI for your Module for Free 13
    • V3 asadmin – How Commands Are Received Grizzly Adapter Called AdminAdapter Entertains Authenticated Requests Only Context Root: host:admin-port/__asadmin Supports Streaming Intercepts ALL Admin Requests Reads the Input Stream for POST and Uploads Files (Deploy) Invokes the Commands Returns the Result to OutputStream Writes a Manifest for CLI/NetBeans Writes an HTML for Browser Invocation 14
    • V3 asadmin – How Authentication Works Only Admin Users Should Be Able to Manage Requires HTTP BASE64 Authentication Admin-Realm (A File Realm – Remember admin-keyfile)? CLI Sends a BASE64-Encoded UserName and Password Provision of the so-called Anonymous Login Of Course Not Secure Need SSL Certificate Exchange 15
    • V3 asadmin – Are We Doing Enough? Enter V3 FCS 16
    • V3 FCS asadmin Build the Icing on the Cake No Changes to Basic API A Powerful Shell Alias History Completion, Navigation Separation of Options --host is NOT an option for create-cluster! 17
    • V3 FCS asadmin – II A Shell In the Browser? Cool and Useful, No Installation Required Add a Ruby Gem irb>> require 'asadmin' Gem install asadmin! irb>> domain = Domain.new(“localhost”); irb>> domain.each_application do { |app| puts “app: #{app.name}, type: #{app.type}” } app: trade2 type: web app: Twitterfeed type: jruby 18
    • V3 FCS asadmin – III A Client-side Preferences File Should asadmin be an OSGi System? Local Commands Made Pluggable Many More Commands Feature Parity With V2 Developer Profile And Compatibility 19
    • What Are Others Doing? JBoss 5.0 GA: • No changes in administration for the past 3 years. Same scripts: run, shutdown, twiddle (JMX based) • No commands for deployment. Applications are manually copied to the deploy directory. • No monitoring and diagnostics support BEA (Oracle) WebLogic 10g: • WLST – manages server lifecycle, deployment, diagnostics, navigation of MBeans • Hard to follow syntax. e.g. Invoke a Mbean Object: wls> obj s = j ar r ay. ar r ay( [ j ava. l ang. St r i ng( quot; oam ver quot; ) ] , j ava. l ang. O ect ) ser bj wls> st r s = j ar r ay. ar r ay( [ quot; j ava. l ang. St r i ngquot; ] , j ava. l ang. St r i ng) wls> i nvoke( ' l ookupSer ver ' , obj s, st r s) • Command category to WLST is not extensible GF asadmin : Most powerful and user friendly amongst 20 all others!
    • References users@glassfish.dev.java.net admin@glassfish.dev.java.net km@dev.java.net janey@dev.java.net 21
    • Got Questions? 22
