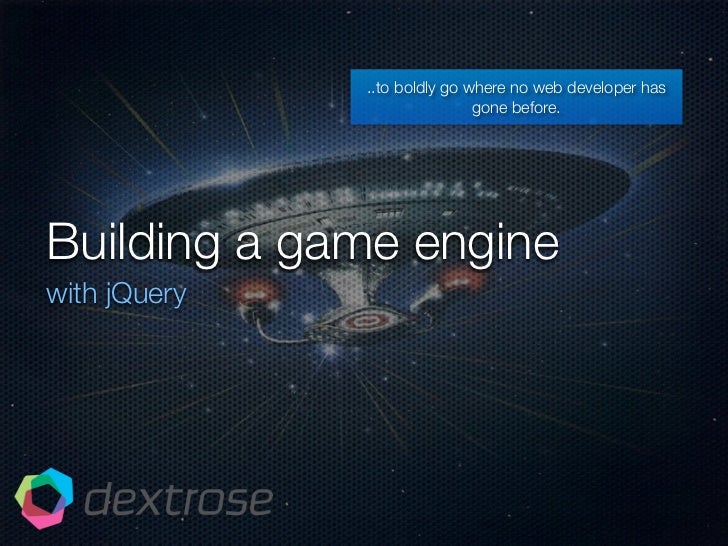

..to boldly go where no web developer has
                              gone before.




Building a game engine
with jQuery
Why build a game engine?
Aren‘t there enough already?
Game development
Browsergame development vs. game industry*
* PC/Console game publishers
Same basic questions
What kind of genre for my
game?
Singleplayer or multiplayer?
What platform(s) am I
targeting?
What to...
The game industry
Convenience

Countless tools and
frameworks to choose from
Frameworks can be
extended with more genres
Modularity gives yo...
The browser game industry
Browser games are often grown
hobby projects
Development often copied from app
dev paradigms rather than games
No real tec...
Frameworks
 Few good commercial flash
 frameworks
 No commercial JavaScript
 alternatives
 A couple tiny projects
   most o...
Why no frameworks?
Browser game development is pretty young!

Game industry has an advantage of ~25 years
Only very recently, we got

  powerful enough hardware
  to run lots of crazy JS

  new advanced
  technologies: CSS3,
  H...
Additionally...

 Lots of knowledge needed to build sophisticated
 games
   ..but many started it as hobby
 Actual web dev...
Reality without frameworks:




Countless iterations of code!
Sweet!


I have no competition
There‘s high demand
Let‘s rock!
The open web stack
Picking the right technologies
Cross-browser?

 If your engine is platform specific, no need to care
 about cross-browser
   Example: Engine for mobile We...
Don‘t worry about today   Your game won‘t be
                          ready tomorrow!
Pick technologies from
the future  ...
Our pick

 Vanilla HTML (rendering)
 JavaScript (scripting, client + server!)
 Canvas (as tool, not for rendering)
   (mos...
..and of course
Architecture and API Design
What to keep in mind when building the web
Impossibilities

 Genres that can‘t be   Genres that can‘t be
 implemented now, but   implemented for many
 pretty soon:  ...
So what is left?
2D                 2.5D*
     Puzzles         RPG‘s

     Adventure       Strategy

     Board games       turn based

   ...
We chose...
I want...
 Free mouse panning         Pathfinding
 Infinite real-time worlds   Walking into houses
 Non-rectangular objects ...
Awesome! Sounds
just like the Duke!
Errr...


 Yes, if we try to develop a
 classic game engine
 We‘re aiming for the web
 though, let‘s cheat!
Advanced Techniques
Two examples
Rendering
„How do I render 2000 objects in < 50ms?“
Uh uh, obviously I‘ll use
Canvas!
Oh noes! Canvas is a lot
slower!

            Canvas‘ image API is pretty
            inefficient, as it needs a DOM
      ...
Block rendering
Block rendering?
 Directly replace innerHTML with a huge string instead of
 multiple DOM append operations
 Huge performan...
Lazy node linking

 Fixes the main disadvantage of missing references
 After innerHTML has been set, run:
 var elements = ...
Smart rendering
Conservative method
Build <div>‘s and style
them via JavaScript (on      <div
                             style="position...
Dummy, forgot
how to build
websites?
Web method

Don‘t ignore the layout
layers
  expecially not external
  CSS
Keep the style tag of the
<div> Object minimal:...
Web method

 Everything else is
 rendered through a
 CSS rule
 i.e. model-134
 Includes background,
 margin, padding etc
Delegation
jQuery events and click-through maps
What is event delegation?
 A technique to „forward“ events to implicit listeners
 In web development, usually the followin...
One event to rule them all

 „mousemove“
  Handles position detection, dragging
 „mousedown“
  Handles drag start, clickin...
..and with jQuery?

 With jQuery, it‘s even easier
 jQuery has live/die methods that
   work like bind/unbind
   abstracts...
live/die on objects


                      Yay, I can click on
                      houses!
                      Mh, I ...
Be creative!
Click through maps

Build up a pixel map for each object that tells us where
the transparent pixels are
If transparent, ch...
Building up those pixel maps is amazingly
              crappy work!
Let Canvas do it!
 Canvas can read pixel data from images
 Then, we can check if our pixel is in fact transparent
 ...and ...
Server-side JavaScript
Bridging the gap
„JavaScript is painful enough already, now you
want me to work with it in the backend as well?“
Why JavaScript?

A single scripting language per project dramatically
speeds up development
Great portions of client side ...
Meet node.js
 „So sexy it hurts“
„The most revolutionary
technology for web developers
        since jQuery.“
                       Paul Bakaus
JavaScript in the Browser
JavaScript in node
Node‘s features

 Google‘s V8 engine running on server
 Server and scripting combined
 Comes with sugar (pretty modules fo...
The great innovation?
Node is completely event-
         driven.
  db.query(‘ select..‘, function(result) {});
?

Professional game engine for the web
Commercially licensable
Cross-platform (yes, works on iPhone!)
Comes with all ment...
Show me the video!
http://tinyurl.com/dextrose-aves-engine-sneak
Thanks for your attention!
More at dextrose.com & paulbakaus.com
Rate this talk at http://spkr8.com/t/2986




           ...
