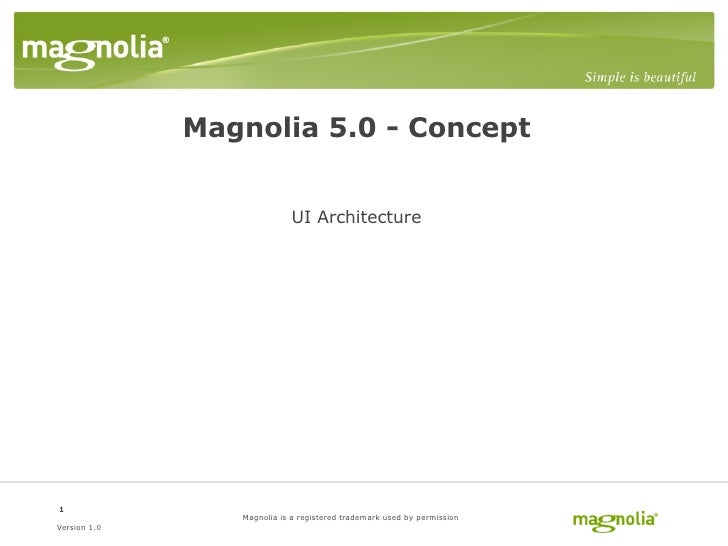

    • 1. Magnolia 5.0 - Concept UI Architecture1 Magnolia is a registered trademark used by permissionVersion 1.0
    • 2. MVP vs. MVC http://blog.vuscode.com/malovicn/archive/2007/12/18/model-view-presenter-mvp-vs-model-view-controller-mvc.aspx2 Magnolia is a registered trademark used by permissionVersion 1.0
    • 3. GWT 2.1 - MVP• based on the experience at google• good fundament for browser application • history • asynchronously • decoupling browser dependent code3 Magnolia is a registered trademark used by permissionVersion 1.0
    • 4. GWT 2.1 - the participants• Places• Display Regions• Activities (Presenter)• Views• EventBus4 Magnolia is a registered trademark used by permissionVersion 1.0
    • 5. Places• Place • represents a state • each place is a subclass • provides the values to re-produce the place• PlaceController • PlaceController.gotTo(place) • fires PlaceChangeEvent/PlaceChangeRequestEvent• PlaceHistoryHandler • triggered by history navigation• PlaceHistoryMapper • browser history support5 Magnolia is a registered trademark used by permissionVersion 1.0
    • 6. Display Regions• where the produced view is attached to• navigation menu, search bar, main region, ..• implements AcceptsOneWidget interface6 Magnolia is a registered trademark used by permissionVersion 1.0
    • 7. Activities (Presenter)• Activity • the presenter of the MVP pattern • start(region, eventbus) • mayStop() • onCacel()• ActivityMapper • maps places to activities• ActivityManager • reacts on PlaceChangeEvents • starts the activity7 Magnolia is a registered trademark used by permissionVersion 1.0
    • 8. View• interface • contract with the presenter• a subclass will contain the UI specific code • GWT, Vaadin, ...• different device -> different views (mobile, iPad)• LTR/RTL• ViewFactory8 Magnolia is a registered trademark used by permissionVersion 1.0
    • 9. PlaceController PlaceHistory Place goTo(place) Handler getWhere():Place Home fires PlaceChangeEvent dispatches EventBus ActivityManager ActivityMapper onPlaceChange(event) getActivity(place):Activity Activity start(region, eventBus) mayStop() starts onCancel() onStop()9 Magnolia is a registered trademark used by permissionVersion 1.0
    • 10. EventBus• EventBus • application level events • ItemSelectedEvent, ItemDeletedEvent, ...• UI events • are handled by the presenter • OnClickEvent, ...10 Magnolia is a registered trademark used by permissionVersion 1.0
    • 11. http://www.nieleyde.org/SkywayBlog/post.htm?postid=37782056-c4e1-4dfb-9caa-40ab9552ca3b11 Magnolia is a registered trademark used by permissionVersion 1.0
    • 12. Commands• atom operation • delete item • save changes • activate content• undo/redo• triggered by the presenter or application controller• also exposed by the web services12 Magnolia is a registered trademark used by permissionVersion 1.0
    • 13. Why should we use this• separation of concerns• less Vaadin dependent code• history support• different types of views• aligned with GWT client side coding13 Magnolia is a registered trademark used by permissionVersion 1.0
    • 14. What will we do• use the blackboard Vaadin add-on (event bus) • wiki page• write the sever side classes (Place, Activity, ...) • analog to GWT code14 Magnolia is a registered trademark used by permissionVersion 1.0
    • 15. Resources• MVP • Model View Presenter (MVP) VS Model View Controller (.Net) • GUI Architectures (Martin Fowler)• GWT Architecture • GWT 2.1 Activities - tbroyers posterous • GWT 2.1 Places - tbroyers posterous • GWT 2.1 Places – Part II - tbroyers posterous • GWT MVP Development with Activities and Places (GWT Documentation) • SolamenteNiel - GWT: Model-View-Presenter Architecture Diagram• Commands • Command pattern (Wikipedia) • Undo (Wikipedia) • Memento pattern (Wikipedia)15 Magnolia is a registered trademark used by permissionVersion 1.0
