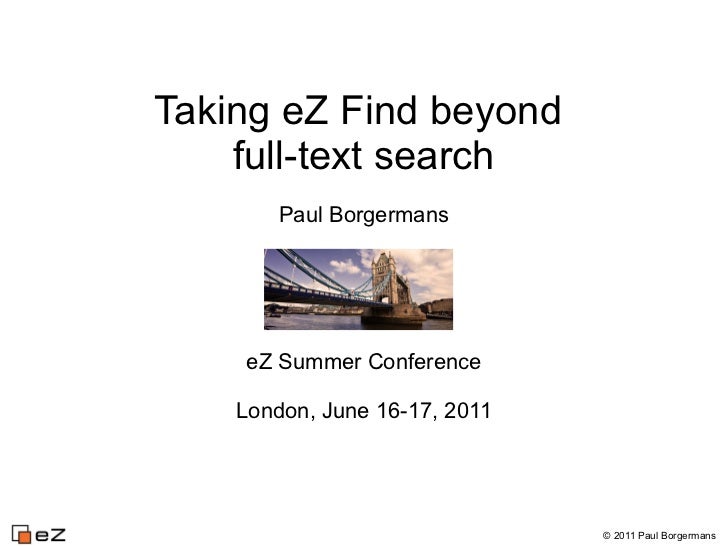

Taking eZ Find beyond    full-text search        Paul Borgermans    eZ Summer Conference    London, June 16-17, 2011      ...
About me●   10 years in the eZ ecosystem         –   eZ Lucene → eZ Solr → eZ Find         –   3.5 years with eZ Systems (...
Large sites?               © 2011 Paul Borgermans
Lots of traffic?                   © 2011 Paul Borgermans
Per user navigation needs?                        © 2011 Paul Borgermans
Complex pages?Slow attribute filters?                          © 2011 Paul Borgermans
Need to integrate data from other            sources?    ERP              DB                            © 2011 Paul Borger...
eZ Find is your friend!Although sometimes more like a rough diamond                                               © 2011 P...
Preludium Meet the beast ….                     © 2011 Paul Borgermans
eZ Find     RESTful               © 2011 Paul Borgermans
Solr in a nutshell●   State of the art, advanced full text search and    information retrieval engine●   Fast, scalable wi...
Solr                   HTTP Request Servlet                     Update Servlet  Admin            Disjunction              ...
Performance!●   The backend Solr employs intelligent caches        –   filters        –   queries        –   internal inde...
Using eZ Find/Solr beyond         search                        © 2011 Paul Borgermans
eZ Find alter egos●   eZ Find/Solr as a scalable IR engine/layer        –   Remove the burden on your DB        –   Signif...
eZ Find alter egos (...)●   Alternate navigation interfaces        –   Facets, filtering, sorting        –   Function quer...
Provisions in eZ Find●   Attribute storage (serialized content)        – Less DB queries●   Multi-core setup●   Distribute...
© 2011 Paul Borgermans
Getting external data into Solr                            © 2011 Paul Borgermans
Tools●   Solr Data Import Handler (DIH)●   Apache Manifold Connector framework●   Using APIs       –   eZ Find       –   Z...
Integrating external data: Solr DIH    http://wiki.apache.org/solr/DataImportHandler●   Goals       –   Read data residing...
Configuring DIH●   Need a more complete Solr: add DIH jars●   solrconfig.xml:    <requestHandler name="/dataimport"    cla...
Using DIH●   Send commands to DIH request handler            http://<host>:<port>/solr/dataimport?command=<command>       ...
Apache Manifold CF    http://incubator.apache.org/connectors/●   ManifoldCF is a crawler framework●   Supports:       –   ...
With eZ Find API...<?php$solr = new eZSolrBase(http://localhost:8983/solr);$documents = array( array( id => 1135,...      ...
Or With Zeta Components Search●   http://incubator.apache.org/zetacomponents/       <?php       require_once tutorial_auto...
Indexing workflow●   Assemble documents in the correct XML format●   Send one or more documents at a time●   Commit => it ...
Indexing workflow:           important properties (...)●   Update = Add with same global id●   Deleting       –   An indiv...
Indexing: performance                 considerations●   Commits can become expensive       –   Use them wisely: in batches...
But you will also need to configure Solr                                      © 2011 Paul Borgermans
Field definitions: schema.xml●   Field types        –   text        –   numerical        –   dates        –   location    ...
schema.xml: simple field type examples    <fieldType name="string" class="solr.StrField" sortMissingLast="true" omitNorms=...
Analysis●   Solr does not really search your text, but rather    the terms that result from the analysis of text●   Typica...
Solr comes with many tokenizers and                   filters●   Some are language specific●   Others are very specialised...
Semantic aspects                   © 2011 Paul Borgermans
Semantic aspects:       using an annotation engine●   Main use cases for CMS systems       –   Suggest tags to use for edi...
Annotation engine: “open”       databases                            © 2011 Paul Borgermans
eZ Publish / eZ Find integration●   Personal initiative        –   Joined an EC funded project as “early adopter”●   Initi...
Something extra ...                      © 2011 Paul Borgermans
The eZ Publish content model●   One of the main strengths●   But          –   Do you need versioning in all cases?        ...
So, a call for participation ….                                  © 2011 Paul Borgermans
A new content repository project●   Provide a very powerful content model        –   adaptable to various scenarios and us...
A new content repository ...●   Builds on top of an IR (information retrieval)    layer        –   initially SOLR based●  ...
Connects to eZ Publish through ..●   eZ Find●   Dedicated modules    and after refactoring of the kernel●   Use it as a co...
Thank you!   Questions?http://joind.in/3443paul.borgermans@gmail.com@paulborgermans                            © 2011 Paul...
