Transcript

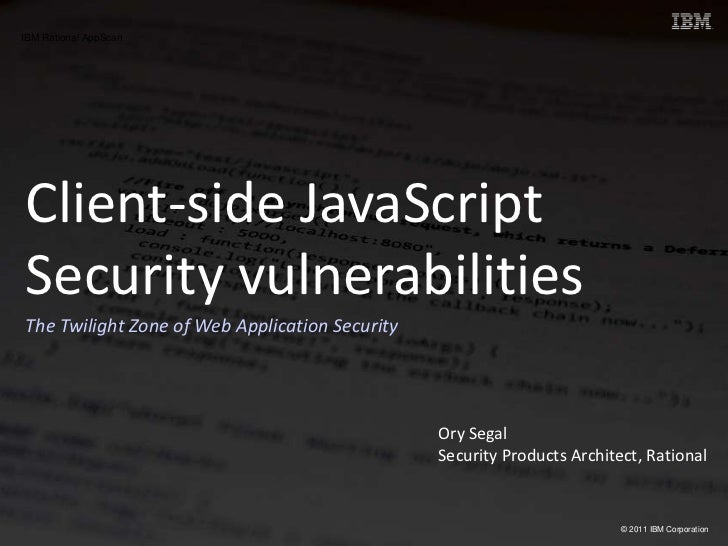

  • 1. Client-side JavaScript<br />Security vulnerabilities<br />The Twilight Zone of Web Application Security <br />Ory Segal<br />Security Products Architect, Rational<br />
  • 2. ORY SEGAL<br />Security products architect, Rational<br />AppScan product manager<br />Web Application Security Consortium officer<br />Contributor (WASC, MITRE, NIST, OWASP)<br />Renowned application security expert<br />AppScan<br />
  • 3. From server to client side – The migration story of web application logic<br />
  • 4. 1990<br />&lt;HTML&gt;<br />Capable of presenting only text and hyperlinks<br />1993<br />&lt;IMG&gt;<br />Embedded images in web pages (3rd. Party allowed)<br />1995<br />&lt;SCRIPT&gt;<br />JavaScript enables programmatic modifications to HTML<br />1996<br />&lt;IFRAME&gt;<br />Embeds a page within a page (3rd party contents)<br />&lt;EMBED&gt;<br />Embed an Adobe Flash file for animation<br />1999<br />Client-side API (e.g. JS). Send &amp; receive HTTP traffic programmatically, without refreshing the entire page<br />XHR<br />Fetch data asynchronously using XHR reducing the time spent waiting on page loads. Desktop app look &amp; feel<br />AJAX<br />2005<br />Canvas, Media, Offline storage, D&amp;D, Geolocation, Local SQL, …<br />HTML5 &amp; <br />APIs<br />2011<br />
  • 5. Logic is Migrating from Server to Client…<br />We counted server-side vs. client-side LoC in popular web applications in 2005 and in 2010<br />
  • 6. Client-side JavaScript Security Issues <br />
  • 7. DOM-Based Cross-site Scripting<br />A type of XSS (the third type after “Reflected” &amp; “Stored”)<br />Application doesn’t need to echo back user input like in Type I &amp; Type II<br />We poison a DOM element, which is used in JavaScript code<br />Example<br />http://www.vuln.site/welcome.html?name=Ory<br />1:&lt;HTML&gt;2: &lt;TITLE&gt;Welcome!&lt;/TITLE&gt;3: Hi4: &lt;SCRIPT&gt;5: var pos = document.URL.indexOf(&quot;name=&quot;) + 5;<br />6: document.write(document.URL.substring(pos,document.URL.length));<br />7: &lt;/SCRIPT&gt; &lt;BR/&gt;8: Welcome to our system<br />9:&lt;/HTML&gt;<br />Source : document.URL<br />Sink : document.write()<br />Results : document.write(&quot;Ory&quot;)<br />
  • 8. DOM-Based Cross-site Scripting<br />Attack Example<br />http://www.vuln.site/welcome.html#?name=&lt;script&gt;alert(&apos;hacked&apos;)&lt;/script&gt;<br />1: &lt;HTML&gt;2: &lt;TITLE&gt;Welcome!&lt;/TITLE&gt;3: Hi4: &lt;SCRIPT&gt;5: var pos = document.URL.indexOf(&quot;name=&quot;) + 5;<br />6: document.write(document.URL.substring(pos,document.URL.length));<br />7: &lt;/SCRIPT&gt; &lt;BR/&gt;8: Welcome to our system<br />9: &lt;/HTML&gt;<br />Source : document.URL<br />Sink : document.write()<br />Results : document.write(&quot;&lt;script&gt;alert(&apos;hacked&apos;)&lt;/script&gt;&quot;)<br /><ul><li>The attack took place entirely on the client-side (# fragment identifier)
  • 9. Hacker controlled DOM elements may include: document.URL, document.location, document.referrer, window.location, etc.</li></li></ul><li>Client-side Open Redirect<br />JavaScript code automatically redirects the browser to a new location<br />New location is taken from a DOM element (URL, Query, Referrer, etc.)<br />Example<br />http://www.vuln.site/redirect.html?a=5&amp;url=http://www.some.site<br />...<br />12: varsData = document.location.search.substring(1);<br />13: varsPos = sData.indexOf(&quot;url=&quot;) + 4;<br />14: varePos = sData.indexOf(&quot;&amp;&quot;, sPos);<br />15: varnewURL;<br />16: if (ePos&lt; 0) { newURL = sData.substring(sPos);} <br />17: else { newURL = sData.substring(sPos, ePos);}<br />18:window.location.href = newURL;<br />Source : document.location<br />Sink : window.location.href<br />Results : window.location.href = &quot;http://www.some.site&quot;;<br />
  • 10. Stored DOM-Based Cross-Site Scripting<br />Exploiting HTML5 localStorage API<br />...<br />17: var pos = document.URL.indexOf(&quot;name=&quot;) + 5;<br />18: varyourName = document.URL.substring(pos,document.URL.length)<br />19: decodeURI(yourName);<br />20: window.localStorage.name = yourName;<br />21: }<br />...<br />welcome<br />register<br />...<br />3: &lt;div id=&quot;header&quot;&gt;&lt;/div&gt;<br />4: &lt;script&gt;<br />5: varelem = document.getElementById(&quot;header&quot;);<br />6: varname = window.localStorage.name;<br />7: elem.innerHTML = &quot;Hello, &quot; + name;<br />8: &lt;/script&gt;<br />...<br />Source : document.URL<br />Storage : window.localStorage.name<br />Sink : elem.innerHTML<br />Results : elem.innerHTML = &lt;value_of_name_parameter&gt;<br />
  • 11. So, how common are client-side JavaScript issues?<br />
  • 12. (Lack of) Statistics on Client-Side JS Issues<br />Two options for gathering statistics<br />Automated discovery<br />Manual discovery<br />Automated tools<br />Dynamic analysis tools only uncover ~30%<br />Static analysis tools struggle with dynamic code (AJAX)<br />Manual code review is hell – have you seen JavaScript lately?<br />dojo._xdReset();if(dojo[&quot;_xdDebugQueue&quot;]&amp;&amp;dojo._xdDebugQueue.length&gt;0){dojo._xdDebugFileLoaded();}else{dojo._xdNotifyLoaded();}};dojo._xdNotifyLoaded=function(){for(var _99 in dojo._xdInFlight){if(typeofdojo._xdInFlight[_99]==&quot;boolean&quot;){return;}}<br />dojo._inFlightCount=0;if(dojo._initFired&amp;&amp;!dojo._loadNotifying){dojo._callLoaded();}};if(typeof window!=&quot;undefined&quot;){dojo.isBrowser=true;dojo._name=&quot;browser&quot;;(function(){var d=dojo;if(document&amp;&amp;document.getElementsByTagName){var _9a=document.getElementsByTagName(&quot;script&quot;);var _9b=/dojo(.xd)?.js(W|$)/i;for(vari=0;i&lt;_9a.length;i++){varsrc=_9a[i].getAttribute(&quot;src&quot;);if(!src){continue;}var m=src.match(_9b);if(m){if(!d.config.baseUrl)<br />{d.config.baseUrl=src.substring(0,m.index);}varcfg=_9a[i].getAttribute(&quot;djConfig&quot;);if(cfg){var _9c=eval(&quot;({ &quot;+cfg+&quot; })&quot;);for(var x in _9c){dojo.config[x]=_9c[x];}}break;}}}d.baseUrl=d.config.baseUrl;var n=navigator;vardua=n.userAgent,dav=n.appVersion,<br />tv=parseFloat(dav);if(dua.indexOf(&quot;Opera&quot;)&gt;=0){d.isOpera=tv;}if(dua.indexOf(&quot;AdobeAIR&quot;)&gt;=0){d.isAIR=1;}d.isKhtml=(dav.indexOf(&quot;Konqueror&quot;)&gt;=0)?tv:0;d.isWebKit=parseFloat(dua.split(&quot;WebKit/&quot;)[1])||undefined;d.isChrome=parseFloat(dua.split(&quot;Chrome/&quot;)[1])||undefined;d.isMac=dav.indexOf(&quot;Macintosh&quot;)&gt;=0;var _9d=Math.max(dav.indexOf(&quot;WebKit&quot;),dav.indexOf(&quot;Safari&quot;),0);if(_9d&amp;&amp;!dojo.isChrome)<br />{d.isSafari=parseFloat(dav.split(&quot;Version/&quot;)[1]);if(!d.isSafari||parseFloat(dav.substr(_9d+7))&lt;=419.3){d.isSafari=2;}}if(dua.indexOf(&quot;Gecko&quot;)&gt;=0&amp;&amp;!d.isKhtml&amp;&amp;!d.isWebKit){d.isMozilla=d.isMoz=tv;}if(d.isMoz){d.isFF=parseFloat(dua.split(&quot;Firefox/&quot;)[1]||dua.split(&quot;Minefield/&quot;)[1])||undefined;}if(document.all&amp;&amp;!d.isOpera){d.isIE=parseFloat(dav.split(&quot;MSIE &quot;)[1])||undefined;var _9e=document.documentMode;if(_9e&amp;&amp;_9e!=5&amp;&amp;Math.floor(d.isIE)!=_9e){d.isIE=_9e;}}if(dojo.isIE&amp;&amp;window.location.protocol===&quot;file:&quot;) {dojo.config.ieForceActiveXXhr=true;}d.isQuirks=document.compatMode==&quot;BackCompat&quot;;d.locale=dojo.config.locale||(d.isIE?n.userLanguage:n.language).toLowerCase();<br />
  • 13. Introducing JavaScript Security Analyzer<br />
  • 14. What is JSA?<br />1st and only to auto-detect client-side issues such as:<br />DOM-based XSS<br />Phishing through Open Redirect<br />HTML5 Notification API Phishing<br />HTML5 Web Storage API Poisoning<br />HTML5 Client-side SQL Injection<br />HTML5 Client-side Stored XSS<br />HTML5 Web Worker Script URL Manipulation<br />Email Attribute Spoofing<br />x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x2x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21x48x65x6Cx6Cx6Fx20x57x6Fx72x6Cx64x21asiudasdfiuashdofuiashdofuiashdfoiasuhdfoasuidfhoasdufhasodfuihasodfuihasodfiuhasdofiuahsdfouiashdfouashdfoasuidhfoasiudhfasoidf[‘epqwkrqpw9k45032452309450we09f9c90asdkf0q9wkerq2w34123aspasdfoiasdpfoiasjdfpoiasjdfpoaisjdfp;asoidfjas;dfoijasd;fioajsdf;ioasjdf;aosidfja;soidfjasd;fiajsdf;asijdf;asidfjas;dfiojasd;fijdsf;oaisjdf;asifdjas;difjas;dfioajsd;foiasjdf;iasojdf;asiodfjas;dfoijasoifjpas<br />DE-OBFUSCATION<br />STRING<br />/* analysis */<br />HTML5<br />Analysis<br />Hybrid<br />
  • 15. Using JavaScript Security Analyzer<br />Zero configuration required<br />Super-simple<br />Super-fast<br />
  • 16. 16<br />Viewing JSA Results in AppScan Standard<br />AppScan Standard – Scan Results<br />Vulnerable URL and line of code<br />Tainted data flow information<br />
  • 17. Lets try again…How common are client-side JavaScript issues?<br />
  • 18. Using JSA we ran a research on real sites<br />Fortune 500<br />175 Most popular sites<br />Non-obtrusive automated review<br />Manually verified results<br />Scary outcome…<br />
  • 19. 14.5% Vulnerable<br />169,443 Total Pages<br />90,929 Unique Pages<br />1659 Pages with Vulnerabilities<br />Likelihood for a web page to be vulnerable is 1 : 55 <br />
  • 20. Who wrote these vulnerabilities?<br />62%<br />In house<br />38%<br />3rd Party<br /><ul><li>Marketing campaign JavaScript snippets
  • 21. Flash embedding JavaScript snippets
  • 22. Social networking JavaScript snippets
  • 23. Deep linking JavaScript libraries for Flash and AJAX applications</li></li></ul><li>Issue Distribution<br />DOM-based XSS<br />Open Redirect<br />
  • 24. JavaScript is becoming prominent <br />Modern applications HTML5 AJAX Web2.0<br />Application logic is shifting to client-side<br />More code == more vulnerabilities<br />Happens when code relies on parts of the DOM that are hacker-controlled<br />Detection requires tedious manual work<br />AppScan with JSA can automate client-side issues detection<br />
  • 25. Q &amp; A<br />
  • 26. Thank You<br />You can download the full whitepaper at:<br />http://tinyurl.com/5w6koqj <br />

×
