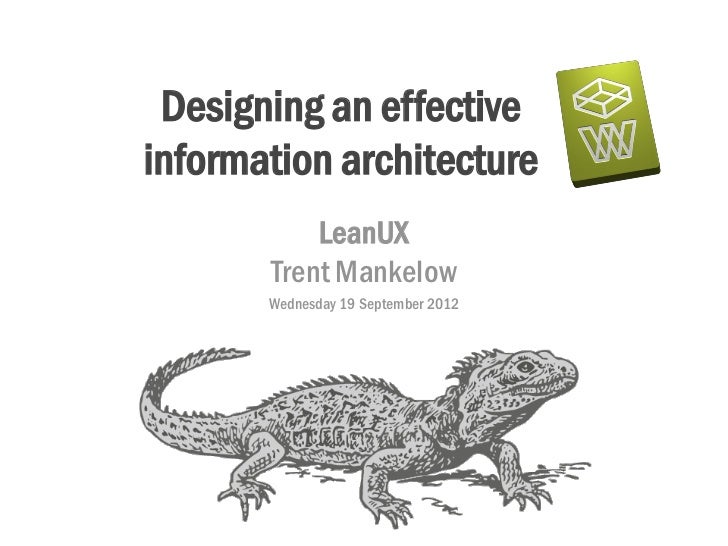

Designing an effectiveinformation architecture           LeanUX       Trent Mankelow       Wednesday 19 September 2012
Before we get going…
Today’s session is dedicated to this            New Zealand icon‘Good information architecture stands the test of time’
This afternoon   A bit about me   A bit about you   Why is information architecture important?   What is information a...
Why is information architecture          important?
I have 164 passwords
3,404 contacts in Outlook1,590 contacts in LinkedIn 318 friends on Bookface
130,000+ emails
Driver’s license    license plate numbers    bank account numbers      passport numbersbirthdays (8 nieces, 2 nephews)    ...
“It’s estimated that there will      be 44 times as much data and     content coming over the next     decade, reaching 35...
35,000,000,     000,000,000,20       000,000bytes
The #1 reason you should care about information      architecture?Hard to find information   wastes human life
Benefits of a well organized IA•   Users can quickly complete their task•   Users are more likely to complete their task• ...
So, what is information architecture?
“The combination of     organization, labeling,         and navigation       schemes within an     information system.”   ...
Information       architecture     connects people      to the content       that they are         looking for27
1. Organization   2. Labeling      3. Navigation    4. Search28
1. Organization      Information can be organized into different       schemes and structures      A scheme is overarchi...
For example, there are lots of ways to                 organize recipes ...     • French        • Breakfast     • Beef    ...
Organization is hard because…      Content can be organized in different ways      We all have different preferences    ...
2. Labeling      The goal of labeling is to communicate efficiently       and effectively      The goal of language is a...
Labels should be        Concise        Consistent        Distinguishable        In the users’ language33
3. Navigation      Good navigation design should show users:        Where they are        Where they’ve been        Wh...
Make it obvious where users are      Show users their context (e.g. highlighting their       location in the navbars with...
Make it obvious where users can go        Allow users to easily browse to what they need        Make it obvious what’s c...
Make it obvious where users have been      Use consistent labeling      Make visited in-page links a less saturated colo...
4. Search      Most users tend to start browsing over searching      5% - 30% of users start with search (3 studies sinc...
Organization and labelingSo, how do you do information                 V        architecture?
STEP ONE: KNOW your       users!
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
FOCUSGROUPSaren’tenough!
More than 60% ofparticipants testing a new     kitchen appliance indicated that they were “likely” or “very likely” to    ...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
Quant                 Qual             Open card sorting     Contextual inquiry                                    Focu...
An example ‘ideal’ approach     1. Research      2. Create       3. Evaluate     a) Review user    a) Conduct        feedb...
Card sorting
Card sorting – step-by-step1. Plan the study2. Agree with stakeholders a set of ‘cards’ representing   current (and future...
1. Plan the study   Why are we running this study?   What do we specifically want to find out?   Who should we test?  ...
2. Write cards
Number of cards versus completion rate                               100%                               90%               ...
Number of participants who complete a card sort within an hour                        20000                        18000  ...
3. Recruit representative users Include a prominent link on your website, on the  pages the targeted users will visit Em...
How many participants?You need at least 20 – 30 participants for         each round of testingTullis, T., and Wood, L. (20...
4. Conduct the sort
Closed versus Open?        ç
Which is best: In-person or Online?         In-person                       Online• You can ask questions as    • Quick re...
Maybe both?
5. Analyse the results                         Plans & billing
Strong vs. weak groups
Card sorting limitations Participants sometimes like to be clever, and a  good IA is usually boringWe won’t call it‘Perso...
Card sorting limitations Participants sometimes like to be clever, and a  good IA is usually boring Analysis is often ti...
Tree testing
We firstcameacross theidea in2003
What is tree testing? A website is typically organized into a hierarchy (a  "tree") of topics and subtopics Tree testing...
Tree testing – step-by-step1. Plan the study2. Decide on site structures to test3. Create representative ‘find’ tasks4. Pi...
1. Plan the study   Why are we running this test?   What are we testing?   What do we specifically want to find out?  ...
2. Decide on site structures to test It’s very rare for us to only do one tree test in  isolation. Ideally we would:    ...
Benchmark your existing IA Tree testing the existing hierarchy lets you  benchmark any changes made    Was it better bef...
Come up with some alternatives as a team
3. Create representative ‘find’ tasks Create tasks that cover the parts of the tree that  need testing Look at the analy...
Tips for writing tasks Same rules as writing tasks for user tests    Dont lead the witness, dont give away critical term...
Completion rate of Treejack studies               1.2                 1               0.8Completion rate 0.6              ...
4. Pilot test Ideally pilot with a few people, since people can  read stuff in different ways Preview the test a few tim...
5. Recruit representative users Include a prominent link on your website    On the pages the intended users will visit ...
6. Analyse the results – overview
6. Analyse the results – task-by-task
6. Analyse the results - pie trees
7. Tweak and re-test variations Once you’ve digested your results, you need to think  about what would change in your IA...
How long does all this take?Analysing the last 30 Treejack consulting projectswe’ve done, on average it takes us 46 hours ...
Conclusion: IA the Lean UX way
versus Slow                      FastMillions            Tens of thousands
Feedback             Vcustomers                            It’s not how                            well you lap,          ...
An example ‘ideal’ approach     1. Research      2. Create       3. Evaluate     a) Review user    a) Conduct        feedb...
The ‘lightest weight’ approach     1. Research      2. Create       3. Evaluate     a) Review user    a) Conduct        fe...
ResourcesInformation Architecture             A Practical Guide to         Organizing Digital Information forfor the World...
Thank you, you’re   awesome!trent.mankelow@optimalusability.com         @optimalworkshop      www.optimalworkshop.com
