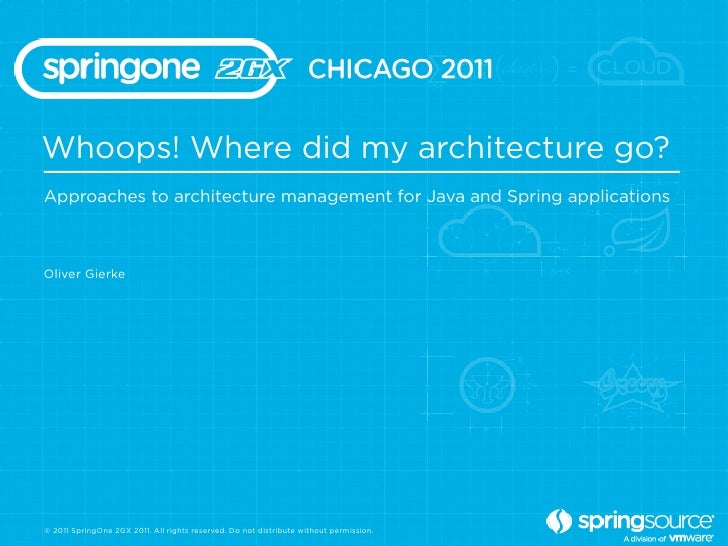

Whoops! Where did my architecture go?Approaches to architecture management for Java and Spring applicationsOliver Gierke© ...
Oliver Gierke                                                                                        Spring Data          ...
Background                                 Few years of consulting                                  Lots of code reviews  ...
Roadmap                                         Architecture 101                                     A Java packages model...
Architecture 101© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Know your                      dependencies© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permi...
Granularity                                                          Modules                                              ...
Granularity                                                        Java ARchive                                           ...
Of layers                                  and slices…© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute wi...
Slice A                  Slice B         Slice C                   Layer 1                  Layer 2                  Layer...
Layers                                    Well understood                                 Known to developers             ...
Slices                                             Hardly understood                                             New to de...
Slice A                  Slice B         Slice C                   Layer 1                  Layer 2                  Layer...
"                      How to implement                                  an architecture                                  ...
Architecture                                VS.                             Codebase© 2011 SpringOne 2GX 2011. All rights ...
"                      How to implement                                  an architecture                                  ...
"                      How to enforce                                  an architecture                                  in...
Code analysis                                                                 JDepend                                     ...
Demo© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Sonargraph                               Formerly known as SonarJ© 2011 SpringOne 2GX 2011. All rights reserved. Do not di...
Demo© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
A plain Java            based approach© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Slice A                  Slice B         Slice C                   Layer 1                  Layer 2                  Layer...
….${layer}.${slice}             VS.     ….${slice}.${layer}© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribu...
Layers first                          Leaks slice internals                     Lower layers visible to everyone© 2011 Spri...
"                      Start with less                                  packages and the                                  ...
Slice A                  Slice B         Slice C                   Layer 1                  Layer 2                  Layer...
Slice A                  Slice B         Slice C                   Layer 1                  Layer 2                  Layer...
Slices first                 Start with package per slice             Expose interfaces and domain types                Kee...
Slices first                        Encapsulates business module                         Internals understood anyway© 2011 ...
Subsystems© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Background          Risk mgmt. at German public bank         Quite a few other SpringSource clients© 2011 SpringOne 2GX 20...
"                      The smallest                                  plugin system                                  ever!©...
Host                          SPI                                              SPI              SPI                       ...
Context                                      No OSGi                                    Spring based                      ...
App                                     Plugin                                             Plugin                         ...
"                      How to make the                                  host aware of the                                 ...
"                      How to dynami-                                  cally collect Spring                               ...
classpath*:META-INF/       spring/plugin-context.xml© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute with...
classpath*:META-INF/                                       spring/plugin-context.xml                          SPI         ...
@Component public class MyComponentImpl implements TransferService {      private List<MyPlugin> plugins;      @Autowired ...
Demo© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
XML?                                                   Back in the days© 2011 SpringOne 2GX 2011. All rights reserved. Do ...
(XML?)                           Back in the days                    Probably not a big deal anymore© 2011 SpringOne 2GX 2...
Easy access?© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
@Component public class MyComponentImpl implements TransferService {      private List<MyPlugin> plugins;      @Autowired ...
@Component public class MyComponentImpl implements TransferService {      // Constructor omitted      public Result myMeth...
Plugins                              Selection criterion                               Callback method                    ...
Registry                                   Equipped with plugins                                  Common access patterns© ...
public interface Plugin<T> {      public boolean supports(T delimiter ); } public interface PluginRegistry<S extends Plugi...
@Component public class MyComponentImpl implements TransferService {      private PluginRegistry<MyPlugin, String> plugins...
@Component public class MyComponentImpl implements TransferService {   private final MyPlugin defaultPlugin = new MyDefault...
OrderAware                                 PluginRegistry                               Respects @Order/Ordered           ...
Bells‘n‘whistles                                                 FactoryBean                                              ...
Hera© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Hera                                         http://hera.synyx.org                                              Apache 2.0...
Spring                               Integration 2© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute withou...
<bean class="….FirstSamplePlugin" /> <bean class="….SecondSamplePlugin" /> <int:channel id="input" /> <int:channel id="out...
Demo© 2011 SpringOne 2GX 2011. All rights reserved. Do not distribute without permission.
Take-aways                             Know your dependencies                               On every granularity          ...
Thanks & credits                               Eoin Woods - Talk @ InfoQ© 2011 SpringOne 2GX 2011. All rights reserved. Do...
Resources                                        Sourcecode @ GitHub                                             Sonargrap...
