Debugging and Profiling
 symfony applications
                               by Alvaro Videla
Wednesday, February 17, 2010
About Me
               • Lead Developer at TheNetCircle.com
               • Creator of FireSymfony
               • Twit...
About Me
               • Lead Developer at TheNetCircle.com
               • Creator of FireSymfony - 16.000 downloads
  ...
About our symfony site
               • 2.000.000+ members
               • 250.000+ logins/day
               • 300.000+ ...
Let’s talk about:
               • Debugging Tools
               • Profiling Tools
               • Benchmarking Tools
   ...
Symfony Tools



Wednesday, February 17, 2010
Loggers



Wednesday, February 17, 2010
sfFileLogger

                 • logs per controller & environment
                 • very useful for development
        ...
There’s a lot of information
                                       on the logs
               • Cache hits
              ...
AWK
                 • Extract information using AWK
                 • use: /(M|m)atch route/


                         ...
Problems of this approach

                 • Hard to use with several servers
                 • Require to ssh and inspe...
Next Step

                               A Centralized Logger




Wednesday, February 17, 2010
Sample Use Case
               • CouchDB backend
               • One Server collecting logs from 28 PHP
                 ...
A Centralized Logger




Wednesday, February 17, 2010
5 minute How To
                                  A Redis Logger

              http://github.com/videlalvaro/avRedisLogge...
Logger Roadmap




Wednesday, February 17, 2010
Timers



Wednesday, February 17, 2010
sfTimer

               • Easy to use
               • Integrated with symfony debug tools


Wednesday, February 17, 2010
Using Timers




Wednesday, February 17, 2010
Problems of this approach

               • Require to modify the code to add timers
               • Only provides execut...
Next Step

                               Profile with XHProf




Wednesday, February 17, 2010
XHProf
               • C extension for PHP
               • Open sourced by Facebook
               • Hierarchical Profile...
XHProf Web Interface
               •       Single Runs

               •       Compare Runs

               •       Aggre...
5 minute How To
                               Adding XHProf to an index.php

                                  http://gis...
symfony 1.0 vs. symfony 1.2*




                                                *sfCompat10Plugin enabled




Wednesday, ...
@old_sound: “Hello World!” Benchmarks Considered
                               Evil! #sflive2010
                         ...
symfony 1.0 vs. symfony 1.2*




                                                *sfCompat10Plugin enabled




Wednesday, ...
symfony 1.0 vs. symfony 1.2*




                                                *sfCompat10Plugin enabled




Wednesday, ...
Tsung
               •       High performance benchmarking framework

               •       Open Source

               •...
Tsung Sessions
               • Arrival Phase
               • Duration
               • Amount of Users
               • ...
Tsung




Wednesday, February 17, 2010
Metrics



Wednesday, February 17, 2010
Metrics

                               Live Site Metrics With Graphite




Wednesday, February 17, 2010
Graphite
               • “... a highly scalable real-time graphing
                       system”
               • Open S...
Graphite in Action




Wednesday, February 17, 2010
We use it for
               •       System Load Comparisons

               •       APC Stats

               •       Mem...
symfony 1.0 vs. symfony 1.2*




                                                *sfCompat10Plugin enabled




Wednesday, ...
symfony 1.0 vs. symfony 1.2*




                                                *sfCompat10Plugin enabled




Wednesday, ...
5 minute How To
                               Adding Graphite to an index.php

                                  http://g...
Roadmap

             • Write C PHP Extension
             • Take advantage of Request Life Cycle
             • Ease metr...
Links
             • http://www.rabbitmq.com/
             • http://tsung.erlang-projects.org/
             • http://graph...
Questions?



Wednesday, February 17, 2010
Thanks!
                                      Alvaro Videla
                               http://twitter.com/old_sound


...
Upcoming SlideShare
Loading in...5
×

Debugging and Profiling Symfony Apps

11,653

Published on

Slides for the Debugging and Profiling Symfony Apps from #sflive2010 by Alvaro Videla

Published in: Technology
0 Comments
20 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
11,653
On Slideshare
0
From Embeds
0
Number of Embeds
6
Actions
Shares
0
Downloads
196
Comments
0
Likes
20
Embeds 0
No embeds

No notes for slide

Transcript of "Debugging and Profiling Symfony Apps"

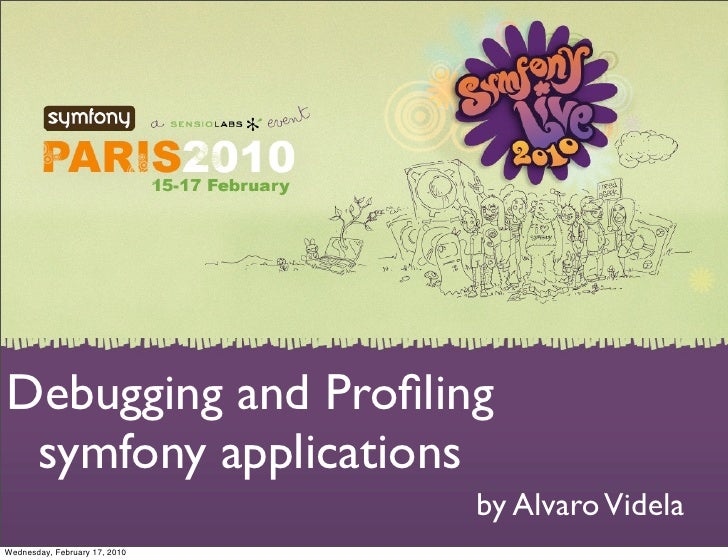

  1. 1. Debugging and Profiling symfony applications by Alvaro Videla Wednesday, February 17, 2010
  2. 2. About Me • Lead Developer at TheNetCircle.com • Creator of FireSymfony • Twitter: @old_sound • Blog: http://obvioushints.blogspot.com/ Wednesday, February 17, 2010
  3. 3. About Me • Lead Developer at TheNetCircle.com • Creator of FireSymfony - 16.000 downloads • Twitter: @old_sound • Blog: http://obvioushints.blogspot.com/ Wednesday, February 17, 2010
  4. 4. About our symfony site • 2.000.000+ members • 250.000+ logins/day • 300.000+ private messages/day • 14.000 req/min in the top 6 actions Wednesday, February 17, 2010
  5. 5. Let’s talk about: • Debugging Tools • Profiling Tools • Benchmarking Tools • Live Site Metrics Wednesday, February 17, 2010
  6. 6. Symfony Tools Wednesday, February 17, 2010
  7. 7. Loggers Wednesday, February 17, 2010
  8. 8. sfFileLogger • logs per controller & environment • very useful for development • Prod, disable or set level: err Wednesday, February 17, 2010
  9. 9. There’s a lot of information on the logs • Cache hits • Cache misses • Number of Database Queries Wednesday, February 17, 2010
  10. 10. AWK • Extract information using AWK • use: /(M|m)atch route/ http://gist.github.com/271034 Wednesday, February 17, 2010
  11. 11. Problems of this approach • Hard to use with several servers • Require to ssh and inspect logs in each of the servers • Hard to visualize data in context Wednesday, February 17, 2010
  12. 12. Next Step A Centralized Logger Wednesday, February 17, 2010
  13. 13. Sample Use Case • CouchDB backend • One Server collecting logs from 28 PHP machines • 15 million logs in the first week Wednesday, February 17, 2010
  14. 14. A Centralized Logger Wednesday, February 17, 2010
  15. 15. 5 minute How To A Redis Logger http://github.com/videlalvaro/avRedisLoggerPlugin Wednesday, February 17, 2010
  16. 16. Logger Roadmap Wednesday, February 17, 2010
  17. 17. Timers Wednesday, February 17, 2010
  18. 18. sfTimer • Easy to use • Integrated with symfony debug tools Wednesday, February 17, 2010
  19. 19. Using Timers Wednesday, February 17, 2010
  20. 20. Problems of this approach • Require to modify the code to add timers • Only provides execution time information • Best suited to run in dev mode Wednesday, February 17, 2010
  21. 21. Next Step Profile with XHProf Wednesday, February 17, 2010
  22. 22. XHProf • C extension for PHP • Open sourced by Facebook • Hierarchical Profiler • Extracts: - Walltime - Memory Usage Wednesday, February 17, 2010
  23. 23. XHProf Web Interface • Single Runs • Compare Runs • Aggregate Runs • Sort runs by: - Number Function Calls - Memory Usage - Walltime Wednesday, February 17, 2010
  24. 24. 5 minute How To Adding XHProf to an index.php http://gist.github.com/300261 Wednesday, February 17, 2010
  25. 25. symfony 1.0 vs. symfony 1.2* *sfCompat10Plugin enabled Wednesday, February 17, 2010
  26. 26. @old_sound: “Hello World!” Benchmarks Considered Evil! #sflive2010 1 second ago from Cité Universitaire Internationale Wednesday, February 17, 2010
  27. 27. symfony 1.0 vs. symfony 1.2* *sfCompat10Plugin enabled Wednesday, February 17, 2010
  28. 28. symfony 1.0 vs. symfony 1.2* *sfCompat10Plugin enabled Wednesday, February 17, 2010
  29. 29. Tsung • High performance benchmarking framework • Open Source • Distributed benchmarking • Can simulate user sessions • Records and replay browser interaction • Can benchmark HTTP, MySQL, Ejabberd • Can be extended Wednesday, February 17, 2010
  30. 30. Tsung Sessions • Arrival Phase • Duration • Amount of Users • Meassure system load Wednesday, February 17, 2010
  31. 31. Tsung Wednesday, February 17, 2010
  32. 32. Metrics Wednesday, February 17, 2010
  33. 33. Metrics Live Site Metrics With Graphite Wednesday, February 17, 2010
  34. 34. Graphite • “... a highly scalable real-time graphing system” • Open Source • Text Protocol • Awesome Graphics Capabilities http://graphite.wikidot.com/ Wednesday, February 17, 2010
  35. 35. Graphite in Action Wednesday, February 17, 2010
  36. 36. We use it for • System Load Comparisons • APC Stats • Memcache Stats • Number of Online Users • AVG module/action request time • AVG module/action memory usage • module/action request count Wednesday, February 17, 2010
  37. 37. symfony 1.0 vs. symfony 1.2* *sfCompat10Plugin enabled Wednesday, February 17, 2010
  38. 38. symfony 1.0 vs. symfony 1.2* *sfCompat10Plugin enabled Wednesday, February 17, 2010
  39. 39. 5 minute How To Adding Graphite to an index.php http://gist.github.com/300265 Wednesday, February 17, 2010
  40. 40. Roadmap • Write C PHP Extension • Take advantage of Request Life Cycle • Ease metric recording Wednesday, February 17, 2010
  41. 41. Links • http://www.rabbitmq.com/ • http://tsung.erlang-projects.org/ • http://graphite.wikidot.com/ • http://pecl.php.net/package/xhprof Wednesday, February 17, 2010
  42. 42. Questions? Wednesday, February 17, 2010
  43. 43. Thanks! Alvaro Videla http://twitter.com/old_sound Wednesday, February 17, 2010
