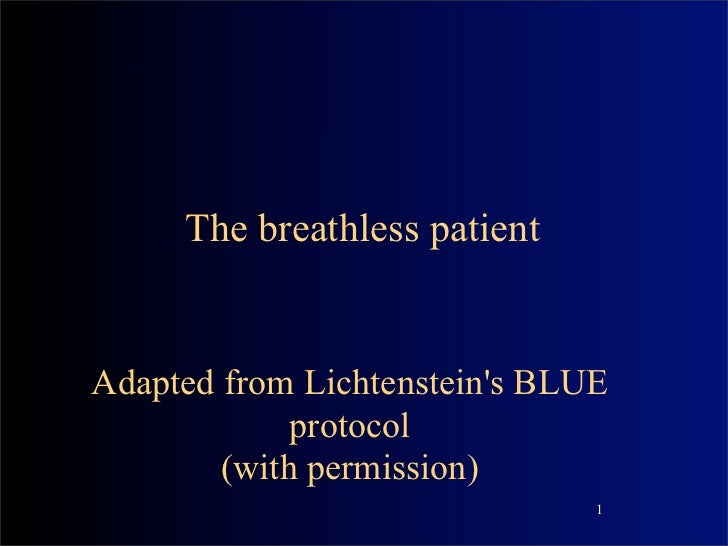

The breathless patientAdapted from Lichtensteins BLUE             protocol        (with permission)                       ...
Summary1 (Ongoing resus) Clinical assessment:  formulate the question2 Rapid screen3 Form a working diagnosis4 Continue re...
1. Formulate the question
1. Formulate the question Why is the patient breathless?                                  4
Why is the patient breathless?• Pneumothorax (PTX)• Pneumonia• Acute cardiogenic pulmonary oedema  (APO)• Pulmonary emboli...
2. The BLUE protocol
Curved probe, abdominal preset• Machine settings: as for arrest screen                                           7
A 3-step scan1. Anterior lung fields: 2 points2. If A profile: scan the upper & lower limb  veins for DVT3. If no DVT: PLA...
The BLUE protocol scan                         9
The BLUE protocol scan                         9
Step 1: anterior chest: upper & lower            BLUE points                                  10
Step 1: anterior chest: upper & lower              BLUE points• Probe sagittal, midclavicular line• 2 spots on each side• ...
Recall: upper & lower BLUE points             1      1         2              2                              12
Step 1 findings      One lung not                       Both lungs sliding          slidingA’ profile   B’ profile      A ...
Step 1 findings        One lung not                       Both lungs slidng            slidingA’ profile:    B’ profile:  ...
Step 2: the veins                    15
Step 2 (if dry lungs)    Compression scans UL & LL veins          Upper limb: IJV, SCVLower limb: femoral confluence, lowe...
Step 2: scan the veins      Scan the veins     DVT seen = PE                             Treat.      DVT not seen:     Pro...
Step 2 noteThis is rule-in, not rule-out. Even with 81% sensitivity in the hands of an expert, you’ll      still miss 19% ...
Step 3: the PLAPS points                           19
What are the PLAPS points?= the most dependent part of the lungsAs far behind & as low as you can scan  without hitting th...
Recall: PLAPSPosterolateral alveolar &/or pleural syndrome           Not as bad as it sounds!
Posterolateral alveolar &/or pleural                syndromeIf you see effusion or   If you see anything   consolidation a...
PLAPS-positive?
PLAPS-positive?
PLAPS-positive?
PLAPS-positive?
PLAPS-positive?
Step 3: the PLAPS points        PLAPS points            PLAPS seen:                                  Pneumonia            ...
Now what?     You’ve reached the end of the scan              Patient still breathless You’ve ruled out APO, PTX, pneumoni...
The BLUE protocol        One lung not sliding                                 Both lungs slidng  A’ profile:       B’ prof...
BLUE protocol: important notes                             29
BLUE protocol: notes• Controversial eg for DVT:     • Scans below the knee     • Scans the upper limbs (increases sensitiv...
Suggestions1. Add cardiac/IVC scan to the protocol to increase  sensitivity for PE (Rule-in, not rule –out: if cardiac/  I...
Step 4: heart / IVC                      Dry lungs, no DVT,                            no PLAPS:High pressure RV         H...
Modified BLUE protocol                                        Step 1      One lung not sliding            The lungs       ...
Modified BLUE protocol scan                         34
Modified BLUE protocol scan                         34
Oustanding issues• Does RV/IVC distension occur in status asthmaticus / severe COPD?  If so, this could limit its use as a...
Summary: the modified BLUE protocol   Step 1: anterior lungs   Step 2: the veins   Step 3: the PLAPS points   Step 4: hear...
