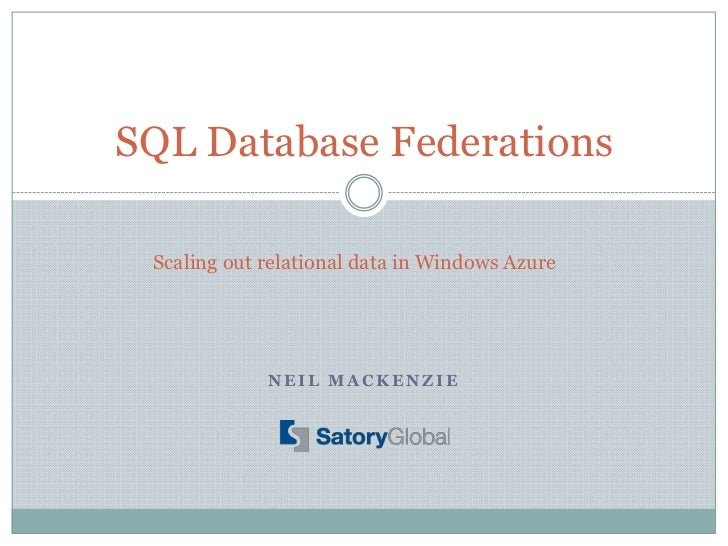

  • 1. SQL Database Federations Scaling out relational data in Windows Azure NEIL MACKENZIE
  • 2. Who Am I? Neil Mackenzie Azure Architect @ Satory Global Windows Azure MVP Blog: Twitter: @mknz Book: Microsoft Windows Azure Development Cookbook
  • 3. Content Windows Azure Platform Motivation for SQL Database Federations Overview of SQL Database Federations Transact-SQL Statements DMVs Fan-out queries
  • 4. Windows Azure Cloud Services:  Platform-as-a-Service  Web roles, worker roles  Infrastructure-as-a-Service  Virtual Machines, SQL Server 2012 Connectivity  Endpoints, Virtual Network, Service Bus Storage  Windows Azure Storage Service  Windows Azure SQL Database
  • 5. SQL Database Database-as-a-Service  Multi-tenanted  Priced in GB/month Database  One primary and two secondary databases  Quorum commit  Maximum size: 150GB Programmability  TDS protocol  SQL Server authentication  Change connection string and go
  • 6. Scalability Scale up  Use more powerful hardware  Price/performance problem  Fails at internet scale Scale out  Use commodity hardware  Cost-effective way to increase performance  Resilient towards failure
  • 7. Scale-Out Data Use multiple databases (shards) Sharding provides:  Larger data sizes  Higher performance Issues:  Data distribution  Connection routing
  • 8. SQL Database Federations Sharding-as-a-Service Federated database comprises:  Root database  Federation member databases (shards) Federation specified by:  Federation name  Distribution key Routing  Connection pooling
  • 9. Federation Members Federation member  Federated data distributed by distribution key range  Error to insert or update distribution key outside range  Member databases can have:  different sizes  different schemas Distribution key in:  Clustered index  Each unique index
  • 10. Table Types Federated tables  In federation members CREATE TABLE ( … ) FEDERATED ON (CustomerId = custId) Reference tables  In federation members CREATE TABLE ( … ) Common tables  In root database
  • 11. Federation Operations Transact SQL support for federations:  CREATE FEDERATION  USE FEDERATION  ALTER FEDERATION  DROP FEDERATION
  • 12. CREATE FEDERATION CREATE FEDERATION federation_name (distribution_name <data_type> RANGE) Data types:  INT  BIGINT  UNIQUEIDENTIFIER  VARBINARY(n) - n<=900 Root database can support several federations  e.g. – customer federation, product federation
  • 13. USE FEDERATION USE FEDERATION ROOT WITH RESET  Routes connection to root database USE FEDERATION federation_name (distribution_name = value) WITH RESET, FILTERING={ON|OFF}  Routes connection to appropriate federation member  FILTERING= OFF allows connection to be used for any data in the federation member  FILTERING=ON restricts connection to a specified distribution key
  • 14. ALTER FEDERATION: SPLIT Range: 100 400 500ALTER FEDERATION CustomerFederationSPLIT AT (CustomerId = 200) Range: 100 200 400 500
  • 15. ALTER FEDERATION: DROP 100 200 400 500ALTER FEDERATION CustomerFederationDROP AT (LOW CustomerId = 200) 100 200 400 500ALTER FEDERATION CustomerFederationDROP AT (HIGH CustomerId = 200) 100 200 400 500
  • 16. Dynamic Management Views Definition  e.g. sys.federation_member_distributions History  e.g. sys.federation_member_distribution_history Operations  e.g. sys.dm_federation_operations Operation errors  e.g. sys.dm_federation_operation_errors
  • 17. sys.federation_member_distributions Columns  federation_id int  member_id int (database id)  Distribution_name sysname  Range_low sqlvariant  Range_high sqlvariant Range:  includes Range_low  excludes Range_high
  • 18. Security Principal Root database  CREATE USER user_name FROM LOGIN login_name Federation member  CREATE USER user_name Security is otherwise like SQL Database
  • 19. Fan-Out Queries Loop over:  sys.federation_member_distributions.Range_low Perform queries in parallel Two-step process  Member query  Summary query (if necessary)
  • 20. Summary SQL Database Federations  Sharding-as-a-Service  Elastic scalability for SQL Database databases  Management support  Developer support
  • 21. More Information MSDN Wiki Cihan Biyikoglu blog: Post based on this presentation:
