Developing Database Applications Using ADO.NET and XMLObjectives                In this session, you will learn to:       ...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters                A data adapter is integral...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                Following are the...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                The following pro...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                •   Consider the ...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                •   A data adapte...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                A major challenge...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                Resolving data co...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                A significant way...
Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.)                •   ADO.NET provi...
Developing Database Applications Using ADO.NET and XMLJust a minute                _______ class can create any data provi...
Developing Database Applications Using ADO.NET and XMLDemo: Manipulating Data in a Connected Environment                Pr...
Developing Database Applications Using ADO.NET and XMLSummary               In this session, you learned that:            ...
Developing Database Applications Using ADO.NET and XMLSummary (Contd.)                 The following properties and method...
Developing Database Applications Using ADO.NET and XMLSummary (Contd.)                 Resolving data concurrency conflict...
Upcoming SlideShare
Loading in...5
×

Ado.net session05

1,476

Published on

Published in: Technology
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
1,476
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
76
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide
  • Introduce the students to the course by asking them what they know about forensics. Next, ask the students what they know about system forensics and why is it required in organizations dependent on IT. This could be a brief discussion of about 5 minutes. Lead the discussion to the objectives of this chapter.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • Introduce the students to the different types of threats that systems face by: Asking the students to give examples of what they think are environmental and human threats. Asking the students to give instances of what they think are malicious and non-malicious threats. Conclude the discussion on the different types of threats by giving additional examples of malicious and non malicious threats.
  • In this slide you need to show the calculation to determine the sum of an arithmetic progression for bubble sort algorithm. Refer to student guide.
  • While explaining the definition of system forensics, ask the students to note the following key words in the definition: Identify Extract Process Analyze Digital and hardware evidence Tell the students that these form an integral aspect of system forensics and would be discussed in detail. Before moving on to the next slide, hold a brief discussion on why is it important for organizations to take the help of system forensics. The discussion should be focused on: The role that system forensics plays in organizations having an IT set up. This discussion will serve as a precursor to the next slide.
  • Transcript of "Ado.net session05"

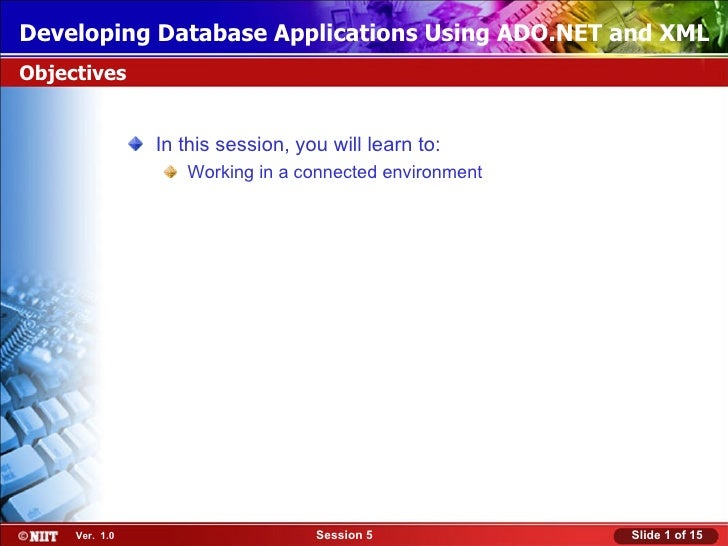

    1. 1. Developing Database Applications Using ADO.NET and XMLObjectives In this session, you will learn to: Working in a connected environment Ver. 1.0 Session 5 Slide 1 of 15
    2. 2. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters A data adapter is integral to the working of ADO.NET because data is transferred to and from a database through a data adapter. A data adapter retrieves data from a database into a dataset. The data adapter first compares the data in the dataset with that in the database and then updates the database. Data from a database can be accessed by configuring a data adapter. Ver. 1.0 Session 5 Slide 2 of 15
    3. 3. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) Following are the data adapters that can be configured to connect to a database:  SqlDataAdapter Accesses data specifically from Microsoft SQL Server  OleDbDataAdapter Accesses data from a database that is supported by an OLE DB data provider  OdbcDataAdapter Accesses data from a database that is supported by an ODBC data provider  OracleDataAdapter Accesses data from a database that is supported by an Oracle data provider Ver. 1.0 Session 5 Slide 3 of 15
    4. 4. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) The following properties and methods of a data adapter can be used to perform various operations on a database:  SelectCommand Refers to a DML statement or a stored procedure to retrieve data from a database  InsertCommand Refers to a data command to insert data into a database  UpdateCommand Refers to a data command to update a database  DeleteCommand Refers to a data command to delete data from a database  Fill() Fills the dataset with the records from a database  Update() Executes the corresponding Insert, Update, or Delete commands for each inserted, modified, or deleted row to reflect the changes in a database Ver. 1.0 Session 5 Slide 4 of 15
    5. 5. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) • Consider the following code snippet of creating a DataAdapter object and using the SelectCommand property of the object: SqlConnection cn = new SqlConnection(); cn.ConnectionString = "Data Set a connection string source=SQLSERVER01;Initial catalog=HR;User id=sa; Password=niit#1234"; DataSet DataSet1 = new DataSet();Creating a DataSet object SqlDataAdapter da = new Creating a SqlDataAdapter SqlDataAdapter(); object SqlCommand cmd=new SqlCommand Passing the SQL query to the ("Select * from Employees", cn); command object. da.SelectCommand = cmd; Retrieving records from the Filling the dataset Employees table with records da.Fill(DataSet1); from the Employees table Ver. 1.0 Session 5 Slide 5 of 15
    6. 6. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) • A data adapter handles data transfer between the database and the dataset through its properties and methods, and displays data through the process of table mapping. • After a dataset has been created, the data adapter uses the process of table mapping to map the columns in the database table with the dataset columns. • A data adapter uses the TableMappings property, a collection of DatatableMapping objects that is used for mapping between the database table and the DataTable object in the dataset. Ver. 1.0 Session 5 Slide 6 of 15
    7. 7. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) A major challenge related to data access is that more than one user might need to simultaneously access data in a database. Another challenge is more than one user might need to access the data anytime, anywhere. This challenge can be overcome by implementing database locking while a transaction is executing. However, if database locking is not implemented, it can lead to data concurrency conflicts that arise from multiple updates being performed on the database. Ver. 1.0 Session 5 Slide 7 of 15
    8. 8. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) Resolving data concurrency conflicts is a business decision, with the following choices: Prioritized on time; first update wins Prioritized on time; last update wins Prioritized on role Prioritized on location User resolves the conflict Ver. 1.0 Session 5 Slide 8 of 15
    9. 9. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) A significant way to increase the performance of data updates is to update and send the changes to the database in batches. This is known as batch updates. Batch updates are performed by using the UpdateBatchSize property of the SqlDataAdapter object. By default, the UpdateBatchSize property is set to 1. One way to confirm that the changes are being sent to the database server in batches is to add a RowUpdated event to the SqlDataAdapter object. This event will show the number of rows affected in the last batch. Ver. 1.0 Session 5 Slide 9 of 15
    10. 10. Developing Database Applications Using ADO.NET and XMLWorking with Data Adapters (Contd.) • ADO.NET provides support for classes that can create any provider-specific objects. These classes are known as the DbProviderFactories classes. • The DbProviderFactories class contains a method called GetFactoryClasses that returns a data table, which is populated with data from various providers, as shown in the following figure. Ver. 1.0 Session 5 Slide 10 of 15
    11. 11. Developing Database Applications Using ADO.NET and XMLJust a minute _______ class can create any data provider-specific object. 1. DbCommand 2. DbProviderFactories 3. DbParameter 4. DbConnection Answer: 2. DbProviderFactories Ver. 1.0 Session 5 Slide 11 of 15
    12. 12. Developing Database Applications Using ADO.NET and XMLDemo: Manipulating Data in a Connected Environment Problem Statement: The HR Manager of Tebisco needs to update the number of vacancies, for those positions where the number of vacancies is not more than 10. This updation will be based on the current position code of employees. As a part of the development team, you need to execute two queries, one to retrieve the number of vacancies per position code, and the other to update the number of vacancies on the basis of the current position code of employees. You need to develop an application that can execute both queries on a single database connection. Hint: You need to access the InternalJobPosting and Employee tables of the HR database. Ver. 1.0 Session 5 Slide 12 of 15
    13. 13. Developing Database Applications Using ADO.NET and XMLSummary In this session, you learned that:  A data adapter, which is a part of the connected environment, retrieves data from a database into a dataset.  The data adapters that can be configured to connect to a database in Visual Studio .NET are: SqlDataAdapter OleDbDataAdapter OdbcDataAdapter OracleDataAdapter Ver. 1.0 Session 5 Slide 13 of 15
    14. 14. Developing Database Applications Using ADO.NET and XMLSummary (Contd.) The following properties and methods of a data adapter can be used to perform the various operations on a database:  SelectCommand  InsertCommand  UpdateCommand  DeleteCommand  Fill()  Update()  A data adapter handles data transfer between the database and the dataset through its properties and methods, and displays the data through the process of table mapping. Ver. 1.0 Session 5 Slide 14 of 15
    15. 15. Developing Database Applications Using ADO.NET and XMLSummary (Contd.) Resolving data concurrency conflicts is a business decision, with the following choices:  Prioritized on time; first update wins  Prioritized on time; last update wins  Prioritized on role  Prioritized on location  User resolves the conflict  A significant way to increase the performance of data updates is to update and send the changes to the database in batches. This is known as batch updates.  ADO.NET provides support for classes that can create any provider-specific objects, such as SqlClient, Odbc, OracleClient, and OleDb. These classes are known as DbProviderFactories classes. Ver. 1.0 Session 5 Slide 15 of 15
