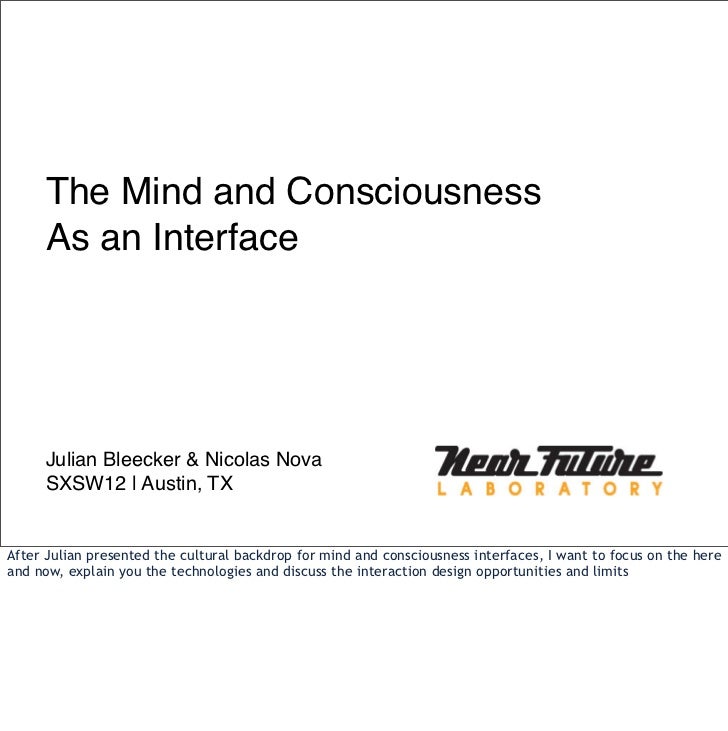

The Mind and Consciousness     As an Interface     Julian Bleecker & Nicolas Nova     SXSW12 | Austin, TXAfter Julian pres...
Adam Wilson’s EEG-generated tweet
Cortical control of a prosthetic arm for self-feeding by Meel Velliste, Sagi Perel, M. ChanceSpalding, Andrew S. Whitford ...
Neurowear - necomini: http://neurowear.com/“Necomimi is the new communication toolthat augments the human bodies and abili...
Are these interfaces real?Yes, they all are
BCI: Brain-Computer Interfaces     “create a direct communication pathway between a human brain     and any external devic...
“direct interaction”A common trope in human-object interactions: lever / mouse / keyboard / touch / voice /physiological
Process > invasive technologyThere are two ways to do it1. Invasive technologies: sensors directly implanted in the brain:...
Process > non-invasive > EEGThis is the other possibility, no surgery. For the signal acquisition there are many different...
Process > non-invasive > fMRIThis is what you will need for functional magnetic resonance imaging (fMRI)fMRI measures chan...
Process > non-invasive > EEGEEG is the most common., electrodes placed on the scalp measure the weak electrical potentials...
Process > non-invasive > “dry cap”
Process > making sense of this1. Detect specific mental state or activity in certain areas of the brain (you can then say t...
Process > making sense of this                         delta wave: slow                         waves, sleep              ...
Process > making sense of thisIt was to difficult for us to resist presenting you this domain AND NOT USING the graphicemp...
Process > making sense of thisIt was to difficult for us to resist presenting you this domain AND NOT USING the graphicemp...
Process > making sense of thisIt was to difficult for us to resist presenting you this domain AND NOT USING the graphicemp...
Typology of applicationsVarious domains: gaming, spelling applications,2D cursor control, relaxation tool, game, accessto ...
Typology > touch-free interfaceMind-controlled parachute (Sky1 HD TV show)
Typology > touch-free interface for     hostile environment       Mind-controlled parachute (Sky1 HD TV show)Action at dis...
Typology > thought pattern recognition      Mental state identification to deliver dynamically adapted      content/respons...
Typology > modern day lie detectorNeuroscientist Daniel Langleben. This image shows average brain regions for 22 subjects ...
Typology > neurofeedback      Practice generating the state of mind most beneficial to      sport/activityPLX Wave - Xwave ...
Interaction design repertoire     Explicit versus implicit user interactions (or user-driven versus     stimulus-driven in...
Interaction design repertoire                                     Language-related                                     cog...
1. Cognitive state versus semanticFinding general cognitive processes is not mind reading! Researchers can tell if a user ...
1. Cognitive state versus semantic       Presented clip                                  Clip reconstructed from          ...
but this is what you will need for this (not to mention the algorithm)
2. Training usersUsers have to learn to intentionally manipulate their brain signals, which is not trivial.Two options 1. ...
2. Training usersMain problem = even with feedback it’s hard to see what you can do with your mind tocontrol the attention...
3. Signal versus noise: seamful design?Noise = background noise + lots of data (some from the required brain activity + so...
4. Taking design context into accountWhere are you going to use these BCI helmet? Most of the pictures about these project...
5. Context and devices                                                                           Specific                  ...
Conclusion> The “direct translation” trope and how to gobeyond it> We need to build an interaction design perspective,ask ...
Thanks!julian@nearfuturelaboratory.comnicolas@nearfuturelaboratory.com
