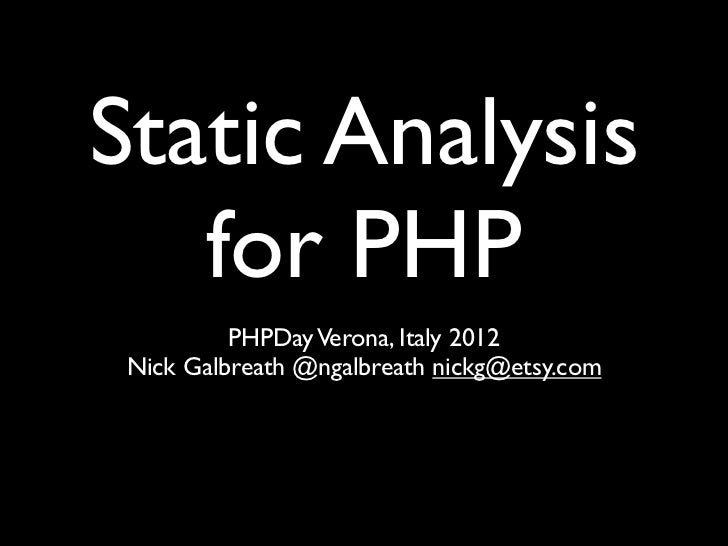

Static Analysis   for PHP          PHPDay Verona, Italy 2012 Nick Galbreath @ngalbreath nickg@etsy.com
http://slidesha.re/  KzTfLygithub.com/client9/hphp-tools    Nick Galbreath @ngalbreath PHPDay Verona, Italy 2012
Static Analysis• Typically analyzes source code “at rest” for  bugs, security problems, leaks, threading  problems.• We’ll...
Dynamic Analysis        Analysis of code while running• valgrind http://valgrind.org/• xdebug http://xdebug.org/• xhprof h...
Simple Static Analysis
The Littlest Static Analysis                  php -l  • Syntax errors should never be committed.  • Syntax errors should n...
PHP Leading Whitespacepre-commit check that every file starts witheither #! or <?php exactlyNick Galbreath @ngalbreath PHPD...
PHP Trailing Whitespace Check that file ends exactly with ?> or make sure it doesn’t have a closing tag. Nick Galbreath @ng...
Anti-Virus      On Source Code• It’s static analysis too!• Not so concerned with PHP but do you  have Javascript, Flash, W...
ClamAV• http://www.clamav.net/• Free anti-virus.• Available on every OS.
ClamAV Performance   1G of Source Code / Minute      Why not do it?
Advanced Static Analysis
Why not use... AST?http://docs.php.net/manual/en/function.token-get-all.php    •    token_get_all($file)  takes a file and ...
Why not use...         CodeSniffer? http://pear.php.net/package/PHP_CodeSniffer• Excellent tool, but...• Based on token_ge...
Why not use...• php-SAT:Orphaned 2009• php-AST: Orphaned 2008• phc: active but doesn’t support... OBJECTS• Every other PHP...
Facebook’s HpHp• A full re-implementation of Apache+PHP• Compiles PHP to it’s own byte code format  and executes in own ru...
Bad News #1      No action since        2011-12-06Facebook appears to use “code drops”instead of true “streaming” open sou...
Bad News #2Missing Many Common       Modules• Has: apc, array, bcmath, bzip2, ctype,  curl,iconv, gd, imap, ipc, json, lda...
Bad News #3Doesn’t Track PHP 5.3                PHP 5.4? No way!•   Some functions signatures aren’t quite    right. e.g. ...
Bad News #4    Seriously #*$%&!#     annoying to build• My crappy CentOS build script  https://github.com/client9/hphp-too...
Bad News #5    Won’t help with   Dynamic Evaluation$fn = “foo”;$fn(1,2,3); // function not foundeval(“foo(1,2,3)”); // no ...
Conclusion• You aren’t going to run your application  under HpHp (at least not as is)• But, it has a great static analyzer...
Using HpHp
Step 1: Make a         constants file• HpHp doesn’t know about hardwired constants• Nifty script generates the constants• M...
Step 2: Make a stubs file• HpHp doesn’t have many binary extensions• But... the analyzer doesn’t care. Just make a  stub fu...
Step 3: Create the file list • Create a list of all php files to be analyzed   and include your constants and stubs file. • I...
correction:       grep -v helper.idl.php | grep -v constants.php >> $JUNK          Nick Galbreath @ngalbreath PHPDay Veron...
Step 4: Do itInclude paths are a bit mysterious.You’ll have to play around to get it right.   Nick Galbreath @ngalbreath P...
Step 5: Analyze it•   /tmp/hphp/Stats.js contains some...    statistics in JSON format.•   /tmp/hphp/CodeError.js is were ...
UseUndeclaredVariable • #1 bug. • Typically typos, scoping or cut-n-paste   errors • Found frequently in error handling ca...
TooManyArgumentTooFewArgumentToo Many Arguments typically indicates thecaller is confused and has logic errors (bug).Too F...
BadDefine    UsesEvaluationdefine($k, $v);eval(“1+1”); • “Bad” since HpHp can’t compile it, but likely   legal PHP. • Avoi...
UseUndeclaredGlobalVariable  • HpHp only defines certain globals.  • Used only by Smarty?   •   $GLOBALS[HTTP_SERVER_VARS] ...
UseVoidReturnSome function returns “nothing” but thevalue is usedfunction foo() {   if (time() % 60 == 0) { return true; }...
RequiredAfterOptionalParam   function foo($first, $second=2, $third) {   • IMHO should be a PHP syntax error   • Confusing...
DeclaredConstantTwice• Probably not invalid PHP, but HpHp  analyzes all files at once.• Best to have one file that defines co...
UnknownFunction UnknownObjectMethod    UnknownClass  UnknownBaseClass• Is your file list complete?• Do you need to make stu...
BadPHPIncludeFile Likely a PHP file trying to include/require itself or invalid file name or your autoloader is ambiguous. N...
PHPIncludeFileNotFound • Really common • Probably unique to your autoloader. • Not sure I quite understand how HpHp   comp...
HpHp at Etsy
Every Commit• Every commit gets checked in real-time• “try-server” also allows developers to test  before committing.• Fin...
Analysis•   CodeError.js is processed through a    custom script.• Has a large blacklist of checks or files we    don’t car...
hphp-try runs in Jenkins                       oops                                 Console Output                        ...
Work in Progress• It took a lot of work to get the code base in  shape so we could add pre-commit hook.• Over 200 real pro...
Can We Do Better?
Checks aren’t that      complicated• HpHp’s runtime type-inference isn’t used for  static analysis (good since type-infere...
Slice off HpHp?• The HpHp Runtime is nice, but really  complicated and a moving target.• Can we slice out the analysis par...
Or Build New?• Can this run off “byte code” or hook into  the parsing step of PHP?• Exec a snippet of PHP for the loading ...
Acknowledgments and References
Thanks• The Facebook Team!• Sebastian Bergman who first blogged about  using HpHp for static analysis• Rasmus who first hack...
Facebook References• https://github.com/facebook/hiphop-php  Main source repo + wiki• http://developers.facebook.com/blog/...
Notes from    Sebastian Bergman• http://sebastian-bergmann.de/archives/894-  Using-HipHop-for-Static-Analysis.html  Static...
Misc References• http://arstechnica.com/business/2011/12/  facebook-looks-to-fix-php-performance-  with-hiphop-virtual-mach...
This Talk• These slides are posted at  http://slidesha.re/KzTfLy• Tools for building on CentOS  https://github.com/client9...
Nick Galbreath nickg@etsy.com @ngalbreath      PHPDay Verona Italy May 19, 2012            http://2012.phpday.it/
