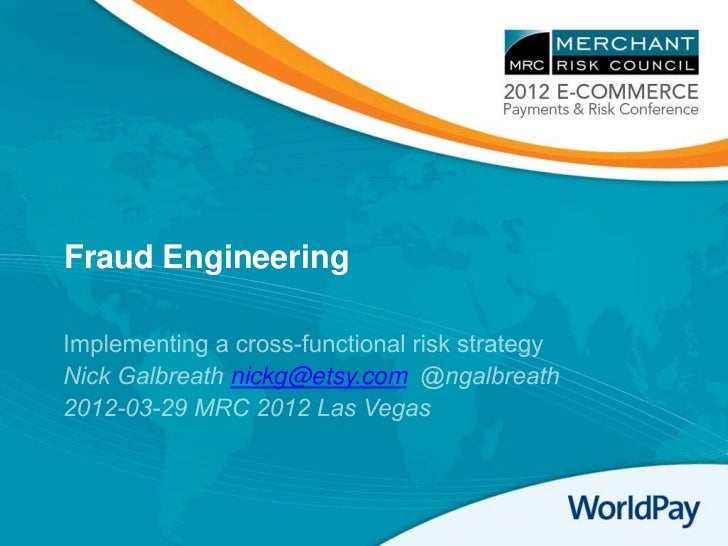

Fraud Engineering         nickg@etsy.com
Introduction and Context
Who is nickg? Web Application background Software Development background Linux/Unix background Most everything was eit...
Who is Etsy? “Online marketplace for creative small businesses” No inventory, marketplace. Instead we have both sides  –...
What and Where is Risk?Many types of risk… but today we‟ll talk about   Fraud   Security   Internal Threats   Business...
Thinking about Risk and Fraud “System working correctly, but with stolen or false  credentials causing financial loss” C...
Thinking about Risk and Application Security “System working incorrectly when given invalid or unexpected  input, causing...
Account Takeover Blurs the Line Account takeover crosses the boundaries from  site security to personal member security....
Fraud EngineeringLet’s Leverage the Organization
Instead of this….
… you want this:
Let’s go!
Technical Operations
Log It Leverage existing centralized logging (if not get it) You can index it – lots of 3rd party solutions Make new se...
Graph It Critical for visibility and promotion or your pain points TechOps is likely using Ganglia and/or Graphite Enha...
Monitor It Now that you are logging and graphing, can you monitor  and alert on outliers? Likely Nagios or another syste...
PSA #1: Start the dialog for 100% SSL SSL isn‟t just for login and checkout Entire categories of risk are eliminated wit...
Quality Assurance        .
Using the QA infrastructure Zooming out, QA / Fraud / Security begin to look the  same A serious bug might be indistingu...
Test Your InvariantsThings that should be always true (or false).Super easy to test  –   “This page should always be SSL” ...
Unit test frameworks are excellent to (re)use          oops
Use the central log to find…Syntax errors from the database!  Certainly a bug, but perhaps SQLi attemptsUncaught DatabaseE...
… or find this? Ungraceful exits Really should never happen Latent bug? Need to upgrade? Or probing attack?
Even if you can’t fix it,establish the base line andlook for deviations from it
Product and BizOps
Product should be helping withThe delicate balance betweeneasy enough so you don‟t loose customersvs. hard enough so attac...
Can you make security a desired feature? Can you offer your best customers better security  solutions so they don‟t have ...
BizOps Have you talked to the email marketing and/or online-ad  targeting groups? The work they do is oddly similar to f...
Engineering
Fraud Engineering There is certainly pure fraud engineering:  – Integration with risk management solutions  – Rule and mo...
Work on preventing false positivesEliminating false positives helps your risk managementsystem work better. Disable form ...
PSA #2: No passwords in plain text!   I beg of you.   Also don‟t store them as plain MD5 or SHA1   Use a “salted hash” ...
Here’s a secret Your engineers are bored. 90% of a computer science degree isn‟t used on a day to  day basis This is wh...
Here’s another This laptop is the equivalent of at least 8 Amazon EC2  “small” instances and has a terabyte of storage. ...
Now that you know the secret, use it Fraud problems are engineer-bait -- it‟s full of fun hard  problems Leverage your e...
Customer Service
Customer Service They know more than you on how the site is working and  performing. All fraud ends up being a customer ...
Case StudyMysterious Data Center Logins – Work In Progress
Case StudyCustomer Service was looking into some “problematiccustomers.” Login history didn‟t really make much sense.Got b...
Case StudyLooking into the IP addresses, and doing whois showedmany were coming from “rent-a-slice” datacenters.Linode, Am...
Case StudyThis lead to a side-project mapping the range of IPaddresses that belong to rent-a-slice centers.
Case StudyNow we graph it
Case StudyProduct is ok with throwing up CAPTCHAs on theseaccounts in certain cases since it‟s unlikely to interfere witht...
Case StudyCustomer Service tool updated so reps can see if IP is adatacenter or not, and have direct access to whois Note:...
Case Study Oddly many users are legit (privacy nuts? escaping great  firewall of china?) Working on CS/Product strategy ...
Case Study: Our List is Yours Over 25,000,000 total IP addresses Over 1700 IP blocks Over 350 providers https://github....
Nick Galbreath nickg@etsy.com @ngalbreath                                2012-02-22
