  • 1. Introduction to SPU Optimizations Part 1: Assembly Instructions P˚l-Kristian Engstad a pal engstad@naughtydog.com March 5, 2010P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

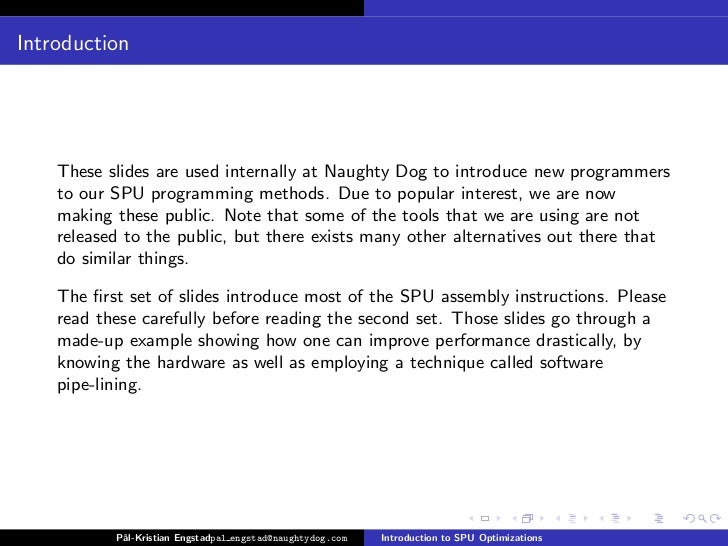

  • 2. Introduction These slides are used internally at Naughty Dog to introduce new programmers to our SPU programming methods. Due to popular interest, we are now making these public. Note that some of the tools that we are using are not released to the public, but there exists many other alternatives out there that do similar things. The first set of slides introduce most of the SPU assembly instructions. Please read these carefully before reading the second set. Those slides go through a made-up example showing how one can improve performance drastically, by knowing the hardware as well as employing a technique called software pipe-lining. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

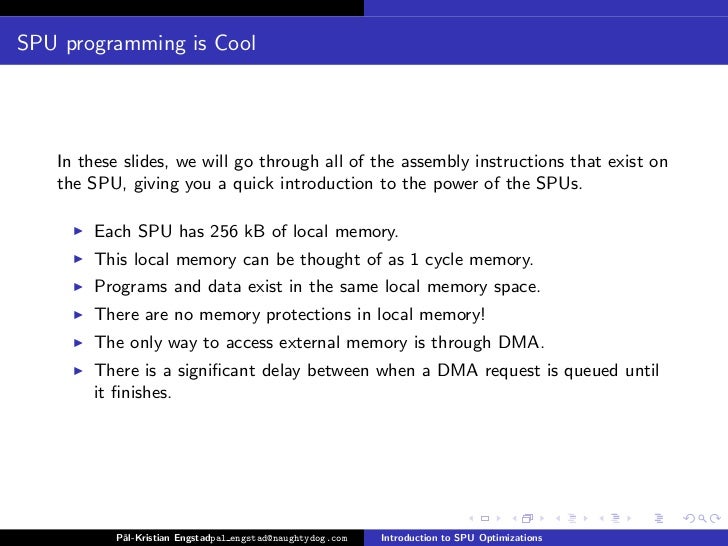

  • 3. SPU programming is Cool In these slides, we will go through all of the assembly instructions that exist on the SPU, giving you a quick introduction to the power of the SPUs. Each SPU has 256 kB of local memory. This local memory can be thought of as 1 cycle memory. Programs and data exist in the same local memory space. There are no memory protections in local memory! The only way to access external memory is through DMA. There is a significant delay between when a DMA request is queued until it finishes. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

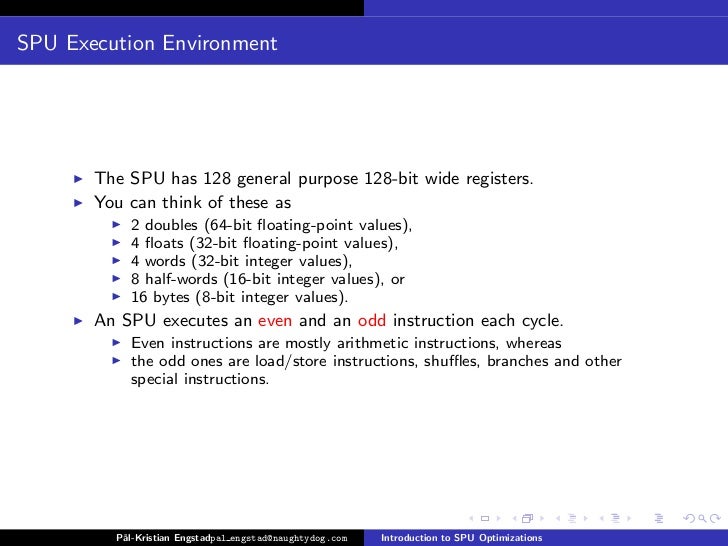

  • 4. SPU Execution Environment The SPU has 128 general purpose 128-bit wide registers. You can think of these as 2 doubles (64-bit floating-point values), 4 floats (32-bit floating-point values), 4 words (32-bit integer values), 8 half-words (16-bit integer values), or 16 bytes (8-bit integer values). An SPU executes an even and an odd instruction each cycle. Even instructions are mostly arithmetic instructions, whereas the odd ones are load/store instructions, shuffles, branches and other special instructions. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

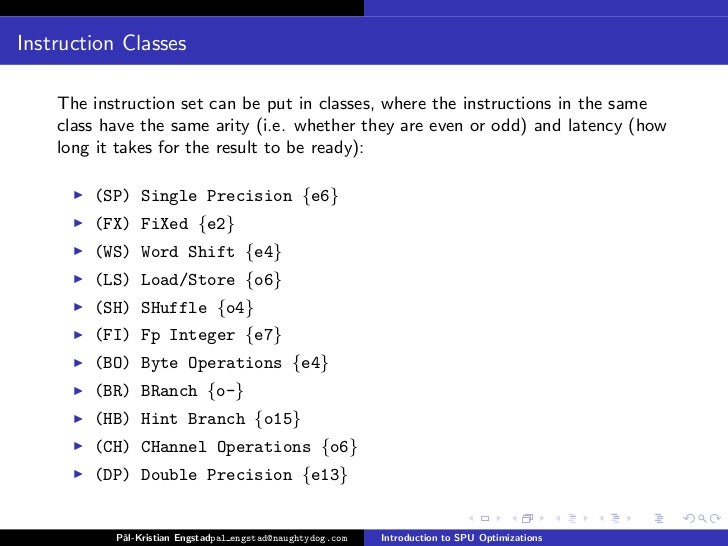

  • 5. Instruction Classes The instruction set can be put in classes, where the instructions in the same class have the same arity (i.e. whether they are even or odd) and latency (how long it takes for the result to be ready): (SP) Single Precision {e6} (FX) FiXed {e2} (WS) Word Shift {e4} (LS) Load/Store {o6} (SH) SHuffle {o4} (FI) Fp Integer {e7} (BO) Byte Operations {e4} (BR) BRanch {o-} (HB) Hint Branch {o15} (CH) CHannel Operations {o6} (DP) Double Precision {e13} P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

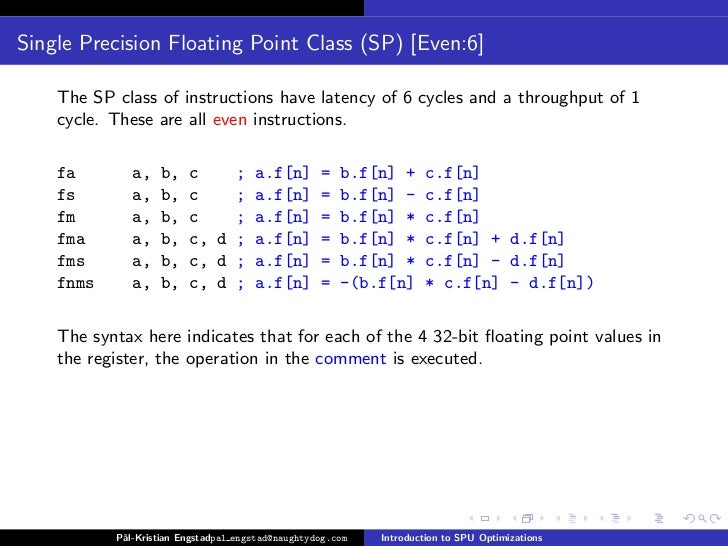

  • 6. Single Precision Floating Point Class (SP) [Even:6] The SP class of instructions have latency of 6 cycles and a throughput of 1 cycle. These are all even instructions. fa a, b, c ; a.f[n] = b.f[n] + c.f[n] fs a, b, c ; a.f[n] = b.f[n] - c.f[n] fm a, b, c ; a.f[n] = b.f[n] * c.f[n] fma a, b, c, d ; a.f[n] = b.f[n] * c.f[n] + d.f[n] fms a, b, c, d ; a.f[n] = b.f[n] * c.f[n] - d.f[n] fnms a, b, c, d ; a.f[n] = -(b.f[n] * c.f[n] - d.f[n]) The syntax here indicates that for each of the 4 32-bit floating point values in the register, the operation in the comment is executed. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 7. Single Precision Floating Point Class (SP) No broadcast versions. No dot-products or cross-products. No “fnma” instruction. Example: If the registers r1 and r2 contains r1 = ( 1.0, 2.0, 3.0, 4.0 ), r2 = ( 0.0, -2.0, 1.0, 4.0 ), then after fa r0, r1, r2 ; r0 = r1 + r2 then r0 contains r0 = ( 1.0, 0.0, 4.0, 8.0 ). P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

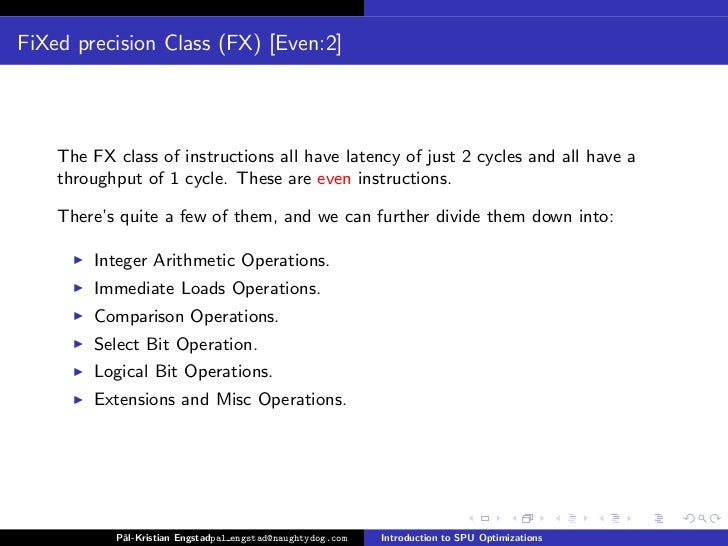

  • 8. FiXed precision Class (FX) [Even:2] The FX class of instructions all have latency of just 2 cycles and all have a throughput of 1 cycle. These are even instructions. There’s quite a few of them, and we can further divide them down into: Integer Arithmetic Operations. Immediate Loads Operations. Comparison Operations. Select Bit Operation. Logical Bit Operations. Extensions and Misc Operations. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

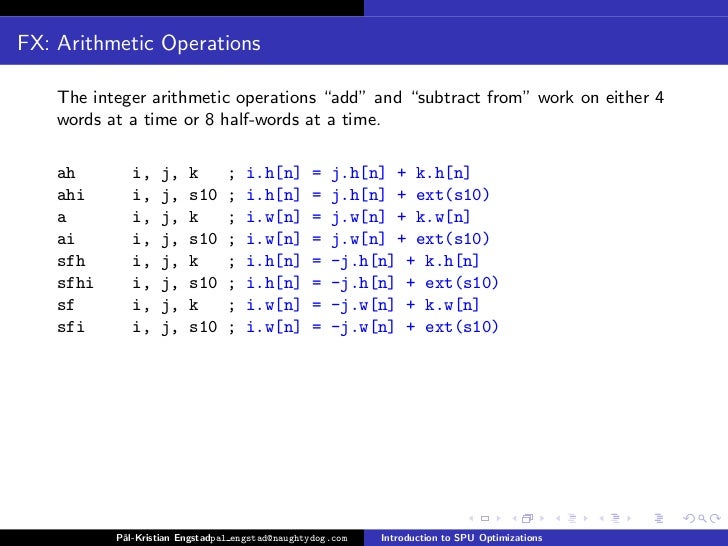

  • 9. FX: Arithmetic Operations The integer arithmetic operations “add” and “subtract from” work on either 4 words at a time or 8 half-words at a time. ah i, j, k ; i.h[n] = j.h[n] + k.h[n] ahi i, j, s10 ; i.h[n] = j.h[n] + ext(s10) a i, j, k ; i.w[n] = j.w[n] + k.w[n] ai i, j, s10 ; i.w[n] = j.w[n] + ext(s10) sfh i, j, k ; i.h[n] = -j.h[n] + k.h[n] sfhi i, j, s10 ; i.h[n] = -j.h[n] + ext(s10) sf i, j, k ; i.w[n] = -j.w[n] + k.w[n] sfi i, j, s10 ; i.w[n] = -j.w[n] + ext(s10) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

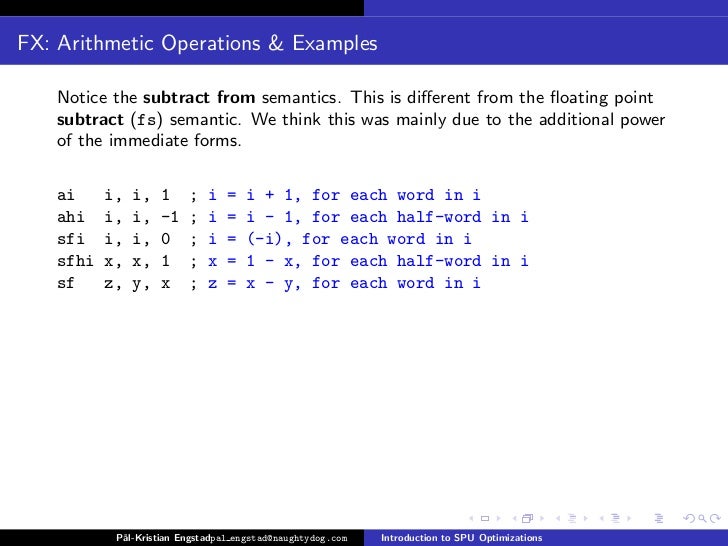

  • 10. FX: Arithmetic Operations & Examples Notice the subtract from semantics. This is different from the floating point subtract (fs) semantic. We think this was mainly due to the additional power of the immediate forms. ai i, i, 1 ; i = i + 1, for each word in i ahi i, i, -1 ; i = i - 1, for each half-word in i sfi i, i, 0 ; i = (-i), for each word in i sfhi x, x, 1 ; x = 1 - x, for each half-word in i sf z, y, x ; z = x - y, for each word in i P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

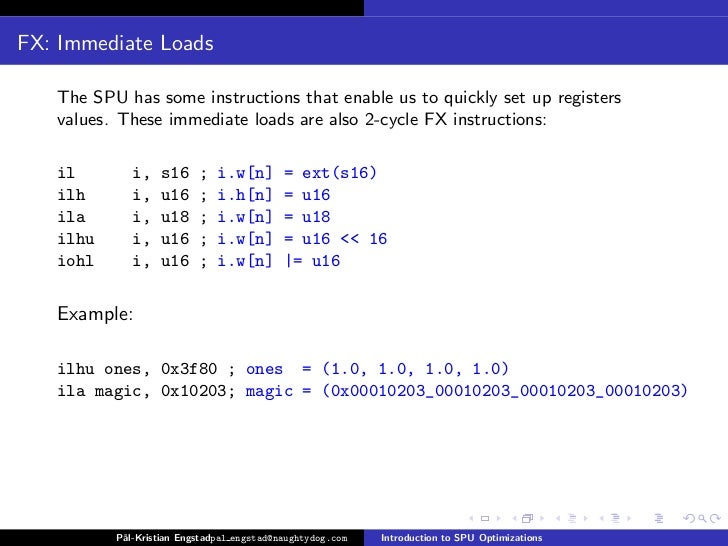

  • 11. FX: Immediate Loads The SPU has some instructions that enable us to quickly set up registers values. These immediate loads are also 2-cycle FX instructions: il i, s16 ; i.w[n] = ext(s16) ilh i, u16 ; i.h[n] = u16 ila i, u18 ; i.w[n] = u18 ilhu i, u16 ; i.w[n] = u16 << 16 iohl i, u16 ; i.w[n] |= u16 Example: ilhu ones, 0x3f80 ; ones = (1.0, 1.0, 1.0, 1.0) ila magic, 0x10203; magic = (0x00010203_00010203_00010203_00010203) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

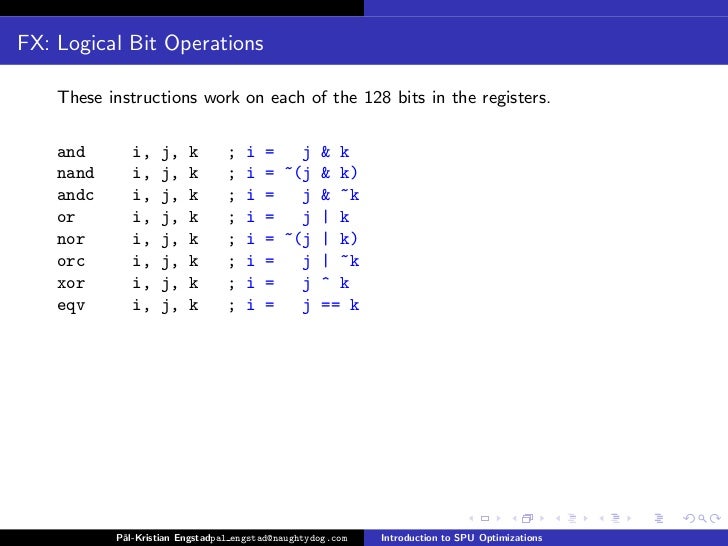

  • 12. FX: Logical Bit Operations These instructions work on each of the 128 bits in the registers. and i, j, k ; i = j & k nand i, j, k ; i = ~(j & k) andc i, j, k ; i = j & ~k or i, j, k ; i = j | k nor i, j, k ; i = ~(j | k) orc i, j, k ; i = j | ~k xor i, j, k ; i = j ^ k eqv i, j, k ; i = j == k P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 13. FX: Logical Operations w/immediates andbi i, j, u8 ; i.b[n] = j.b[n] & u8 andhi i, j, s10 ; i.h[n] = j.h[n] & ext(s10) andi i, j, s10 ; i.w[n] = j.w[n] & ext(s10) orbi i, j, u8 ; i.b[n] = j.b[n] | u8 orhi i, j, s10 ; i.h[n] = j.h[n] | ext(s10) ori i, j, s10 ; i.w[n] = j.w[n] | ext(s10) xorbi i, j, u8 ; i.b[n] = j.b[n] ^ u8 xorhi i, j, s10 ; i.h[n] = j.h[n] ^ ext(s10) xori i, j, s10 ; i.w[n] = j.w[n] ^ ext(s10) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

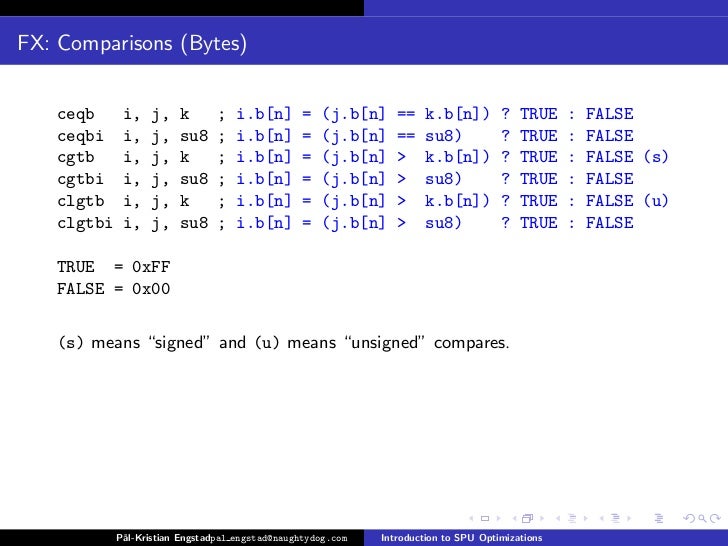

  • 14. FX: Comparisons (Bytes) ceqb i, j, k ; i.b[n] = (j.b[n] == k.b[n]) ? TRUE : FALSE ceqbi i, j, su8 ; i.b[n] = (j.b[n] == su8) ? TRUE : FALSE cgtb i, j, k ; i.b[n] = (j.b[n] > k.b[n]) ? TRUE : FALSE (s) cgtbi i, j, su8 ; i.b[n] = (j.b[n] > su8) ? TRUE : FALSE clgtb i, j, k ; i.b[n] = (j.b[n] > k.b[n]) ? TRUE : FALSE (u) clgtbi i, j, su8 ; i.b[n] = (j.b[n] > su8) ? TRUE : FALSE TRUE = 0xFF FALSE = 0x00 (s) means “signed” and (u) means “unsigned” compares. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

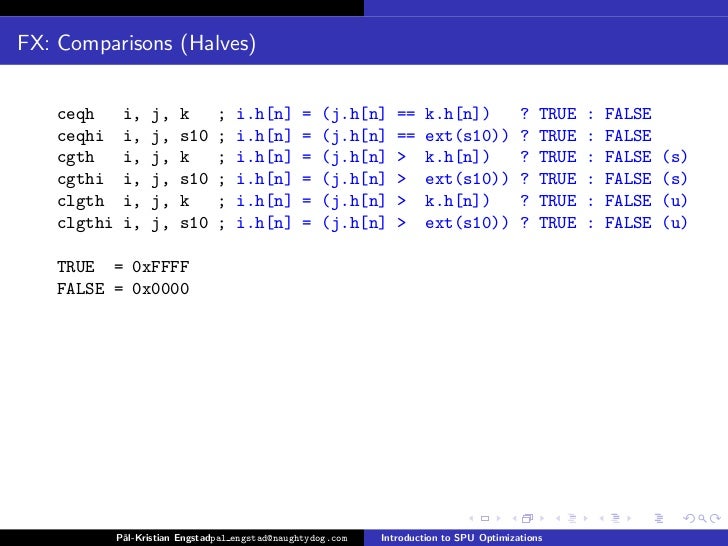

  • 15. FX: Comparisons (Halves) ceqh i, j, k ; i.h[n] = (j.h[n] == k.h[n]) ? TRUE : FALSE ceqhi i, j, s10 ; i.h[n] = (j.h[n] == ext(s10)) ? TRUE : FALSE cgth i, j, k ; i.h[n] = (j.h[n] > k.h[n]) ? TRUE : FALSE (s) cgthi i, j, s10 ; i.h[n] = (j.h[n] > ext(s10)) ? TRUE : FALSE (s) clgth i, j, k ; i.h[n] = (j.h[n] > k.h[n]) ? TRUE : FALSE (u) clgthi i, j, s10 ; i.h[n] = (j.h[n] > ext(s10)) ? TRUE : FALSE (u) TRUE = 0xFFFF FALSE = 0x0000 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

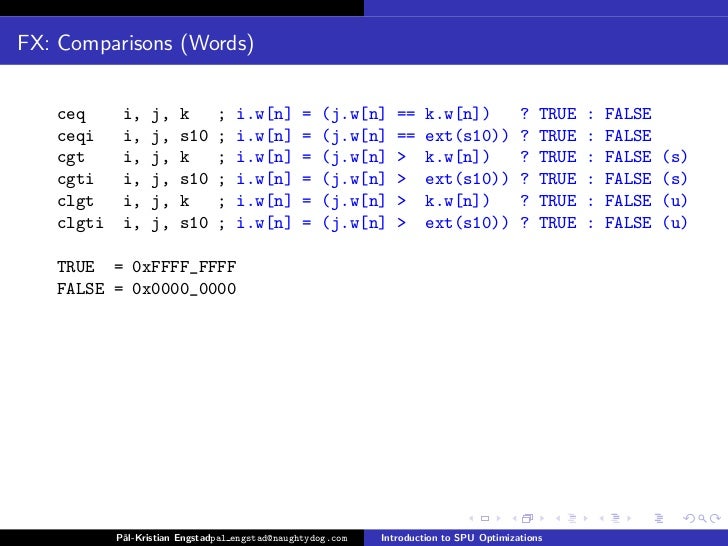

  • 16. FX: Comparisons (Words) ceq i, j, k ; i.w[n] = (j.w[n] == k.w[n]) ? TRUE : FALSE ceqi i, j, s10 ; i.w[n] = (j.w[n] == ext(s10)) ? TRUE : FALSE cgt i, j, k ; i.w[n] = (j.w[n] > k.w[n]) ? TRUE : FALSE (s) cgti i, j, s10 ; i.w[n] = (j.w[n] > ext(s10)) ? TRUE : FALSE (s) clgt i, j, k ; i.w[n] = (j.w[n] > k.w[n]) ? TRUE : FALSE (u) clgti i, j, s10 ; i.w[n] = (j.w[n] > ext(s10)) ? TRUE : FALSE (u) TRUE = 0xFFFF_FFFF FALSE = 0x0000_0000 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

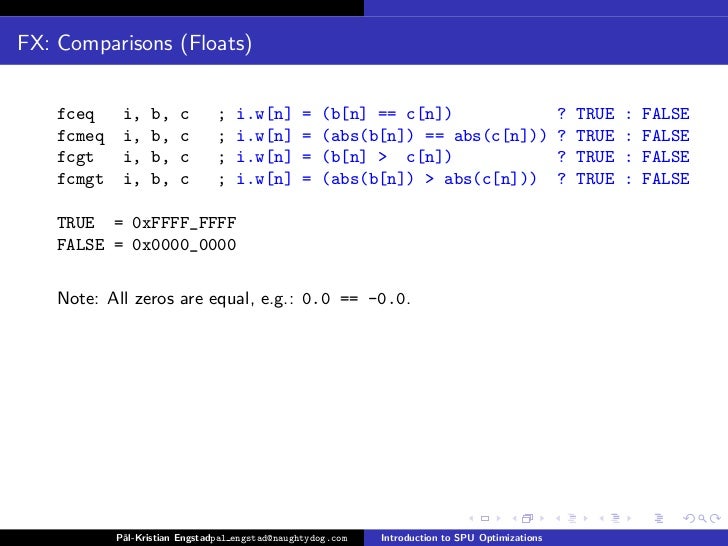

  • 17. FX: Comparisons (Floats) fceq i, b, c ; i.w[n] = (b[n] == c[n]) ? TRUE : FALSE fcmeq i, b, c ; i.w[n] = (abs(b[n]) == abs(c[n])) ? TRUE : FALSE fcgt i, b, c ; i.w[n] = (b[n] > c[n]) ? TRUE : FALSE fcmgt i, b, c ; i.w[n] = (abs(b[n]) > abs(c[n])) ? TRUE : FALSE TRUE = 0xFFFF_FFFF FALSE = 0x0000_0000 Note: All zeros are equal, e.g.: 0.0 == -0.0. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 18. FX: Select Bits This very important operation selects bits from j and k depending on the bits in the l registers. These fit well with the comparison functions given previously. selb i, j, k, l ; i = (l==0) ? j : k Notice that if the bit is 0, then it selects j and if not then it selects the bit in k. Example: SIMD min/max fcgt mask, a, b ; mask is all 1’s if a > b selb max, b, a, mask ; select a if a > b selb min, a, b, mask ; select b if !(a > b) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

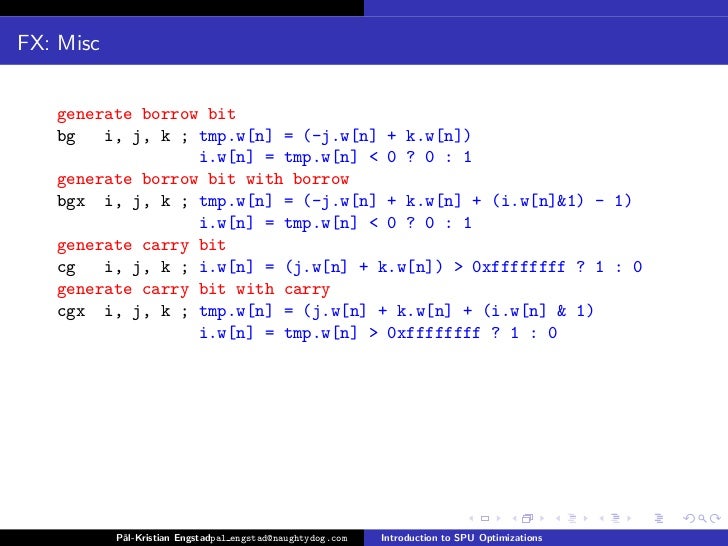

  • 19. FX: Misc generate borrow bit bg i, j, k ; tmp.w[n] = (-j.w[n] + k.w[n]) i.w[n] = tmp.w[n] < 0 ? 0 : 1 generate borrow bit with borrow bgx i, j, k ; tmp.w[n] = (-j.w[n] + k.w[n] + (i.w[n]&1) - 1) i.w[n] = tmp.w[n] < 0 ? 0 : 1 generate carry bit cg i, j, k ; i.w[n] = (j.w[n] + k.w[n]) > 0xffffffff ? 1 : 0 generate carry bit with carry cgx i, j, k ; tmp.w[n] = (j.w[n] + k.w[n] + (i.w[n] & 1) i.w[n] = tmp.w[n] > 0xffffffff ? 1 : 0 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

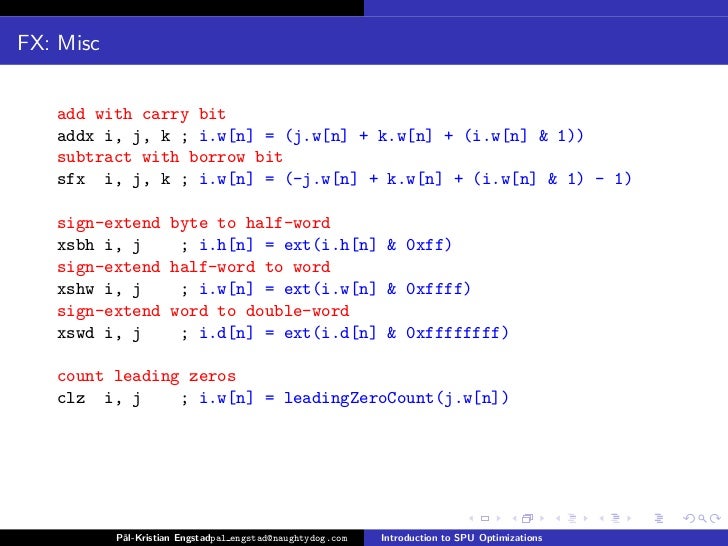

  • 20. FX: Misc add with carry bit addx i, j, k ; i.w[n] = (j.w[n] + k.w[n] + (i.w[n] & 1)) subtract with borrow bit sfx i, j, k ; i.w[n] = (-j.w[n] + k.w[n] + (i.w[n] & 1) - 1) sign-extend byte to half-word xsbh i, j ; i.h[n] = ext(i.h[n] & 0xff) sign-extend half-word to word xshw i, j ; i.w[n] = ext(i.w[n] & 0xffff) sign-extend word to double-word xswd i, j ; i.d[n] = ext(i.d[n] & 0xffffffff) count leading zeros clz i, j ; i.w[n] = leadingZeroCount(j.w[n]) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

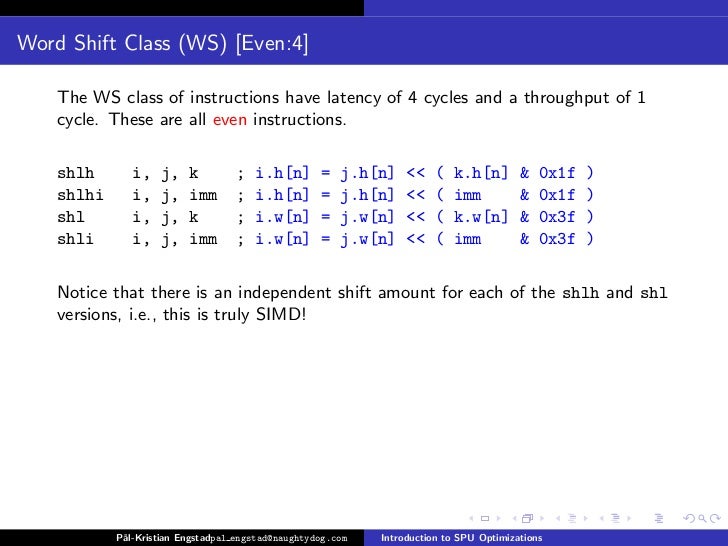

  • 21. Word Shift Class (WS) [Even:4] The WS class of instructions have latency of 4 cycles and a throughput of 1 cycle. These are all even instructions. shlh i, j, k ; i.h[n] = j.h[n] << ( k.h[n] & 0x1f ) shlhi i, j, imm ; i.h[n] = j.h[n] << ( imm & 0x1f ) shl i, j, k ; i.w[n] = j.w[n] << ( k.w[n] & 0x3f ) shli i, j, imm ; i.w[n] = j.w[n] << ( imm & 0x3f ) Notice that there is an independent shift amount for each of the shlh and shl versions, i.e., this is truly SIMD! P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 22. Example ; Assume r0 = ( 1, 2, 4, 8 ) ; r1 = ( 1, 2, 3, 4 ) shl r2, r0, r1 ; Now r2 = ( 1<<1, 2<<2, 4<<3, 8<<4 ) = ( 2, 4, 32, 128 ) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

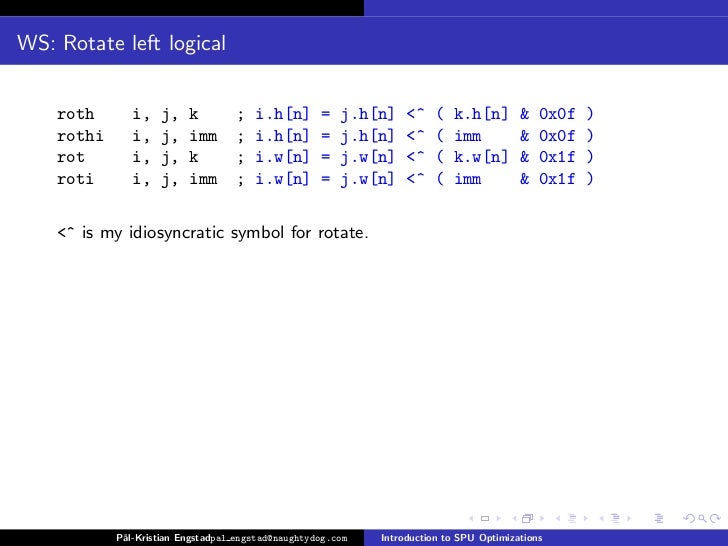

  • 23. WS: Rotate left logical roth i, j, k ; i.h[n] = j.h[n] <^ ( k.h[n] & 0x0f ) rothi i, j, imm ; i.h[n] = j.h[n] <^ ( imm & 0x0f ) rot i, j, k ; i.w[n] = j.w[n] <^ ( k.w[n] & 0x1f ) roti i, j, imm ; i.w[n] = j.w[n] <^ ( imm & 0x1f ) <^ is my idiosyncratic symbol for rotate. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 24. WS: Shift right logical rothm i, j, k ; i.h[n] = j.h[n] >> ( -k.h[n] & 0x1f ) rothmi i, j, imm ; i.h[n] = j.h[n] >> ( -imm & 0x1f ) rotm i, j, k ; i.w[n] = j.w[n] >> ( -k.w[n] & 0x3f ) rotmi i, j, imm ; i.w[n] = j.w[n] >> ( -imm & 0x3f ) Notice here that the shift amounts need to be negative in order to produce a proper shift. This is because this is actually a rotate left and then mask operation. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

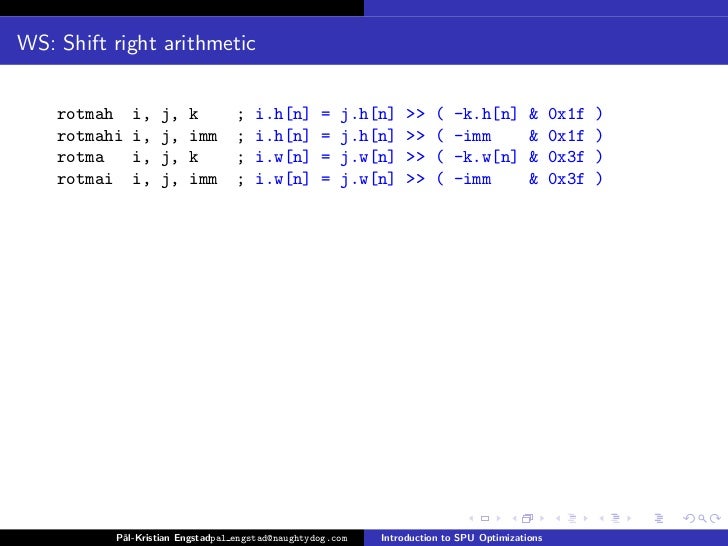

  • 25. WS: Shift right arithmetic rotmah i, j, k ; i.h[n] = j.h[n] >> ( -k.h[n] & 0x1f ) rotmahi i, j, imm ; i.h[n] = j.h[n] >> ( -imm & 0x1f ) rotma i, j, k ; i.w[n] = j.w[n] >> ( -k.w[n] & 0x3f ) rotmai i, j, imm ; i.w[n] = j.w[n] >> ( -imm & 0x3f ) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 26. Load/Store Class (LS) [Odd:6] The load/store operations are odd instructions that work on the 256 kB local memory. They have a latency of 6 cycles, but the hardware has short-cuts in place so that you can read a written value immediately after the store. Do note: Memory wraps around, so you can never access memory outside the local store (LS). You can only load and store a whole quadword, so if you need to modify a part, you need to load the quadword value, merge in the modified part into the value and store the whole quadword back. Addresses are in units of bytes, unlike the VU’s on the PS2. The load/store operations will use the value in the preferred word of the address register, i.e.: the first word. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 27. LS: Loads lqa i, label18 ; addr = label18 ; range = 256kb (or +/- 128kb) lqd i, qoff(j) ; addr = qoff * 16 + j.w[0] ; qoff is 10 bit signed, addr range = +/-8kb. lqr i, label14 ; addr = ext(label14) + pc ; label14 range = +/- 8kb. lqx i, j, k ; addr = j.w[0] + k.w[0] P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

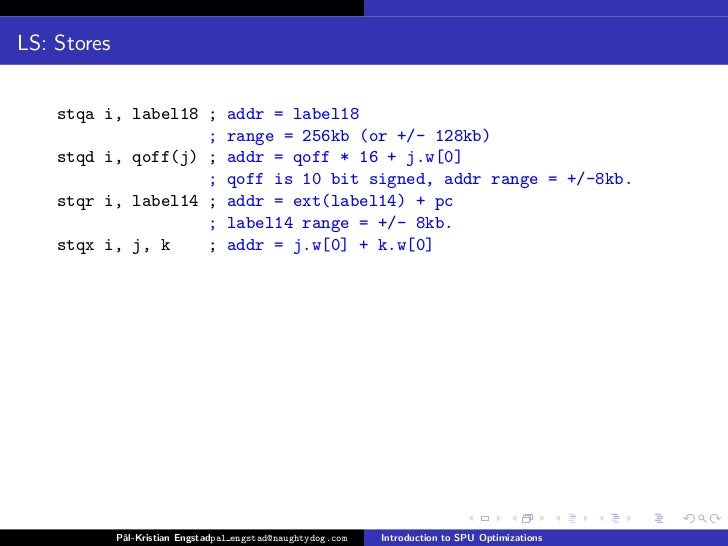

  • 28. LS: Stores stqa i, label18 ; addr = label18 ; range = 256kb (or +/- 128kb) stqd i, qoff(j) ; addr = qoff * 16 + j.w[0] ; qoff is 10 bit signed, addr range = +/-8kb. stqr i, label14 ; addr = ext(label14) + pc ; label14 range = +/- 8kb. stqx i, j, k ; addr = j.w[0] + k.w[0] P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

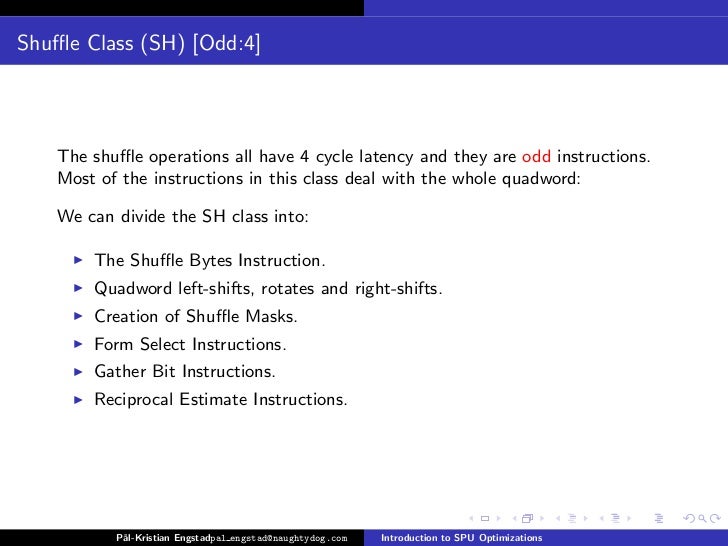

  • 29. Shuffle Class (SH) [Odd:4] The shuffle operations all have 4 cycle latency and they are odd instructions. Most of the instructions in this class deal with the whole quadword: We can divide the SH class into: The Shuffle Bytes Instruction. Quadword left-shifts, rotates and right-shifts. Creation of Shuffle Masks. Form Select Instructions. Gather Bit Instructions. Reciprocal Estimate Instructions. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

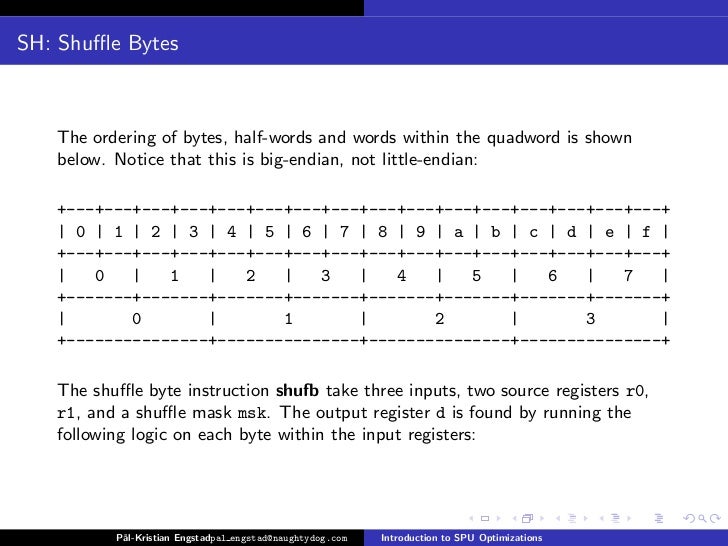

  • 30. SH: Shuffle Bytes The ordering of bytes, half-words and words within the quadword is shown below. Notice that this is big-endian, not little-endian: +---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+ | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | a | b | c | d | e | f | +---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+---+ | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | +-------+-------+-------+-------+-------+-------+-------+-------+ | 0 | 1 | 2 | 3 | +---------------+---------------+---------------+---------------+ The shuffle byte instruction shufb take three inputs, two source registers r0, r1, and a shuffle mask msk. The output register d is found by running the following logic on each byte within the input registers: P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 31. SH: Shuffle Bytes Let x = msk.b[n], where n goes from 0 to 15: if x in 0 .. 0x7f: If (x & 0x10) == 0x00, then d.b[n] = r0.b[x & 0x0f]. If (x & 0x10) == 0x10, then d.b[n] = r1.b[x & 0x0f]. if x in 0x80 .. 0xbf: d.b[n] = 0x00 if x in 0xc0 .. 0xdf: d.b[n] = 0xff if x in 0xe0 .. 0xff: d.b[n] = 0x80 This is very powerful stuff! P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

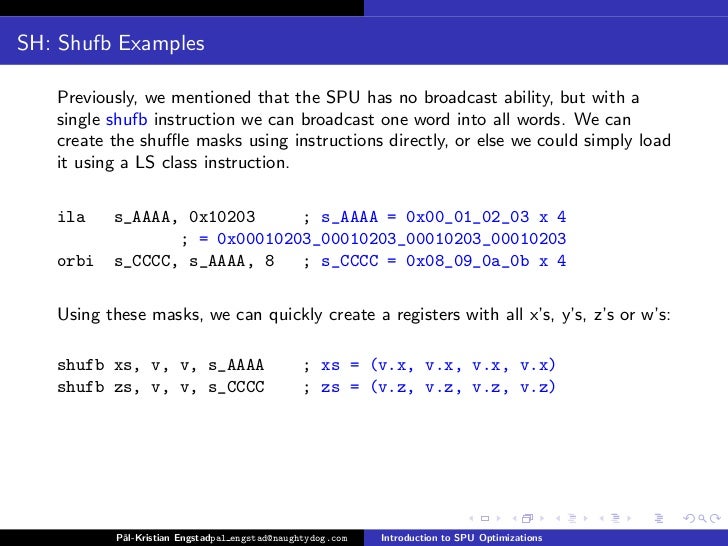

  • 32. SH: Shufb Examples Previously, we mentioned that the SPU has no broadcast ability, but with a single shufb instruction we can broadcast one word into all words. We can create the shuffle masks using instructions directly, or else we could simply load it using a LS class instruction. ila s_AAAA, 0x10203 ; s_AAAA = 0x00_01_02_03 x 4 ; = 0x00010203_00010203_00010203_00010203 orbi s_CCCC, s_AAAA, 8 ; s_CCCC = 0x08_09_0a_0b x 4 Using these masks, we can quickly create a registers with all x’s, y’s, z’s or w’s: shufb xs, v, v, s_AAAA ; xs = (v.x, v.x, v.x, v.x) shufb zs, v, v, s_CCCC ; zs = (v.z, v.z, v.z, v.z) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

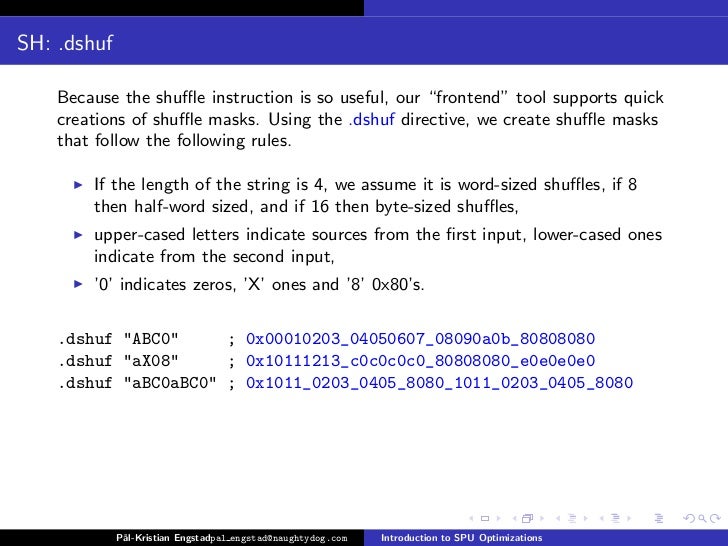

  • 33. SH: .dshuf Because the shuffle instruction is so useful, our “frontend” tool supports quick creations of shuffle masks. Using the .dshuf directive, we create shuffle masks that follow the following rules. If the length of the string is 4, we assume it is word-sized shuffles, if 8 then half-word sized, and if 16 then byte-sized shuffles, upper-cased letters indicate sources from the first input, lower-cased ones indicate from the second input, ’0’ indicates zeros, ’X’ ones and ’8’ 0x80’s. .dshuf "ABC0" ; 0x00010203_04050607_08090a0b_80808080 .dshuf "aX08" ; 0x10111213_c0c0c0c0_80808080_e0e0e0e0 .dshuf "aBC0aBC0" ; 0x1011_0203_0405_8080_1011_0203_0405_8080 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 34. SH: Another Shufb Example We can create finite state-machines, piping input into one end of the quad-word, while spitting out the result into another (like e.g. the preferred word). Here’s an example of such a “delay machine”: ; in the data section: m_bcdA: .dshufb "bcdA" ; in the init section: lqa s_bcdA, 0(m_bcdA) ; in the loop: shufb state, input, state, s_bcdA ; state.x = state.y ; state.y = state.z ; state.z = state.w ; state.w = input.x P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

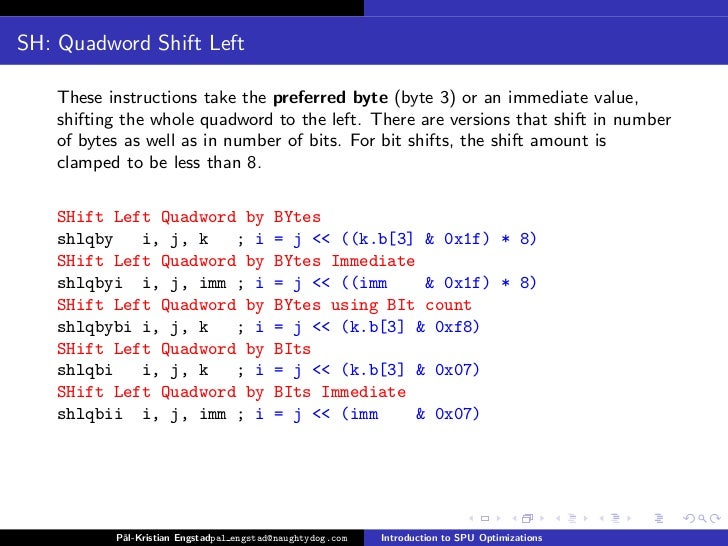

  • 35. SH: Quadword Shift Left These instructions take the preferred byte (byte 3) or an immediate value, shifting the whole quadword to the left. There are versions that shift in number of bytes as well as in number of bits. For bit shifts, the shift amount is clamped to be less than 8. SHift Left Quadword by BYtes shlqby i, j, k ; i = j << ((k.b[3] & 0x1f) * 8) SHift Left Quadword by BYtes Immediate shlqbyi i, j, imm ; i = j << ((imm & 0x1f) * 8) SHift Left Quadword by BYtes using BIt count shlqbybi i, j, k ; i = j << (k.b[3] & 0xf8) SHift Left Quadword by BIts shlqbi i, j, k ; i = j << (k.b[3] & 0x07) SHift Left Quadword by BIts Immediate shlqbii i, j, imm ; i = j << (imm & 0x07) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

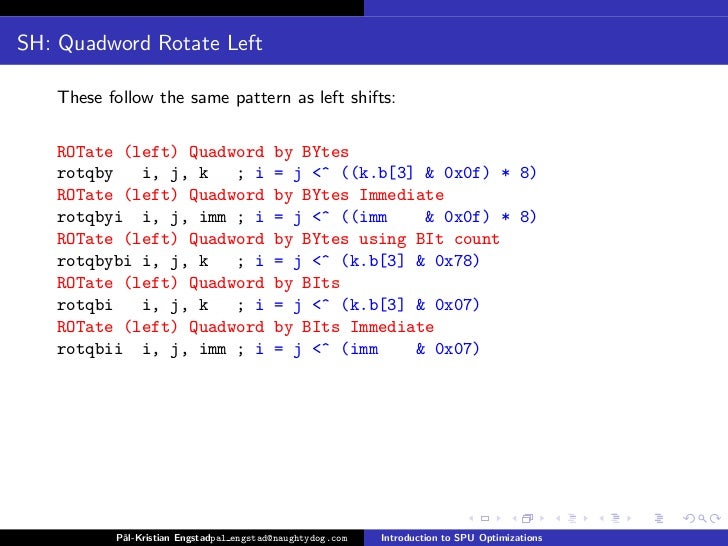

  • 36. SH: Quadword Rotate Left These follow the same pattern as left shifts: ROTate (left) Quadword by BYtes rotqby i, j, k ; i = j <^ ((k.b[3] & 0x0f) * 8) ROTate (left) Quadword by BYtes Immediate rotqbyi i, j, imm ; i = j <^ ((imm & 0x0f) * 8) ROTate (left) Quadword by BYtes using BIt count rotqbybi i, j, k ; i = j <^ (k.b[3] & 0x78) ROTate (left) Quadword by BIts rotqbi i, j, k ; i = j <^ (k.b[3] & 0x07) ROTate (left) Quadword by BIts Immediate rotqbii i, j, imm ; i = j <^ (imm & 0x07) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

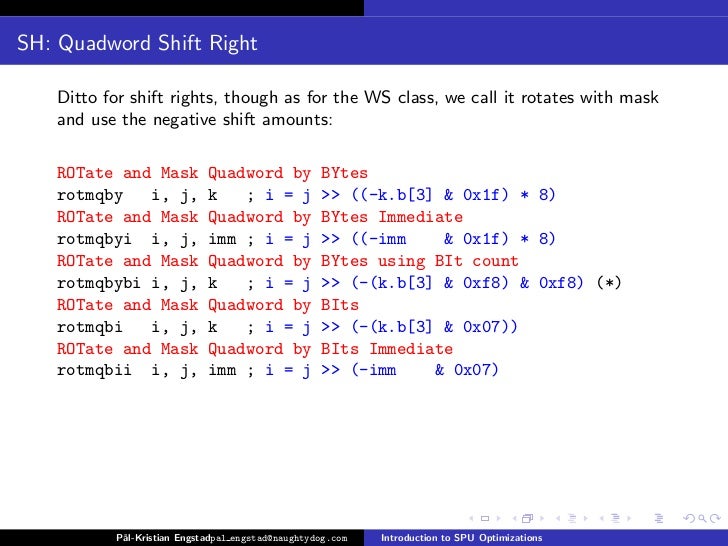

  • 37. SH: Quadword Shift Right Ditto for shift rights, though as for the WS class, we call it rotates with mask and use the negative shift amounts: ROTate and Mask Quadword by BYtes rotmqby i, j, k ; i = j >> ((-k.b[3] & 0x1f) * 8) ROTate and Mask Quadword by BYtes Immediate rotmqbyi i, j, imm ; i = j >> ((-imm & 0x1f) * 8) ROTate and Mask Quadword by BYtes using BIt count rotmqbybi i, j, k ; i = j >> (-(k.b[3] & 0xf8) & 0xf8) (*) ROTate and Mask Quadword by BIts rotmqbi i, j, k ; i = j >> (-(k.b[3] & 0x07)) ROTate and Mask Quadword by BIts Immediate rotmqbii i, j, imm ; i = j >> (-imm & 0x07) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

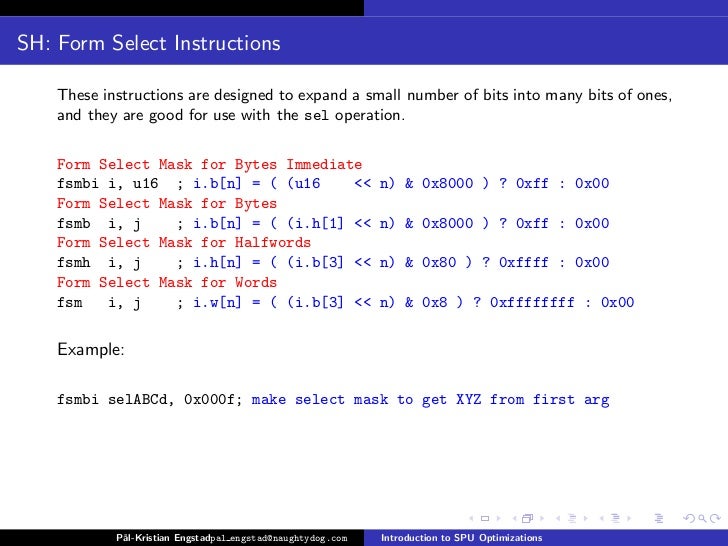

  • 38. SH: Form Select Instructions These instructions are designed to expand a small number of bits into many bits of ones, and they are good for use with the sel operation. Form Select Mask for Bytes Immediate fsmbi i, u16 ; i.b[n] = ( (u16 << n) & 0x8000 ) ? 0xff : 0x00 Form Select Mask for Bytes fsmb i, j ; i.b[n] = ( (i.h[1] << n) & 0x8000 ) ? 0xff : 0x00 Form Select Mask for Halfwords fsmh i, j ; i.h[n] = ( (i.b[3] << n) & 0x80 ) ? 0xffff : 0x00 Form Select Mask for Words fsm i, j ; i.w[n] = ( (i.b[3] << n) & 0x8 ) ? 0xffffffff : 0x00 Example: fsmbi selABCd, 0x000f; make select mask to get XYZ from first arg P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

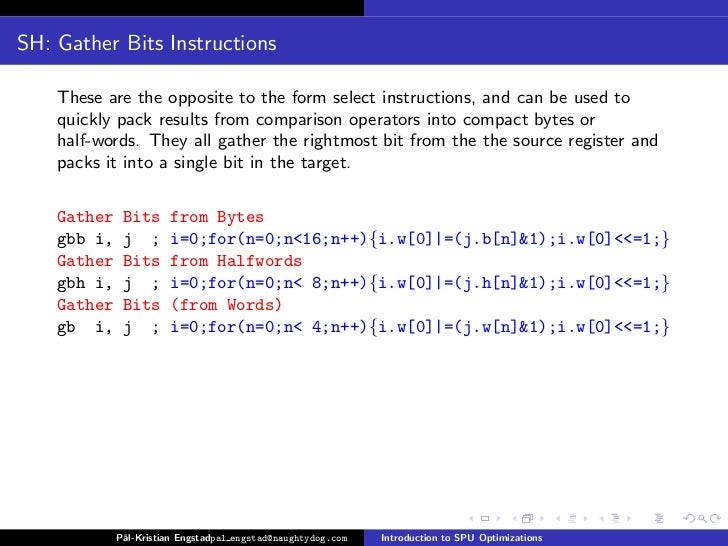

  • 39. SH: Gather Bits Instructions These are the opposite to the form select instructions, and can be used to quickly pack results from comparison operators into compact bytes or half-words. They all gather the rightmost bit from the the source register and packs it into a single bit in the target. Gather Bits from Bytes gbb i, j ; i=0;for(n=0;n<16;n++){i.w[0]|=(j.b[n]&1);i.w[0]<<=1;} Gather Bits from Halfwords gbh i, j ; i=0;for(n=0;n< 8;n++){i.w[0]|=(j.h[n]&1);i.w[0]<<=1;} Gather Bits (from Words) gb i, j ; i=0;for(n=0;n< 4;n++){i.w[0]|=(j.w[n]&1);i.w[0]<<=1;} P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

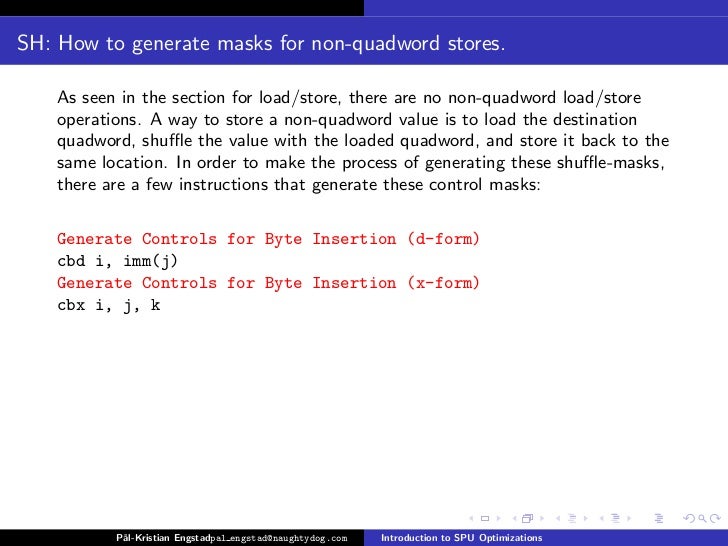

  • 40. SH: How to generate masks for non-quadword stores. As seen in the section for load/store, there are no non-quadword load/store operations. A way to store a non-quadword value is to load the destination quadword, shuffle the value with the loaded quadword, and store it back to the same location. In order to make the process of generating these shuffle-masks, there are a few instructions that generate these control masks: Generate Controls for Byte Insertion (d-form) cbd i, imm(j) Generate Controls for Byte Insertion (x-form) cbx i, j, k P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

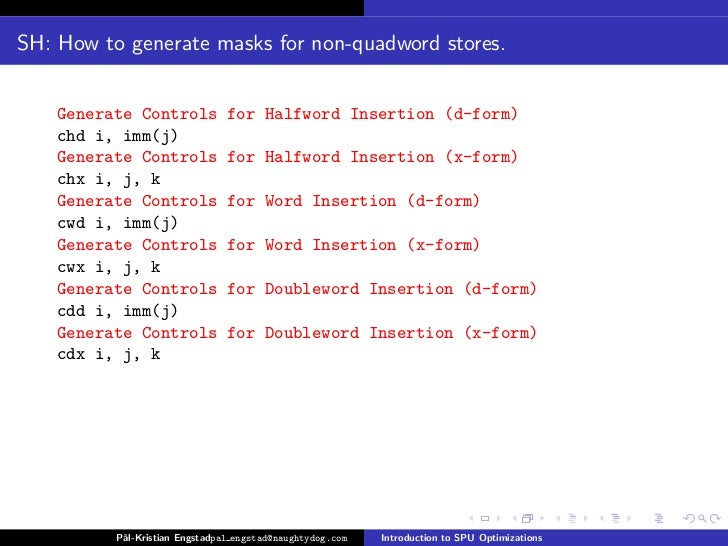

  • 41. SH: How to generate masks for non-quadword stores. Generate Controls for Halfword Insertion (d-form) chd i, imm(j) Generate Controls for Halfword Insertion (x-form) chx i, j, k Generate Controls for Word Insertion (d-form) cwd i, imm(j) Generate Controls for Word Insertion (x-form) cwx i, j, k Generate Controls for Doubleword Insertion (d-form) cdd i, imm(j) Generate Controls for Doubleword Insertion (x-form) cdx i, j, k P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

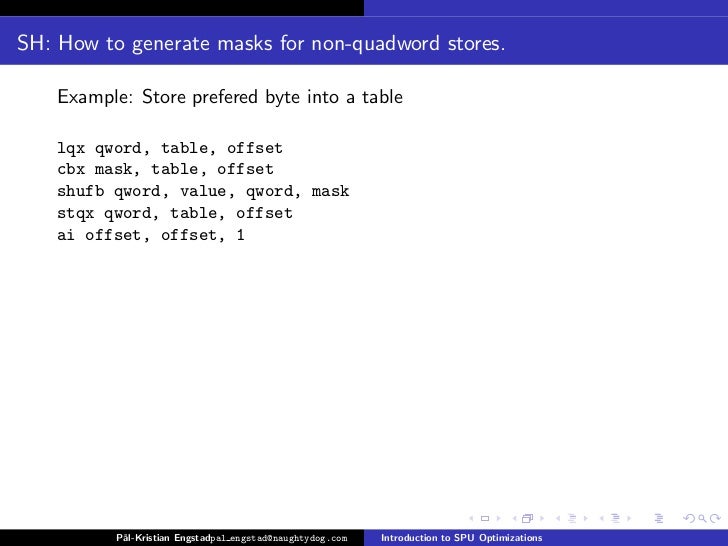

  • 42. SH: How to generate masks for non-quadword stores. Example: Store prefered byte into a table lqx qword, table, offset cbx mask, table, offset shufb qword, value, qword, mask stqx qword, table, offset ai offset, offset, 1 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

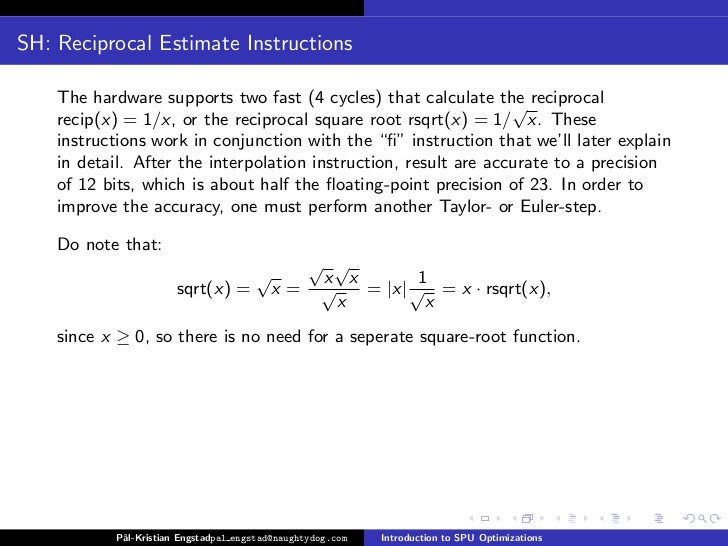

  • 43. SH: Reciprocal Estimate Instructions The hardware supports two fast (4 cycles) that calculate the reciprocal √ recip(x) = 1/x, or the reciprocal square root rsqrt(x) = 1/ x. These instructions work in conjunction with the “fi” instruction that we’ll later explain in detail. After the interpolation instruction, result are accurate to a precision of 12 bits, which is about half the floating-point precision of 23. In order to improve the accuracy, one must perform another Taylor- or Euler-step. Do note that: √ √ √ x x 1 sqrt(x) = x= √ = |x| √ = x · rsqrt(x), x x since x ≥ 0, so there is no need for a seperate square-root function. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

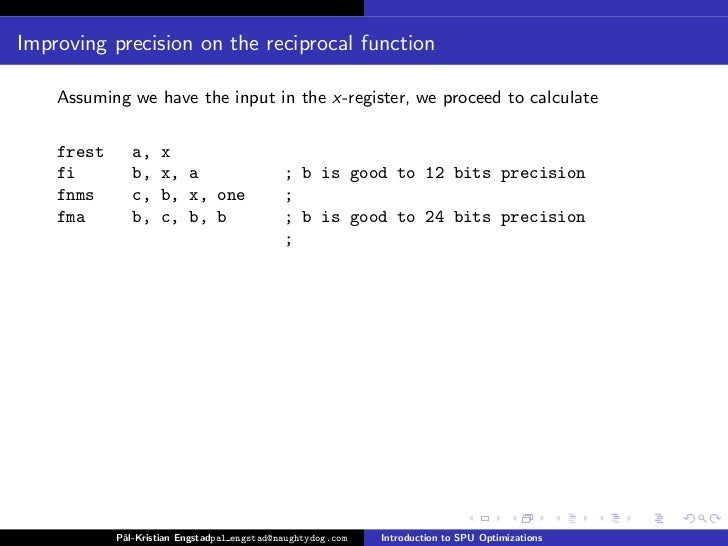

  • 44. Improving precision on the reciprocal function Assuming we have the input in the x-register, we proceed to calculate frest a, x fi b, x, a ; b is good to 12 bits precision fnms c, b, x, one ; fma b, c, b, b ; b is good to 24 bits precision ; P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 45. Improving precision on the reciprocal square-root function frsqest a, x fi b, x, a ; b is good to 12 bits precision fm c, b, x ; (b and a can share register) fm d, b, onehalf ; (c and x can share register) fnms c, c, b, one fma b, d, c, b ; b is good to 24 bits precision P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 46. SH: Or Across - The Final Instruction The last instruction in the SH class is a new addition. Or Across orx i, j ; i.w[0] = ( j.w[0] | j.w[1] | j.w[2] | j.w[3] ); i.w[1] = i.w[2] = i.w[3] = 0 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 47. Floating point / Integer Class (FI) [Even:7] The FI class of instructions have latency of 7 cycles and a throughput of 1 cycle. These are all even instructions. There are basically three types of instructions: integer multiplies, interpolations for reciprocal calculations, and finally, fp/integer conversions. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

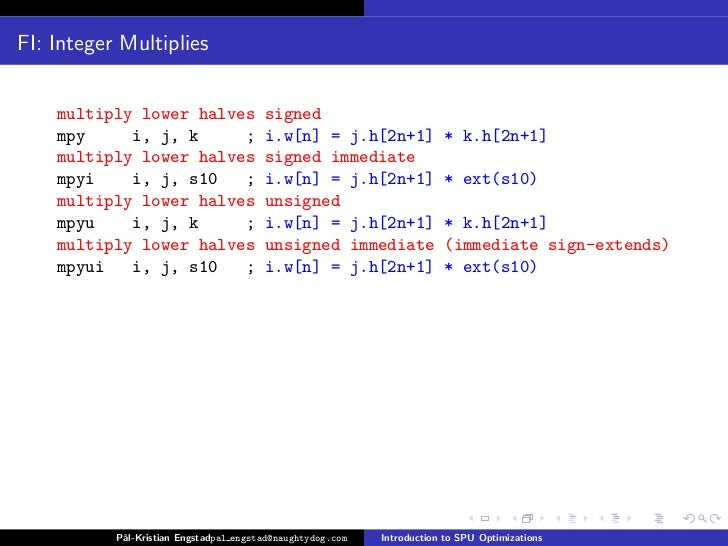

  • 48. FI: Integer Multiplies multiply lower halves signed mpy i, j, k ; i.w[n] = j.h[2n+1] * k.h[2n+1] multiply lower halves signed immediate mpyi i, j, s10 ; i.w[n] = j.h[2n+1] * ext(s10) multiply lower halves unsigned mpyu i, j, k ; i.w[n] = j.h[2n+1] * k.h[2n+1] multiply lower halves unsigned immediate (immediate sign-extends) mpyui i, j, s10 ; i.w[n] = j.h[2n+1] * ext(s10) P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

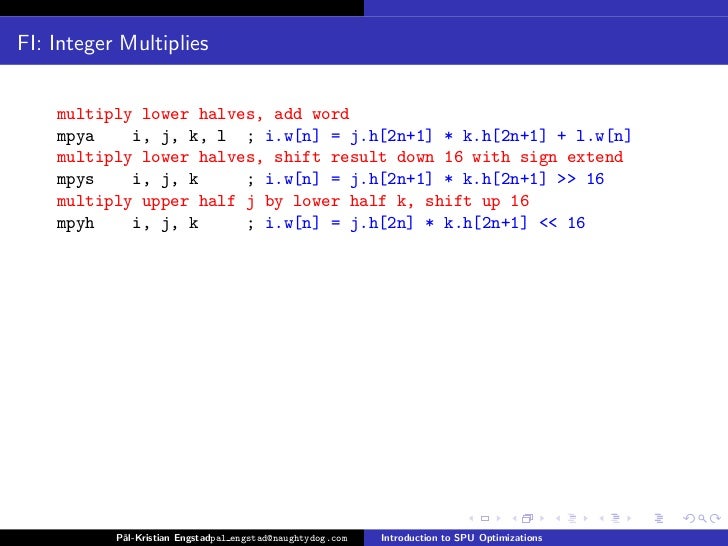

  • 49. FI: Integer Multiplies multiply lower halves, add word mpya i, j, k, l ; i.w[n] = j.h[2n+1] * k.h[2n+1] + l.w[n] multiply lower halves, shift result down 16 with sign extend mpys i, j, k ; i.w[n] = j.h[2n+1] * k.h[2n+1] >> 16 multiply upper half j by lower half k, shift up 16 mpyh i, j, k ; i.w[n] = j.h[2n] * k.h[2n+1] << 16 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

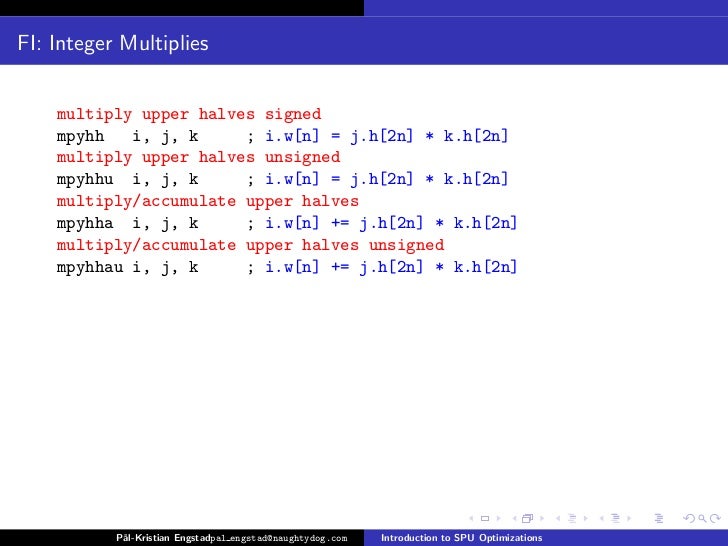

  • 50. FI: Integer Multiplies multiply upper halves signed mpyhh i, j, k ; i.w[n] = j.h[2n] * k.h[2n] multiply upper halves unsigned mpyhhu i, j, k ; i.w[n] = j.h[2n] * k.h[2n] multiply/accumulate upper halves mpyhha i, j, k ; i.w[n] += j.h[2n] * k.h[2n] multiply/accumulate upper halves unsigned mpyhhau i, j, k ; i.w[n] += j.h[2n] * k.h[2n] P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

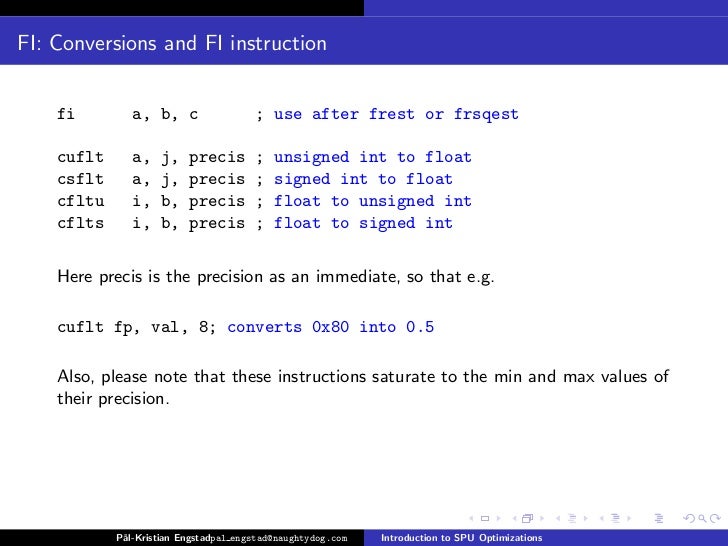

  • 51. FI: Conversions and FI instruction fi a, b, c ; use after frest or frsqest cuflt a, j, precis ; unsigned int to float csflt a, j, precis ; signed int to float cfltu i, b, precis ; float to unsigned int cflts i, b, precis ; float to signed int Here precis is the precision as an immediate, so that e.g. cuflt fp, val, 8; converts 0x80 into 0.5 Also, please note that these instructions saturate to the min and max values of their precision. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

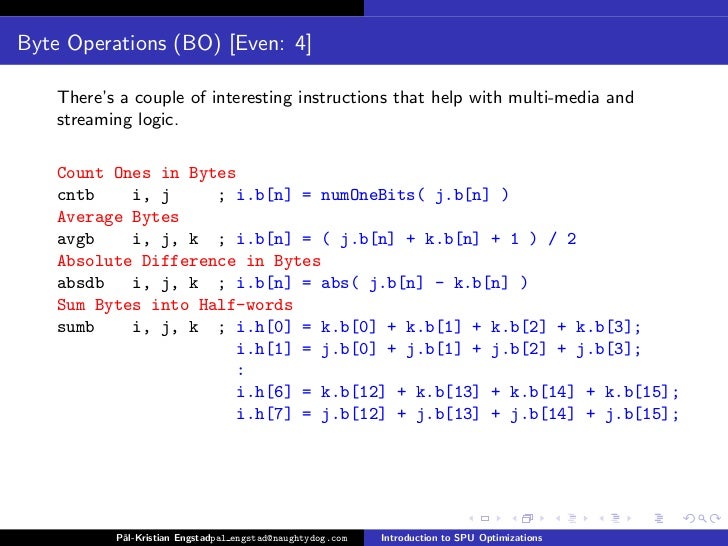

  • 52. Byte Operations (BO) [Even: 4] There’s a couple of interesting instructions that help with multi-media and streaming logic. Count Ones in Bytes cntb i, j ; i.b[n] = numOneBits( j.b[n] ) Average Bytes avgb i, j, k ; i.b[n] = ( j.b[n] + k.b[n] + 1 ) / 2 Absolute Difference in Bytes absdb i, j, k ; i.b[n] = abs( j.b[n] - k.b[n] ) Sum Bytes into Half-words sumb i, j, k ; i.h[0] = k.b[0] + k.b[1] + k.b[2] + k.b[3]; i.h[1] = j.b[0] + j.b[1] + j.b[2] + j.b[3]; : i.h[6] = k.b[12] + k.b[13] + k.b[14] + k.b[15]; i.h[7] = j.b[12] + j.b[13] + j.b[14] + j.b[15]; P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

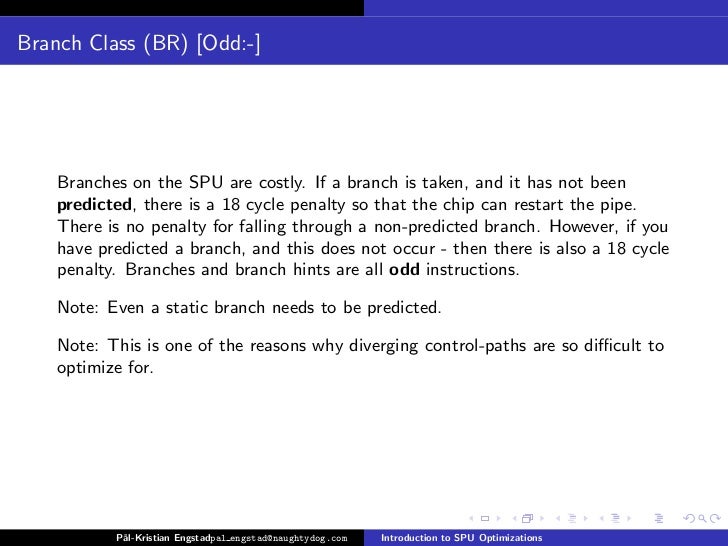

  • 53. Branch Class (BR) [Odd:-] Branches on the SPU are costly. If a branch is taken, and it has not been predicted, there is a 18 cycle penalty so that the chip can restart the pipe. There is no penalty for falling through a non-predicted branch. However, if you have predicted a branch, and this does not occur - then there is also a 18 cycle penalty. Branches and branch hints are all odd instructions. Note: Even a static branch needs to be predicted. Note: This is one of the reasons why diverging control-paths are so difficult to optimize for. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

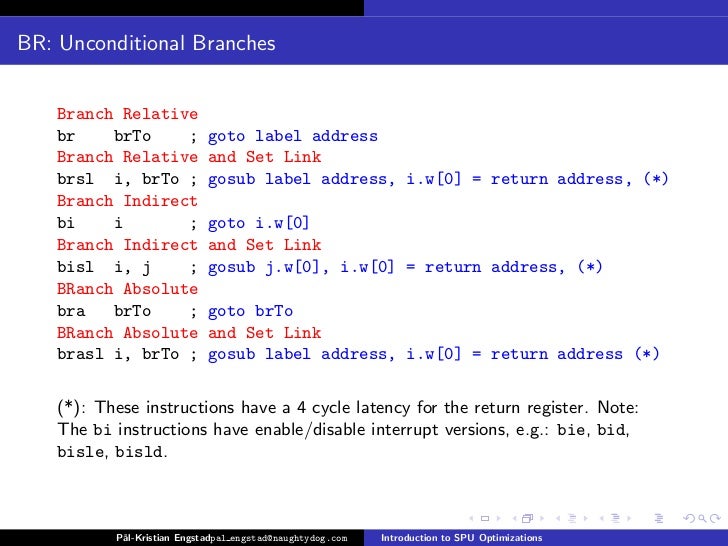

  • 54. BR: Unconditional Branches Branch Relative br brTo ; goto label address Branch Relative and Set Link brsl i, brTo ; gosub label address, i.w[0] = return address, (*) Branch Indirect bi i ; goto i.w[0] Branch Indirect and Set Link bisl i, j ; gosub j.w[0], i.w[0] = return address, (*) BRanch Absolute bra brTo ; goto brTo BRanch Absolute and Set Link brasl i, brTo ; gosub label address, i.w[0] = return address (*) (*): These instructions have a 4 cycle latency for the return register. Note: The bi instructions have enable/disable interrupt versions, e.g.: bie, bid, bisle, bisld. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

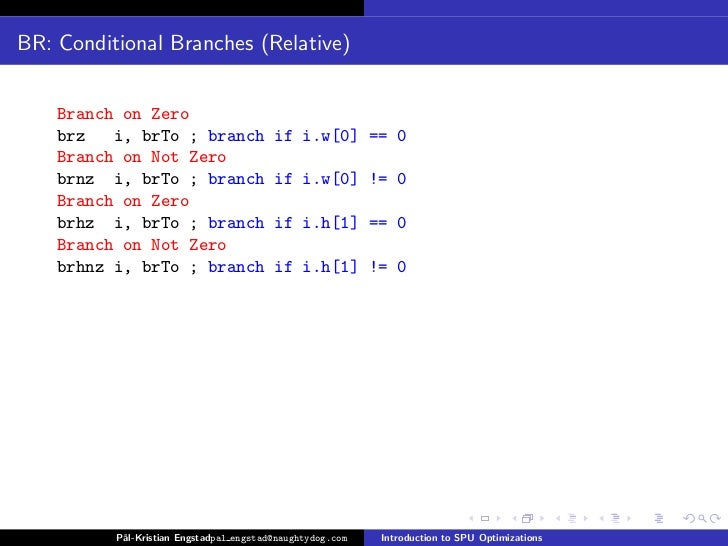

  • 55. BR: Conditional Branches (Relative) Branch on Zero brz i, brTo ; branch if i.w[0] == 0 Branch on Not Zero brnz i, brTo ; branch if i.w[0] != 0 Branch on Zero brhz i, brTo ; branch if i.h[1] == 0 Branch on Not Zero brhnz i, brTo ; branch if i.h[1] != 0 P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

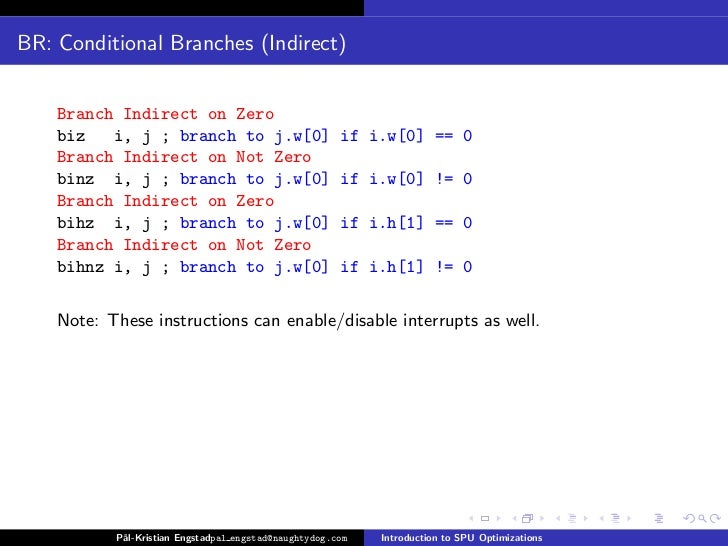

  • 56. BR: Conditional Branches (Indirect) Branch Indirect on Zero biz i, j ; branch to j.w[0] if i.w[0] == 0 Branch Indirect on Not Zero binz i, j ; branch to j.w[0] if i.w[0] != 0 Branch Indirect on Zero bihz i, j ; branch to j.w[0] if i.h[1] == 0 Branch Indirect on Not Zero bihnz i, j ; branch to j.w[0] if i.h[1] != 0 Note: These instructions can enable/disable interrupts as well. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

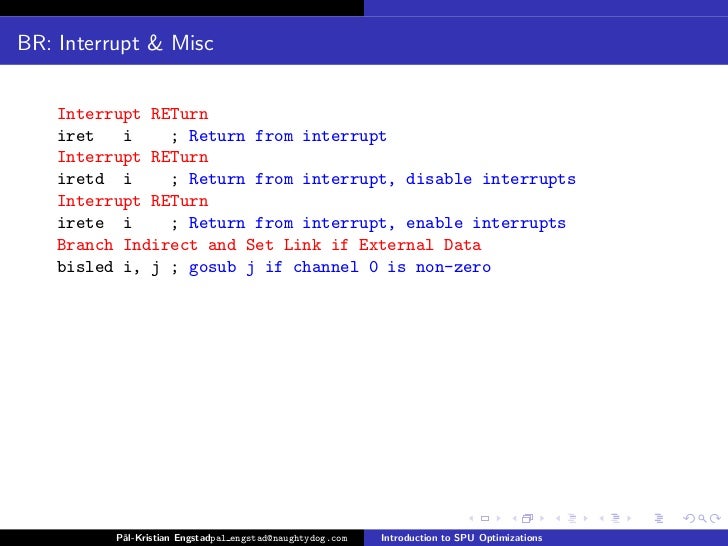

  • 57. BR: Interrupt & Misc Interrupt RETurn iret i ; Return from interrupt Interrupt RETurn iretd i ; Return from interrupt, disable interrupts Interrupt RETurn irete i ; Return from interrupt, enable interrupts Branch Indirect and Set Link if External Data bisled i, j ; gosub j if channel 0 is non-zero P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 58. Hints Branch Class (HB) [Odd:15] If you know the most likely (or only) outcome for a branch, you can make sure the branch is penalty free as long as the hint occurs at least 15 cycles before the branch is taken. If the hint occurs later, there still may be a benefit, since the penalty is lowered. However, if the hint arrives less than 4 cycles before the branch, there is no benefit. Please note that it also turns out that there is a hardware bug w.r.t. the hbr instructions. One cannot hint a branch where the branch targets forwards and is also within the same 64-byte block as the branch. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

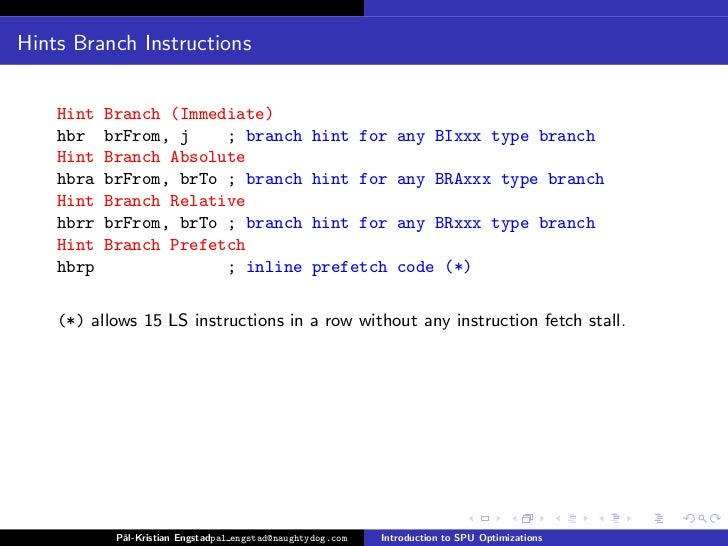

  • 59. Hints Branch Instructions Hint Branch (Immediate) hbr brFrom, j ; branch hint for any BIxxx type branch Hint Branch Absolute hbra brFrom, brTo ; branch hint for any BRAxxx type branch Hint Branch Relative hbrr brFrom, brTo ; branch hint for any BRxxx type branch Hint Branch Prefetch hbrp ; inline prefetch code (*) (*) allows 15 LS instructions in a row without any instruction fetch stall. P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 60. CH: DMA Channel Ops We will explain these in further talks, but for completeness we’ve included these here. They are all odd instructions with a latency of 6. Note, that the latency may actually be much higher if channels are not ready. Read from Channel rdch i, chn ; read i from channel chn Write to Channel wrch chn, i ; write i into channel chn Read Channel Count rdchcnt i, chn; read channel count for channel chn into i P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

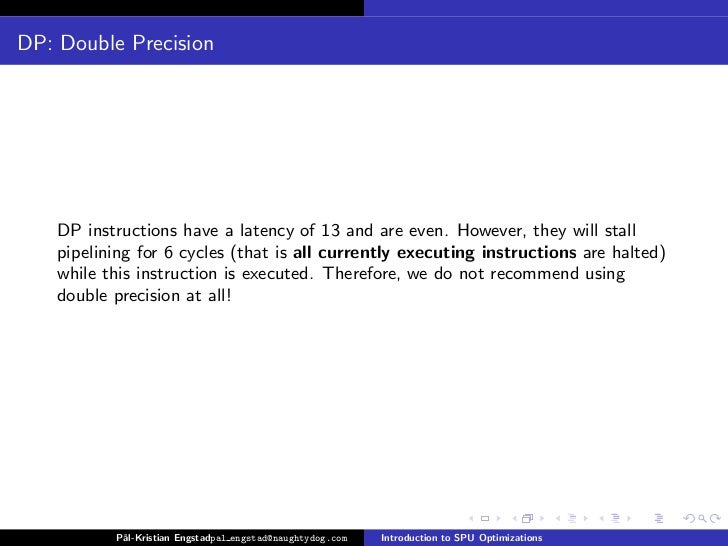

  • 61. DP: Double Precision DP instructions have a latency of 13 and are even. However, they will stall pipelining for 6 cycles (that is all currently executing instructions are halted) while this instruction is executed. Therefore, we do not recommend using double precision at all! P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations
  • 62. Questions? That’s all folks! P˚ al-Kristian Engstadpal engstad@naughtydog.com Introduction to SPU Optimizations

×
