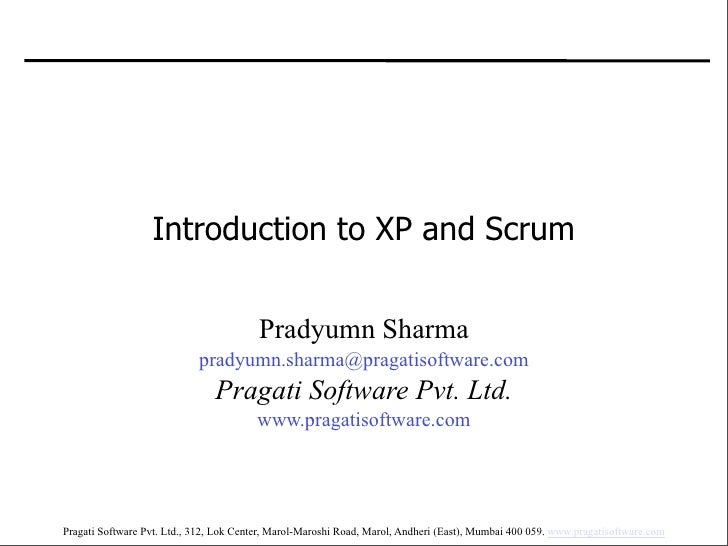

Introduction to XP and Scrum


                                         Pradyumn Sharma
                            pradyu...
Agile Software Development Methodologies

 • Useful compromise between no process and too much
   process.
 • Suitable for...
Introduction to Extreme Programming (XP)

 • Pioneered by Kent Beck, along with Ward Cunningham and
   Ron Jeffries.
 • A ...
Five Core Values of XP

 •     Communication
 •     Simplicity
 •     Feedback
 •     Courage
 •     Respect




     Prag...
Overview of XP: Practices

 Primary practices (13)                                                Secondary practices (11)...
Stories

 • Story = customer-visible functionality provided by a system.
 • Build a list of stories based on discussions w...
Pair Programming

 • Two programmers working together for some programming
   task.
 • Benefits:
          Knowledge shar...
Planning: Release Cycles and Weekly Iterations

 • Small releases: providing quick value to customers and
   feedback to d...
Slack

 • Important to establish and maintain the credibility of the
   release plans.
 • It is better to undercommit and ...
Test-First Programming

 • Write tests for all code before you code.
 • Automate the tests. Open-source testing tools, suc...
Incremental Design

 • Avoid “complete design before implementation”.
 • According to a Standish Group report:
       7% ...
Ten-Minute Build

 • Automate the build and run cycle, to be completed within ten
   minutes.




  Pragati Software Pvt. ...
Continuous Integration

 • Integrate and test code every few hours.
 • Dedicate one machine for integration.
 • If any tes...
Shared Code

 • Nobody owns any code and everybody owns all the code.
 • Anybody can change any line of code anywhere, to ...
Real Customer Involvement

 • Customer writes user stories, acceptance tests, and answers
   queries of developers.
 • Neg...
Energized Work

 • Projects requiring overtime to finish in time will finish late,
   no matter what.
 • Overtime is a sym...
Quarterly Cycle

 • At the macro level, plan work a quarter at a time.
       Identify bottlenecks
       Identify and i...
Root-Cause Analysis

 • Whenever a defect is found after development, eliminate the
   defect and its cause. Follow the st...
Single Code Base

 • Maintain a single code stream.
 • Having multiple versions of code results in maintenance
   nightmar...
Code and Tests

 • Maintain only code and tests as permanent artifacts.
 • Generate documents from the code and tests.



...
Other Practices

 • Sit Together:
       Develop in an open space big enough for the whole team.
 • Whole Team:
       C...
Other Practices (contd…)

 • Incremental Deployment:
       When taking over a legacy system, gradually take over its wor...
Other Practices (contd…)

 • Negotiated Scope Contract
       Write contracts for software development that fix time, cos...
Introduction to Scrum

 • Another prominent agile methodology.
 • Co-developed by Jeff Sutherland and Ken Schwaber in the
...
Overview of Scrum
The core of Scrum is an interative, incremental process skeleton.
At the start of each iteration, the te...
Overview of Scrum

 •     Three roles:
          Product Owner
          Team
          ScrumMaster
 •     Three artifa...
Scrum Process




  Pragati Software Pvt. Ltd., 312, Lok Center, Marol-Maroshi Road, Marol, Andheri (East), Mumbai 400 059...
Product Owner

 • Represents the interests of all the stakeholders
 • Achieves initial and ongoing funding for the project...
Team

 • Responsible for developing functionality.
 • Teams are self-managing, self-organizing, cross-functional.
 • Respo...
ScrumMaster

 • Responsible for
       the Scrum process
       teaching Scrum to everyone involved in the project
     ...
Scrum Flow

 • Project Vision
 • Product Backlog
 • Sprint
          Sprint planning meeting
          Daily Scrum meeti...
Project Vision

 • A project starts with a vision of the system to be developed.
       May be vague initially, but will ...
Product Backlog

 • Product owner formulates a plan for delivering the vision that
   includes a Product Backlog.
 • List ...
Sprint

 • All work is done in Sprints.
 • An iteration of 30 consecutive calendar days.
 • The Team can seek outside help...
Sprint Planning Meeting

 • At the start of a Sprint, there is a Sprint planning meeting. In
   this meeting, Product Owne...
Daily Scrum Meeting

 • 15-minute team meeting at the start of each day.
 • Each team members answers three questions:
   ...
Sprint Review Meeting

 • Held at the end of a Sprint.
 • Timeboxed to four hours.
 • Team presents what was developed dur...
Sprint Retrospective Meeting

 • Conducted by the ScrumMaster. Attended only by the Team,
   the ScrumMaster, and the Prod...
References

 •     Books on XP
          Extreme Programming Explained, Second Edition. by Kent Beck, Cynthia
           ...
Thank You!

                                            Pradyumn Sharma
                                pradyumn.sharma@pr...
