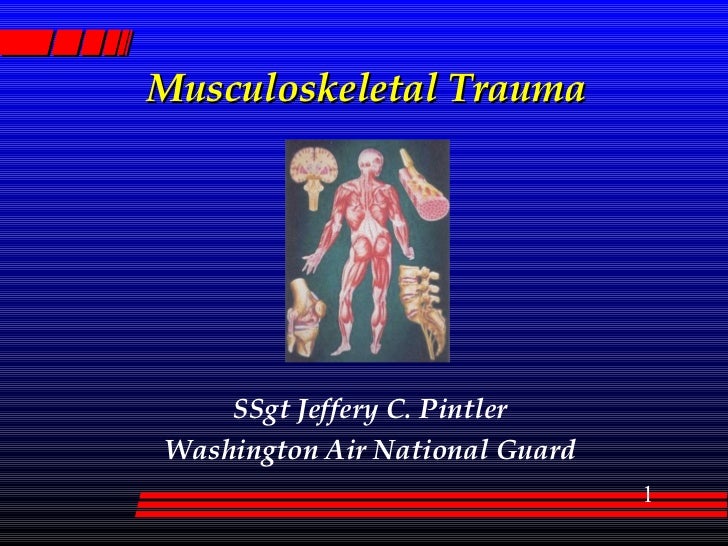

Musculoskeletal Trauma SSgt Jeffery C. Pintler Washington Air National Guard
Incidence/Mortality/Morbidity <ul><li>Occur in 70-80% of all multi-trauma patients </li></ul><ul><li>Blunt or Penetrating ...
Incidence/Mortality/Morbidity <ul><li>Problem is  not  just the bone injury </li></ul><ul><ul><li>Other injuries caused by...
Musculoskeletal System Function <ul><li>Scaffolding/Support </li></ul><ul><li>Protection of vital organs </li></ul><ul><li...
Musculoskeletal Structures <ul><li>Skin </li></ul><ul><li>Muscles </li></ul><ul><li>Bones </li></ul><ul><li>Tendons </li><...
Muscular System
Skeletal System
Musculoskeletal Structures -  Skin <ul><li>Holds all structures together </li></ul><ul><li>Barrier function </li></ul><ul>...
Musculoskeletal Structures - Muscle <ul><li>Three types of muscle cells </li></ul><ul><li>Voluntary (Skeletal) </li></ul><...
Musculoskeletal Structures <ul><li>Tendons </li></ul><ul><ul><li>Bands of connective tissue binding muscles to bones </li>...
Types of Joints <ul><li>Ball/Socket </li></ul><ul><ul><li>Shoulder/Hip </li></ul></ul><ul><li>Hinge </li></ul><ul><ul><li>...
Fracture <ul><li>Break in continuity of bone </li></ul><ul><li>Closed </li></ul><ul><ul><li>Overlying skin intact </li></u...
Common fractures
Fracture Descriptions <ul><li>Open vs Closed </li></ul><ul><li>X-Ray descriptions </li></ul><ul><ul><li>greenstick </li></...
Complications associated with Fractures <ul><li>Hemorrhage </li></ul><ul><ul><li>Possible loss within first 2 hours </li><...
Complications associated with Fractures <ul><li>Disability </li></ul><ul><ul><li>Diminished sensory or motor function </li...
Musculoskeletal Assessment <ul><li>Initial Assessment </li></ul><ul><ul><li>ABCDs </li></ul></ul><ul><ul><li>Life threats ...
Musculoskeletal Assessment <ul><li>The six “P”s of musculoskeletal assessment </li></ul><ul><ul><li>Pain </li></ul></ul><u...
Musculoskeletal Assessment <ul><li>Palpation and Inspection </li></ul><ul><ul><li>Swelling/Ecchymosis </li></ul></ul><ul><...
Musculoskeletal Assessment <ul><li>Palpation and Inspection </li></ul><ul><ul><li>Tenderness </li></ul></ul><ul><ul><ul><l...
Musculoskeletal Assessment <ul><li>Palpation and Inspection </li></ul><ul><ul><li>Distal to injury, assess: </li></ul></ul...
Musculoskeletal Assessment <ul><li>Initial Assessment </li></ul><ul><ul><li>ABCDs </li></ul></ul><ul><ul><li>Life threats ...
Management - General <ul><li>Immobilization Objectives </li></ul><ul><ul><li>Prevent further damage to nerves/blood vessel...
Management - General <ul><li>Principles of Fracture Management </li></ul><ul><ul><li>Splint joint above, below </li></ul><...
Management - General <ul><li>Principles of Fracture Management (cont) </li></ul><ul><ul><li>Position of function </li></ul...
Dislocations <ul><li>Displacement of bone end from articulating surface at joint </li></ul><ul><li>Pain or pressure is mos...
Dislocations <ul><li>Nerves, blood vessels pass very close to bone.  Pressure on these structures can occur  </li></ul><ul...
Sprains <ul><li>Stretching. tearing of ligaments surrounding joint  </li></ul><ul><li>Occur when joint is twisted beyond n...
Sprain Management <ul><li>Characteristics </li></ul><ul><ul><li>Pain </li></ul></ul><ul><ul><li>Tenderness </li></ul></ul>...
Strains <ul><li>Tearing, stretching of musculo/tendonous unit.  </li></ul><ul><li>Spasm, pain on active movement </li></ul...
Traumatic Amputation <ul><li>First priority - ABC’s </li></ul><ul><ul><li>Bleeding from stump usually  not   a problem </l...
Tourniquet applied to an arm amputation
Tourniquet applied to a leg amputation
Traumatic Amputation - Limb Management <ul><li>Place in saline moist gauze </li></ul><ul><li>Place in plastic bag </li></u...
Sling and swathes applied to humerus fracture
Applying a cravat sling
Splint applied to a fractured elbow
Swathes applied to a fractured elbow
Splint applied to a fractured forearm
Sling and swath applied to a fractured forearm
Splint applied to a fractured wrist
Improvised jacket sling
Pelvic Fracture <ul><li>Direct or indirect force </li></ul><ul><li>Pelvic ring tends to break in two places </li></ul><ul>...
Pelvic Fx Management <ul><li>Treat as potential critical trauma patient </li></ul><ul><li>Comfortable position if possible...
Military Anti-Shock Trousers Pneumatic Anti-Shock Garment
Femur Fracture <ul><li>Femoral Neck (Hip) </li></ul><ul><ul><li>Most common in mid to late 60’s age group. </li></ul></ul>...
Femur Fracture <ul><li>Mid-Shaft </li></ul><ul><ul><li>Result from torsion in very young or old </li></ul></ul><ul><ul><li...
Femur Fracture - Management <ul><li>Assess for traction splint contraindications </li></ul><ul><li>May use PASG, secure to...
Femur Fracture - Management <ul><li>Traction Splints </li></ul><ul><ul><li>Used on mid-shaft femur fractures </li></ul></u...
Lower Extremity Fracture <ul><li>Patellar </li></ul><ul><ul><li>Due to direct impact </li></ul></ul><ul><li>Tibia/Fibula <...
Management - Lower Extremity Fracture <ul><li>Patellar, Tibia/Fibula, and Calcaneal </li></ul><ul><ul><li>Assess for neuro...
Splint applied to an upper leg fracture
Splint applied to a fractured knee
Uninjured leg used as a splint
Hemorrhage Management <ul><li>Direct Pressure </li></ul><ul><ul><li>Most effective method </li></ul></ul><ul><ul><li>Press...
Applying and securing a field dressing
Applying manual pressure
Pressure points for control of arterial bleeding
Tourniquet <ul><li>Last resort, but do not wait too long. </li></ul><ul><li>Use flat wide material </li></ul><ul><li>BP cu...
Application of a tourniquet to stop bleeding
References <ul><li>Field Manual 8-230 U.S. Army 2003 </li></ul><ul><li>Combat Lifesaver Instructor Manual U.S. Army 2003 <...
