PBR-LB - Direct Server Return Load Balancing using Policy Based Routing
(MEMO)

07 Feb, 2013
SAKURA Internet Research Center
Senior Researcher / Naoto MATSUMOTO

Published in: Technology

PBR-LB - Direct Server Return Load Balancing using Policy Based Routing (MEMO)

  1. 1. 07 Feb, 2013 SAKURA Internet Research CenterSenior Researcher / Naoto MATSUMOTO

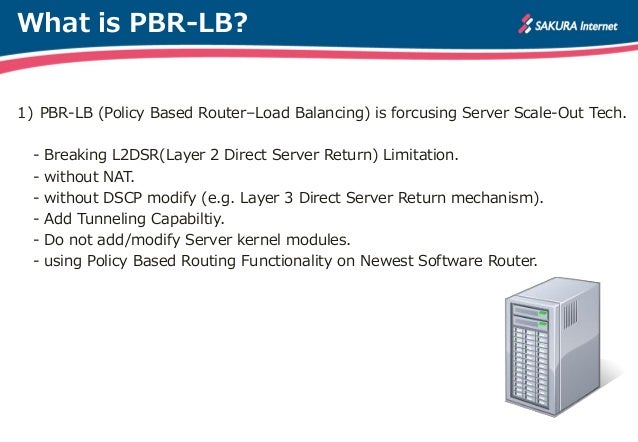

  2. 2. What is PBR-LB?1) PBR-LB (Policy Based Router–Load Balancing) is forcusing Server Scale-Out Tech. - Breaking L2DSR(Layer 2 Direct Server Return) Limitation. - without NAT. - without DSCP modify (e.g. Layer 3 Direct Server Return mechanism). - Add Tunneling Capabiltiy. - Do not add/modify Server kernel modules. - using Policy Based Routing Functionality on Newest Software Router.

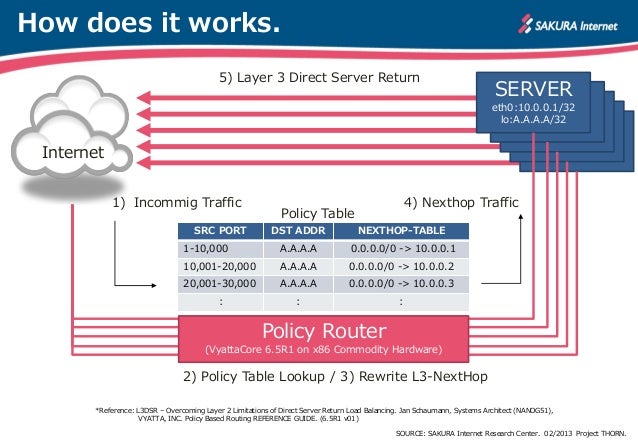

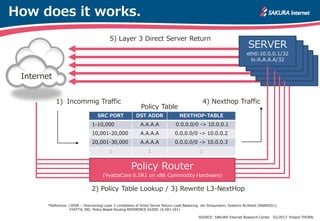

  3. 3. How does it works. 5) Layer 3 Direct Server Return SERVER eth0:10.0.0.1/32 lo:A.A.A.A/32 Internet 1) Incommig Traffic 4) Nexthop Traffic Policy Table SRC PORT DST ADDR NEXTHOP-TABLE 1-10,000 A.A.A.A 0.0.0.0/0 -> 10.0.0.1 10,001-20,000 A.A.A.A 0.0.0.0/0 -> 10.0.0.2 20,001-30,000 A.A.A.A 0.0.0.0/0 -> 10.0.0.3 : : : Policy Router (VyattaCore 6.5R1 on x86 Commodity Hardware) 2) Policy Table Lookup / 3) Rewrite L3-NextHop *Reference: L3DSR – Overcoming Layer 2 Limitations of Direct Server Return Load Balancing. Jan Schaumann, Systems Architect (NANOG51), VYATTA, INC. Policy Based Routing REFERENCE GUIDE. (6.5R1 v01) SOURCE: SAKURA Internet Research Center. 02/2013 Project THORN.

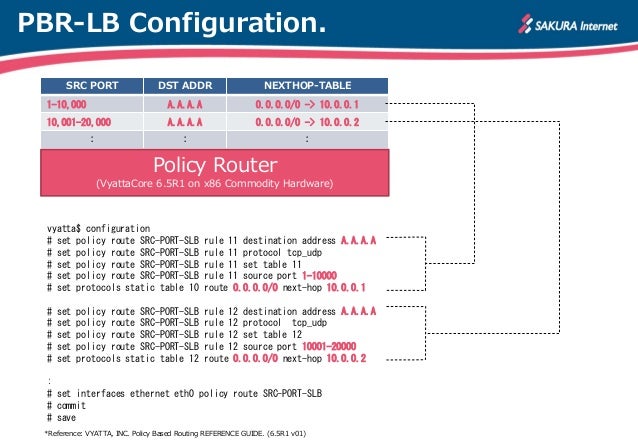

  4. 4. PBR-LB Configuration. SRC PORT DST ADDR NEXTHOP-TABLE 1-10,000 A.A.A.A 0.0.0.0/0 -> 10.0.0.1 10,001-20,000 A.A.A.A 0.0.0.0/0 -> 10.0.0.2 : : : Policy Router (VyattaCore 6.5R1 on x86 Commodity Hardware) vyatta$ configuration # set policy route SRC-PORT-SLB rule 11 destination address A.A.A.A # set policy route SRC-PORT-SLB rule 11 protocol tcp_udp # set policy route SRC-PORT-SLB rule 11 set table 11 # set policy route SRC-PORT-SLB rule 11 source port 1-10000 # set protocols static table 10 route 0.0.0.0/0 next-hop 10.0.0.1 # set policy route SRC-PORT-SLB rule 12 destination address A.A.A.A # set policy route SRC-PORT-SLB rule 12 protocol tcp_udp # set policy route SRC-PORT-SLB rule 12 set table 12 # set policy route SRC-PORT-SLB rule 12 source port 10001-20000 # set protocols static table 12 route 0.0.0.0/0 next-hop 10.0.0.2 : # set interfaces ethernet eth0 policy route SRC-PORT-SLB # commit # save *Reference: VYATTA, INC. Policy Based Routing REFERENCE GUIDE. (6.5R1 v01)

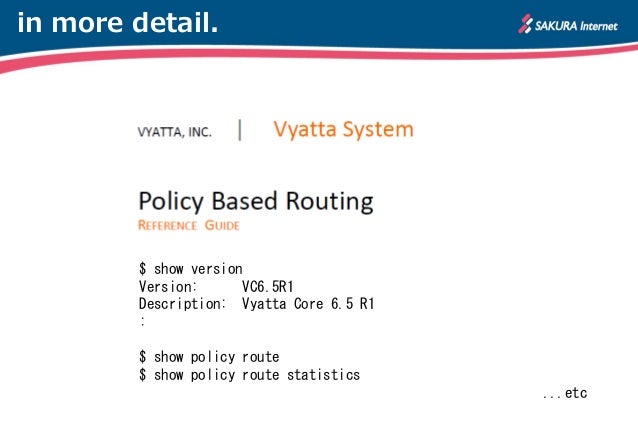

  5. 5. in more detail. $ show version Version: VC6.5R1 Description: Vyatta Core 6.5 R1 : $ show policy route $ show policy route statistics ...etc
  6. 6. Thanks for your interest.SAKURA Internet Research Center.

×
