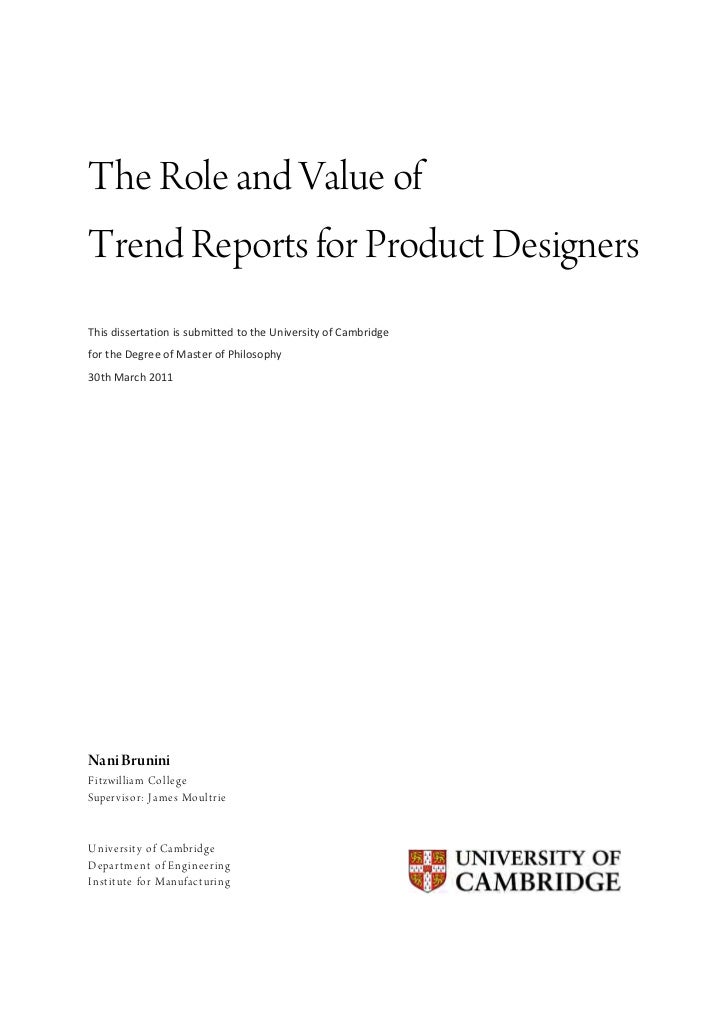

The Role and Value ofTrend Reports for Product DesignersThis dissertation is submitted to the University of Cambridge for the Degree of Master of Philosophy 30th March 2011 Nani BruniniF it zw illia m Co lle geSupe rv iso r: J a me s Mo ult rieU n iv e rsit y o f Ca mbrid geD e pa rt me n t o f En gin e e rin gI n st it ut e fo r Ma n ufa c t urin g

Abstract Today’s global economy is a very complex and hard to read environment. Competition is fierce and being the first to ‘get it right’ when designing new products could be decisive. With so much at stake, many companies have turned to trends research as a way to differentiate their products. This work starts by looking into the current theoretical evidence that is available, aiming at making sense of how the issue has been portrayed in academic and commercial literature. The research itself was conducted in two steps: a quantitative study and a qualitative one. In the quantitative strand the aim was to understand how trend reports have been used in new product development and what opinion was had held about them by their users. The results indicate that trend reports were frequently being used but not thought of as an essential tool. In the qualitative step the aim was to drill down specifically on the opinions and expectations of product designers for trend research and reports. The results show that there was a discrepancy of expectations between designers and management about what trend reports are, how they should be used, and what they should be used for. And finally, five possible roles of trend reports for product designers were identified: source of discoveries, boundary objects, brand compasses, sparks and recipe books. 5

Index Preface .................................................................................................. 01Index ................................................................................................................................ 02Abstract .................................................................................................................. 05 Chapter 01 – Introduction1.1 Background .................................................................................................................. 06 1.2 Research objectives.................................................................................................................. 07 1.3 Research focus .................................................................................................................. 08 1.3.1 Product designers ............................................................................................................ 08 1.3.2 Trends reports ................................................................................................................ 09 1.4 Structure of this thesis .................................................................................................................. 10 Chapter 02 – Literature review2.1 Overview .................................................................................................................. 11 2.2 Available literature .................................................................................................................. 12 2.2.1 Futures studies .................................................................................................................. 12 2.2.2 Forecasting and trends .................................................................................................................. 12 2.2.3 Coolhunting .................................................................................................................. 13 2.2.4 Futures and trends research in design ................................................................................................ 14 2.3 Literature gap and research questions ................................................................................................... 17 Chapter 03 – Research design3.1 (quant+) QUAL = enhanced experiment........................................................................................................ 19 3.1.1 Embedded design .................................................................................................................. 21 3.2 Benefits from each methodology ......................................................................................................... 21 3.2.1 Why we needed quantitative data ......................................................................................................... 21 3.2.2 Why we needed qualitative data ........................................................................................................ 22 2

Chapter 04 – Web survey4.1 Survey design .................................................................................................................. 23 4.1.1 Writing the questionnaire .................................................................................................................. 24 4.1.2 Selecting and recruiting the sample ............................................................................................................ 28 4.1.3 Piloting the survey .................................................................................................................. 29 4.1.4 Finding the survey engine .................................................................................................................. 29 4.2 Data compilation .................................................................................................................. 30 4.2.1 Filter from 378 to 200 responders ............................................................................................................... 30 4.2.2 Cross-‐analysis .................................................................................................................. 31 4.3 Results .................................................................................................................. 32 4.3.1 Group 02 vs. Groups 1 and 4: how the use of trend reports can be affected by the characteristics of person and company. .................................................................................................................. 32 4.3.2 Group 03 vs. Groups 1 and 4: how the opinion on trend reports can be affected by the characteristics of person and company. .................................................................................................................. 33 4.3.3 Group 05 vs. Groups 1 and 4: how the investment in trend reports can be affected by the characteristics of person and company. .................................................................................................................. 35 4.4 Discussion .................................................................................................................. 36 Chapter 05 – Qualitative interviews5.1 Overview ...................................................................................................................................... 38 5.2 Some considerations on qualitative interviews ............................................................................................ 39 5.3 Designing the interview .................................................................................................................. 40 5.3.1 Sampling .................................................................................................................. 40 5.3.2 Visual prop and exercises .................................................................................................................. 42 5.3.3 Interview guide .................................................................................................................. 45 5.4 Data compilation and analysis.................................................................................................................. 46 5.4.1 Transcription .................................................................................................................. 46 5.4.2 Coding .................................................................................................................. 46 5.4.2 Analysis of exercises .................................................................................................................. 48 5.5 Interpretation of findings.................................................................................................................. 50 5.5.1 Trend reports as sources of discoveries ..................................................................................... 51 5.5.2 Trend reports as boundary objects ....................................................................................................... 53 5.5.3 Trend reports as brand compasses ................................................................................................ 58 5.5.4 Trend reports as sparks ..................................................................................................... 59 5.5.5 Trend reports as recipe books ..................................................................................................... 61 5.6 Summary.................................................................................................................. 62 3

Chapter 06 – Synthesis6.1 Back to the main question .................................................................................................................. 63 6.1.1 Divergent expectations .................................................................................................................. 64 6.1.2 New challenges for trend reports ................................................................................................ 65 Chapter 07 – Conclusion7.1 Contributions .................................................................................................................. 66 7.1.1 Contributions to theory .................................................................................................................. 68 7.1.2 Contributions to practice .................................................................................................................. 67 7.2 Limitations + Future research .................................................................................................................. 67 Bibliography .................................................................................................................. 68Appendices App. 01: LinkedIn groups to which invitations were sent ................................................................... 73 App. 02: Coroflot groups to which invitations were sent ................................................................ 73 App. 03: Final demographic of web-‐survey ................................................................... 74 App. 04: Questions from survey used for analysis ......................................................................... 75 App. 05: Definitions of SME (European Commission, 2003) ...................................................................... 76 4

CHAPTER 01 Introduction 1.1 BackgroundToday’s global economy is a very complex and hard to read environment. Competition is fierce and especially in delicate times as we are living now, being the first to ‘get it right’ when designing new products could be decisive. With so much at stake, many companies have turned to trends research as a way to differentiate their products. Whole departments and disciplines have been created to help companies think in an open-‐minded way and to create new products that could succeed in this busy marketplace. 1Trend reports come then as one of the most popular vehicles for trend research. Top management are usually the main targets of these expensive strategic documents, which commonly provide quantitative data and rich scenarios of how the future might look like in a determined timeframe. Most literature on innovation and trends research is also written from a management point of view (Raymond, 2010; Courtney, 2001), and it seems that economics, marketing and advertising are the most common audience for that type of publications. But where does design interact with trend research? Design is a discipline that is always concerned with the future (Lawson, 2005; Evans, 2010) since designers are constantly being asked for innovation (Kelley and 2Littman, 2004). Designers are noticeably key to the process of new product development since they are ultimately the ones that execute the ideas. Thus delivering trend reports to just marketing and company executives without the buy-‐in of the design team can be potentially a huge waste of effort and money. Despite that, there seems there to be a lack of understanding on how designers take that sort of information. 1 “Trend reports” will be also referred here by its acronym “TR”. 2 “New Product Development” will be also referred here by its acronym “NPD”. 6

Furthermore, the idea of following trends is not really attractive to designers, since they are often expected to create the future themselves (Lawson, 2005). The use of trends research by designers sounds natural, but do they need someone else to look at the future for them? After all, designers have always been able to keep up to date by researching their fields and being connected to the latest developments. Thinking about the designers’ role in trends research has not been much of an issue for designers so far. In the case of product design, which is the focus of this study, futures research is particularly relevant as issues with product longevity and production costs can bring some interesting challenges to product designers in developing products that cater for a future audience. Investments in future forecasting and trends research are growing very rapidly as a form of managing risks and uncertainty (Evans, 2010; Scott, 2004; Raymond, 2010; Courtney, 2001; Gloor, P. & Cooper, 2007; Gladwell, 2001), but the “pink elephant in the room” seems to be that designers may actually not be using the content of those reports, since they could potentially not be relevant to them. Despite their growing prominence, there is very little scientific research on how trend reports are being created and used (Evans, 2010; Scott, 2004). Moreover, no publications were found on what designers think about those types of reports. It’s due to these reasons that this research aims at focusing on the impact of trend reports in the work of designers. Our main question is: What is the role and value of trend reports for productdesigners? We intend to obtain an answer, or at least some first indications to an answer, mainly from designers themselves. 1.2 Research objectivesThis study is not intended to be prescriptive. Our goal is not to give a detailed description of ‘what to do’ or how trend reports are used and produced. We want to know from some specific users of trend reports, what kind of relationship do they see between product design and trend reports. Thus the main objectives of this research are to: • Look into the current theoretical evidence and understand how the issue has been portrayed in academic and commercial literature: How do both strands differ from each other? How is design and futures research portrayed in each domain? • Explore specific issues relating to product design and trend reports: What do designers think about trend reports? Do they think they need them? Can they be useful to their daily practice? In what 7

ways? What are their expectations towards trend reports? What have been their experiences? What could be improved? As a result of fulfilling the above objectives, this paper also aims to: • Encourage further research on trend analysis in the design field. • Stimulate conversations within design practice about what could be done to improve forecasting processes for product design. 1.3 Research focusSince this study focuses on the experiences of ‘product designers’ with ‘trend reports’, it is important to first establish how those terms were interpreted throughout this research. 1.3.1 Product designersThis research focuses on the opinion of product designers on trend reports -‐ an area positioned by Moggridge (2007) in the quadrant of Human & Subjective/Physical design (Figure 01). Fig. 01: Areas of design and the focus of this research – adapted from Moggridge’s (2007) axis of disciplines in product development. The area noted here as “product design”, is called “industrial design” in the original version. 8

The area of Product design itself is vast and encompasses a whole sub-‐set of areas – such as lighting, furniture, digital appliances, electronic devices, apparel and fashion. Thus to keep our scope more manageable, this study approaches the term ‘product design’ in a rather broad sense, as the creation of tangible objects which fulfil particular human needs and desires (Moggridge, 2007), originated from a design process -‐ sketches, prototypes and models (Slack, 2006) -‐ and created through industrial processes (Löbach, 2001). It is also important to mention, that although we refer to the opinion of non-‐designers as a comparative counter-‐point (see Chapter 04), the idea is to look at trend reports from the product designers’ contexts – their experiences and visualizations of an ideal document for them. 1.3.2 Trend reportsIn a broader sense, a report is an official document that summarises the assessment and analysis of a certain topic (Bowden, 2011; Lichtenberger et all, 2004). Each type of report serves a very specific purpose and is aimed at a very particular audience. Bowden (2011) and Lichtenberger (2004), describe some of the main purposes of reports in general: describe and explain a certain problem; evaluate products, situations and practices; inform decision making, provide recommendations and instruct and even provoke debate and/or persuade someone or a group of people. In design practice, that list could also go on and on. For reasons of clarity, this study revisits the way some distinguishing authors (O’Grady & O’Grady, 2009; Laurel & Lunenfeld, 2003; Tidwell, 2011) describe the most 3common types of research in design and it proposes the following descriptions as a first attempt to distinguish the types of reports in design practice: TYPES OF REPORTS FOCUS COMMON CONTENT User research Human behaviour and Heuristics, ethnography, ergonomics and usability tests, colour reports product experiences. and typography psychology, patterns of (present) behaviour. Market research Consumption, brands and Demographics, ethnography, segmentations, customer reports market dynamics. satisfaction, sales and pricing data, projections, competitor analyses, brand equity and strategy analyses. Trends research Behavioural shifts and Timelines, ethnography, trends analyses, (indication of future) reports evolution in society as a behaviour patterns. whole. Table 01: Differentiating the most common types of reports in design practice (suggested by the author). 3 The author of this study recognises the limitations of table 01 and indeed encourages further scientific research on the differences and commonalities of research reports in design practice. 9

These three types of reports are very commonly used in a more or less interchangeable way. As a way to explain why that happens, this study also presents the following matrix, which illustrates how closely intertwined the three reports are: Fig. 02: Exploring differences and similarities between user research, market research and trends research reports (suggested by the author). In summary, this study describes trends research reports, or trend reports, as “strategic documents that track down the behaviour and evolution of notable shifts in society, culture, aesthetics, technology, environment, consumers, etc. Contrary to user research or competitive analysis, trend reports go beyond what is 4happening now and always present patterns suggesting directions to future projections” . 1.4 Structure of this thesisThis work is organised in eight chapters. Chapter 02 (literature review) and 03 (methodology) lay the groundwork for the research, while Chapters 04 and 05 have the main body of the research itself. We start with a quantitative approach (Chapter 04) to help inform our work during the qualitative stage (Chapter 05). Chapters 06 and 07 have our synthesis of the results and our conclusions respectively, while Chapter 08 has a list of all the references utilised. 4 Despite being proposed by the author of this research, the definition of trend reports is presented here in quotation marks, as that was the way they were presented to responders in the quantitative web-‐survey (see chapters 03 and 04). 10

CHAPTER 02 Literature review 2.1 OverviewExploring current literature was the first step taken to collect data on the issues we wanted to investigate. As the exact research questions were not clearly established at first, the review of the literature went through a 1rather broad spectrum of issues . The objective was not only to get better acquainted with the subject, but also to also find possible avenues to focus on that could be aligned with personal interests. The starting point was to look at what had already been published in the academic world about trends research and design. Among these were: various journals on design, product development and futures studies that were accessed via academic databases such as Science Direct, Google Scholar and CUED from Cambridge. Some of that material was also obtained via personal requests for copies to academics when the literature was not readily available. In order to achieve more breadth there was also an attempt to search for this topic in other languages. However, putting potential language barriers aside, very little was found about the penetration of trends research in the design world. In the academic field, it seems there is a recently growing interest in trends research and design. Interestingly they all came from the United Kingdom – an MPhil dissertation (Scott, 2004) and a doctoral thesis (Muir Wood, 2010) from the University of Cambridge and a PhD thesis from Lancaster University (Evans, 2010). Unfortunately, besides a few sporadic papers, little other scientific effort was found. In the commercial world however, publications on trends research and design related issues are getting more and more popular. The corporate world is used to following trends, mostly through business figures and market research, but it seems there is also a growing interest in the very alluring world of “coolhunting” and in the possibilities of becoming “cool” and “trendy”. 1 In order to allow for a greater focus on the results of the study, whilst maintaining scientific robustness, the researcher made the deliberate decision of presenting only some key authors and topics in the literature review. This was decision was a compromise, taken in consideration the word count allowed for MPhil theses. 11

This section presents how some of the most relevant issues to this study are portrayed in current available literature. It starts with giving an overview of literature on ‘forecasting’, inside and out of the design field. Then it narrows to summarise what experts say about ‘trends’, which is seen both from a perspective of a phenomenon and as business opportunities. The chapter is then finalised with how the construction of this study’s research questions as an attempt to fill up a gap in current literature. 2.2 Available literature2.2.1 Futures studiesFutures Studies as a formal discipline is now well over 50 years old (Sardar, 2009). In fact, some scholars trace it back much further as trying to guess what the future holds is quite a fundamental part of being human. According to Wendell Bell, professor emeritus of sociology at Yale University, currently a “consultant futurist”, futures studies’ main purposes are "to discover or invent, examine and evaluate, and propose possible, probable, and preferable futures” (Bell, 1997). Godet and Roubelat (1996) suggest that the role of futures studies has to be rethought, as in the 1980s and 1990s a number of errors in forecasting were made based upon two mistakes: “overestimation of the pace of change (of technologies)” and the “underestimation of inertial factors (structures, behaviours)” (Godet & Roubelat, 1996). In a similar vein, Sardar (2009) makes the point that future studies should not to be about getting it right since this is not possible; instead it should be about “exploring and developing creative, novel and inclusive solutions” (Sardar, 2009). 2.2.2 Forecasting and trendsThe great majority of texts on forecasting and trends come from fashion and economics (Muir Wood, 2010) – two worlds at first seen as completely different from each other. With regards to how they apply forecasting and the finding of patterns, usually they also behave very differently: the first relying more on instinct and visual observations, such as the change of preferences in colours and materials (Kim et al, 2011; Diane & Cassidy, 2005), whilst the other searches for certainty in numerical projections in different demographics and sales figures (Friedman, 2010; Gordon, 2008; Watson, 2009). Some authors even try to combine both worlds. Chan, C, for example tries to measure style by creating complex mathematical formulae (Chan 2000). 12

In the business sector, there is a huge volume of books on forecasting. From ‘how to do it’ (Raymond, 2004 and 2010; Highman, 2009; Brannon, 2005; Kim, Fiore & Kim, 2011; Taleb, 2008; Gordon, 2008) to ‘what trends are relevant for a certain year’ (Friedman, 2011; Dixon, 2007; Watson, 2009). Although authors are very careful in saying you cannot really predict the future, the atmosphere is more about ‘getting it right’ (Raymond, 2010) and having “decision making power”(Lindgren and Bandhold, 2003). Martin Raymond, co-‐founder of one of the most influential trends agencies in the design world, The Future 2Laboratory , says in his latest book for example: “Yes accurate! If a company hires you, invests in you and asks you to identify the next social, cultural, ethical or environmental trend that is set to impact on consumer behaviour, they’ll expect you to get it right.” (Raymond, 2010) A quick look to Amazon.com, the largest online book retailer to date, can illustrate how commonplace the words ‘forecasting’, ‘prediction’ and ‘certainty’ have become in titles of economics, business strategy or even fashion books. According to Sardar (2009), ‘forecasting’ is a term that should be carefully used, as they ‘seduce’ readers with the illusory idea of being able to see what is coming next and control the future (Sardar, 2009). 2.2.3 CoolhuntingCoolhunting is a recent popular term for identifying trends and is related to spotting new and unusual ‘triggers’ in society – from products to behaviours. Being “cool” is generally understood as being different and unique and companies are very interested because this is something they can capitalise on. “Cool” is the ultimate point of difference and appeals to very broad audiences – “young people gravitate towards it and older people covet it because it makes them feel younger” (Kerner & Pressman, 2007). The term ‘coolhunting’ was coined by the noted writer Malcom Gladwell, who in 1997 wrote an article in The New Yorker (Gladwell, 1997) about Deedee Gordon, an American coolhunter with an impressive list of clients -‐ from manufacturers of apparel, footwear, health and beauty, cosmetics and fragrances; movie studios; sports associations; electronics companies and advertising agencies (Gordon, 2001). Some suggest that the rise of coolhunting was heavily influenced by the record amounts of disposable income in the past 10 or so years (Kerner & Pressman, 2007). Combine that with a growing commoditisation, fear of competition and an increasing difficulty to differentiate products, and suddenly the hunt for the next trendy thing can raise immense interest. 2 www.thefuturelaboratory.com 13

Nowadays coolhunting is such a ‘hot topic’ that there is not only a growing number in print publications on the subject, but also a huge selection of influential blogs and websites from experts and amateurs alike. In Italy, for example, there is even a “school” dedicated to coolhunting, preparing professionals from all over the world 3with theories and techniques . On the other hand, even though it’s such a young topic, there are already some critics on the subject. Kerner & Pressman for example are really emphatic on their opinions; they describe the outcomes of focus groups and trend reports as “short sighted, artificial and gimmicky”. They strongly believe that companies shouldn’t be chasing cool, but rather be inspired by it. “Do your research but spit it out in your own way”, they argue (Kerner & Pressman, 2007). Tom Ford, a celebrated fashion designer, goes as far as to say “if you have to pay someone to tell you what the next trend is, then you are in the wrong business” (Kerner & Pressman, 2007). 2.2.4 Futures and trends research in designFutures research is a very mature discipline and one can find a vast array of material on philosophical considerations on the importance and consequences of future studies to society as well as to corporate environments and product development. Conversely, only very few of these consider the influence of forecasting in design practice (Evans, 2010; Muir Wood, 2010; Scott, 2005). The design industry, despite recognizing trends research as an important topic, has largely failed to formally adopt it as part of their processes (Scott 2005). Also there seems to be a fair amount of confusion around the nomenclature, as it often uses the term “trends research” as an umbrella term for many types of research (Muir Wood 2010). As noted earlier, that gap seems to be filled from the academic side. The first material encountered on the subject was an MPhil thesis from the University of Cambridge, which investigated the possibility of product trends being predicted and how the trends research process was being applied in design companies in the UK (Scott, 2005). The author, Natalie Scott, uses practical and real life examples by conducting eighteen “highly-‐structured” interviews with manufacturers and design agencies in the UK. She concludes the study with a very interesting tool designed by the author (Fig. 03), which “combines all the proposed models used to represent the patterns identified from the interviews”. 3 From their website: “TrendsGymnasium is an online Coolhunting training course designed to help people effectively learn how to spot and analyze short, medium and long term trends, by interpreting their impact on society using the technique of coolhunting to originate fresh ideas”. http://www.trendsgymnasium.com/ 14

Fig. 03: “Design map for capturing trends” designed by Natalie Scott (2005). Martyn Evans, a senior lecturer from the University of Lancaster, also presents the issue from a practical perspective, considering the role of futures thinking in design (Evans, 2010). He refers to the long established field of future studies to serve as theoretical base for his investigation. One of the major outcomes of the research is the construction of a theoretical framework drawn upon the results of a series of qualitative interviews with top management, designers and researchers, mostly from coming from design agencies. Evans’ study concludes on a note of the “growing need for organisations to engage designers to consider the future in the design process” since that is a requirement that is becoming more and more frequent in a very uncertain world (Evans, 2010). He also finds out from the literature and the interviews with design practitioners that 4although futures thinking techniques are increasingly being employed in design practice, this is not a field designers are very knowledgeable about (Evans, 2010). 4 Common techniques in design practice include trend monitoring, Delphi methods, scenarios building, etc. 15

Fig. 04: “Design Futures” framework designed by Martyn Evans (2010). Picture merely illustrative. Please refer to original work for more details. A month after Evan’s publication, a further important thesis is submitted by Andrew Muir Wood (2010), this time from the University of Cambridge. To a certain extent, Muir Wood also considers the influence of futures thinking in the design environment, except he approaches the topic from the perspective of the product, rather than that of the designer, consumer or firm. His focus is on understanding and explaining the phenomenon of “change” in the design of consumer products (Muir Wood, 2010) and he does that by analysing the relationships between the aesthetic and technical qualities of products. Andrew applies a series of qualitative interviews with design experts and conducts a case study on the evolution of mobile phones, providing some novel approaches and a very visual, thus also very “designerly”, way of depicting the evolution of a trend. Similarly to Evans and Scott, Muir Wood summarises his investigation in a theoretical framework, which depicts how form is developed in the context of design (Fig. 05). 16

Fig. 05: “Theoretical framework of change in the design of products”, designed by Andrew Muir Wood (2010). Picture merely illustrative. Please refer to original work for more details. 2.3 Literature gap and research questionsGoing through the available literature has shown there is already a reasonable amount of material (mostly from commercial literature) on the creation and use of trends research in non-‐design environments. Some literature on how trends have been introduced in the design process was also found (mostly from academic literature). This study did not attempt to be prescriptive or to go too deep into the making of reports. It should be noted, however that this is also an area that deserves more attention. The only reference that was found that talks directly about the making of trend reports, Martin Raymond’s book “The Trend Forecaster’s Handbook” (Raymond, 2010), mainly acts a ‘how-‐to guide’ and only leaves three pages (out of 216) to the subject. As seen in chapter 2, though not exhaustive, there is already some evidence on how design practitioners set about creating and using trends reports. However little attention has been put onto the actual value of trends research. Thus, the primary research question that this study seeks to address is: What is the role and valueof trend reports to product designers? 17

As that seemed a rather large question to answer, we have decided to break that question into two semi-‐independent subsets with two research questions each: Fig. 06: The two sub-‐sets of research questions. As figure 06 illustrates, these two sets were approached by two different methodologies. The reasons why we have taken a multi-‐method approach is going to be explained in detail in the methodology section (chapter 03), but the abovementioned figure can give a brief overview on how the investigation of our primary research question was tackled: a quantitative path for the first one and a qualitative for the second. These came sequentially and the qualitative phase had more weight in the data analysis. The next chapter will open up the discussion about how that mixed-‐methodology was approached. 18

CHAPTER 03 Research design Having established the research questions in the previous chapter, we will now introduce our process in selecting the most appropriate methodologies to guide our investigation. This chapter contains an introductory discussion on what methodologies have been used; first it describes the multi-‐method approach that was taken and then it goes over the rationale behind those choices. For clarity reasons, a more detailed description of how those methodologies have been assessed will only be provided in the upcoming chapters 4 and 5 within the context of their use. 3.1 (quant+) QUAL = enhanced experiment1As we have seen in the previous chapter, this research poses two independent sub-‐sets of research questions. The figure below illustrates how the design of this research builds up from the results of the literature review and starts with the collection and analysis of quantitative data. The first set of research questions (RQ01 and RQ02) is assessed via a web-‐survey and followed by a subsequent collection and analysis of qualitative data through interviews, which then refer to the second sub-‐set of research questions (RQ03 and RQ04). Fig. 07: Research stages. 1 Notation based on the system suggested by Creswell & Plano Clark (2001). 19

As it will be explained in section 3.2, the results from the quantitative phase were mainly used in this study as a way to better inform the design of the next qualitative phase. They were analysed both as a “recheck” (not as statistical validation) of the researcher’s previous assumptions and as indicators for further inquiries. During the final analysis a higher priority was given to the results of the qualitative interviews. Some of the findings from the quantitative phase were indeed further investigated in the interviews, but the rationale for this approach was that both strands of methodology would remain independent. The results from the first phase provided a more general understanding of the research problem, whilst the second phase explored more focused, less generic problems. The outcomes of both strands were then collated once the qualitative analysis was done. The following table presents a detailed comparison between both lines of study: QUANTITATIVE QUALITATIVE RESEARCH QUESTIONS RQ01: How have trend reports been used in RQ03: What do people who work with NPD? product design think about trends research and trend reports? RQ02: What do users of trend reports think about trend reports? RQ04: How do people who work with product design see the role of trends research and trend reports in their field? LEVEL OF EXPLORATION Shallow, illustrative. Deep, exploratory. TYPES OF QUESTIONS Simple, closed. Complex, open. Who, what, when, how much Why, what, how come. REASONING, OBJECTIVES Indication, insights and observations. In-‐depth investigation, insights and observations. Recheck on assumptions based on the literature reviewed and on the researcher’s previous professional experience. ONTOLOGIES Real experiences. Real experiences and ideal conceptions. Use and opinion from professionals. Use and opinion from professionals working with product design. UNITS OF ANALYSIS Personal/individual + company Personal/individual + company Trend reports (concrete) Trend research (abstract) + trend reports (concrete) SAMPLE Breadth (200 participants). Depth (11 participants). Different types of professionals. Designers working with product design. Users or user/creators of trend reports. Users or user/creators of trend reports. All levels of seniority. Mid-‐weight, senior, managers and head-‐of-‐ department. B2C products, durables and non-‐durables. B2C products, durables. All countries. London (UK) and São Paulo (Brazil). Table 02: Comparison between used research methodologies. 20

3.1.1 Embedded designThe mixed method approach we have used for this study was what Creswell & Plan Clark (2011) would call as “embedded designs”. According to the authors, these types of methodologies occur when “the researcher combines the collection and analysis of both quantitative and qualitative data within a traditional quantitative research design or qualitative research design” (Creswell & Plan Clark, 2011). They are mostly suitable for cases when the researcher has questions that require different types of data. In our case, we needed a more generic strand in order to contemplate the big picture as well as more specific view of the use of trend reports. The authors also point out that in some embedded designs, one data set could provide a supportive or secondary role in the study, which was indeed the case with this research. They also explain that this type of design is appropriate when “the researcher has little prior experience with the supplemental method” and when “the researcher does not have adequate resources to place equal priority on both types of data” (Creswell & Plan Clark, 2011). A particular aspect to embedded designs is that, because the two methods are used to answer different research questions, integrating the results later can be very challenging. Conversely, an advantage to the design is that the two sets of results can be kept separate, so the “pressure” of converging their results is very low (Bryman, 2004). 3.2 Benefits from each methodologyThere are several reasons why is good to choose quantitative and qualitative approaches. Below we list the ones that were most relevant to our selection. 3.2.1 Why we needed quantitative dataUnbiased informationHow much and what questions are more easily identified by fixed or quantitative approaches (Robson, 2003). However the decision to include a quantitative method to this thesis actually came only a bit later in the process. Our initial planning was to answer the research questions only through qualitative interviews, but in the first attempt at writing the qualitative questionnaire there was some concern around the possibility of a biased approach due to the researcher’s previous professional experience. This fact was very critical since the sampling for the qualitative phase would be done via the researcher’s personal network. 21

Thus in order to decrease that risk of partiality, a quantitative web-‐survey was conducted. The idea is that by giving more breadth to the research and reassessing our preconceptions, we could potentially prevent the following of unfruitful leads. Far-reaching and cost-effectiveAn online survey is a cost-‐effective way to include participants from all over the world. That could potentially grant us insights to major influential factors such as cultural and economical instances. Moreover, it makes it easier to add non-‐designers in the analysis, which could give some indication on how much the problems reported in the reviewed literature relate exclusively to the design field. 3.2.2 Why we needed qualitative dataIn-depth knowledgeHow and Why questions are more difficult to pin down and often indicate the need for a qualitative approach (Robson, 2003). We were also looking for more personal statements, going beyond the participants’ real experiences. Real, spontaneous and almost unconscious commentary was expected to help paint a richer idea of who has been using trend reports specifically in design environments. The real dealThe great majority of trend reports contain confidential information. The way we would be most likely able to refer to that sensitive material would be via personal contact, thus making a qualitative method necessary. By referring to real examples of trend reports we would have a better idea of what kind of trends reports and what kind of trends information product designers are utilising. Furthermore, that documentary analysis could also give us stronger hints on what product designers actually understand by the term “trend reports”. Previous expertiseThe researcher has been conducting qualitative research as well as qualitative interviews in design environments for over 7 years. Although there was a substantial research on the scientific approach to qualitative interviews (Creswell & Plan Clark, 2011; Robson, 2003; Mason, 2002; Bell, 2005; Gill & Johnson, 2010; Collins, 2010), the previous experience of the researcher and thus her familiarity with the tools was also an important decision factor in the choice for this methodology. 22

CHAPTER 04 Web survey In the previous chapter we have seen the rationale behind the overall design of this study. This chapter and the following will now provide a more detailed discussion on both methodologies that were used – quantitative and qualitative. We now focus on the creation and development of the quantitative phase of this research. First some considerations will be made with regards to using that kind of methodology. We will discuss the key strategies employed to overcome the usual challenges of an online quantitative survey. We then consider the survey design – how the questionnaire was made, how it relates to the research questions and what type of sampling strategy was selected to achieve our goal. Once that is established, we demonstrate our process of data analysis by showing how the results from the survey matched our previous hypotheses. The chapter concludes by discussing the results and their relation to the research questions as well as by making some observations on the limitations and caveats of this quantitative phase. 4.1 Survey designPutting the survey together was a rather complex undertaking. Four main tasks had to be managed in a more or less simultaneous manner: 1. Writing the questionnaire and ensuring that the captured data was as reliable as possible. 2. Choosing and recruiting a relevant sample. 3. Piloting the survey. 4. Choosing a survey engine and making sure technicalities were not in the way of survey completion. We now look at those tasks with some more detail. 23

4.1.1 Writing the questionnaire Quantitative questionnaires traditionally require a strong pre-‐specification as well as a substantial amount of conceptual understanding about a phenomenon before starting the actual data collection (Robson, 2003; Gill & Johnson, 1991; Collins, 2010; Bell, 2005). For this thesis, some elements were crucial in selecting which 1 variables could lead to fruitful results: the researcher’s professional experience , the reviewed literature and the feedback from pilot phase. From hypotheses to questions As Robson states, “the researcher’s central task is to link research questions and survey questions” (Robson, 2003). So a lot of effort was put to find the most relevant variables to answer research questions 01 and 02: RQ01: How have trend reports been used in NPD? RQ02: What do users of trend reports think about trend reports? Robson suggests the use of frameworks to providing descriptions to explanations, but also to prevent survey questionnaires to be reduced to “a fishing trip where questions are added simply because it seemed a good idea at the idea” (Robson, 2003). Taking this advice into account the following structure was created, which would support data collection and analyses throughout the whole research: Questions from the groups in the upper row would refer to instances from individuals: their personal characteristics (group 01), use of trend reports (group 02) and opinion on trend reports (group 03). Questions from the groups in the lower row would refer to what individuals report about the companies they currently work for: their companies’ characteristics (group 04) and how much they invest in trend reports (group 05). All groups would later be correlated in a series of cross-‐analyses between selected variables in order to find interesting relationships between variables. Fig. 08: Relevant questions from survey. 1 The researcher has been working for over seven years with design and trends research at market leader companies in-‐house and design consultancies. 24

For each crossing we would generate an expected outcome (assumptions). A total of 28 assumptions were created from the crossing between the various dependent and independent variables. Table 02 presents those assumptions together with the cross-‐analyses: GROUP 01 -‐ Individual GROUP 04 -‐– Company Yrs of EXPERIENCE DEPARTMENT COMPANY SIZE TYPE OF PRODUCT LOCATION A1. More A2. Design depts. A3. Larger companies A4. People working A5. Wealthier TIME USING TR experienced staff have been using TR have been using TR with durables have locations have been have been using TR for longer than non-‐ for longer than been using TR for using TR for longer GROUP 02 – Use of TR for longer than less design depts. smaller companies. longer than people than less wealthy experienced. working only with areas. non-‐durables. A6. More A7. Design depts. Not relevant. Not relevant. Not relevant. INTERACTION experienced staff have less interaction have less interaction with TR than non-‐ with TR than less design depts. experienced. Not relevant. Not relevant. CREATIVE VALUE A8. More A9. Design depts. put A10. Larger experienced staff put less creative value in companies put more more creative value TR than non-‐design creative value to TR to TR than less depts. than smaller experienced. companies. GROUP 03 – Opinion on TR A11. More A12. Design depts. A13. Larger A14. People working A15. Wealthier FINANCIAL VALUE experienced staff put put less financial companies put more with durables put locations put more more financial value value in TR than non-‐ financial value to TR more financial value financial value to TR to TR than less design depts. than smaller to TR than people than less wealthy experienced. companies. working only with areas. non-‐durables. A16. More A17. Design depts. A18. Larger A19. People working A20. Wealthier experienced staff put put less NPD value in companies put more with durables put locations put more NPD VALUE more NPD value to TR than non-‐design NPD value to TR than more NPD value to NPD value to TR than TR than less depts. smaller companies. TR than people less wealthy areas. experienced. working only with non-‐durables. Not relevant. A21. Design depts. A22. Larger A23. People working A24. Wealthier TR PURCHASE GROUP 05 – Investment in TR make less purchases companies make with durables make locations make more of TR than non-‐ more purchases of TR more purchases of TR purchases than less design depts. than smaller than people working wealthy areas. companies. only with non-‐ durables. Not relevant. A25. Design depts. A26. Larger A27. People working A28. Wealthier TR CREATION create more TR than companies create with durables create locations create non-‐design depts. more TR than smaller more TR than people more TR than less companies. working only with wealthy areas. non-‐durables. Table 03: Assumptions and the various cross-‐analyses. 25

Controlling the quality of quantitative dataThe reasons for choosing an online survey were significantly limited by two important variables: time and money. We had initially aimed at 300 participants and finding a large number of participants with practically no costs could be much easily achieved by the use of online tools. Surveys have commonly been used in non-‐experimental, fixed and descriptive designs (Robson, 2003). They can provide simple and straightforward information about a group of people and if they are well structured and properly piloted, they can be a relatively cheap and quick way to obtain objective factual information (Bell, 2005; Bryman, 2004). However, producing a really engaging and effective questionnaire can be harder than it sounds – choosing the right wording, for example, is an extremely fiendish task, which requires a lot of testing and peer revision. In self-‐completed questionnaires in particular there are several issues that could lead to unreliability of data –some of them are described below. A great deal of attention was given to the way questions could be understood by the responders. Of course, with any questionnaire-‐based surveys data can be affected by the characteristics of the respondents – their memory, knowledge, experience, motivation and personality (Robson, 2003), however some measures can be taken to reduce those risks. Below is the list of some of the measures used in order to overcome some of the main challenges presented by this type of survey: 1. Language barriers: • Sample: we sampled users from LinkedIn and Facebook because they usually have some good level of literacy in the English language; • No jargons or idiomatic expressions: the questionnaire only employed “every day English”. 2. Responses accuracy or veracity: • Real and concrete: questions only related to repliers’ own concrete experiences – no abstract values or situations. • Closed questions: questions were mostly closed (single and multiple option). Open questions were mostly left as an option (repliers could choose to answer it or not). • Anonymity: by assuring anonymity, respondents could feel more at ease and open to say what they wanted to. 3. Little interest: • Credible invitation: both the invitations and the survey intro text were carefully written, so as to reinforce how relevant, interesting and serious the survey was. 26

• The power of institution: adding the University of Cambridge’s logo to the intro was also felt as key to attracting relevant respondents. • Credible interface: one of the main reasons for choosing Qualtrics as a survey tool was because of its distinguishingly clean and professional looking interface. • Quick and simple: the invitation and introduction warned repliers that the questionnaire could be quickly completed in about 5 minutes. • Information as a point of attraction: repliers were offered the choice of obtaining the results of the survey if they provided their email by the end of the questionnaire. • Openness: invitations made clear that everyones input would be important – even the ones with little or no experience with Trend Reports or design. 4. Ambiguous terms and possible misunderstandings: • Who, why, what for: respondents could easily find why that survey was being made, where it would be used for, who would obtain the results, how to get in touch with the researcher, etc. • Clear instructions: the questionnaire was clearly and explicitly divided into 7 sections. Each one contained a title as well as a brief explanation of what was expected from repliers in each section. • Concrete vs. abstract: The term “Trend Reports” was deliberately chosen to replace the term “Trends Research”. The term “research” (abstract process) could generate a greater level of ambiguity than “reports” (concrete documents). • Explanation of terms: the term “Trend Report” was explained on section C of the questionnaire, before all questions relating to them. The text clearly explained the main characteristics of a Trends Report (future approach, most common themes), as well as the important difference they hold with “user research” reports and competitor analysis reports. Caveats with generalisabilityQuantitative methodologies also bring a considerable amount of concern around the issues of validity, reliability and generalisability of the data. Validity refers to the accuracy of the results presented. Reliability is the stability or consistency with which something is measured. Generalisability is about the extent to which a finding is generally more applicable to other situations, times and persons involved (Bryman, 2004; Robson, 2003). Unfortunately, although a great deal has been done to ensure the reliability of this survey, it is important to emphasise that the size of our sample cannot be constituted as sufficiently rigorous for statistical 27

analyses. 200 valid responses is indeed a very reasonable number, however considering the very open 2sampling strategy we applied, the ideal number of participants would have been closer to 400 . As mentioned previously, that lack of robustness in statistical validity was a risk the research team was aware of from the beginning. The outcomes from this phase were therefore taken as not as validation but rather as insightful pointers to different phenomena. 4.1.2 Selecting and recruiting the sampleRecruiting for this survey was done via the researcher’s personal contact network. In total there were 291 emails sent with Invitations separated into 3 main categories: formal (99 emails), informal (126 emails) and friends (66 emails). Each category was written with the same content but with subtle differences in tone for 3each of them – going from more formal and scripted to less formal and more personal . Though very time-‐consuming, making sure that every email was individually sent with some personal remarks, thus showing that the email sent was not spam, is believed to having been a key element for the success of the recruiting process. A further well-‐received tactic was the use of professional online communities, such as LinkedIn and Coroflot – illustrated with more detail on table 03 below: ONLINE NUMBER OF TYPES OF USERS MOST COMMON COMMUNITY USERS ACTIVITIES LinkedIn 90 million Professionals and students from most different areas. Sharing curriculum vitae, portfolios, business Coroflot 150,000 Creative professionals and students (industrial, graphic, opportunities, etc. fashion, interior, textile and interaction designers, architects, illustrators, design managers, etc). Table 04: Networking websites used for recruiting in the survey.This time the invitations were sent to the network ‘groups’, which are searchable features that allow users to establish new business relationships, share opinions about a subject, etc. Although these groups can be created in any subject by any member of the website, in most cases, there is a great level of specialised knowledge narrowed down by a domain or industry. That characteristic was particularly interesting for the recruitment of our web-‐survey. Taking advantage from that, invitations were sent to groups related to relevant issues to this research -‐ product design, innovation and trends research. A list of the names of the assessed 53 LinkedIn and 11 Coroflot groups can be found in the appendices (App.01 and App.02). It is important to note that although we have employed a “non-‐probability” or “convenient” sampling, one could argue that the element of randomness was rather low in our strategy (Robson, 2003). People were 2 Considering a very large population in a situation with 95% confidence level and a 5% margin of error. 3 As the survey was anonymized, it is not possible to say what proportion of each group took part in the research. 28

selected from a specific part of the researcher’s personal network (designers and people who work with design) and the groups from which we obtained a large part of our sample belonged to groups related to design and/or product innovation. This ensured that respondents were suitably knowledgeable and thus able to provide valid responses to the survey. 4.1.3 Piloting the surveyPiloting a questionnaire is essential to the conduction of an efficient survey as it can prevent a series of mistakes that are hard to see solely by the researcher. As Gray puts it, “It is naïve to believe that standardized questions will receive standardized, rational, responses” (Gray, 2009). Such is the case that the survey designed for this study went through seventeen updated versions until it was finally put online. The updates were the outcome of one-‐to-‐one trials that the researcher carried out with ten different potential participants. Among them, designers and non-‐designers from relatively different age groups and company sizes. They answered the questionnaire with the researcher by their side, verbally expressing how they understood each question. The piloting phase provided the researcher with a better understanding of which question worked better for what method (quantitative or qualitative). 4.1.4 Finding the survey engine 4The web offers a surprising number of qualitative engines at low or even no cost at all . The difficult part is finding which of those are actually serious companies and whom you can trust with such sensitive data. After careful consideration, the company we have chosen was Qualtrics. Amongst the advantages the company presented were: • The researcher interface was easy with ‘point-‐and-‐click’ edit system with the possibility of advanced options with ‘skip or display logic’ to customize which questions the respondents would see. • The responders’ interface was also clean and intuitive. The layout of the page looked much more professional, allowing more choices of customisation in the look-‐and-‐feel of the survey, such as including the logo of one’s institution. • Respectable list of clients -‐ many of the Fortune 500 companies and the worlds top universities. • Friendly and efficient customer support. 4 The most popular ones: Qualtrics, SurveyMonkey, Zoomerang, SurveyGizmo, GoogleForms and Wufoo. 29

4.2 Data compilationCompiling the data was done in two sequential phases: • Filter the sample and answers for increased validity. • Then, produce cross-‐analysis. We now examine these two phases in more detail. 4.2.1 Filter from 378 to 200 respondersA satisfactory response was obtained from recruitment: 378 respondents completed the survey either fully or partially, with response rate of approximately 53%. However, in order to ensure more robustness to the acquired data, we applied a filtering process to separate the valid responses from unfruitful replies. Unfortunately, cutting had to be brutal. In order to ensure a more homogenised sample, nearly half of the 5initial responders had to be excluded from the analysis phase. The final 200 valid replies were from responders who: • were practitioners (employed, unemployed and freelancers). Academics and students were excluded st from the 1 question onwards. • had consumers as their end users – meaning that B2B responders were excluded. • claimed having used trend reports at least once. Sadly our initial idea of comparing users and non-‐ users of trend reports had to be dropped because of the unexpected low number of responders who said they had never used trend reports (just 41 respondents). • have answered all obligatory questions. As predicted, that was the most substantial cut in the survey, but it was an important measure to simplify data analysis. • were from Europe, North America and South America. There were indeed a small number of replies from Asia, Africa and Australia, but they were not enough to represent those groups. • presented consistent statements. There were only few instances (8 out of 378) in which responders were excluded because of contradictory replies. • were users or users/creators of trend reports 5 Having an exact number of replies in the analysis wasn’t a deliberate decision, but a lucky coincidence. 30

Final demographicFor the most part, we had a relatively even distribution of our independent variables (years of experience, department, product type and company size). Location was the only variable that presented an exceedingly 6large discrepancy between groups : • Years of experience: less than 5 years (17% or 34 resp.), 6 to 10 years (29% or 57 resp.), 11 to 15 years (29% or 57 resp.), more than 15 years (26% or 52 resp.) • Department: design (56% or 112 resp.), non-‐design (44% or 88 resp.) • Type of product: durables (59% or 118 resp.), non-‐durables (41% or 82 resp.) • Company size7: micro (38% or 75 resp.), SME (39% or 77 resp.), large (24% or 48 resp.) • Location: Europe (70% or 140 resp.), North America (16% or 31 resp.), South America (15% or 29 resp.) In order to make the results more manageable, some categories had to be reclassified into smaller groups. With ‘department’, for example, seven possible choices (Design, Marketing, Planning, Engineering, Production, Administrative and Other) were reduced to only two choices in the analysis (‘design’ and ‘non-‐design’). It is important to note that those changes did not represent any disturbance in the examination of survey results. The table in appendix 032 (App. 03) describes the final demographic of the survey with more details. 4.2.2 Cross-analysisOnce the data was filtered, we applied a series of simple cross-‐references on Excel using pivot-‐tables. We did a brief trial with more traditional statistical tools, such as SPSS software, but Excel was considered a simpler and more straightforward tool since the researcher was already familiar with that particular type of analysis. In order to ensure the quality of the quantitative analysis, besides referring to related literature, the researcher has also consulted statisticians and people who were familiar with this type of analysis. 6 Those ‘distortions’ or ‘vices’ in the resulted sample were also carefully considered in the analysis. 7 Definitions are as follows: Micro (less than 10 employees), SME (between 10 and 2,500 employees) and Large (more than 2,500 employees). This classification was created by the researcher, based on the original definition for SMEs, according to the European Commission (2003). A figure of the original document can be found in appendix 04. 31

The analyses were divided in three groups: Fig. 09: Cross-‐analysis from the web-‐survey. 4.3 ResultsWe now revisit the assumptions one by one bringing out the most interesting results from each category and the various cross-‐analyses. 4.3.1 Group 02 vs. Groups 1 and 4: how the u s e of trend reports can be affected bythe characteristics of person and company.The participant’s individual use of trend reports were measured by how long they have been using them and by how intensively they were interacting with them. It was not surprising to see that more experienced participants rated more highly for the use of trend reports. Design departments also appeared to use them more intensively than expected. 32

GROUP 01 -‐ Individual GROUP 04 -‐– Company Yrs of EXPERIENCE DEPARTMENT COMPANY SIZE TYPE OF PRODUCT LOCATION A1. More A2. Design, more A3. Larger A4. Durables, more A5. Wealthier experienced, more time using TR. companies, more time using TR. locations, more time time using TR. time using TR. using TR. REINFORCED REINFORCED UNEXPECTED UNEXPECTED REINFORCED 62% of participants There was barely any No major differences No major differences ‘North America’ had by with ‘more than 15 difference for how between groups. between groups. far the largest TIME USING TR years’ of professional long design and non-‐ percentage of experience have been design departments responders saying they using trend reports have been using have been working for ‘over 10 years’. trend reports, but with trend reports for Conversely, 59% of ‘design’ was using ‘over 10 years’ (39%). participants with ‘5 or trend reports for a bit By contrast, 59% of GROUP 02 – Use of Trend reports less years’ of longer than ‘non-‐ ‘South Americans’ said experience have been design’ they have been using them for ‘1 to 3 working with trend years’. reports between ‘1 and 3’ years. A6. More A7. Design, less Not relevant. Not relevant. Not relevant. experienced, less interaction. interaction. UNEXPECTED VERY UNEXPECTED No major differences No major differences VERY UNEXPECTED More experienced Responders from between groups. between groups. Responders from designers have more ‘design’ departments ‘South America’ were interaction than showed some more more positive in all INTERACTION novice, except for intensive use of trend categories. ‘Europe’ ‘note making’. In reports across most had the least ‘reading intensity’, for questions, except for interaction in most of example, 62% of ‘note making’ in them. experienced and 41% which both had very of novice said they similar results. ‘read trend reports’ ‘Design’ was carefully. particularly higher in ‘referral during and after project’. Table 05: Cross-‐analysis from the web-‐survey. 4.3.2 Group 03 vs. Groups 1 and 4: how the o p i n i o n on trend reports can beaffected by the characteristics of person and company. 8Participant’s individual opinions were measured by ‘creative’, ‘financial’ and ‘NPD’ values of trend reports . More experienced participants seem to have higher opinions about trend reports they have worked with, except for ‘NPD value’. Once again, ‘design departments’ have been more positive than first expected, putting some more positive ratings in particular to ‘creative’ and ‘NPD values’. ‘South America’ has stood out by a quite enthusiastic opinion for ‘creative value’. 8 The questions related to each value of trend reports (creative, financial and NPD) can be found in the appendix 03. 33

GROUP 01 -‐ Individual GROUP 04 -‐ Company Yrs of EXPERIENCE DEPARTMENT COMPANY SIZE TYPE OF PRODUCT LOCATION A8. More A9. Design, less A10. Larger Not relevant. Not relevant. experienced, more creative value. companies, more creative value. creative value. REINFORCED VERY UNEXPECTED UNEXPECTED UNEXPECTED VERY UNEXPECTED No major differences Both groups had Very similar results, ‘Durable’ products South American between groups, exceptionally similar except for were a bit less participants were except for results, but for one participants from positive with regards more positive in all participants with ‘5 or category: 44% of ‘larger’ companies to how ‘inspiring’ and categories, except for CREATIVE VALUE less’ years of ‘design’ and 31% of being a bit less ‘ahead-‐of-‐the-‐curve’ ‘reliable’ in which professional ‘non-‐design’ have positive with regards the trend reports they they are all very experience being ‘strongly agreed to ‘inspiring’ -‐ 17% of have worked with similar. ‘South much less positive about trend reports them disagreed that have been for them. Americans’ showed with regards to trend having been inspiring trend reports were an particularly a lot of reports being ‘ahead-‐ to them. on that issue. enthusiasm in with of-‐the-‐curve’ -‐ 35% of trend reports having them ‘disagreed’ that been inspiring for category, while 25% them -‐ 66% of them of ‘more than 15 strongly agreed to years’ have ‘strongly that issue. agreed’ on the same category. GROUP 03 – Opinion on Trend reports A11. More A12. Design, less A13. Larger A14. Durables, more A15. Wealthier experienced, more financial value. companies, more financial value. locations, more financial value. financial value. financial value. REINFORCED UNEXPECTED REINFORCED UNEXPECTED VERY UNEXPECTED 73% of participants No major differences Responders from No major differences No major differences FINANCIAL VALUE with ‘more than 15 between groups. micro companies between groups. between groups, but years’ of experience were a lot less ‘Europe’ this time was ‘agreed’ to trend positive: 27% of them the one with less reports being ‘money disagree for money positive replies. well spent’. 32% of well spent. ‘South America’ was participants with ‘5 or the most positive. less years’ of experience have ‘disagreed’ on the same category. A16. More A17. Design, less NPD A18. Larger A19. Durables, more A20. Wealthier experienced, more value. companies, more NPD NPD value. locations, more NPD NPD value. value. value. UNEXPECTED UNEXPECTED VERY UNEXPECTED VERY UNEXPECTED REINFORCED Participants with ‘5 or No major differences Participants from Participants working No major differences less years’ of between groups. ‘larger’ companies with ‘durables’ saw between groups. NPD VALUE experience were ‘Design’ was slightly were less positive: less NPD value in ‘North America’ was more positive than more positive – 36% 54% of them think trend reports: 49% of the most positive – others: only 26% of of them and 43% of trend reports are not them said they think 10% of them think them think trend ‘non-‐design’ said essential, while of trend reports as trend reports are a reports are not trend reports are ‘not others are around not essential (32% ‘must have’ (3% of essential, while all essential’. 35% in the same for non-‐durables). ‘Europe’ and no one others show higher issue. from ‘South America’ figures (about 40% in the same category). each). Table 06: Cross-‐analysis from the web-‐survey. 34

4.3.3 Group 05 vs. Groups 1 and 4: how the i n v e s t m e n t in trend reports can be affected by the characteristics of person and company. Participants have given some indication on how much their companies invest in trend reports by the number of reports they purchase and create a year. Not surprisingly, the larger the financial resources, the bigger the investment in trend reports. In general, wealthier countries and larger companies have indeed presented larger numbers for purchase and creation. GROUP 01 -‐ Individual GROUP 04 -‐ Company Yrs of EXPERIENCE DEPARTMENT COMPANY SIZE TYPE OF PRODUCT LOCATION Not relevant. A21. Design, less A22. Larger A23. Durables, more A24. Wealthier purchases. companies, more purchases. locations, more purchases. purchases. No major differences UNEXPECTED REINFORCED UNEXPECTED REINFORCED between groups. No major differences Responders from No major differences No big differences in between groups. micro companies between groups. ‘location’ but said their companies wealthier regions purchase much less (North America and TR PURCHASE reports than the Europe) seem to others. 68% of them purchase a bit more dont buy any trend than poorer regions report at all. That (South America). number pales in GROUP 05 – Investment in trend reports comparison to the ones from responders from larger companies -‐ 29% of them said their companies buy more than 5 trend reports a year. Not relevant. A25. Design, more A26. Larger A27. Durables, more A28. Wealthier creation. companies, more creation. locations, more creation. creation. No major differences UNEXPECTED REINFORCED UNEXPECTED REINFORCED between groups. No major differences Larger companies are ‘Durables’ showed Clear difference -‐ 39% between groups. the ones who create fewer percentages for of North Americans TR CREATION more trend reports their yearly creation said they create than others -‐ 38% of trend reports: 38% more than 5 trend said more than 5 of them said none reports a year while and 25% said 3 to 5 and 21% said over 5 48% of South reports. Thats 29% reports (23% and Americans said they and 12% for SMEs 28% respectively for create no trend (respectively). non-‐durables). report at all. Answers from Europeans were spread very evenly. Table 07: Cross-‐analysis from the web-‐survey. 35

4.4 DiscussionTaking the research questions as a starting point, this survey has explored real experiences of how professionals in general have been using trends reports and what is their opinion about them. It was also obtained some idea of how much investment companies have been putting into acquiring and creating those types of reports. The results from the cross-‐analysis have shown very little difference between most groups in general. The most surprising result to the researcher was the low level of different opinions between design and non-‐design departments. From what was previously seen in the literature, it was expected a much less positive position from the design sector towards trend reports. The low number of people who said they had never used a trend report before was also surprising. The researcher speculates some possible explanations for that situation: • The use of trend reports has indeed become a widespread common practice; • Despite the explanatory text in the survey, people could have mistaken trend reports for other types of reports (competitor analysis, user research, etc); • Participants just completed the questionnaire because they were curious about the results. There was also a high number of participants who said their companies don’t purchase any reports at all – that could potentially be an indication for the increasing influence of the internet as main source for trend forecasting material. That could also potentially reinforce the power of informal research in that scenario. Something that has also caught our eyes was the relatively negative scores for being ‘ahead-‐of-‐the-‐curve’ across all groups – a characteristic that probably most people would expect from a trend report. On the whole we observed quite positive results towards the use and opinion of trend reports. It seems like people do use them fairly frequently and they do see them generally as a good tool. However the very low level of ‘must have’ and the relatively high number of ‘not essential’ answers in ‘NPD value’ was certainly intriguing. This survey was designed to provide an essentially descriptive analysis in the use and opinion of trend reports. Some of the constructs could be used to explore relationships more statistically. In hindsight, had more attention been given to the potential statistical analysis, some of the questions might have been phrased differently. As a result, several questions were not included in the final analysis, but they did provide useful contextual information. 36

Key learnings for next phaseAs mentioned previously, the main purpose of the quantitative phase was to inform the design of the central methodology of this study – the qualitative interviews. Below is a list of those key findings, which will be explored further in the following chapter: Fig. 10: Key learnings from the quantitative phase to the qualitative phase. 37

CHAPTER 05 Qualitative interviews 5.1 OverviewIn the previous section the first sub-‐set of research questions was answered via a quantitative methodology. As it is common with quantitative approaches (Bell, 2005; Robson, 2003), the survey we designed was deliberately aimed at more generic and superficial statements about the use of trend reports. This section, however, discusses the second sub-‐set of research questions, which was approached through a qualitative methodology, narrowing the scope of this investigation and focusing on issues specifically related to product design. In a series of one-‐to-‐one semi-‐structured interviews we asked eleven designers and design managers about: RQ03: What do they (as designers who work with product design) think about trends research and trendreports?RQ04: How do they (as designers who work with product design) see the role of trends research and trendreports in product design?The quantitative phase focused solely on getting real, tangible data. However the qualitative phase aims not only at obtaining data on real experiences (RQ03), but it also includes more open and abstract questions, discussing what participants would consider to be the ideal version of a trend report for their field (RQ04). First some considerations are made with regards to the use of a qualitative methodology and its major benefits and challenges. The design and analysis of the interviews are then discussed, and the chapter ends with the interpretation of the outcomes from the interviews followed by a discussion of the entire chapter. 38

5.2 Some considerations on qualitative interviewsOne of the main advantages of semi-‐structured interviews is that they allow for a flexible and more tailored approach to the investigation. The exact question wording can be changed on the spot, adapting to each particular interviewee’s understanding (Crilly, 2005). The more ‘casual’ tone of these types of interviews can give the impression of unscripted conversations, but in fact the “behind-‐the-‐scenes” of such interviews are very complex and require a certain experience with them in order to get the best results (Robson, 2003, Mason, 2005). On one side, qualitative researchers have to keep the interviewee engaged, maintaining spontaneity and encouraging them to talk freely without feeling pressured or inhibited by the questionnaire. On the other, they have to keep the focus of the research, making sure that all research issues are systematically covered. Bias is also a common concern with qualitative research. Interviewers have to take great care in avoiding leading or biased questions. Some authors, such as Mason (2002), do not even believe ‘neutrality’ is possible. As a consequence, qualitative researchers have to constantly reflect upon their interference and influence in the process (Mason, 2002; Flick, 2006; Robson, 2003). The legitimacy of the research can also be a major concern here. However, since the role of a qualitative researcher is so prominent, measures of validity and reliability are not as ‘black & white’ as they are in quantitative approaches. In that case, Mason suggests for example, that “this concern should be expressed in terms of ensuring – and demonstrating to others – that data generations and analysis have not only been appropriate to the research questions, but also thorough, careful, honest and accurate” (Mason, 2002). Robson (2003) suggests a number of techniques to rule out threats to validity in qualitative designs: • Triangulations of data, observers, methods and theories; • Peer debriefing and support; • Post-‐interview verification and returning materials such as transcripts to respondents; • Negative case analysis or ‘playing devils advocate’; • Audit trail, keeping track of raw data as well as details of coding and analysis. In any case, most authors agree that a thorough, rigorous and transparent approach is the key to increase reliability in qualitative research (Mason, 2002; Robson, 2003; Collins, 2010; Flick, 2006). 39

5.3 Designing the interview5.3.1 SamplingAs stated before, this phase focuses on the realm of product design. Thus unlike the sample from the quantitative phase, which was more or less open to varied types of professionals, this time the recruiting strategy was much more targeted. This phase had only participants who were either designing products themselves or were directly working with product designers. As seen from the literature review, most studies have aimed at talking to design managers and design directors, leaving senior and middleweight designers in a more secondary role. As a response to that gap, this research has made a conscious effort of flipping that situation around. Thus from the eleven interviewees, only three were in a management position (table 07). 1 Interviewee COMPANY INDIVIDUAL 2 Identifier Industry Size / Location Seniority Education Experience with reach TR 3 EI-‐03* Consumer Large / London Mid-‐weight MA, Product Design Use + create electronics Global EI-‐07* Senior MA, Product Design Use EI-‐20* Mid-‐weight MA, Graphic Design Create EI-‐99* Manager MA, Graphic Design Create EI-‐49* Large / London Senior MA, Product Design Use Global EI-‐42 Head of studio MA, Product Design Use EI-‐86 Sportswear Large / London Senior MA, Product Design Use Global EI-‐57 SME / London Senior MA, Product Design Use Global EI-‐78 Jewellery SME / São Paulo Mid-‐weight BA, Product Design Use + create Local EI-‐47* Design SME / São Paulo Manager MA, Product Design Use Agencies Local EI-‐87 SME / London Senior MA, Product Design Use Global Table 08: Interviewees’ profiles. 1 Randomly coded for increased measures of confidentiality. 2 As referred in the quantitative phase: Micro (less than 10 employees), SME (between 10 and 2,500 employees) and Large (more than 2,500 employees). This participant used to create trend reports in a previous job. He/she no longer creates them at his/her current job. 3 40

Six out of the eleven participants belonged to the researcher’s personal network (see table 07) and were contacted individually via email. The other six interviewees were contacted via personal messages on 4LinkedIn . The emails presented the researcher as an MPhil student from Cambridge University and explained that: • The researcher was looking for design managers and product designers to take part in interviews on the use and value of trends research as well as trends reports in product design; • The main objective of the research was to study the impact of future forecasting in product development; • The ultimate goal of the interviews was to point out to some latent problems and possible improvements in that type of praxis. • Data would be obtained via audio recording, and its content would be kept anonymous and strictly confidential. The interviewees would also sign off on all the quotes used in the final work. • Each interview would take about 1 hour and that although the researcher was suggesting some specific dates, there was some flexibility on when the interviews could take place. Once that email was replied to, and before the invitation was accepted, the researcher confirmed with possible participants if they would be OK with being interviewed at their offices, as we needed to do a quick analysis on actual trend reports made by or for their companies. They were also told that no pictures would be taken, but that the researcher did need to make a quick structural analysis of the reports in situ alongside the interviewee. Though small and not all-‐encompassing for practical reasons, our sample still presented a very fruitful platform in terms of qualitative investigation. By including, for example, some participants that belonged to the same company, we had a good opportunity to analyse different points-‐of-‐view of the same trends research strategies. All participants were from well-‐known and leading companies and had been working directly with product 5design for at least four years , with varied levels of experiences with trend reports (see table 07). 4 This time, instead of just sending open invitations, specific LinkedIn groups were used as a means to scout and to get in touch with relevant professionals. 5 There was an average of 8 years of total professional experience among them. 41

Although the quantitative results showed no major differences between different group characteristics, it was also decided to include participants developing products with different lifecycles. In total, seven companies were assessed: two large consumer electronic companies (mobile phones and home appliances), three fashion/apparel companies (sportswear and jewellery) and two design agencies designing products for different brands. In order to avoid biased propositions, our sampling strategy also included designers who were openly against or not at all bothered about trends research in their daily process. That kind of information was obtained with participants usually at the moment of invitation. In all cases, the researcher made sure that no side was being taken – the researcher didn’t present herself as either against or for trend reports. A final consideration was made with regards to ‘location’. As the previous phase had shown some interesting discrepancies from South America, the researcher took the opportunity to interview two designers in São Paulo, Brazil. The low number of interviewees in this case was mostly due to lack of time and resources. Considering the type of methodology and specially the lack of major differences between the interviews from São Paulo and London, the researcher decided to disregard the large discrepancies in this aspect of the sample. 5.3.2 Visual props and exercisesProps are good conversation starters and they also help to “break the ice”, stimulating interviewees to be more talkative (Mason, 2002; Bryman, 2004). In our case, since our target was supposedly more visual, we have also made an effort to bring a set of visual props so to make the 1-‐hour sessions more dynamic and hopefully more engaging as well. In total, four visual props were used in the interviews: trend reports, trend map analysis, trends research ‘should/should not’ and the NPD value results from the previous quantitative phase (see Fig. 11). Apart from some few exceptions, the exercises were followed in that particular order. That arrangement was done so that the interview would flow from more specific and real examples to more ideal and broader issues related to trend reports. We now present the main ideas behind each exercise. 42

Fig. 11: Exercises from qualitative interviews -‐ trend report analysis, trend map analysis, should/should not and trend reports’ NPD value (clockwise order). Exercise 1: Trend report analysisParticipants were asked to bring a trend report made by or for their companies. There were no restrictions to what type or number of reports they could bring, as long as they had actually used it (or them). The topics related to this exercise were: • What are considered good and bad practices? • How did they use that specific report? • How useful or inspiring was it for them? Why have they brought up that specific report? What do they like and don’t like about it? How did it compare to others they have used in the past? 43

• How do they see the relationship between in-‐house and outsourced reports? • What processes their companies have? Who creates them? Who commissions them? • What participants considered being trend reports? Exercise 2: Trend map analysisParticipants were presented with a ‘trend map’, which was a graphical representation (created by the researcher for this study) that illustrates the interaction between trends research and the design process (see Fig. 14). They were provided with colourful pens and were encouraged to make notes on the sheet. The main objective for this exercise was to obtain information on good and bad practices, but also to understand: • Where they are in the process and which activities they usually relate to each phase; • What is the usual dynamic amongst different stakeholders (researchers, designers, managers, marketers, sales staff, executives, etc)? Where are the main bottlenecks? • What is the relationship between formal and informal research? • Do they think product designers should be involved in trends research? Can product designers make good trend reports? • Do they think the background of researchers has any influence in the quality of the reports? • What is their opinion about the ‘trend map’ presented? Would they like to propose any changes? Exercise 3: Should/should not analysis 6Participants were asked to select three or four verbs from a pre-‐set list of fifteen . Those verbs would have to express what they believed trends research should and should not do in a product design environment. The selection of verbs was based on literature findings on most common uses fore reports and trends research. The verbs were also chosen by its ambiguous connotations, which were ‘conversation starters’ about why they have chosen a particular verb to be on the ‘should’ and not on the ‘should not’ side. Any misunderstandings on what the meaning of each verb were clarified at the spot. Participants were also encouraged to suggest more words in case they felt there were any missing. Most interviewees however used the verbs provided, without suggesting changes. 6 The verbs were: inspire, stimulate, open minds, encourage, inform, clarify, keep track, guide, control, force, restrict, constraint, reassure, tranquilise and decrease risks, anticipate, lead to tangible results and simulate and convince. 44

Questions related to this exercise would consider: • What do they believe should be the role of trends research and trend reports in product design? • What do they think trends research should/could do and what it shouldn’t/couldn’t do? • What would be the ideal trend report for them as product designers? What kind of content and layout would better suit their needs? Exercise 4: The value of trend reports for NPDParticipants were presented with the results of question 19 from the quantitative analysis, which read “Considering the development of successful products, trend reports are: a must have, nice to have or not essential”. The researcher briefly explained the background of those results and then asked the interviewees how they would answer that question and why they made that specific choice. Questions related to this exercise would investigate: • Possible reasons for very low results in the quantitative analysis for trend reports being a “must have”. • If participants from design departments presented such positive feedback about trend reports, and if they were so useful and inspiring to them, how come so many of them have said trend reports are not essential to the development of new products? 5.3.3 Interview guideAn interview guide was sent to all participants before the day of the interviews. The idea was to give a more detailed idea of what issues the interview would cover, thus making participants feel more relaxed as they could prepare themselves if they wanted to. The PDF document also reinforced the confidentiality issues and explained how the quotes would be displayed in the dissertation, reminding them that all quotes used would be signed-‐off by them. The guide also explained that the interview would start with more real and specific issues and then move to more ideal and broader questions. 45

5.4 Data compilation and analysis5.4.1 TranscriptionAll audio was transcribed -‐ eight by the researcher and the remaining three by a certified transcription-‐ 7company in India . They were each put into separate Microsoft Word documents and every sentence was tagged with time stamps – so to make structuring easier. The transcription was done literally and not in an interpretive manner (Mason, 2002). Some of the text was edited by the researcher in order to remove unimportant “speech habits” – such as “you know”, “like”, etc. 5.4.2 CodingThe coding was done in an open manner (Flick, 2006; Mason, 2002) according to the following steps: 1. All the transcriptions were compiled together in a single Microsoft Excel file with the following headings: questions asked, interviewee code, answers, topics and sub-‐topics 1, 2, 3 and 4. 2. The interviewees’ quotes were initially put into that file in order of appearance – from the first person to be interviewed to the last. Each quote received a number (coding) for later potential data finding. 3. Every quote that caught the researcher’s attention was highlighted in a different colour. Those were the ones that were considered as potential sources for insights. 4. Then each quote received 1 to 4 keywords that summarised them. These keywords were then later renamed as ‘sub-‐topics’. Those sub-‐topics were then classified into smaller groups listed by 9 ‘topics’. 5. Those topics were then put in front of the sub-‐topics back in the Excel file. At that stage some ‘judgement calls’ were needed since some keywords would fit into different topics, thus causing some overlapping. That situation was overcome by the interpretation of each quote. 6. The appearance of topics and subtopics were counted to see if there was any possible insight coming from the number of responses to a subject. 7. The distribution of topics and sub-‐topics was once more assessed and topics were then clustered in 4 main topics: constraints, why not use trend reports, reports and the role of trend reports. 7 The difference in how the transcriptions were made had no relevance in the analysis of that data. 46

8. Those new and final categories were distributed into the previously highlighted quotes. That way we went from 410 to 164 quotes. 9. The quotes were once again checked to see if the topics and sub-‐topics to which they belonged to still made sense. Fig. 12: Analysis of interviewees’ quotes (actual results). 11. Also, the number of times each keyword had been voiced and by whom was counted. That was done through an iterative process of counting the appearances of those keywords in the Excel file. The idea however was to keep the counting as casual as possible – with no attention paid to statistical relevance. Had we not done that, we wouldn’t be able, for example, to see that the process of ‘filtering existing trend reports’ was mentioned 30 times in the various interviews. This was also done to avoid losing perspective on how relevant each topic was through the filtering process. This process, although long and complex, was very useful to help build the narrative for understanding and presenting the results of the data analysis. 47

5.4.3 Analysis of exercisesAnalysis of exercise 1: Trend reportsAsking participants to bring a report they had worked with to the interview was a good way to make participants recall past experiences. Most participants brought reports made in-‐house – even the ones that do not work at companies with in-‐house trend departments. Fig. 13: Analysis of trend reports in Microsoft Excel. Content is filled here with “Lorem Ipsum” quotes in order to keep anonymity of interviewees. Analysis of exercise 2: Trend mapTo this part of the analysis, quotes from interviewees that referred to “main bottlenecks they see in their current trends process” were placed on the trends map. The colours are related to the results of exercise 04. 8 Fig. 14: Analysis from quotes of “trend map” exercise . 8 EI-‐03 appears three times in the graph because the interviewee has pointed the “decision moments” as the most challenging ones. 48

Analysis of exercise 3: Should/should notAs illustrated by the figure 15 below, the verb frequency results were laid out on a bubble chart, where each circle was proportionate in diameter to the amount of times the verbs from the exercise were chosen by a participant. The groups of verbs were then clustered into smaller groups of similar affinity: 9 • Group A: inspire, stimulate, open minds and encourage . • Group B: inform, clarify and keep track. 10 • Group C: guide, control, force, restrict and constraint . • Group D: reassure, tranquilise and decrease risks. • Group E: anticipate, lead to tangible results and simulate. • Group F: convince. Fig. 15: Bubble diagram. “Should” answers are shown in green and “should not” answers in red. 9 Actually suggested by one participant, as “a trend report should not discourage creativity”. 10 Force, restrict and constraint were verbs suggested by participants. 49

It is important to note that, although the circles from the graph were originated by numerical correlation – seven votes, made a 07cm large circle in diameter for example -‐ the purpose of this exercise was by no means to get an exact or representative opinion from the sample. Analysis of exercise 4: Trend reports’ NPD valueAs interviewees presented opinions more or less favourable towards the “new product development value” of trend reports, their attitude were illustrated in a spectrum from ‘plus and minus’. Various types of analysis were tried out (company size, product type), but the collation of those results with the level of seniority from the interviewees have provided some interesting clusters. Fig.16: Analysis from trend reports’ NPD value exercise. Interviewee EI-‐42 was not circled, simply because there was no pattern formed around him. 5.5 Interpretation of findingsThe exercises were not only used during the interviews as triggers and conversation starters, but also used to help analyse the outcomes of the interviews. It is important to note however, that although there were questions attached to each one of them, as we have seen on section 5.2.2, the exercises were not meant to be rigid. In other words, the outcomes from the interviews were analysed quite freely, not following any scripts. Below we discuss our findings in detail. 50

5.5.1 Trend reports as sources of discoveries“Tough crowd” to pleaseDesigners are knowingly very close to trendsetters and early adopters, be it in on their social or professional networks. That means they usually are already aware of much that is being presented in trend reports, which makes them a very “tough crowd” to please when creating trend reports. Product designers are naturally interested in new and interesting ideas – as Raymond (2010) puts it, they are “cultural magpies”. Reading magazines, checking blogs and websites is part of their daily lives. The Internet has also multiplied the access to all kinds of information. Our interviewees told us about the multitude of information sources they make constant use of. All our interviewees visited coolhunting blogs and other trends related websites very frequently. Some even said it was part of a designer’s job to do that (EI-‐07, EI-‐57). “Designers are already collecting things everywhere they go, when you see a TR, you’ve kind 11of already seen most of the stuff.” (EI-‐07/ 02) Providing them with something new on a trend report thus can be very difficult. Some participants have, for example, complained about reports recycling the same imagery and ideas over and over (EI-‐07, EI-‐47). Preaching to the choirAn interesting insight that came from designers was the acknowledgement that the kind of trend report that were most useful for them were the ones that presented information beyond colours and materials. Obtaining that kind of information was not seen as a bad thing per se – they did say it was good having a summary of what is happening worldwide. But for the product designers we have interviewed, trend reports that just present colour-‐material information were not engaging or inspiring enough. They need a story and a rationale behind each colours and materials trend. “Presenting us that (TR) for 2012, it’s inspiring, it’s nice, but we shouldn’t be looking at that because trends move so fast nowadays, we should be really looking at consumer behaviour, rather than what colours and graphics are in. We should really be looking at why those specific colour is in, like, this colour is coming back because it’s a result from this and that trend”. (EI-‐78/12) 11 Coding for interviews work the following way: in the case of “EI-‐07/02”, “EI – 07” = expert interview with identifier number 07; and the number after the slash, in this case the number “12”, represents the number of the quote, according to the researcher’s notes. When they come with time stamps, like “19:50”, for example, it means that that particular quote was not part of the highlighted quotes, chosen by the researcher, but they were still interesting enough to appear in the dissertation. 51

Also colour-‐material is seen as “their area”, and therefore something they say they already know enough about. Obtaining that kind of information for them seems very easy since, according to most of participants, they usually have a good instinct for knowing what is the next colour or a desired functionality. “I personally found this report more interesting than the design trends one. Somehow, as a designer you know a lot about design. You can somehow in an intuitive way, predict what is going to happen.” (EI-‐49/ 08:34) They appreciate the opinion of experts in social-‐cultural shifts because that is the area they are not experts in (EI-‐78, EI-‐49). 12The work of the trends agency The Future Laboratory was highly praised. According to many participants, FutureLab, as it is also known, provided a very good balance between aesthetics and social cultural data. No reports from that agency however were brought to the interviews. In fact, no one has mentioned specifically trend reports from FutureLab. Most were referring to FutureLab’s biannual magazine Viewpoint as well as to their online tool called L:SN and to their biannual presentations, Trend Briefings. “When you get the briefs from the category managers, their briefs are so heavily based on what is out there already in the market, but FutureLab just doesn’t get down to that – they go beyond people are wearing this or that kind of sneakers”. (EI-‐57/ 17:15) It is important to note that some interviewees were not that impressed by the work of outsourced agencies, such as FutureLab’s. They were considered too “generic” or too “abstract”. Interestingly that kind of opinion came especially from participants who were very keen in finding out about technological advancements (EI-‐07 and EI-‐49). “You can’t be too abstract because I know that the presentations from FutureLabs, a lot of people switched off because they felt it was very pretentious and super heady and had nothing to do with anything.” (EI-‐57/ 18) 12 There is a caveat in this situation, which is that most interviewees, 9 from the 11, worked in London, which is where FutureLab is based. 52

5.5.2 Trend reports as boundary objectsLack of knowledgeAlthough our focus was on the designers’ own perspectives and experiences with trend reports, the interviewees also voiced some important constraints coming from non-‐designers (marketers, business and sales people). The lack of knowledge of non-‐designers about how designers work was indeed a widespread complaint, but it was also noted that those kinds of concerns came especially from interviewees working at smaller companies 13with a background of family businesses . “Our creative director would go ‘let’s make our next collection about flowers because I’ve seen a lot of flowers in the European fairs’. Sometimes they come with some pictures from magazines and say ‘we could do something in this style’.” (EI-‐86/ 02 & 03) That “lack of knowledge” in creative processes seemed also to extend to forecasting practices. Designers have said they sometimes have to “educate” non-‐designers about trends. There were a lot of comments about how non-‐designers were misinformed about how trends research “should” work. Some interviewees, for example, have reported cases of coolhunting material or “poorly done” trends research being used as key elements in decision-‐making. “We don’t necessarily pay attention to those generic things, but I think other sectors of our company do. When a trend report comes from a respected consultancy and we paid a lot of money for it, they see value in what’s in there and then they make decision based off of it, which can be risky.” (EI-‐07/ 01) There were also reports of decision-‐makers requesting ‘make-‐do’ researches or simply not purchasing or creating any trend reports because they do not see the value in forecasting for design. “My boss doesn’t go to their presentations (FutureLab) or really read their reports. I think he thinks it’s just an expensive service that it’s just a lot of intellectual stuff.” (EI-‐57/ 04) Interestingly, some relatively negative remarks were made not only towards “non-‐designers”, but also to some more “old-‐school” designers who were set in their comfort zones and not willing to keep up-‐to-‐date. “But I imagine this (agency’s trend report) might have been helpful for a lot of people. Maybe for older designers, who have been here a long time and who know how the system works, so they don’t necessarily feel the need to go out there and see what is going on.” (EI-‐78/ 10) 13 Considering the size of our sample that could also surely be just a matter of chance. Further investigation is encouraged. 53

An “eye for design”Most of our interviewees thought that trend researchers do not necessarily need to have a solid background in design, but they do need to be able to articulate well and understand how designers work and think. “The ideal person to write a brief would be someone who can read a sketch. They don’t have to do a sketch themselves, but they need to at least imagine what this drawing would look like as a finished product. I think if you have an ‘eye for design’ you can see those things.” (EI-‐57/ 03) The idea of having two types of reports was frequently mentioned. One for management and business people, heavy with information, market share data, numbers and graphs; and another one for designers, which should be more visual and concise. “They have been looking at things like Mintel, WGSN and those reports. Many times they found them too heavy. What we normally do is simplify it; make it easy for them (product designers) to read. Because that’s more for us (researchers) to read. We need to simplify it and analyse it for these guys; they don’t care about reading tons of things.” (EI-‐20/ 05) “We realised that something physical is something that people like – specially the product managers. It’s something to sign-‐off of. You go like ‘You see’. And you need a good book to make it inspirational. But on the other side, for our internal designers, the book wasn’t really useful, because what we did as designers, we ripped out the pages. I mean, you want to have 14collages.” (EI-‐03/ 12) Lack of time and even lack of patience were the biggest reasons for their short interest in text-‐heavy reports. An ideal trend report for them would have bite-‐size, straightforward information with compelling images that help them understand concepts in seconds. “Designers are very visual people and once they understand this, they’ll just need to glance at that. The moment they have to read it, you’re lost.” (EI-‐42/ 19) The importance of producing not only interesting content, but also a visually engaging report was indeed very frequently mentioned. Designers are more comfortable expressing themselves either visually or verbally. A complicated report could mean they would either lose interest and look for some other source themselves or that they would lose too much time trying to understand what is being said. Some of them also said that pictures and videos were important since they would “stick in their minds” (EI-‐03, EI-‐49), making it easier for them to visualise the people they would be designing for. 14 As previously noted, each interviewee received the transcripts from their interviews via email as a form of ‘sign-‐off’ on what was said. It was made sure, that the main idea of the quote was kept. Most changes made for polishing vocabulary and grammar. This quote (EI-‐03/ 12) represents such case. 54

Opinions on “visual aids” were divided though. Diagrams were seen by some as very helpful but they were sometimes viewed as “too complex and abstract” by others. “I think of trend reports as being heavy on detailed data points that you have to extract value from – like charts, diagrams and stats; whereas design inspiration needs more than just numbers – they need to connect to real people in context. What people say they do versus 15what they actually do are usually two different things.” (EI-‐87/ 18) Also related to the role of researchers, having “good taste” was also mentioned more than once as a fundamental characteristic of any trends researcher (EI-‐42 and EI-‐57). “I think there are people with taste and people without taste. And there are also people who are able to anticipate taste. I don’t care whether they’ve got any design training or not. I just need them to be articulate and open to new stuff.” (EI-‐42/ 11) Reports as storytelling helpersThe lack of understanding and indeed trust and respect between internal divisions (specially between research and development departments) was very often cited during the interviews. As suggested by some interviewees, trend reports could act as “boundary objects” (Fox, 2011), working as a kind of symbiotic entity, 16navigating across those culturally defined boundaries . There were numerous occasions in which interviewees reported having used trend reports as a means to convince non-‐designers about a particular design path. From the data we obtained, it seems that this is currently the most common use for trend reports. “A lot of what we’re doing with trends is using it as a framework to justify why we’re doing things. When we go into our business unit meetings, we have to say this is the right product to do because you see, the design trend, it’s going that way and the consumers are doing this. It’s very much about building a level of reassurance and belief.” (EI-‐42/ 21:54) It seems like there is an increasing demand in providing more solid background stories and designers are being asked to provide the rationale behind their aesthetic decisions. As Nathan Crilly noted, “designers are often not natural writers” (Crilly, 2005), thus having a trend expert, either in-‐house or outsourced, was seen quite in a positive way by most interviewees. “I usually spend 3 hours in front of a computer screen, reading books and magazines. If we had something like WGSN, that would be really great because I could be using that time to create and design.” (EI-‐86/ 12) 15 Quote edited by interviewee, as noted on previous footnote. 16 The term “boundary object” was actually suggested a posteriori by a colleague, Burcu Felekoglu, in a feedback section at Institute for thManufacturing (28 March 2011). 55

“I think some designers could do trend reports. I personally consider that I cannot. Probably because I don’t have the patience. And you really have to have the skills to do it. Whenever I try to do just a simple task like finding inspirational images, I found it quite difficult. Sometimes I see that people that are really into that topic, they find much better images than I do. I think that is because they know what to search, what topics in particular. I don’t know if it’s a matter of a skill. I don’t, it’s probably just patience.” (EI-‐49/ 09) According to the interviews, researchers have increasingly gained more ‘power of decision’ in organisations due to their ability to rationally express reasons behind certain choices and not to just explain things based on “gut feel”. “There have been some projects that our product designers have not used trends research and they’ve done reports, they’ve struggled to get direction that creates a story. There were several projects that had to be restarted because they didn’t have a direction. So when they’ve got the trends, they’ve got that story and they’ve got a way to express it to the top management.” (EI-‐99/ 16) However, they also were very quick to point out that this was not necessarily a good thing all the time, particularly if the researcher does not understand enough about the subject matter or if the design team does not respect the researcher’s knowledge and background. “They tried at my previous company putting the trend department to guide the designers, but it was so difficult sometimes, especially for some more technical products. They had all these themes that were definitely very fashion and interiors-‐based. Then you tried to apply that to a running product -‐ even if pastels and muted pastels are big on the runway, it’s not going to work on a running shoe ever.”(EI-‐57/ 31) Another negative side effect of the seductive power of trend reports was the recognition that they are also being used backwards: there were some testimonies related to reports being used in ‘retrofits’, or post-‐justifications of design paths by designers and non-‐designers alike. “At the end, after the collection has been designed, then our manager will put together a mood board of the colour materials. So they don’t actually use it (TR) for creation but mostly for sales or for justifying a design direction.” (EI-‐57/ 11) “I’ve seen companies using outsourced reports, just to say they’ve done it. We weren’t following it. It was all for show.” (EI-‐78/ 07) Trusted partnersTrust was a big issue among participants. It didn’t matter if the reports were coming from in-‐house or being outsourced; designers were very explicit about their concerns with the source of the data – who was writing it, researching it and interpreting it. 56

Trust was also pointed out as an element needed in order to be confident enough to tell stories. If the researcher earns the design team’s respect, a good symbiotic relation between researchers and product designers can lead to experts being trusted and seen as a valuable ally in building up a validated story behind design concepts. “Our product designers are usually very open to trend reports. I think they trust us. Our Trends Manager is an expert and has a good reputation. Normally they never start anything without having our report first. And if they do start, they have to start it all over again. They can’t justify if they have done something if they haven’t followed our reports really.” (EI-‐20/ 02) Despite the big internal divide among company sectors, which was a complaint that came from all participants, having an in-‐house trends team was taken very positively. The reasons suggested by the participants were very closely related to any debate on the benefits of outsourcing – in-‐house would know the company better, outsourced would have an outsider’s perspective and so on. When to use themInterviewees that were not so amazed with the benefits of trend reports were under the impression that they would only be used in the beginning of the product development cycle. “Trend reports seem to come generally at the start of a project, but most of them tend to just be filtered out throughout the process. On my teams, we prefer to talk with a small sample of 17extreme users during the entire project.” (EI-‐87/ 07) Trends research was generally seen as an important feature to have in the beginning of the design process, however a lot of interviewees have said they would like to see trend reports being developed and used all the way – from the start to finish. That seems to make sense since trends are not a static phenomenon. In fact, that is an issue very important to product design – especially with products with long lifecycles. “Having a trend report before you start is useful, because it sets you in the frame to design for those off the moment issues, but then if you’ve got a 6 months timescale on your project, some of those trends are out of date probably. By the time you get to the conceptualisation phase it’s almost like you need another report, some more data, more updates to see if you’re still aligned or not.” (EI-‐07/ 09) Many participants mentioned the feeling that “trends move too fast nowadays”. That seemed to be something that also contributed to mistrust researchers’ competence, unless they really “keep up” with the pace of those changes. 17 Edited by the interviewee. 57

“Thats where trends are going to now, much more fluid, much more evolving on a sort of weekly, monthly basis.” (EI-‐ 42 / 19:50) 5.5.3 Trend reports as brand compassesVision unifiersOne interesting use of trend reports was as potential vision unifiers, particularly with large teams. They help the design team rally around the same set of information and recommendations, therefore increasing the chance that the team’s output will focus of the right things and not on what each individual thinks is right. “If there were no trend reports in our brand, imagine, we have a big number of designers working in our company, how would you all make them design with our brand in mind? Trends research aligns the thinking of the team.” (EI-‐99/ 18) Trend reports could also potentially prevent personal tastes from designers and managers coming before brand strategy. “Part of what I look for trends to do in consumer research is to help designers understand that their taste is not the only taste and they’re not designing for themselves and their friends in Hoxton. They’re designing for other people and we need to – we constantly need to have that sort of reference.” (EI-‐42/ 17) There were indeed many comments about research decisions being made based on personal tastes and not on hard data. “At my previous jobs the creative director would set the theme and from there we would do research. There was a trend director there and sometimes she would make a presentation of a trend concept but he wouldn’t necessarily listen to her. If he had a creative vision, he would just make it. So then sometimes trend director would do her trend report presentation after the theme he’d set. We were disconnected, like working in a bubble.” (EI-‐57/ 02) Clarify and help visualiseAnother related interesting use for trends was to help designers visualize their end customers in a way that helps them make better product decisions. “I want to have the right people in my mind, who Im designing for. If people can clarify to me how these people will live their lives in the future, then its easy to picture myself in their shoes and start designing for them.” (EI-‐03/ 08) 58

New and old formatsThere was a big variety of trend report formats brought to the interviews – books, leaflets, on-‐screen or printouts from PDFs and on-‐screen websites. Opinions were seemingly diverse – there were praises for both physical as well as online reports: “I think it’s much nicer when you have something physical, because you can always have access to it. Whereas when it’s in digital form you always get too lazy and you just don’t consult it.” (EI-‐49/ 15) “The nice thing about moving online now with this sort of bible of trends is that we can react quicker to things. We can track trends over time.” (EI-‐42/ 23) 5.5.4 Trend reports as sparksExercise creativityDesigners are constantly under pressure by top management for tangible results. That can bring some tension, especially with regards to trends research, which by its nature can only be based on uncertain information or “educated guesses”. The pressure and constraints posed by everyday challenges were also identified as things that could stifle the imagination in the long run. In that situation designers saw trend reports as a means to help exercise their creativity. The further they can look into the future, the fewer links with feasibility they need to have. A great advantage of trend reports is that they can help justify more “blue sky” and complex thinking as opposed to for example traditional user research reports, which usually focus on more current and direct issues. “Usually the shorter term projects don’t challenge technology as much. The timeframe usually does not allow a large investment, it’s frequently just not possible. You’re usually stuck with the technology. So the innovation you have is less; it’ll be more on usability, on design and styling. Compared to if you’re talking about 5 or 8 years, then you might challenge that technology as well.”(EI-‐03/ 03) Anticipating trends not as importantThe ability of a trend report to anticipate future behaviour was indeed taken as a given by some designers (4 out of 11), but somewhat surprisingly some participants have said they were not much bothered about a trend report being right or not (EI-‐42, EI-‐57, EI-‐99). For them the process of following trends and creating an internal 59

culture of always thinking ahead was more important than getting to tangible results. Also according to them, trend reports should be able to open minds, stimulate creativity and instigate experimentation. “It’s good if they anticipate, but whether or not WGSN can actually anticipate a trend, is not relevant to me. In the end, it’s really up to you. Everyone who uses this kind of service should use their own brain and see whether they disagree or agree with it. I don’t think it’s that bad if they try to anticipate -‐ it’s nice to know what they’re thinking about. It’s actually good theyre trying to anticipate things because otherwise you’re just reporting history -‐ it’s not relevant for designers then.” (EI-‐57/ 12) Challenging themselves and taking risksBusinesses need reassurance and numbers, but designers don’t seem to long for that reassurance: they want to be challenged by trend reports. Designers can live without trend reports, but businesses cannot. “I don’t really need reassurance. I’m not scared. My client is. I’d like the TR to reassure my client.” (EI-‐78/ 11) According to them, trend reports should not be safe; indeed, they must not be safe. “There is a big temptation when you get trends research just to use it to find the safe path, but trends should provoke a little bit. And if a trend doesn’t make me think, then I don’t need to read that trend. I need to challenge myself.”(EI-‐42/ 03) Pressure to be originalThe pressure for always bringing original solutions can come both from management but also from designers themselves. Following trends can thus feel almost like a non-‐starter. We heard from some of them that the role of designers is to create trends, not follow them (EI-‐47, EI-‐78). “As designers we don’t want to follow trends – we want to create them. We have to understand where things are going and try to go to the other side before anyone starts doing the same. We always have to be ahead of those trends.”(EI-‐47 / 35:10) “If I see a trend going one way, my instinct is to go the other. Everything Apple is doing, for example, is already consolidated, so it’d make no sense to do that. So I do study trends, but so I can see what I’m not going to do. So, it’s to eliminate things that have already been done.” (EI-‐47/ 04) The idea of trend reports ‘killing originality’ or ‘spoiling inspiration’ was a concern found relatively often in our interviews. Most of our participants have reinforced the importance of designers always being ahead of the trends – that reason alone would already be enough reason for not referring to trend reports as they could somehow lead them to imitate other designers. 60

5.5.5 Trend reports as recipe booksOwnershipThree different designers mentioned “recipe books” as a metaphor for the trend reports. The analogy backs up the idea, also very often cited, of trend reports being ‘starting points’ for design. It was reported by most designers that once they obtain a trend report, they tend to make their own versions of them – something like a tailored summarized version of the original document. It was noted that that kind of behaviour would happen regardless of the type of report -‐ colour-‐material or social-‐cultural, in-‐house or outsourced, etc. This filtering process also reinforces the importance of ownership for designers. “This comes from the trend team, which is the big high-‐level view. So we would take some of these trends out and then we will draw deeper into them. And I find the best way to do that is with the designers. And then you need the designers to own the vision. If designers don’t own the vision, then they won’t do it because designers are very stubborn people.” (EI-‐42/ 07) “A trend report is another ingredient for the designer and design teams to work from, however you need to pick what’s relevant and useful to your project and more importantly an approach that lets you design for your consumer’s needs. If you work solely from a trend report you might miss opportunities to design a solution that genuinely addresses an 18emerging need that might sit outside a report’s findings.” (EI-‐87/ 11 and 59:00) ‘Control’ was a big issue. In the ‘should/should not’ exercise, for example, a number of participants have suggested that trend reports should not ‘control’ or ‘guide’ them. Reports have to be open to interpretation and set loose guidelines. Interest in trend reports depends heavily in personal interest. Some designers were very keen in knowing more about trends and trends theory. “I’d be really interested to know more about trends’ theory. Something like a presentation in our work place.”(EI-‐86/ 01) 19Conversely, some interviewees did not see the need at all for that type of data as they were indeed quite pleased with the “tools” they had available – either by relying purely on inspiration or by obtaining results from other types of reports (market and/or research). 18 Edited by the interviewee. 19 Notably the two designers from design agencies (EI-‐47 and EI-‐87) and one senior designer from a consumer electronics manufacturer (EI-‐07). 61

Marking territoriesThere was a keen sense that forecasting is usually seen as a marketing’s territory or as a business strategy. “I was interviewing sometime ago with a guy from (a famous jewellery company) and I told him about my interest in trends – I was trying to sell myself – but he was ‘oh… trends research, leave that to the marketing people’”. (EI-‐78/ 01) Bigger companies in particular seem to reinforce these very well-‐defined roles, sometimes not even allowing designers who are genuinely interested in trends to develop that knowledge. “It depends a bit on what kind of role you’re given. I think in larger companies there is the tendency, and I don’t know if it’s only in this office or if it also happens in other companies, but there’s more the tendency to give the people a specific role. I’m a product designer now, so you are sort of stuck within that roles description, whereas in my other company (PD 20agency), I was much more going on these different paths.” (EI-‐03/ 01) 5.6 SummaryThis chapter has presented the design, development and results from the qualitative interviews. We have seen that the outcomes from those interviews lead to the following five categories, which summarise how the designers we interviewed saw the main roles and values for trend reports: Fig. 17: Metaphors related to the possible roles of trend reports to product designers. The next chapter will draw upon those outcomes and see how they interact with what was found in the web-‐survey as well as in the literature review. 20 Edited by the interviewee. 62

CHAPTER 06 Synthesis In the previous two sections we went in detail through both the quantitative and qualitative steps of this research. In this section we will summarise all the learning from those efforts and attempt to answer our main research question. It is important to note that although some of the ideas we are giving here could be immediately applied to design practice, this research is not intended to be prescriptive. Finding that ‘ultimate recipe’ would require much more time and resources than we had available for this project. We will start by revisiting our main research question and then point out to what this research has found as key implications related to it: divergent expectations and new challenges for trend reports. 6.1 Back to the main questionBy collating the results from the literature review, the web-‐survey and the interviews, we put attention to two main concerns (Fig. 18) that refer to this research’s main question: What is the role and value of trend reports for product designers? Fig. 18: Final considerations from the collation of data. 63

6.1.1 Divergent expectations Probably the richest insight that came out of this study refers to the apparent conflict between what designers and top management expect from trends reports. That divergence seems to drive many of the issues raised throughout this research. If we consider the tone of forecasting in business literature and indeed some comments from our interviewees, we often encounter words and expressions such as “forecasting”, “predictions” or “competitive advantage”. Conversely, the ‘should/should not’ exercise carried out in the qualitative phase of this research, it was really clear that the most popular roles for trends research came in the form of the verbs “inspire”, “open minds”, “stimulate” and “inform” (Fig. 19). Fig. 19: Comparing wording between trend reports for designers and trend reports for non-‐designers. That difference becomes also more apparent when some designers said that the ability of a trend report to ‘get it right’ was in fact not that important for them, but rather the process of exercising their creativity, stretch their imaginations and consider what could come ahead that seemed to have more appeal. It is very important to note, however, that the notions this research has obtained about non-‐designers, came mostly from the interviews with product designers and from a comprehensive though not deep analysis of available literature. Though the conclusions taken in this study satisfy the purpose to which this research was set to reach, the researcher recognises the limitations of the study and indeed encourages that those notions are further investigated and include other professionals that don’t belong to the design field. 64

6.1.2 New challenges for trend reportsThis research has pointed to the fact that businesses cannot afford to live without both trends research nor trend reports. That seems to be especially the case with larger companies, which need to maintain brand coherence amongst a huge number of internal values and interests. The interviews have shown good indication that designers can indeed live without trend reports, since spotting patterns is innate to them. Some of them do it formally others only subconsciously -‐ depending (a lot) on what personal interests they have. In retrospect, it seems quite reasonable that designers have chosen trend reports as “a nice to have”. It remains to be seen how and if their opinion will change in 2 or 5 years, as we encounter: • More and more people gaining access to trends knowledge – and indeed to any kinds of information. • An over-‐inflated volume of information that they have to navigate through, but no “extra time” to do that. Would these perhaps make trend reports become “must have” tools for product designers as well? Furthermore, a big part of a designer’s job is to justify his or her own design choices. Trends experts could act as resourceful allies in helping them build richer and engaging ‘stories’ for their concepts. For that to happen however there needs to be a lot of mutual respect and trust. In that sense, one could say that trend reports could be successful if: • Design departments feel they help them keep consistency of their company’s objectives and brand requirements; • Product designers not only know about them, but are also able to distinguish them from the other set of tools available – understanding their possibilities and respecting their limitations; • Product designers not only trust their content, but also see them as invaluable tools for inspiration because they understand and capitalise in how designers learn and think. 65

CHAPTER 07 Conclusion Having considering the key findings of this study and revisited the research question in the previous section, this chapter now finalises the research by considering the theoretical and practical contributions of this thesis, which is then followed by an examination of the limitations of the research and opportunities for future research. 7.1 Contributions7.1.1 Contributions to theoryAs seen on chapter 02, the literature available in the design field to trends research is very limited. From the few publications encountered that indeed approached the topic, not much reference was made to the making of trends reports and none have considered the opinions of designers from their experiences with those types of reports. This research thus contributes to that gap in knowledge as it provides robust indications of how trend reports are being used and considered by different professionals dealing with product development. Further enrichment also comes from the application of a quantitative approach (even if only illustrative) in the investigation of that topic. A second contribution to be considered is the inclusion of “low rank” designers to the inquiry – as it was noted in the literature review that academics and practitioners have mostly preferred to interview CEOs and design directors for their research. 66

7.1.2 Contributions to practiceAs pointed in chapter 01, this study is not a prescriptive research, which means that it does not aim at direct implications to practice, such as providing a list of how to get to a “perfect” trend report for example. This study has deliberately avoided answering that kind of question since the researcher firmly believes that more complex and fundamental questions should be asked before any solutions are proposed. Thus a successful progression of this study would be to: • Encourage more conversations about the role of designers (not just researchers and strategists) in futures research, not just “how to do trends research” or “how to get to trends”. • Make people see trend reports with fresh eyes and understand that trends research is not only pertinent to marketers and other non-‐design strategists. • Align interests and expectations, pointing to ways to improve the making and application of trend reports in design practices. 7.2 Limitations + Future researchThis section combines the limitations of the research with some opportunities for future research, as the researcher believes that some parts from the study that could not be provided by this research do present fertile ground for further inquiry. These are: • Retaking the quantitative survey with a larger sample in order to reach statistical robustness. Would this yield similar results? • Interview non-‐designers and ask what THEY think about the results? Is there really a divide in the expectations for trend reports between designers and non-‐designers? Do they really care more about results than creative processes? How does that shown in actual financial investments in trends research and trend reports? • Conduct a more in-‐depth research, aimed at the actual construction of an ideal trend report for product designers and indeed for all types of designers. What would it look like? What type of content should it have? What would be the considerations to be made amongst the different disciplines of design? Would they also differ if they were targeted at more “boutique” designers? • Work on the metaphors used in qualitative results: what do designers think about them? Would these metaphors work for other areas of design as well? Finally, the researcher sincerely hopes this study can be as useful and rich for readers as it was for her. 67

Bibliography BooksBell, J., 2005. Doing your research project: a guide for first-‐time researchers in Education, Health and Social thScience, 4 ed., Open University Press. thBowden, J., 2011. How to prepare, write and present really effective reports, 8 ed., How To Books Ltd. ndBrannon, E.L., 2005. Fashion Forecasting: research, analysis, and presentation, 2 ed., Fairchild Books. ndBryman, A., 2004. Social research methods, 2 ed, Oxford University Press. Collins, H., 2010. Creative Research: the theory and practice of research for the creative industries, AVA Publishing. Courtney, H., 2001. 20 I 20 Foresight: crafting strategy in an uncertain world, Harvard Business School Press. ndCreswell, J.W. & Plano Clark, V.L., 2010. Designing and conducting Mixed Methods research, 2 ed., Sage Publications. Cross, N., 2007. Designerly ways of knowing, Birkhauser Verlag AG. thDixon, P., 2007. Futurewise: The six faces of global change, 4 ed., Profile Books. Diane, T. & Cassidy, T., 2005. Colour Forecasting, John Wiley & Sons. Eceiza, L. 2010. Atlas of Fashion Designers, Rockport Publishers Inc. rdFlick, U., 2006. An introduction to Qualitative Research (3 ed.). Sage Publications. Friedman, G., 2010. The next 100 years (POLS edition), Llison & Busby. Gentle, R., 2001. Read This!: business writing that works, Prentice-‐Hall. thGill, J. & Johnson, P., 2010. Research methods for managers, 4 ed., Sage Publications. 68

Gloor, P. & Cooper, S.W., 2007. Coolhunting: chasing down the next big thing, Amacom. Gordon, A., 2008. Future Savvy: identifying trends to make better decisions, manage uncertainty, and profit from change, Amacom. Gray, D.E., 2009. Doing research in the real world. Sage Publications. Hart, C., 2003. Doing a literature review: releasing the social science research imagination, Sage Publications. Kerner, N. & Pressman, G., 2007. Chasing Cool: standing out in todays cluttered marketplace, Atria Books. Kelley, T. & Littman, J., 2004. The art of Innovation: lessons in creativity from IDEO, America’s leading design firm, Profile Books. Kim, E.; Fiore, A.M., & Kim, H., 2011. Fashion Trends: analysis and forecasting, Berg Publishers. Laurel, B. & Lunenfeld, P. 2003. Design Research: Methods and Perspectives. The MIT Press. thLawson, B., 2005. How designers think: the design process demystified, 4 ed., Architectural Press. Lindgren, M. & Bandhold, H., 2003. Scenario Planning: the link between future and strategy, Palgrave Macmillan. Lichtenberger, E. et all, 2004. Essentials of Assessment Report Writing. Wiley. Löbach, B., 2001. Design industrial. Bases para a configuração dos produtos industriais. Ed. Edgard Blücher LTDA, São Paulo. Lynch, A. & Strauss, M. D., 2007. Changing Fashion: a critical introduction to trends analysis and meaning, Berg. Mason, J., 2002. Qualitative Researching, 2nd ed., Sage Publications. Moggridge, B., 2007. Designing Interactions, MIT Press. ndMoore, G., 1999. Crossing the chasm: marketing and selling technology products to mainstream consumers, 2 ed., Capstone Publishing Limited. O’Grady, J. & O’Grady, K., 2009. A Designers Research Manual: Succeed in Design by Knowing Your Clients and What They Really Need. Rockport Publishers. Raymond, M., 2003. The Tomorrow People: mapping the needs and desires of tomorrow’s customers now, Prentice-‐Hall. 69

Raymond, M., 2010. The Trend Forecaster’s handbook, Laurence King. Robson, C., 2002. Real world research, 2nd ed., Willey-‐Blackwell. Ros, J., 1999. How to write proposals and reports that get results, Financial Times. Schriver, K. A., 1997. Dynamics in document design: creating texts for readers, John Wiley & Sons. Slack, L., 2006. What is Product Design? Rotovision. Taleb, N.N., 2008. The Black Swan: the impact of the highly improbable, Penguin. Tidwell, J., 2011. Designing Interfaces. OReilly Media; Second Edition edition. Ulrich, K.T. & Eppinger, S.D., 2008. Product Design and Development, 4th ed., McGraw-‐Hill. Vejlgaard, H., 2008. Anatomy of a Trend, McGraw-‐Hill. Watson, R., 2009. Future Files: a brief history of the next 50 years, Nicholas Brealey Publishing. Papers, Articles & ThesesAdam, B., 2005. Futures in the making: contemporary practices and sociological challenges. In: ASA 2005, Philadelphia Thematic Session: Sociology of the Future. Adam, B., 2006. Has the future already happened? In: Future matters: futures known, created and minded, September 4-‐6, 2006, Cardiff, Wales. Agami, N.M.E., Omran, A.M.A., Saleh, M.M.,& El-‐Shishiny, H.E.E., 2008. An enhanced approach for Trend Impact Analysis. In: Technological Forecasting & Social Change 75, pp. 1439–1450. Ahmed, S., Wallace, K.M., & Blessing, L.T.M., 2003. Understanding the differences between how novice and experienced designers approach design tasks. In: Research in Engineering Design 14, pp. 1–11. Chiu-‐Shui Chan, 2000. Can style be measured? In: Design Studies 21, pp. 277–291. Crilly, N., 2005. Product Aesthetics: representing designer intent and consumer response. PhD Thesis, University of Cambridge, UK. Crilly, N., Moultrie, J., & Clarkson, J., 2008. Shaping Things: intended consumer response and other determinants of product form. In: Design Studies 25(6), pp. 547-‐577. 70

Eckert, C., & Stacey, M., 2001. Sources of inspiration: a language of design. In: Design Studies, 21(5), pp. 523-‐538. European Commission, 2005. The new SME definition User guide and model declaration. In: Enterprise and industry publications. thEuropean Futurists, 2009. Future Readiness Index 2009: corporate foresight of SME in Switzerland. In: 5 European Futurists Conference, Lucerne, Switzerland Evans, M., 2010. Design Futures: An investigation into the role of futures thinking in design. PhD Thesis, Lancaster University. Evans, M., (in press). Empathising with the future: creating next-‐next generation products and services. In: The Design Journal, 14(2). Fox, N.J., 2011. Boundary Objects, Social Meanings and the Success of New Technologies. In: Sociology 45:7. Downloaded from soc.sagepub.com at Fac of Social & Political Sci on March 29, 2011. Godet, M. & Roubelat, F., 1996. Creating the future: the use and misuse of scenarios. In: Long range planning. 29(2), pp. 164-‐171. thHeerden, C.V., 2009. Philips Design: Lifestyle Probes. In: 5 European Futurists Conference, Lucerne, Switzerland. Muir Wood, A., Moultrie, J., & Eckert, C., 2008. Applying trends to design: a theoretical framework. In: The International Design Conference (Design 2008), Dubrovnik, Croatia. Muir Wood, A., Moultrie, J., & Eckert, C., 2008. How do designers make and justify product styling decisions in response to changing tastes and fashion? In: The 2008 Design Research Society International Conference, Sheffield, UK. Muir Wood, A., September, 2010. The nature of change in product design: integrating aesthetic and technological perspectives. PhD Thesis, University of Cambridge, UK. Noble, C.H. & Kumar, M., 2008. Using product design strategically to create deeper consumer connections. In: Business Horizons, 51(5), pp. 441-‐450. Petre, M., Sharp, H., & Johnson, J., 2005. Complexity through combination: an account of knitwear design. Design Studies, 27 (2), 183-‐222. Sardar, Z. 2010. The namesake: futures; futures studies; futurology; futuristic; foresight – What’s in a name? In: Futures, 42(3), pp. 195-‐198. 71

Scott, N., 2005. Can product trends be predicted and how is this Integrated into the current design process within UK Companies? MPhil Thesis, University of Cambridge, UK. SEBRAE, 2009. Indicadores ethos responsabilidade social, Rio de Janeiro, Brazil. OthersDesign Council, 2011. Product Design Careers [Online]. Available at: http://www.designcouncil.org.uk/about-‐design/Design-‐as-‐a-‐profession/Careers-‐in-‐design/Product-‐design-‐careers/ [accessed in March 2011] Dubberly, H. 2005. How do You Design: a compendium of models [online]. Available at http://www.dubberly.com/articles/how-‐do-‐you-‐design.html [accessed in March 2011] European Commission, 2003. The new SME definition: user guide and model declaration. Official Journal of the European Union L 124, p. 36 of 20 May 2003 Gordon, D. 2001. Interview with Dee Dee Gordon and Sharon Lee: founding partners of Look-‐Look, a research company specializing in youth culture [online]. Available at: http://www.pbs.org/wgbh/pages/frontline/shows/cool/interviews/gordonandlee.html Gladwell, M., 1997. The Coolhunt. In: The New Yorker, NY, USA. Gladwell, M., 2001. Interview with Malcolm Gladwell: staff writer for The New Yorker and author of The Tipping Point [online]. Available at: http://www.pbs.org/wgbh/pages/frontline/shows/cool/interviews/gladwell.html Green, J., 2010. Democratizing the future: towards a new era of creativity and growth [online]. Available at: http://www.philips.com [accessed 2010] PSFK, 2010. The Future of Health: a PSFK report prepared for Unicef [online]. Available at: http://www.psfk.com Walonick, D., 1993. An Overview of Forecasting Methodology [online]. Available at: http://www.statpac.com/research-‐papers/forecasting.htm Survey Monkey, 2010. Smart Survey Design [online]. Available at http://www.surveymonkey.com Steward, C, 2005. A Meta-‐Analysis of Recent Futures Research [online]. Available at: http://www.emergence.net.au 72

Appendices App. 01: LinkedIn groups to which invitations were sent360 Trendwatchers, Aiga, British Design Innovation, Consumer Insights, Cool Hunters, Cosmetics and Beauty Network, Creative Design Pros, Design Council, Design Plus, Design Research, DMI, Enviu, Fashion & Lifestyle, Fashionista Café, Fuse, Future Trends, Global Foresight, Global Trend Forecasting, IDSA, Include Network, Industrial Design, Innovation People, Leadership Think Tank, Lift Conference, Luxury & Lifestyle, Market Research, Mobile phone design, Mobilists, Mudpie, Next Gen Market Research, Product Design, Scenario, Future & Strategy Group, Social Innovation exchange, Strategic Planning Exchange, StyleCareers, TED, Textile, Apparel, Footwear and Fashion, The Business of Fashion, The Designers Accord, The Fashion Network, The Wellness Revolution, Thinking Hotel, Trend Watching, User Experience, Womens Wear Daily, Zukunftsforschung, TrendsGymnasium, Fashion & Beauty, Designers Talk, The Economist, Retail Industry Professionals, Retail Industry Professionals Worldwide, Stylesight, Visual Artists and their Advocates. App. 02: Coroflot groups to which invitations were sentPatterns, Graphic Designers, furniture, Design -‐ "Made in Germany", CONCEPT designers, Product Design, Core77, Industrial Design, footwear designers of the world, Freelance-‐worldwide, Cool Hunters. 73

App. 03: Final demographic of web-survey METRICS RELATED QUESTIONS POSSIBLE ANSWERS GROUP 01: Experience Q02. Total years of experience? Less than 5 (17%), 6 to 10 (29%), 11 to 15 (29%), More than 15 (26%) responder About the Responder’s profile Sector Q03. What sector or department are you Design (56%) a part of? Non-‐design (44%) -‐ Marketing, Planning, Engineering, Production, Administrative 1 GROUP 04: Type of Q06. What are the types of goods/ Durables (59%) – Automotive, furniture, Responder’s products services your company most works with? consumer electronics, fashion/apparel company Responder’s company Non-‐durables (41%) – Branding/advertising, profile entertainment, publishing/journalism, service/retail, food/drink, other Company size Q07. How many permanent employees Micro (38%) – Less than 10 employees are there in your entire company? SME (39%) – Between 10 and 2,500 employees Large (24%) – More than 2,500 employees Location Q26. Country where you currently live: Europe (70%), North America (16%) and South (Open question) America (15%) Table 09: Questions from survey used for analysis and final demographics. The last column explains how some categories have been clustered into smaller subgroups. 1 As the question allowed multiple choices, it was decided that the participant would be considered making part of the ‘durable’ category, if he or she had chosen at least one product from the durable category. 74

App. 04: Questions from survey used for analysis METRICS RELATED QUESTIONS POSSIBLE ANSWERS GROUP 02: Time using TR Q11. How long have you been Less than 1 year, 1 – 3 years, 4 – 8 years, Over 10 Use of trend working with Trend Reports? years reports Interaction with Q17. Which one is closer to Just give it a glance/ Read it carefully TR how you usually use a Trend Report: Read it once and put it somewhere else/ Frequently refer back to it Use it only during a certain project/ Refer back to it, even when the project is over Responder’s profile Leave it as it is/ Make notes or cut its pages as inspiration GROUP 03: Creative value Q16. In general, the Trend Helpful, Inspiring, Ahead-‐of-‐the-‐curve, Reliable Opinion Reports you have worked with about trend have been: (Strongly Disagree, Disagree, Agree, Strongly Agree) reports Financial value Q18. In your opinion, investing 2 Money well spent in Trend Reports is: (Strongly Disagree, Disagree, Agree, Strongly Agree) NPD value Q19. Considering the A must have, Nice to have, Not essential development of successful products, Trend Reports are: Table 10: Questions from survey used for analysis (individual). METRICS RELATED QUESTIONS RESULTS GROUP 05: Number of TR Q13. How many Trend Reports does None Investment in purchased yearly your department purchase a year? 1 to 2 Responder’s company trends reports 3 to 5 More than 5 I dont know Number of TR Q14. How many Trend Reports does None created yearly your department create a year? 1 to 2 3 to 5 More than 5 I dont know Table 11: Questions from survey used for analysis (company). 2 In the questionnaire there were two other categories for ‘financial value’ -‐ ‘guaranteed return of investment’ and ‘a risky strategy’. Unfortunately those alternatives had to be disregarded in the analysis because of the risk of obtaining ambiguous results. 75

App. 05: Definitions of SME (European Commission, 2003)Fig. 20: Definitions of SMEs according to the European Commission (2003). 76
