Graphing and Trending                                    in Nagios                                         Matthew Wall   ...
Agenda                                                                                  v0.6 ©2011 Matthew Wall, all right...
Background                                                                                                     v0.6 ©2011 ...
What are the options?                                                                                                     ...
What is the problem?                                                                                       v0.6 ©2011 Matt...
What is the problem?                                                                                       v0.6 ©2011 Matt...
What is the problem?                                                                                       v0.6 ©2011 Matt...
What is the problem?                                                                                       v0.6 ©2011 Matt...
Why is this a problem?                                                                                  v0.6 ©2011 Matthew...
Show me some examples...                                                                                  v0.6 ©2011 Matth...
Temperature Cycles                                                                                  v0.6 ©2011 Matthew Wal...
Under the Thresholds                                                                                  v0.6 ©2011 Matthew W...
Changing Thresholds                                                                                  v0.6 ©2011 Matthew Wa...
Dynamic Targets                                                                                  v0.6 ©2011 Matthew Wall, ...
Dynamic Targets                                                                                          v0.6 ©2011 Matthe...
Dynamic Targets                                                                                  v0.6 ©2011 Matthew Wall, ...
Dynamic Targets                                                                                  v0.6 ©2011 Matthew Wall, ...
Trending is not just drawing graphs                                                                                  v0.6 ...
So what should a performance trending system do?                                                                          ...
So what should a performance trending system do?                                                                          ...
So what should a performance trending system do?                                                                          ...
So what should a performance trending system do?                                                                          ...
So what should a performance trending system do?                                                                          ...
So what should a performance trending system do?                                                                          ...
Graphing and Trending in Nagios                                                                                  v0.6 ©201...
Data Collection                                                                                    v0.6 ©2011 Matthew Wall...
Data Collection                                                                                                           ...
Data Collection                                                                                                           ...
Data Storage                                                                                                      v0.6 ©20...
Data Storage                                                                                                              ...
Data Storage                                                                                                      v0.6 ©20...
Data Display                                                                                              v0.6 ©2011 Matth...
Data Display                                                                                  v0.6 ©2011 Matthew Wall, all...
Data Display                                                                                                              ...
What are the options?                                                                                                     ...
cacti                                                                                  v0.6 ©2011 Matthew Wall, all rights...
mrtg                                                                                  v0.6 ©2011 Matthew Wall, all rights ...
n2rrd and rrd2graph                                                                                  v0.6 ©2011 Matthew Wa...
pnp4nagios                                                                                  v0.6 ©2011 Matthew Wall, all r...
nagiosgraph                                                                                  v0.6 ©2011 Matthew Wall, all ...
Issues                                                                                   v0.6 ©2011 Matthew Wall, all righ...
Is Nagios the right tool?                                                                                    v0.6 ©2011 Ma...
Which system(s) should I use?                                                                                             ...
Which add-on(s) should I use?                                                                                             ...
Performance Data                                                                                                     v0.6 ...
How to see the forest and the trees?                                                                                      ...
How to see the forest and the trees?                                                                                      ...
How to see the forest and the trees?                                                                                      ...
How to see the forest and the trees?                                                                                      ...
How to see the forest and the trees?                                                                                      ...
How much to collect and save?                                                                                             ...
Getting the RRA parameters right                                                                                          ...
Rigid Schemas                                                                                         v0.6 ©2011 Matthew W...
So where are we?                                                                                              v0.6 ©2011 M...
So where are we?                                                                                              v0.6 ©2011 M...
So where are we?                                                                                              v0.6 ©2011 M...
So where are we?                                                                                              v0.6 ©2011 M...
nagiosgraph: then and now                                                                                    v0.6 ©2011 Ma...
nagiosgraph: history and status                                                                                  v0.6 ©201...
nagiosgraph: What next?                                                                                  v0.6 ©2011 Matthe...
The tr/end//                                                                                                  v0.6 ©2011 M...
References                                                                          v0.6 ©2011 Matthew Wall, all rights re...
Upcoming SlideShare
Loading in...5
×

Nagios Conference 2011 - Matt Wall - Performance Graphing and Trending In Nagios

6,337

Published on

Matt Wall's presentation on performance graphing and trending best practices with Nagios. The presentation was given during the Nagios World Conference North America held Sept 27-29th, 2011 in Saint Paul, MN. For more information on the conference (including photos and videos), visit: http://go.nagios.com/nwcna

Published in: Technology, Business
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
6,337
On Slideshare
0
From Embeds
0
Number of Embeds
3
Actions
Shares
0
Downloads
80
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

Transcript of "Nagios Conference 2011 - Matt Wall - Performance Graphing and Trending In Nagios"

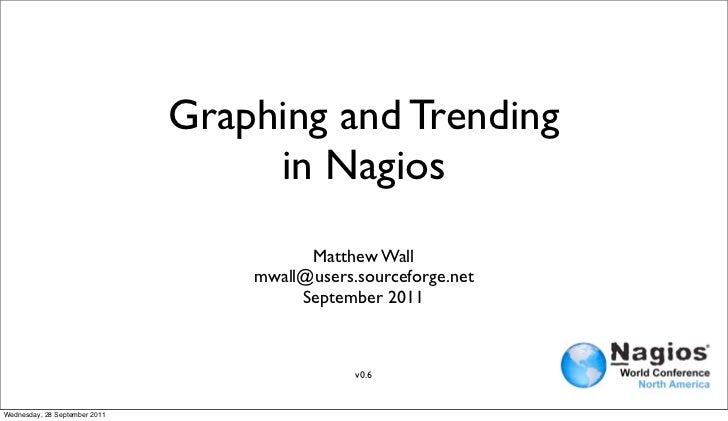

  1. 1. Graphing and Trending in Nagios Matthew Wall mwall@users.sourceforge.net September 2011 v0.6Wednesday, 28 September 2011
