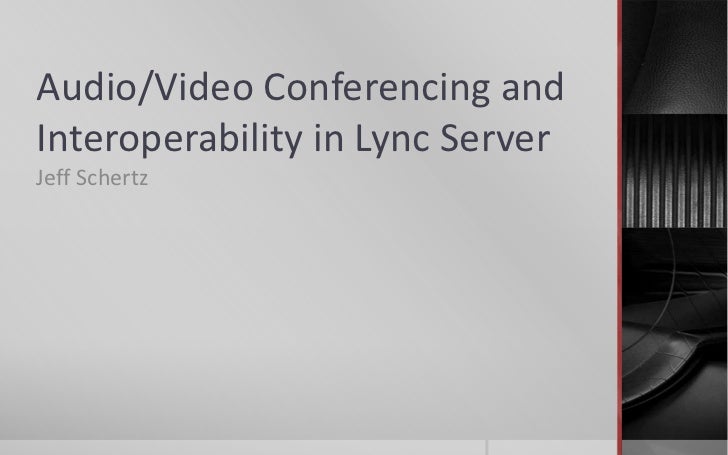

Audio/Video Conferencing andInteroperability in Lync ServerJeff Schertz
Agenda Lync Server A/V Conferencing Capabilities Lync Server A/V Conferencing Architecture Video Interoperability
Lync Server A/V Conferencing Capabilities   Audio via VoIP or PSTN (with appropriate gateway)   Active-speaker video swi...
On-Premises Audio Conferencing Replaces ACP for ~85% of calls (Gartner) Requires PSTN Gateway deployment on-premises Fe...
Supported Video Formats      CIF (RTV and H.263)         HD (RTV Only, P2P Only)• Common Interchange Format   • High Defin...
Capabilities by Client                                                                Lync 2010   Lync 2010     Lync 2010 ...
Lync Server A/V Conferencing Architecture Collocated    Front End servers also have A/V MCU role    Good for small and ...
Standard Edition with A/V ConferencingIdeal for       Proof of concept       Large branch officeConferencing functionali...
EE Pool with collocated A/V Conf ServersIdeal for       Medium size business       Regional DeploymentConferencing funct...
EE Pool with separate A/V ServersIdeal for       Large enterprise       Data center deploymentConferencing functionaliti...
Third Party Video Interoperability Native Approach    Built-in registration logic    May have other built-in capabiliti...
Third Party Video Interoperability Regardless of technical integration approach, third parties add…     Cross-protocol i...
Appendix – Polycom Solutions
Polycom’s Unique Architecture Solution                Lowers Cost, Reduces Complexity, Increases Scalability, Provides Red...
Microsoft Native Video Endpoints CX5000 (RoundTable)    Collaborative meeting spaces    Small conference rooms/informal ta...
Microsoft Integrated Video Endpoints Telepresence Endpoints (HDX)    Executive desktop systems and conference    rooms    ...
Polycom RealPresence Platform RMX   Extends Continuous Presence and High Definition conferencing   to Lync clients   Provi...
Native Microsoft Integration OCS/Lync Integration    Simple routing configuration    Signaling (TLS) and media (SRTP) encr...
Questions?
