Network Considerations for Microsoft
 OCS Deployments

 by Phil Hochmuth and Zeus Kerravala | November 2009




Executive ...
Network Considerations for Microsoft OCS Deployments




I.    UC as a Strategic Collaboration/                           ...
November 2009



Business Driver Behind OCS                                            The company currently supports its ...
Network Considerations for Microsoft OCS Deployments



“In my opinion, if [you] already have [QoS] installed,” says the  ...
November 2009



The company is deploying Polycom USB-based handsets, which             how we are different from an effic...
Network Considerations for Microsoft OCS Deployments



Methodology for Rollout                                           ...
November 2009



Case Study 4: European                                                  Study 1, which must support paral...
Network Considerations for Microsoft OCS Deployments




III. OCS and Your Network:                                       ...
November 2009



If You Have QoS, Use It                                                    tools (from vendors such as Qo...
Network Considerations for Microsoft OCS Deployments



Consider Network Services Provisioning and                        ...
November 2009




IV. OCS Costs and Benefits: A Breakdown                                  The consolidation of call contr...
Network Considerations for Microsoft OCS Deployments



Advanced Application Services                                     ...
November 2009



•	 Consolidation is key: All of the enterprises interviewed for             gateway infrastructure in ord...
Network Considerations for Microsoft OCS Deployments



What common network-related trouble spots might                   ...
Yankee Group—the global connectivity experts
The people of Yankee Group are the global connectivity experts—the leading so...
Upcoming SlideShare
Loading in...5
×

Microsoft Unified Communications - Network Considerations for Microsoft ODS Deployments Whitepaper

1,733

Published on

Enterprises that are adopting unified communications (UC) platforms such as Microsoft Office Communication Server (OCS) must carefully consider and plan how UC will affect their LAN and WAN infrastructures, as well as how their networks may either hinder or improve the
performance of a UC solution. Everything from bandwidth considerations, to firewall topology, to end-user habits and experiences must be taken into consideration. If done correctly, enterprises can realize great productivity gains with new levels of collaboration, both internally and with external parties. Reduction of WAN and LAN infrastructure, built to maximum capacity in support of past IP telephony or voice/data convergence efforts, can also reduce costs and lessen management complexity in the long run.

Published in: Technology
1 Comment
0 Likes
Statistics
Notes
  • 1. To read more case studies on Microsoft Unified Communications Server click here:
    http://www.microsoft.com/everybodysbusiness/en/in/products/unified-communications.aspx

    2. To get more information on other products and services:
    http://www.microsoft.com/everybodysbusiness/en/in

    3. Contact us for any requirement or Feedback at msitpro@live.com
       Reply
    Are you sure you want to  Yes  No
    Your message goes here
  • Be the first to like this

No Downloads
Views
Total Views
1,733
On Slideshare
0
From Embeds
0
Number of Embeds
0
Actions
Shares
0
Downloads
76
Comments
1
Likes
0
Embeds 0
No embeds

No notes for slide

Microsoft Unified Communications - Network Considerations for Microsoft ODS Deployments Whitepaper

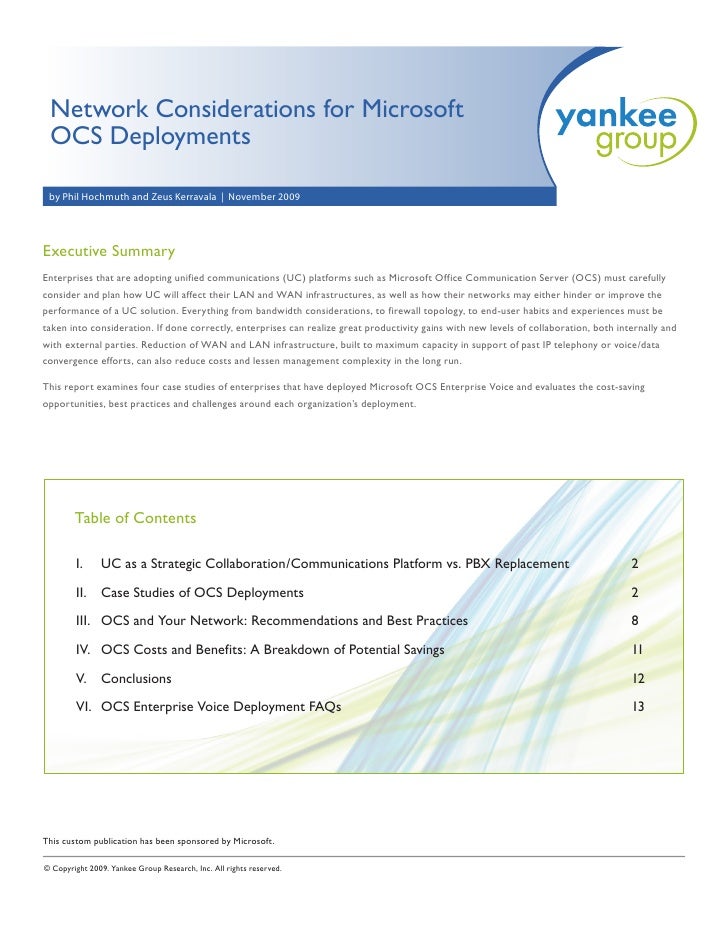

  1. 1. Network Considerations for Microsoft OCS Deployments by Phil Hochmuth and Zeus Kerravala | November 2009 Executive Summary Enterprises that are adopting unified communications (UC) platforms such as Microsoft Office Communication Server (OCS) must carefully consider and plan how UC will affect their LAN and WAN infrastructures, as well as how their networks may either hinder or improve the performance of a UC solution. Everything from bandwidth considerations, to firewall topology, to end-user habits and experiences must be taken into consideration. If done correctly, enterprises can realize great productivity gains with new levels of collaboration, both internally and with external parties. Reduction of WAN and LAN infrastructure, built to maximum capacity in support of past IP telephony or voice/data convergence efforts, can also reduce costs and lessen management complexity in the long run. This report examines four case studies of enterprises that have deployed Microsoft OCS Enterprise Voice and evaluates the cost-saving opportunities, best practices and challenges around each organization’s deployment. Table of Contents I. UC as a Strategic Collaboration/Communications Platform vs. PBX Replacement 2 II. Case Studies of OCS Deployments 2 III. OCS and Your Network: Recommendations and Best Practices 8 IV. OCS Costs and Benefits: A Breakdown of Potential Savings 11 V. Conclusions 12 VI. OCS Enterprise Voice Deployment FAQs 13 This custom publication has been sponsored by Microsoft. © Copyright 2009. Yankee Group Research, Inc. All rights reserved.
