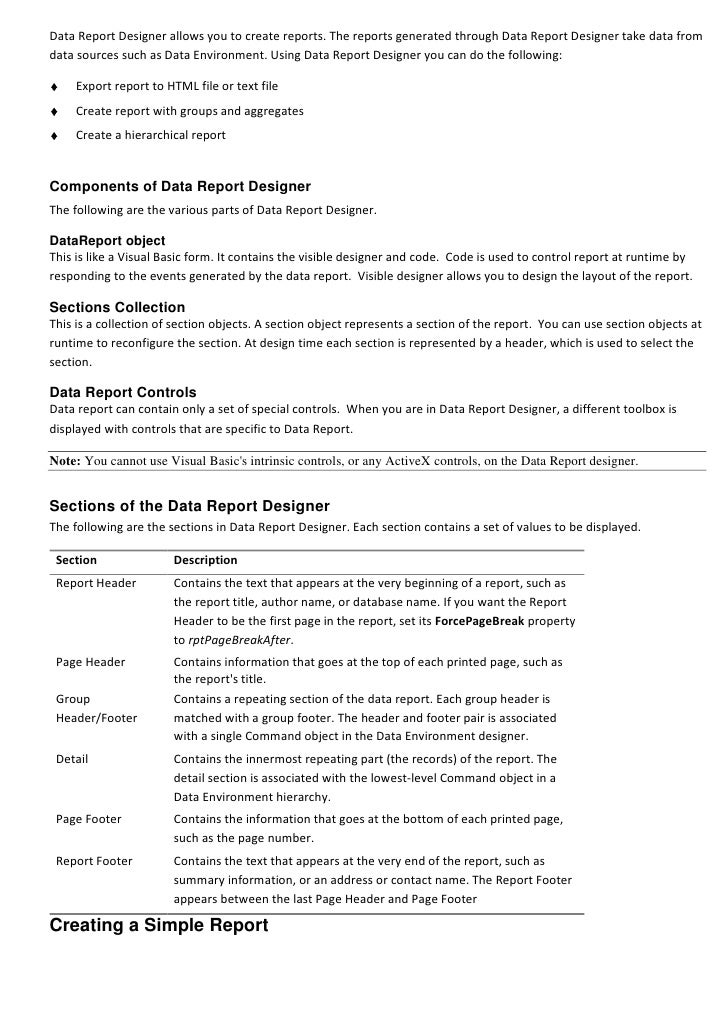

Data Report Designer allows you to create reports. The reports generated through Data Report Designer take data fromdata s...
Now, let us create a sample report to understand the steps involved in creating a simple report. For any report that isgen...
2. Invoke properties window using F4 when you are in Report Designer3. Change the following properties of Data Report Desi...
Making report the startup object will be easier while you are designing report. But final reports are always invokedeither...
Figure 21.3: Data Report at runtime.Improving Appearance of the reportThe report shown in figure 21.3 is O.K but not good....
2. From popup menu select Insert controls -> Current Date(long format)   A label is placed with Caption property set to %D...
Figure 40.1: The Data Report EnvironmentStep 2: Connecting the report to database using Data Environment DesignerClick the...
Figure 40.3Now, you need to connect to the database by selecting a database file from your hard disk. For demonstration pu...
Figure 40.4Step 3: Retrieving Information from the DatabaseIn order to use the database in your report, you need to create...
Figure 40.5: MyCommandIn order to use SQL command, right-click MyCommand and you can see its properties dialog. At the Gen...
Figure 40.8: The Final Report.Creating VB database applications using ADO controlwe have learned how to build VB database ...
Can group data and get aggregates    Allows fields to be dragged and dropped on to a Data Report, for report, and a Form f...
1. Invoke popup menu by click on Connection object with right button.2. Select Rename option.3. Enter new name and press e...
One of the interesting features of Data Environment object is, it allows you to create hierarchy of objects.To understand ...
Figure 20.4: Relation tab of command propertiesdialog.Figure 20.5: Data Environment Designer after threecommand objects ar...
Data Combo and Data List controlsDataCombo and DataList controls are used to present a list of values to users from which ...
DataGrid ControlAllows you to display and manipulate a set of records and columns taken from the specified recordset. You ...
Working withData Access Objects (DAO)So far, we have used a few objects of Data Access Objects (DAO). In this chapter, we ...
DBEngine objectThis object is at the top level of the hierarchy. This object is automatically made available to your progr...
Workspace ObjectWorkspace object creates a session for the user. By default, a workspace object is automatically created. ...
ODBC and Remote Data Objects (RDO)Remote Data Objects (RDOs) are used to access a remote database through ODBC. Accessing ...
rdoResultset       Represents the rows that result from running a query. rdoColumn          Represents a column of data wi...
Why do we need ODBC?Assume you want to access data stored in Oracle from a program written in Visual Basic. For this, you ...
ActiveX Data Objects(ADO)DO is another data access method. ADO data model has a collection of objects using which you can ...
Connection      Allows you to connect to the database. Command         Is used to execute commands that are supported by t...
1. Start a new project using File->New Project and select Standard Exe as the type of the project.2. Load Microsoft ADO Da...
ActiveX Data Control does the same job as the standard DataControl but in a different way. The fundamentaldifference is; s...
t                    specified in seconds. Default is 15. CursorLocation       Sepecifies whether client-side or server-si...
The events of ADODC can be divided into two main groups. One group contains events that occur before the operation isperfo...
What is difference between ActiveX DLL and ActiveX EXEActiveX DLLs and ActiveX EXEs are almost exactly the same in the way...
