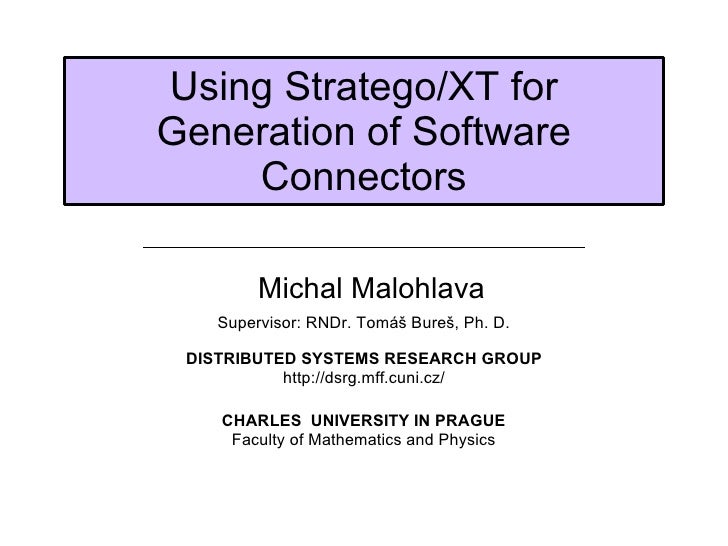

Using Stratego/XT for
Generation of Software
    Connectors

        Michal Malohlava
   Supervisor: RNDr. Tomáš Bureš, Ph...
Outline
    Connector generation
●


    Existing connector generator overview
●


    Stratego/XT overview
●


    Propos...
Connectors? Generation? Why?
    Why should be component interested in communication?
●


         It should just implemen...
General goal
    Define and implement simple method of
●

    defining connectors implementations
        Template based s...
Connector architecture
    Connector
●


        Connector units
    –

             Connector elements
         ●




   ...
Existing connector generator
    Architecture resolver
●



         Find architecture of connector in according to descri...
Existing connector generator
    Simple code templates which are processed by Java class
●



         Class just substitu...
Existing connector generator
    Simple code templates which are processed by Java class
●



         Class just substitu...
Stratego/XT
    Developed at Delft University of Technology,
●

    Netherlands (Eelco Visser, Martin Bravenboer)
    Tool...
Stratego/XT - architecture
    How does it work?
●




                             10
Stratego/XT - SDF
    Modular, one grammar defines:
●



        Lexical tokens
    –

        Context-free rules
    –

 ...
Stratego/XT – SDF example
module Expr−literals                module Expr−expressions

                                   ...
Stratego/XT – Stratego language
    Based on strategies manipulating with AST
●



         Input/Output: AST represented ...
Stratego/XT – Stratego example
module EExpr
imports liblib Expr−eval
strategies
   io−EExpr = io−wrap ( expr−eval )


impo...
Goals revisited
    Rebuild source code generator
●


        Design more sophisticated templates based on DSL
    –

    ...
Solution – DSL
    Designed new Domain Specific Language
●



        Mixture of meta-language ElLang and target language ...
Solution – DSL
    Designed new Domain Specific Language
●


     – Recursive foreach – designed ElLang of Java grammar co...
Solution - DSL
    Special meta-statements
●


        Simple templates inheritance (extends)
    –

        Extension poi...
Solution - DSL
    Special meta-statements
      element console_log extends quot;primitive_default.ellangquot; {
●
      ...
Solution – template structure
    ElLang-J = mixture of ElLang and Java
●



         package ${package};
         import ...
Solution – generator architecture
    Java part
●


        Prepares low-level connector configuration
    –

            ...
Solution - Java part
    Implementing action interface
●

    JimplGeneratorInterface

         rewrites Low-Level
     –
...
Solution – Java v. Stratego part
    low-level connector
●

    configuration
            Describes ports
        ●


    ...
Solution – Stratego part
    Pipe line of several small
●

    transformation components
        Input XML preprocessor
  ...
Solution – Query module
    Provides access to input XML (contains L-LCC)
●


        Simple queries à la XPath
    –

   ...
Solution – evaluation module
    Pipe-line of evaluation modules
●


        Processing extends
    –

        Processing ...
Evaluation (pro-and-con)
    Advantages
●



        Simple template which has at least the same power as the
    –
      ...
Future work
    Byte code manipulation
●


        To avoid need of javac (~SDK) during deployment
    –
        process
 ...
Results
    T. Bureš, M. Malohlava, P. Hnětynka “Using
●

    DSL for Automatic Generation of Software
    Connector”
    ...
