PhD defense at ETH Zurich discussing the required layers in order for the Web of Things to become a reality.

PhD defense at ETH Zurich discussing the required layers in order for the Web of Things to become a reality.

Published in: Technology, Business
0 Comments
22 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total Views
31,804
On Slideshare
0
From Embeds
0
Number of Embeds
23
Actions
Shares
0
Downloads
655
Comments
0
Likes
22
Embeds 0
No embeds

Report content
Flagged as inappropriate Flag as inappropriate
Flag as inappropriate

Select your reason for flagging this presentation as inappropriate.

Cancel
No notes for slide
  • Currentdevelopments in embeddedsystems in domainssuch as home appliances, sensor net, or simple everydayobjectbeingtaggedwith RFID:Show thatthey are gettingincreasinglysmarter and connectedwhichlead to a very large ecosystem of smart thingsLet us think of an electronic article surveillance system in a store thatwouldleveragethiseco-system: tag objectswith RFID trigger the RFID readerswith a proximitysensor trigger the security camera if somethingwasstolenbroadcast the information to the staff on their mobile phones
  • This leads to a problemresearched by many, showing:ToomuchprotocolsheterogeneityExpensive and time-consumingexpertknowledgeRequirements for application layer for the IoT
  • Web:Set of relatively simple and open standards (e.g., HTTP, HTML, etc.).Broad-pool of developers.Well understood by users.Best-effort (efficiency, scalability, etc.).From Web sites to Web APIs.Ubiquitous availability (desktop, mobile, etc.).Contribution: We propose a Web of Things Application Architecture:Enablesparticipatory application development:Easier for specialistsCloser to Web developers, end-users
  • Four layers but: Not OSI:layers are flexible, eacheases a little more building applications: from Embedded Syst. Dev to End-UsersContribution: LayersBuilding blocks: each block is a Web APIApplications testingthese blocks
  • Resource Tree:functionality of the sun spot identified by resolvableURIsNot bound to one representation. We use HTML for browsability, JSON for mashups, HTTP has a content-negotiationmechanism for selecting the right representation.GET on temperature => retrieves the representation of the tempsensorPUT on LED => changes the state of the LED (on/off)
  • One of ourcore contributionsFor smart thingsthat do not speak Internet or Web protocolswe propose a lightweight software frameworkthatcanbedeployed on computers at the edge of the network (e.g., NAS, wifi routers, etc.):Device Drivers: encapsulate the proprietary or low-levelprotocolsCore Services: are used by drivers to maptheirfunctionality to a Web APIPluggable Services: services implementing cross-cuttingconcerns (seenextlayers)Maybeaddstuff about Web Sockets
  • Withthis layer wewant to achievetwothings:MakethingsfindableusingsearchenginesAllow the semi-automaticintegrationintomashuptoolsGuinard, D., Trifa, V., Mattern, F., & Wilde, E. (2011). From the Internet of Things to the Web of Things: Resource-oriented Architecture and Best Practices. In D. Uckelmann, M. Harrison, & F. Michahelles (Eds.), Architecting the Internet of Things (pp. 97-129). Berlin, Heidelberg: Springer Berlin Heidelberg. Retrieved from http://www.springerlink.com/content/p314x13322qnw276
  • SAC: Manages Access to Smart ThingsThrough Social NetworksAnd offers an API for clients or client applicationsRequirements (details):Security: prevent attackers from gaining accessEase of use: significantly influences adoption [Ion2010]Reflecting existing trust modelsInteroperable: Web protocols, prevent user lock-inIntegrated Advertisement
  • Smart things are securedbased on HTTP Basic AccessAuthentication or HTTP DigestAuthenticationAuthenticationthroughOauthUsing the social network API (OpenSocial if supported, otherwise social network proprietary API)
  • List of resources (i.e., services) thatcanbesharedisautomaticallygenerated by crawling (see sharing layer)
  • Manualmashupdev:Wetake a device on whichappscanbedeveloped by domainspecialists and, using the otherlayers, bringit to Web developers
  • We provide a Web page that loads the real-world data into global variables, developers then just have to create widgets by combining this data with services on the Web.
  • Bringingdevelopment as close as possible to endusersWecreated a frameworkthatallows the creation of dedicatedmashup editorsi.e., Web toolthat let usersbuildmashupssimply by visuallycomposingwidgetsThanks to the otherlayerseachwidgetisreduced to an HTTP call and canevenbeautomaticallygenerated.This is the EAS mashup.
  • Criticism of the Web for embedded devices: too heavy.Weevaluatedbothapproaches (embedded HTTP & Smart Gateway mediated):Ok for sub-second use-cases
  • RTTcanbeimproved by caching the authentication of users (not theirtokens) however, thisis a tradeoffbetweensecurity and efficiency.http://vswot.inf.ethz.ch:8091/gateways/vswot.inf.ethz.ch:8081/resources/sunspots/Spot1/sensors/light
  • We wanted to asses whether the Web approach was making development easier
  • Web of Things architecture:Blueprints to bring IoT application development closer to non-specialists thanks to the Web:Performances are acceptable for sub-second use-casesUnveils integration possibilities (browser integration, social networks, Web scripting languages, mashups, etc.)Fosters open, participatory innovation to physicalmashupsEvaluated and prototyped in two domains:Wireless Sensor Networks & RFIDDeliverables: ~20 co-authored publications, 5 frameworks (3 open-source), 10 applications (1 open-source)
  • Real-time <10ms response rangeIf Internet standards are adaptedwecouldalso serve more use-cases throughsuch an architectureFirst sensethrough the open-sourcing of ourframeworks, more isneeded
  • Four layers but: Not OSI:layers are flexible, eacheases a little more building applications: from Embedded Syst. Dev to End-UsersContribution: LayersBuilding blocks: each block is a Web APIApplications testingthese blocks
  • Criticism of the Web for embedded devices: too heavy.Weevaluatedbothapproaches (embedded HTTP & Smart Gateway mediated): Ok for most types of apps (<1 second)Sync-based Smart Gateway: muchbetter:
  • If theyimplement the Accessibility layer smart thingscanbediscovered by crawling.
  • Pseudo code for the crawling:crawl(Link currentLink) { new Resource() r;r.setUri = currentLink.getURI();r.setShortDescription = currentLink.text();r.setLongDescription = currentLink.invokeVerb(GET).extractDescriptionFromResults();r.setOperations = currentLink.invokeVerb(OPTIONS).getVerbs();foreach (Format formats: currentFormat) {r.setAcceptedFormats = currentLink.invokeVerb(GET).setAcceptHeader(currentFormat); } if (currentLink.hasNext()) crawl(currentLink.getNext());}
  • Requirements:Security: prevent attackers from gaining accessEase of use: significantly influences adoption [Ion2010]Reflecting existing trust modelsInteroperable: Web protocols, prevent user lock-inIntegrated Advertisement
  • Sharing RFID data through the EPCIS Webadapter
  • ClickScript [Naef2009]: Language created to teach programming to children.Client-side Web technologies (JavaScript + CSS + HTML).Smart Things building-block within a few lines of JavaScript.Added push support (tPusher).
  • Lets end-users create simple rules to optimize their energy consumption:Turn the heating on only when I am driving home and temp < 18 deg.Turn off the lights when sun light is strong enough.
  • REST appears to be more adapted to foster a participatory Web of Thingswere application developmentisbrought to non-specialists
  • Transcript

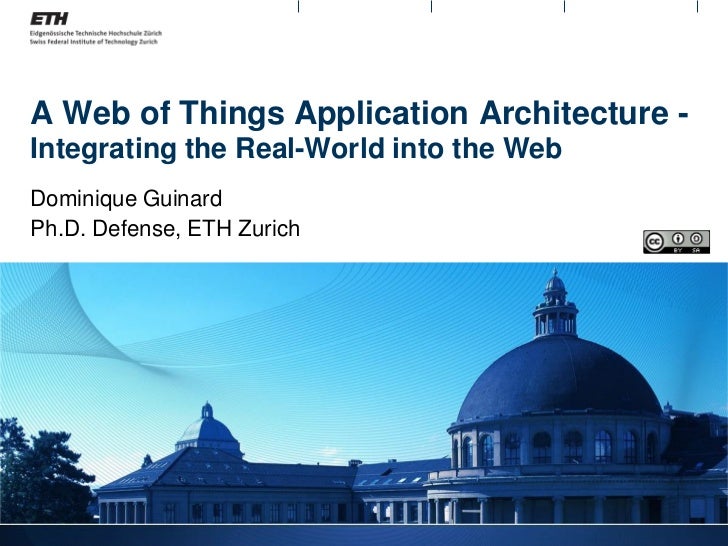

    • 1. A Web of Things Application Architecture -Integrating the Real-World into the WebDominique GuinardPh.D. Defense, ETH Zurich
