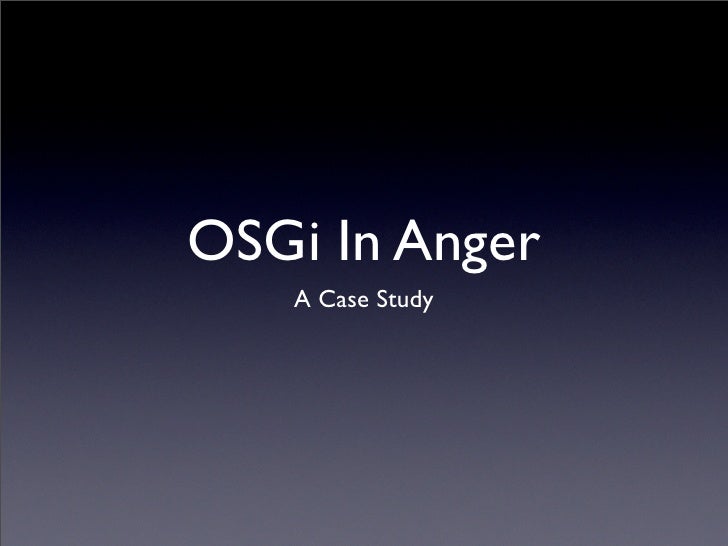

OSGi In Anger
   A Case Study

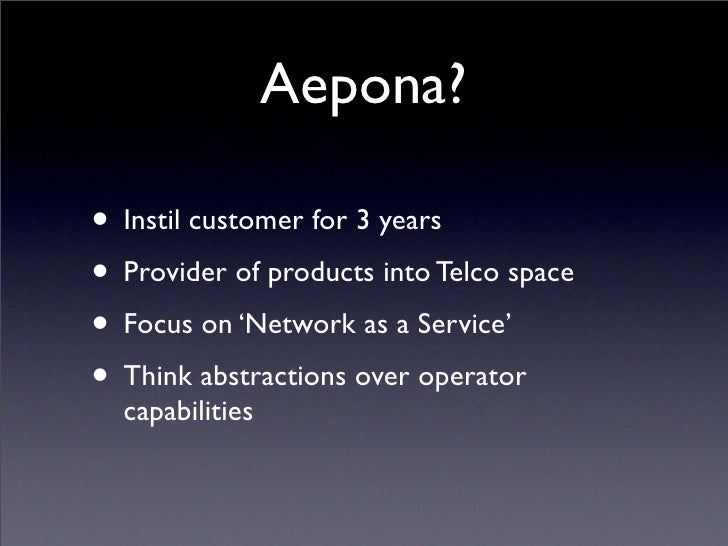

Aepona?

• Instil customer for 3 years
• Provider of products into Telco space
• Focus on ‘Network as a Service’
• Think a...

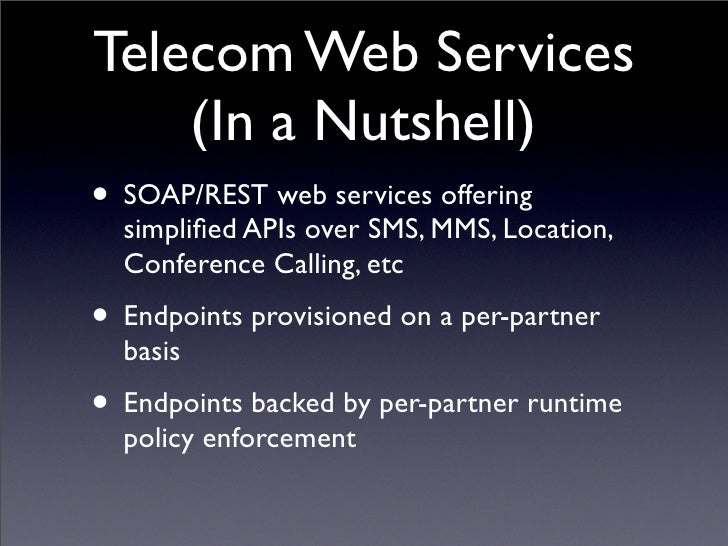

Telecom Web Services
    (In a Nutshell)
• SOAP/REST web services offering
  simplified APIs over SMS, MMS, Location,
  Con...

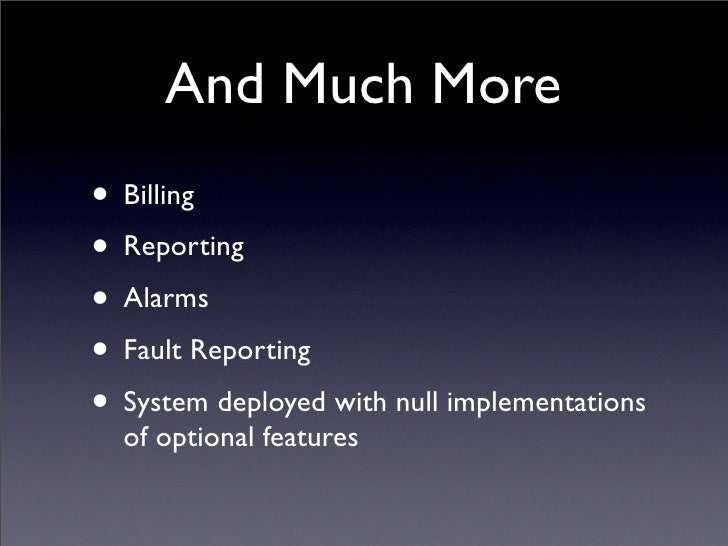

And Much More
• Billing
• Reporting
• Alarms
• Fault Reporting
• System deployed with null implementations
  of optional f...

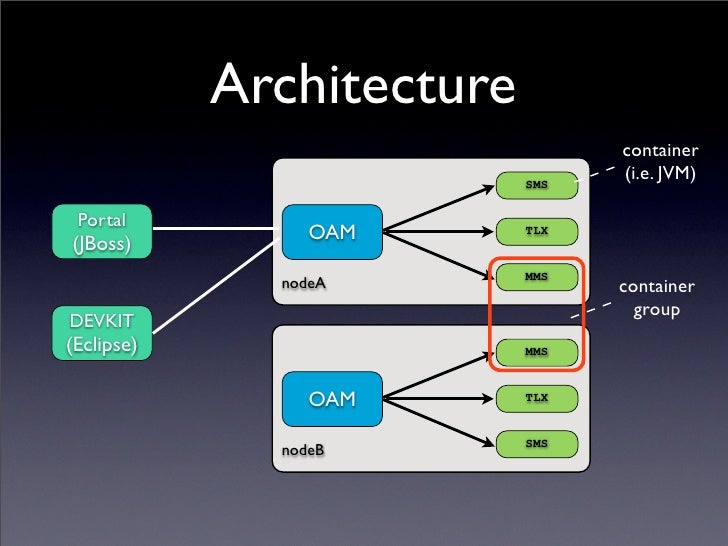

Architecture
                                 container
                           SMS
                                 (i...

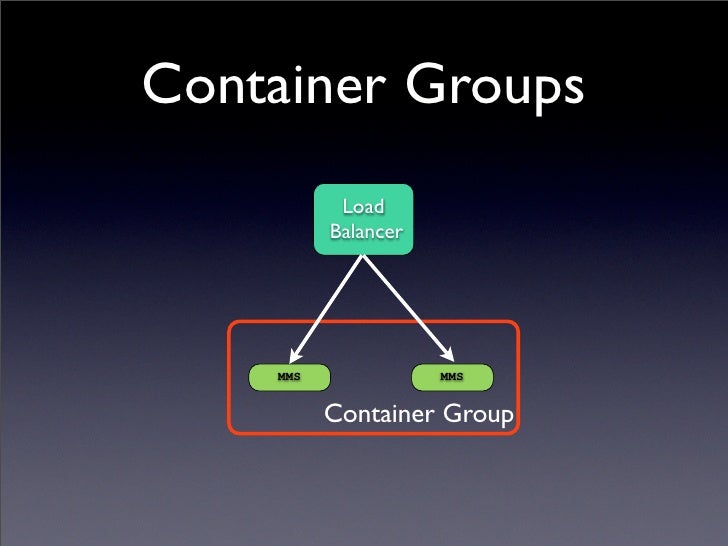

Container Groups
           Load
          Balancer




    MMS              MMS


          Container Group

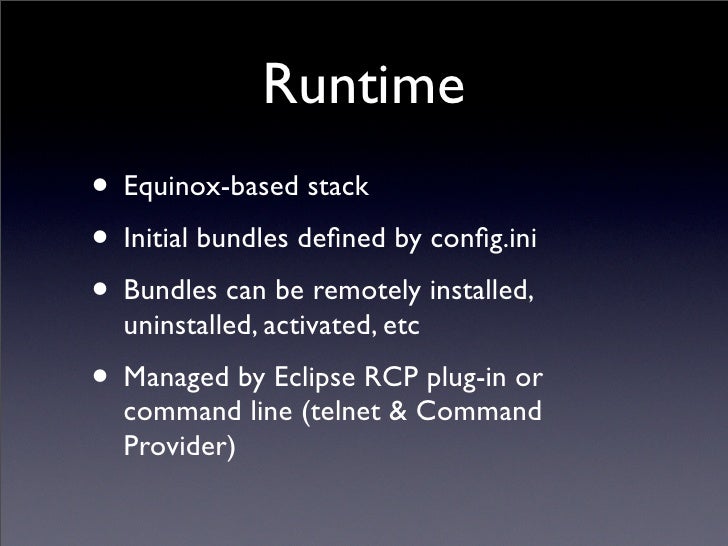

Runtime
• Equinox-based stack
• Initial bundles defined by config.ini
• Bundles can be remotely installed,
  uninstalled, ac...

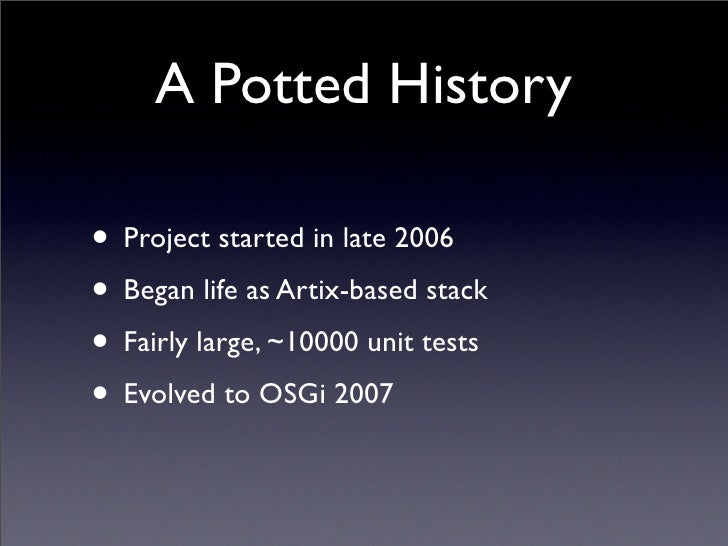

A Potted History

• Project started in late 2006
• Began life as Artix-based stack
• Fairly large, ~10000 unit tests
• Evo...
The OAM

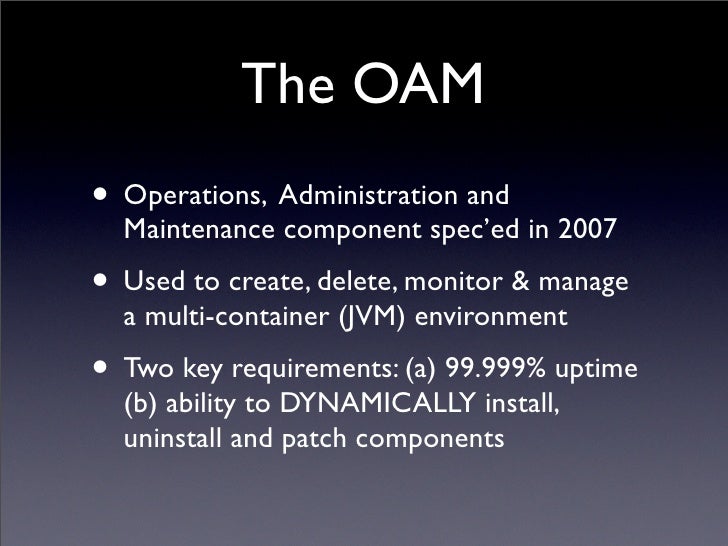

• Operations, Administration and
  Maintenance component spec’ed in 2007
• Used to create, delete, monitor & manag...
A Leap of Faith
• But for the wrong(ish) reasons
• OAM provided compelling reason for OSGi
• OSGi chosen mainly because it...

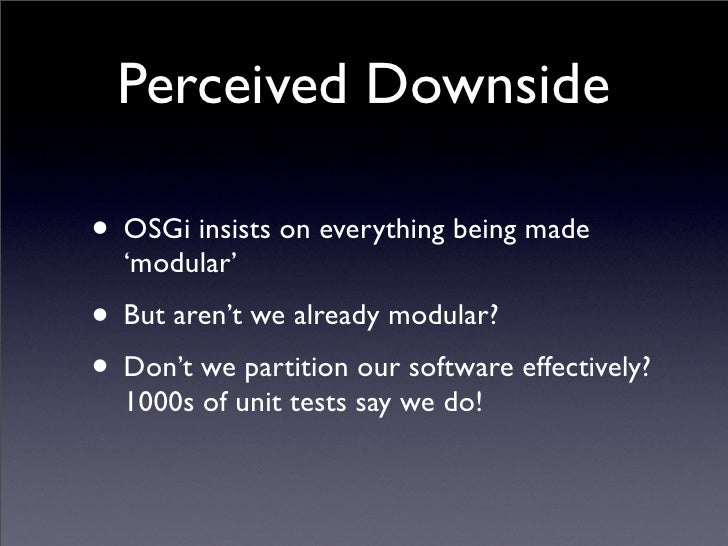

Perceived Downside

• OSGi insists on everything being made
  ‘modular’
• But aren’t we already modular?
• Don’t we partit...

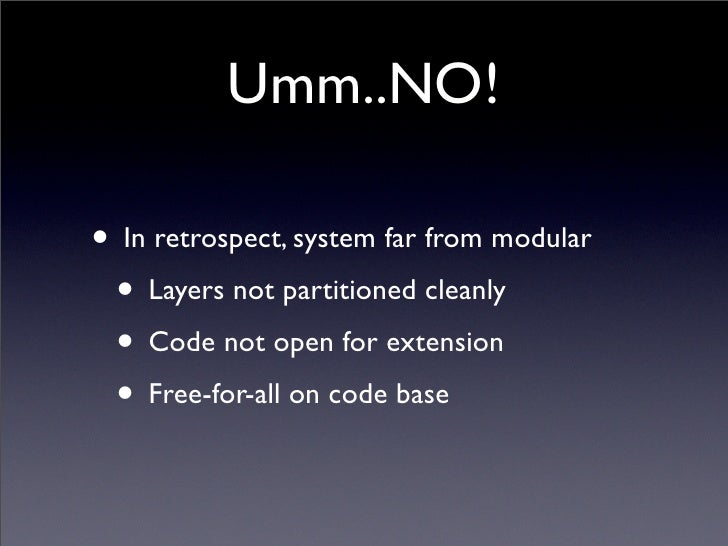

Umm..NO!

• In retrospect, system far from modular
 • Layers not partitioned cleanly
 • Code not open for extension
 • Fre...

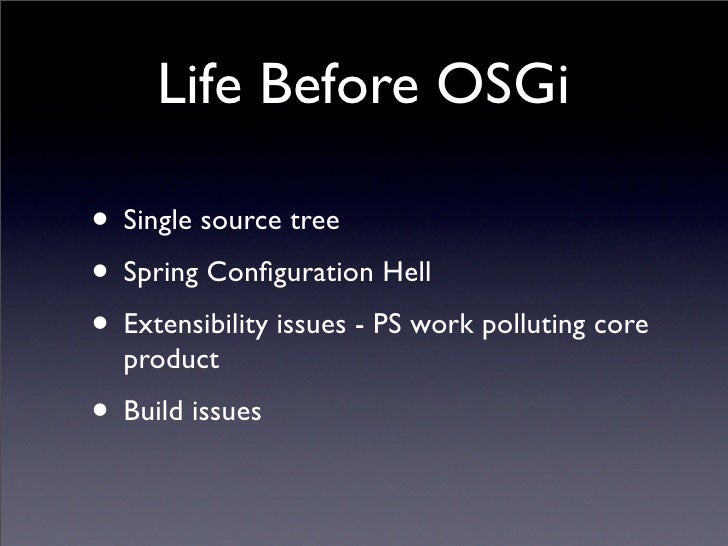

Life Before OSGi

• Single source tree
• Spring Configuration Hell
• Extensibility issues - PS work polluting core
  produc...

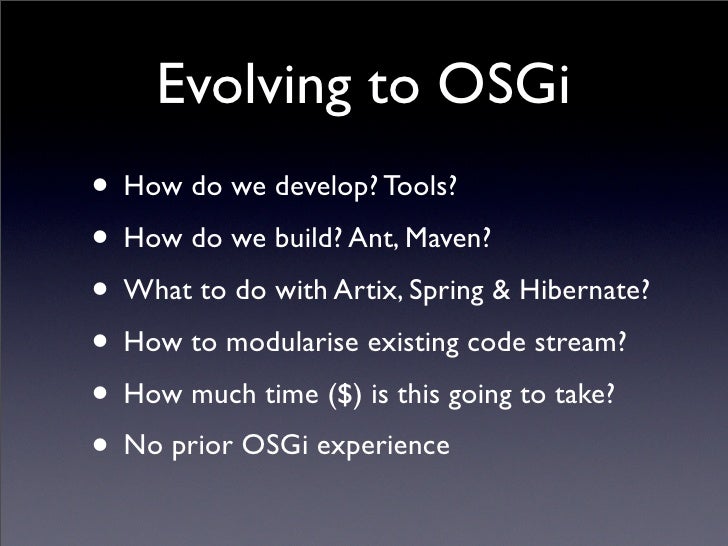

Evolving to OSGi
• How do we develop? Tools?
• How do we build? Ant, Maven?
• What to do with Artix, Spring & Hibernate?
•...

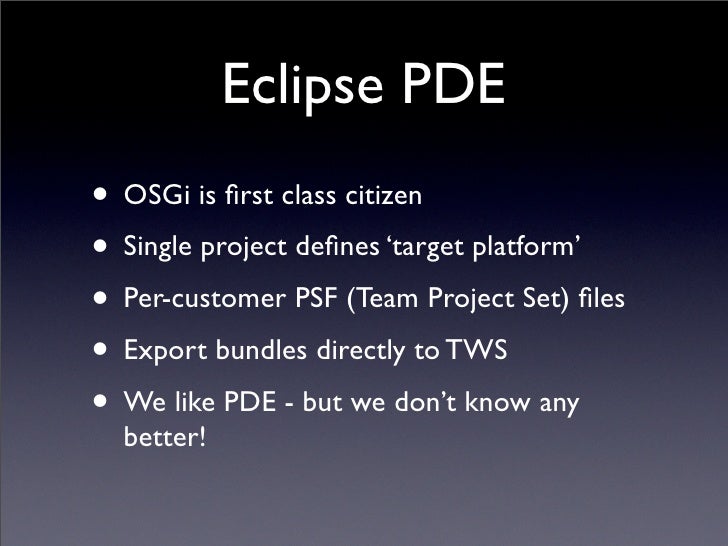

Eclipse PDE
• OSGi is first class citizen
• Single project defines ‘target platform’
• Per-customer PSF (Team Project Set) fi...

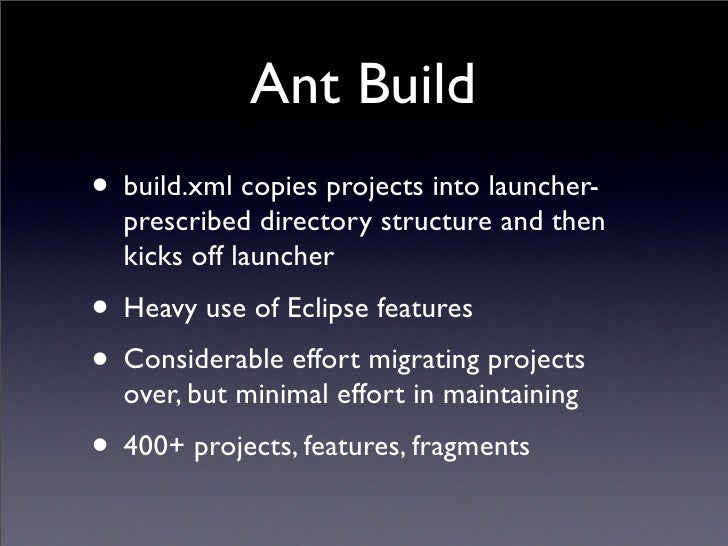

Ant Build
• build.xml copies projects into launcher-
  prescribed directory structure and then
  kicks off launcher
• Heav...
Baby Steps
• No big bang
• Artix converted to single bundle
• Common code refactored into core bundle
• Services deployed ...

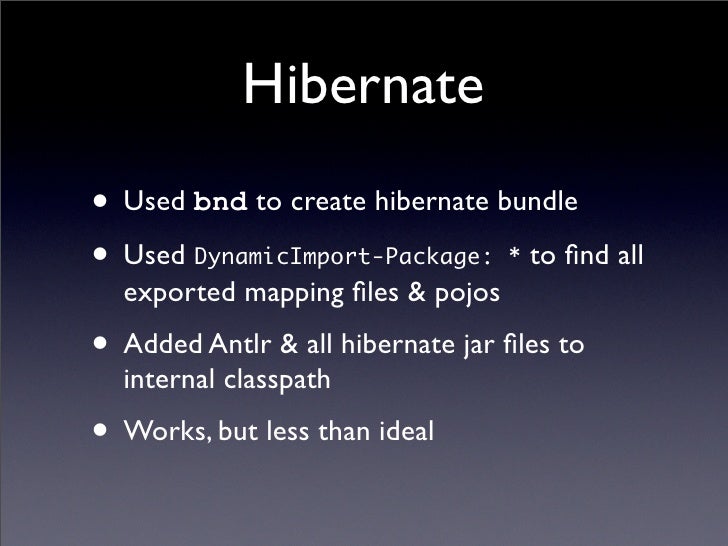

Hibernate
• Used bnd to create hibernate bundle
• Used DynamicImport-Package: * to find all
  exported mapping files & pojos...

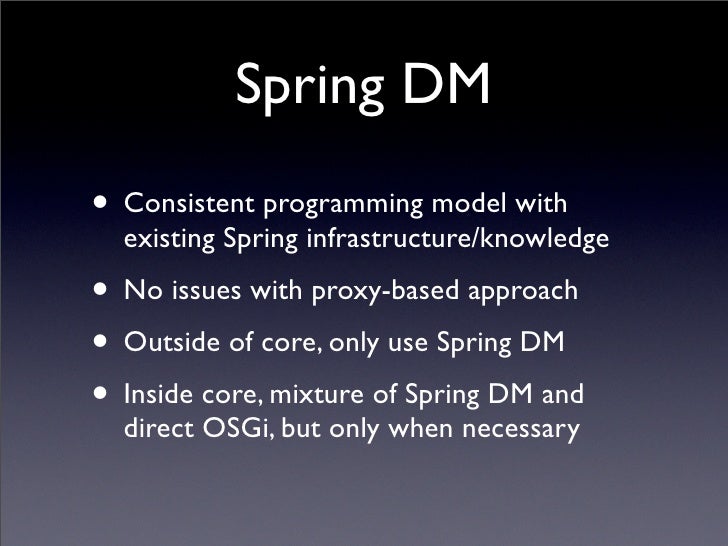

Spring DM
• Consistent programming model with
  existing Spring infrastructure/knowledge
• No issues with proxy-based appr...
Early Mistakes
• Failed to appreciate beauty of whiteboard
  pattern: publish/subscribe really should be
  replaced with e...

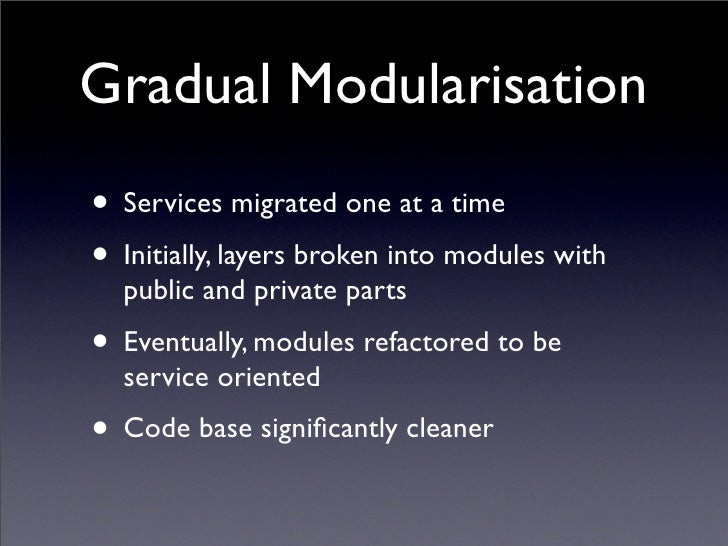

Gradual Modularisation
• Services migrated one at a time
• Initially, layers broken into modules with
  public and private...

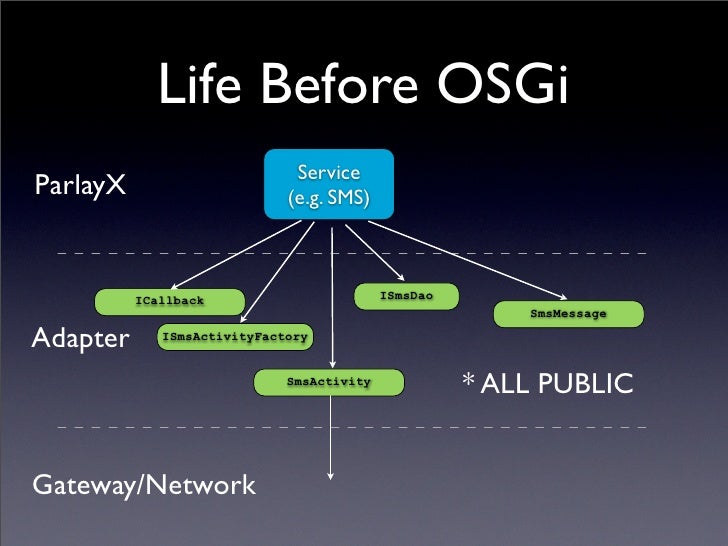

Life Before OSGi
                              Service
ParlayX                      (e.g. SMS)



          ICallback     ...

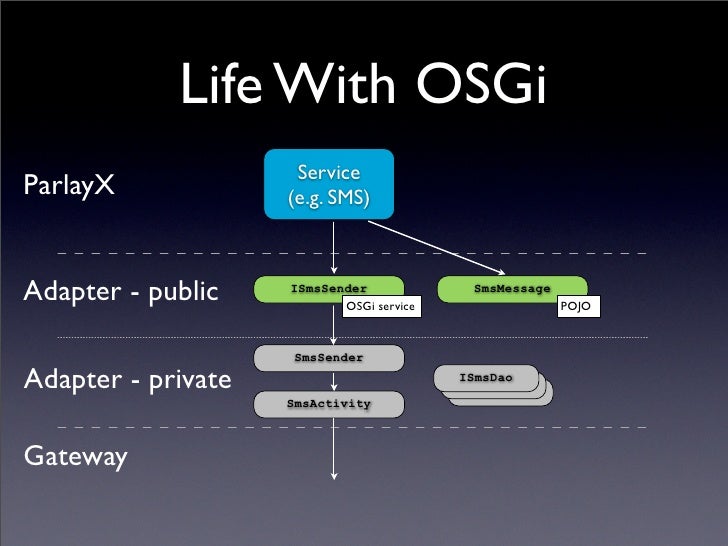

Life With OSGi
                     Service
ParlayX             (e.g. SMS)



Adapter - public    ISmsSender
             ...

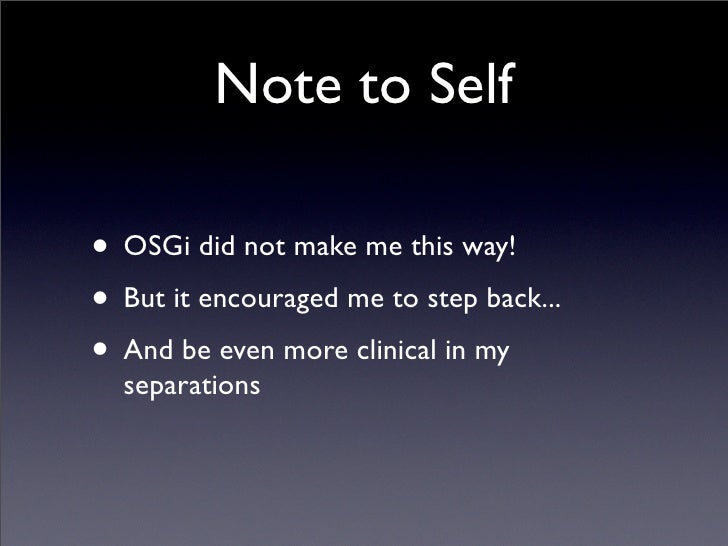

Note to Self

• OSGi did not make me this way!
• But it encouraged me to step back...
• And be even more clinical in my
  ...

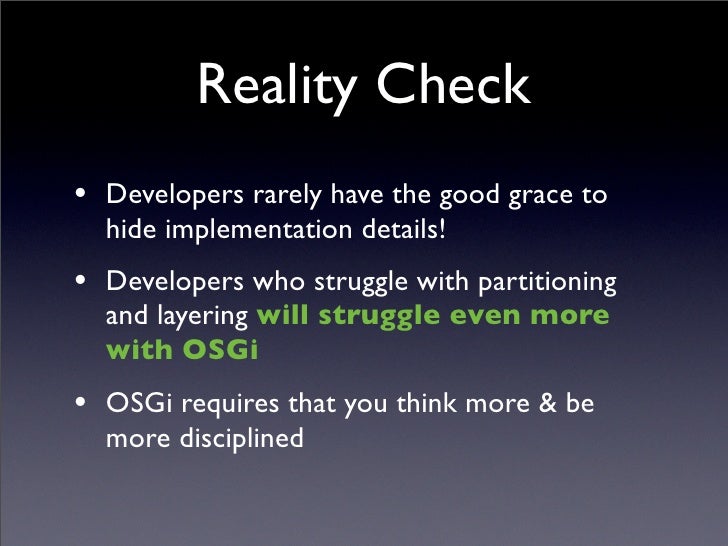

Reality Check
• Developers rarely have the good grace to
  hide implementation details!
• Developers who struggle with par...

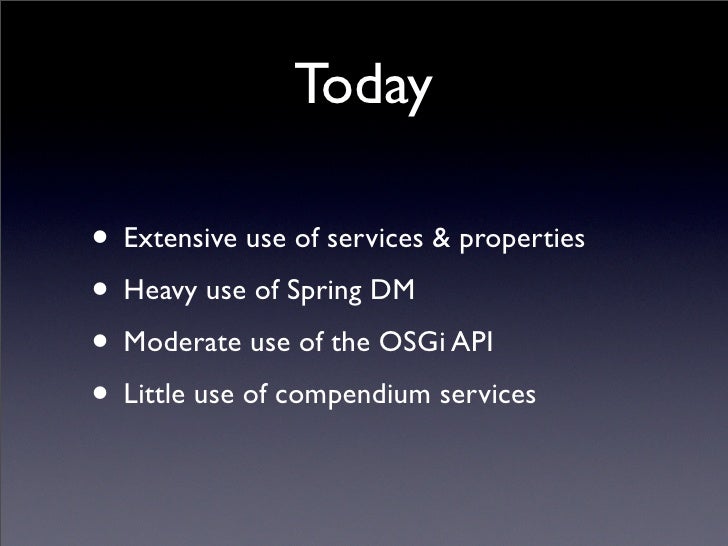

Today

• Extensive use of services & properties
• Heavy use of Spring DM
• Moderate use of the OSGi API
• Little use of co...

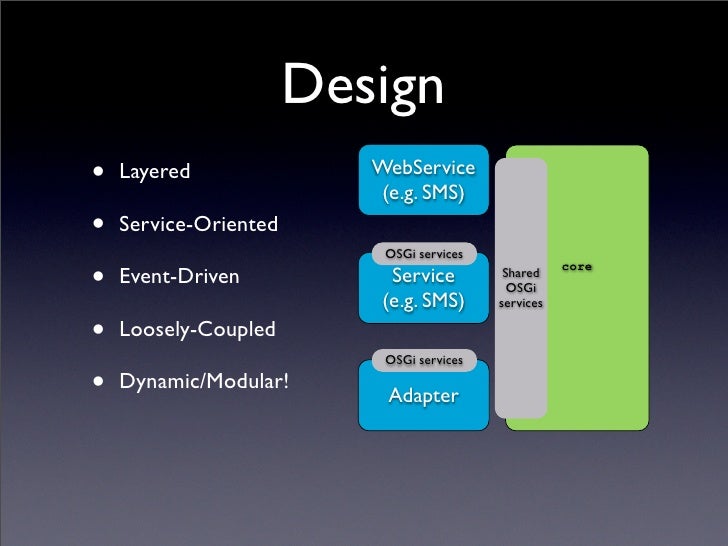

Design
•   Layered               WebService
                           (e.g. SMS)
•   Service-Oriented
                   ...

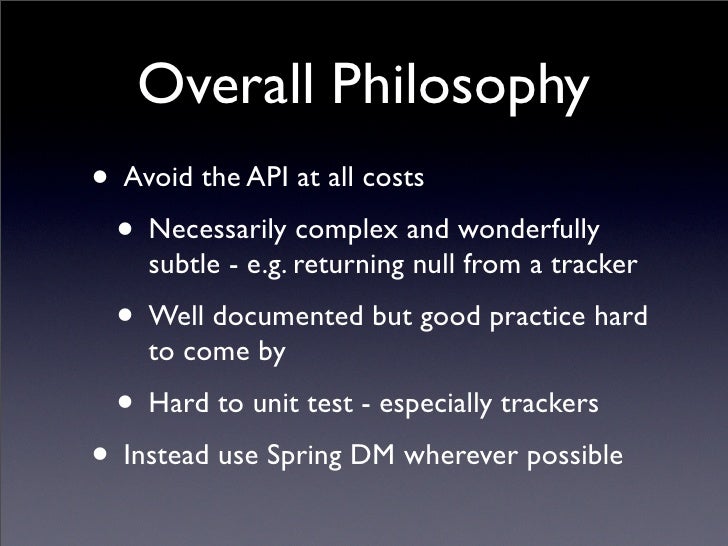

Overall Philosophy
• Avoid the API at all costs
 • Necessarily complex and wonderfully
    subtle - e.g. returning null fr...
Using the OSGi API

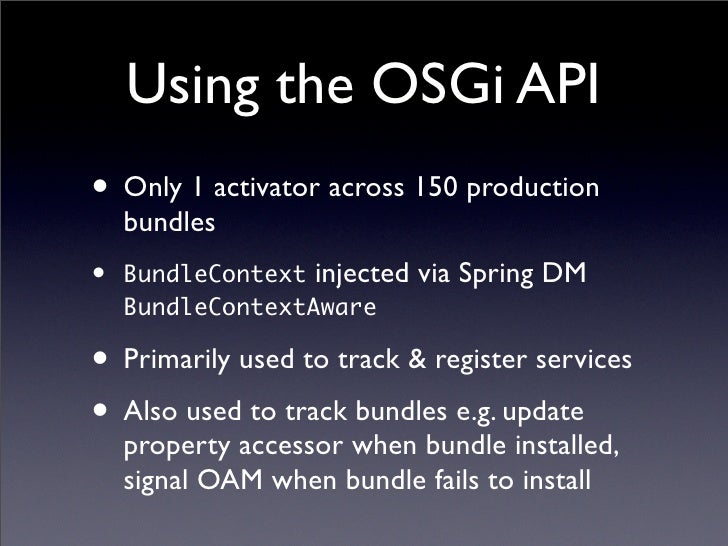

• Only 1 activator across 150 production
    bundles
•   BundleContext injected   via Spring DM
    Bun...

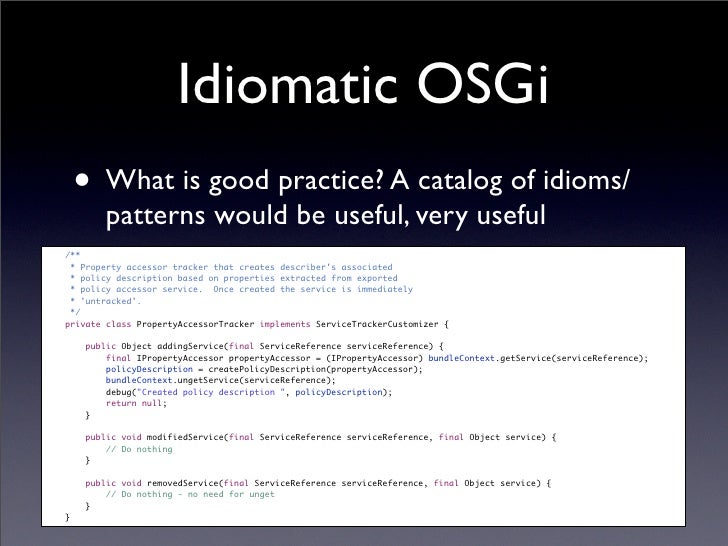

Idiomatic OSGi
    • What is good practice? A catalog of idioms/
       patterns would be useful, very useful
/**
 * Prope...

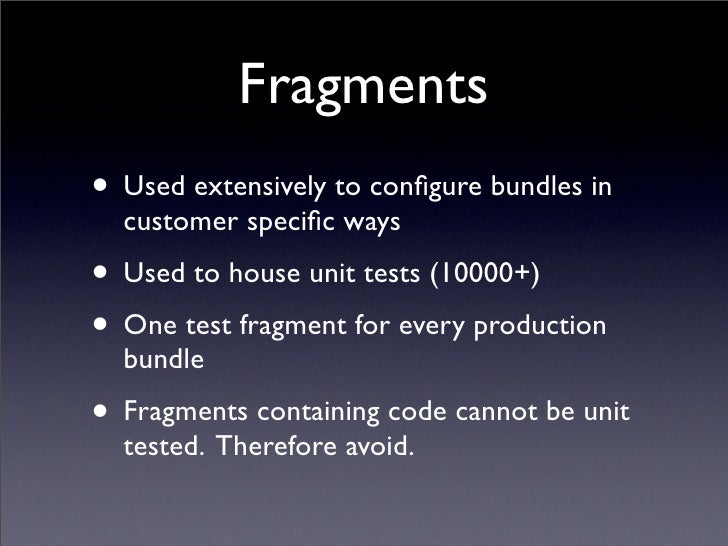

Fragments
• Used extensively to configure bundles in
  customer specific ways
• Used to house unit tests (10000+)
• One test...

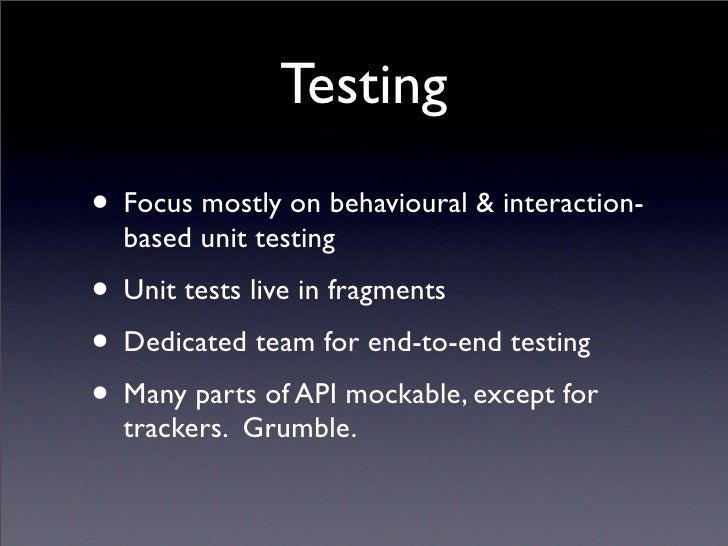

Testing
• Focus mostly on behavioural & interaction-
  based unit testing
• Unit tests live in fragments
• Dedicated team ...

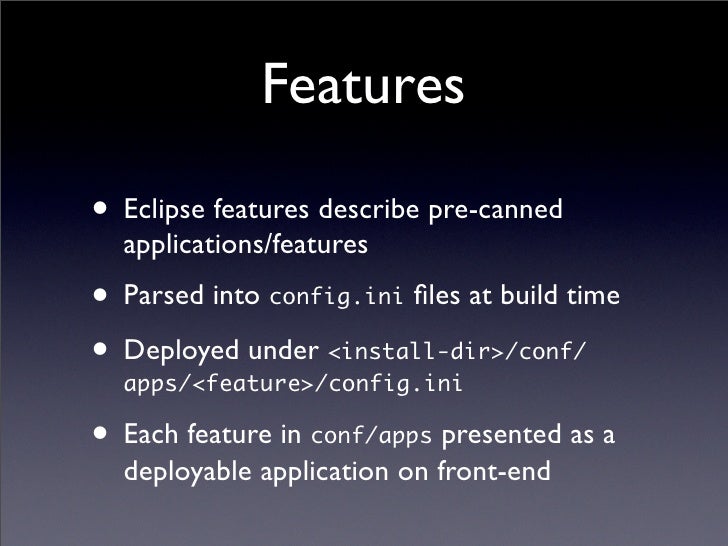

Features

• Eclipse features describe pre-canned
  applications/features
• Parsed into config.ini files at build time
• Dep...

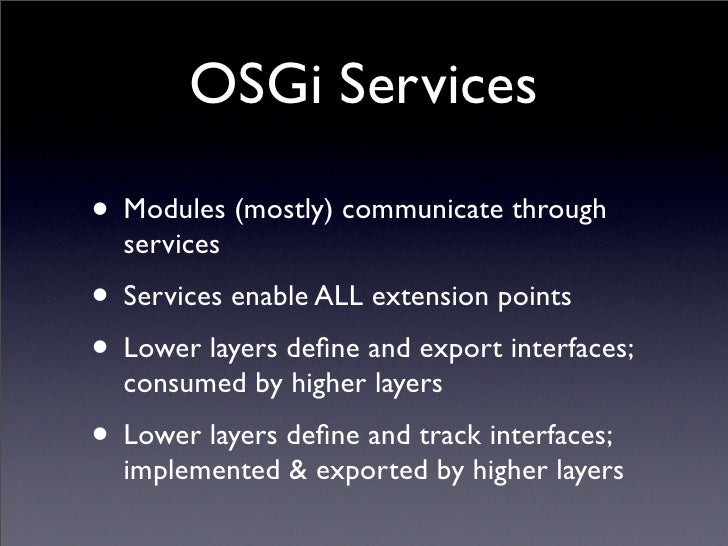

OSGi Services

• Modules (mostly) communicate through
  services
• Services enable ALL extension points
• Lower layers defi...

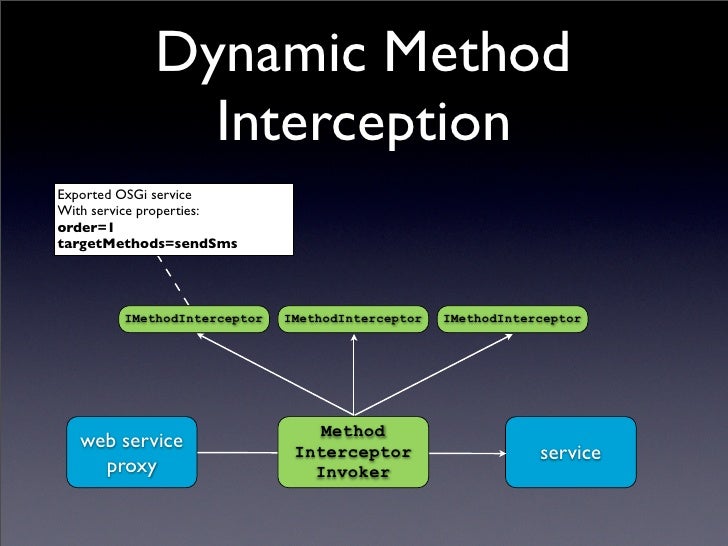

Dynamic Method
               Interception
Exported OSGi service
With service properties:
order=1
targetMethods=sendSms


...

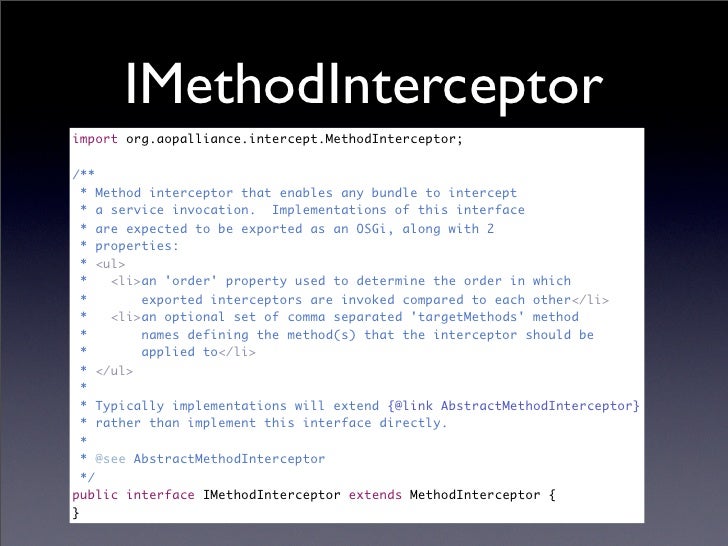

IMethodInterceptor
import org.aopalliance.intercept.MethodInterceptor;

/**
  * Method interceptor that enables any bundle...

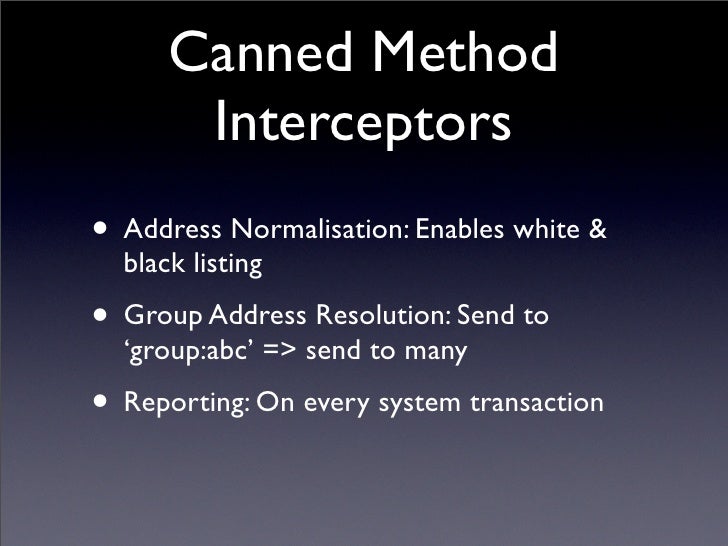

Canned Method
       Interceptors
• Address Normalisation: Enables white &
  black listing
• Group Address Resolution: Sen...
Policy Enforcement

Created using IPolicyDescriber
(an OSGi service)




         EnforceablePolicy       EnforceablePolic...
Tracking Lists
/**

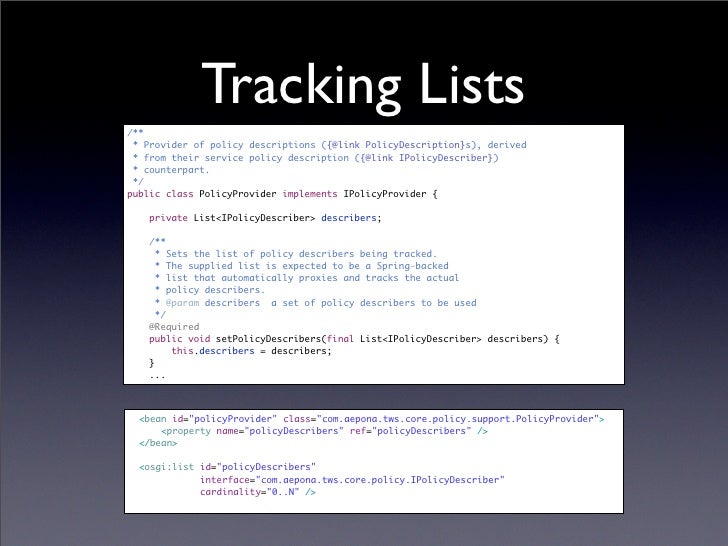

 * Provider of policy descriptions ({@link PolicyDescription}s), derived
 * from their service policy d...

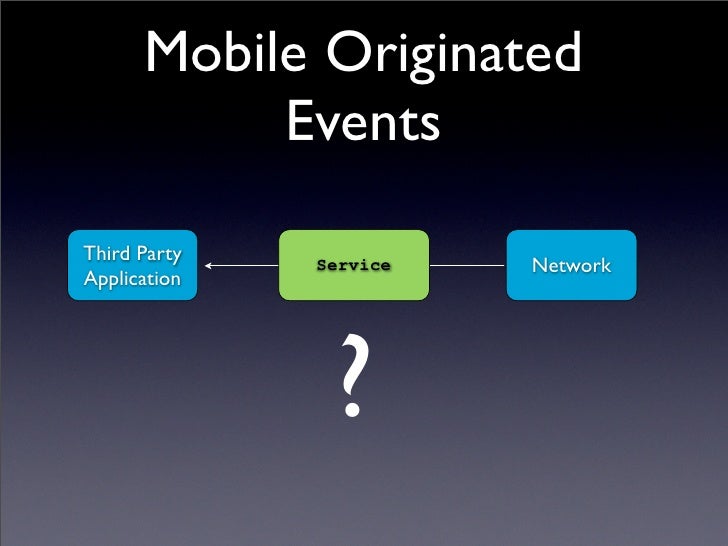

Mobile Originated
          Events

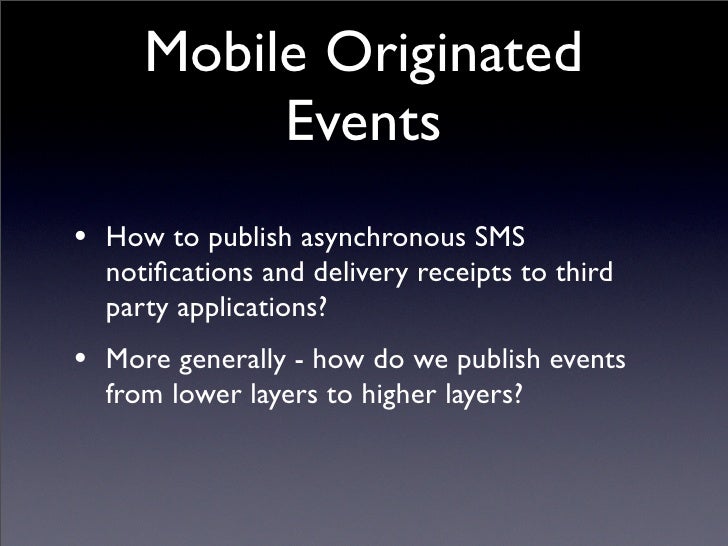

• How to publish asynchronous SMS
  notifications and delivery receipts to third
  party...
Mobile Originated
           Events

Third Party   Service   Network
Application




               ?

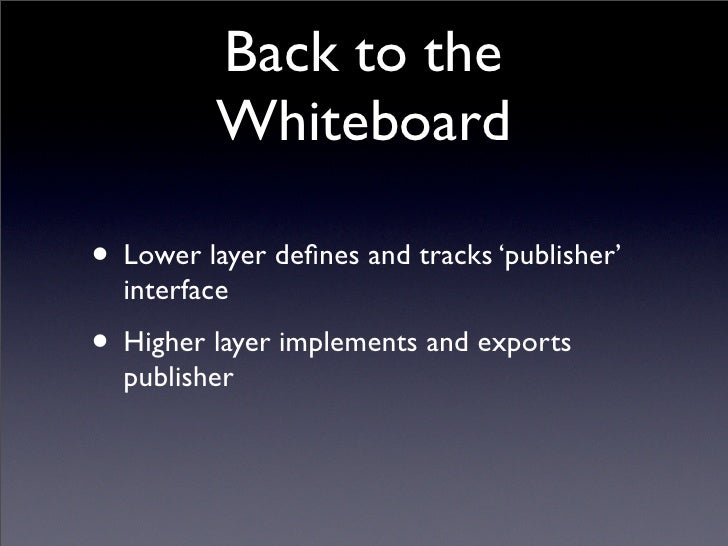

Back to the
          Whiteboard

• Lower layer defines and tracks ‘publisher’
  interface
• Higher layer implements and ex...
Whiteboard
                   Exported as OSGi service




                                              SmsNotificationPub...

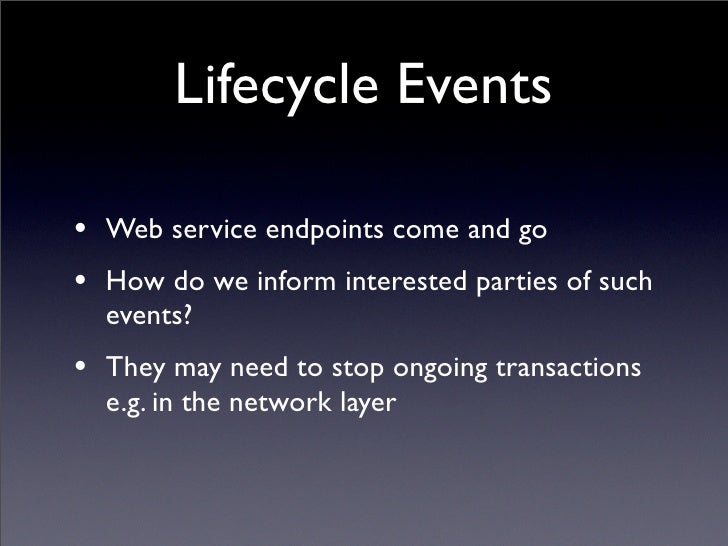

Lifecycle Events

• Web service endpoints come and go
• How do we inform interested parties of such
  events?
• They may n...

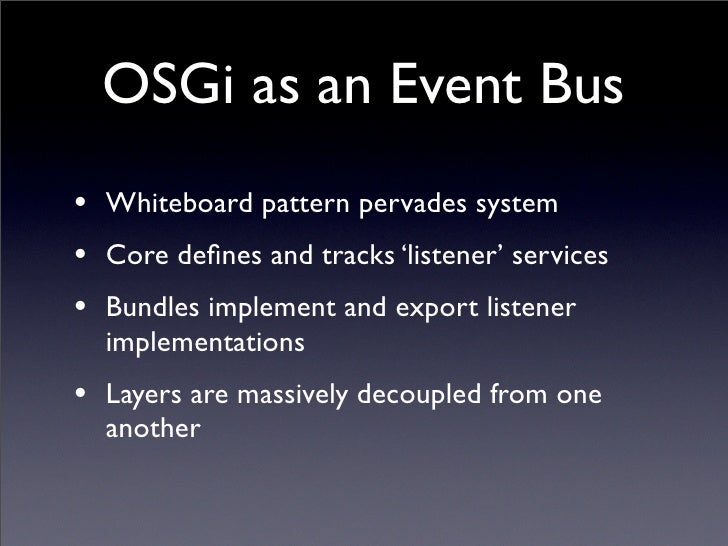

OSGi as an Event Bus
• Whiteboard pattern pervades system
• Core defines and tracks ‘listener’ services
• Bundles implement...

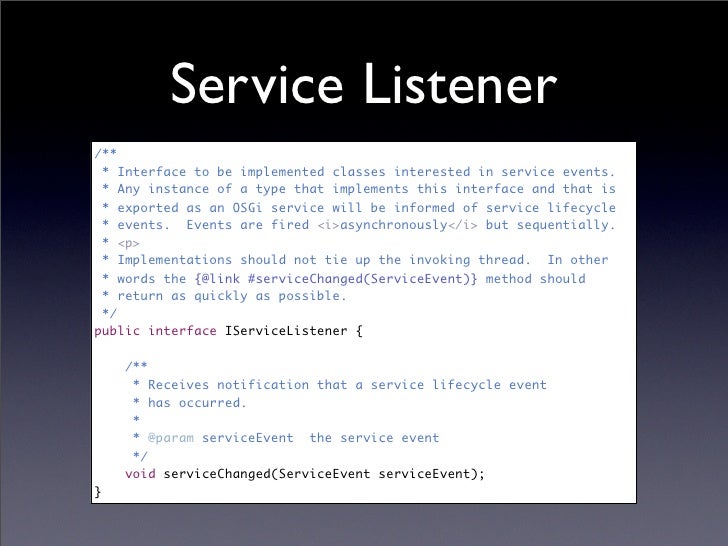

Service Listener
/**
 * Interface to be implemented classes interested in service events.
 * Any instance of a type that i...

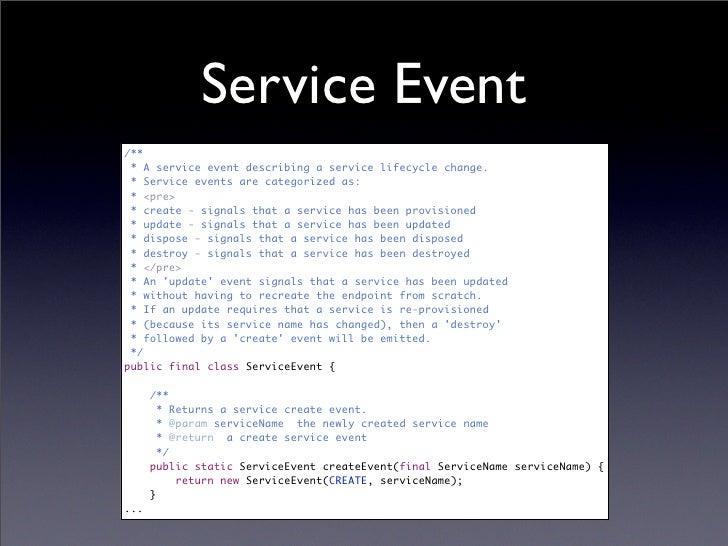

Service Event
/**
 * A service event describing a service lifecycle change.
 * Service events are categorized as:
 * <pre>...

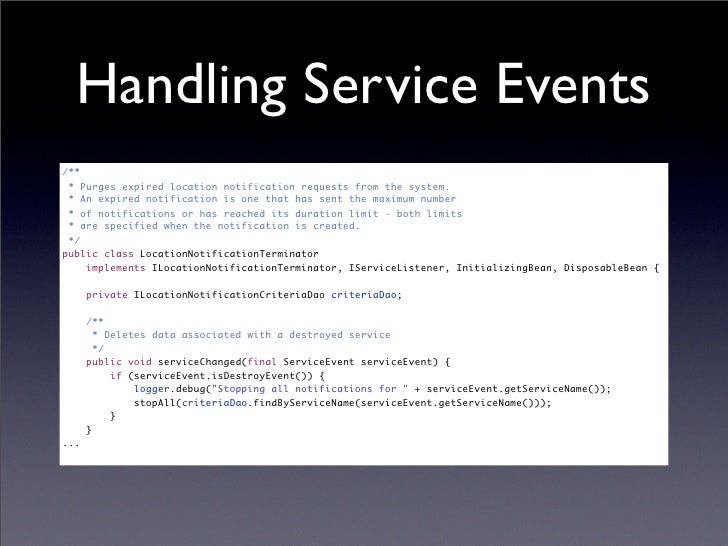

Handling Service Events
/**
 * Purges expired location notification requests from the system.
 * An expired notification i...
Service Adapters

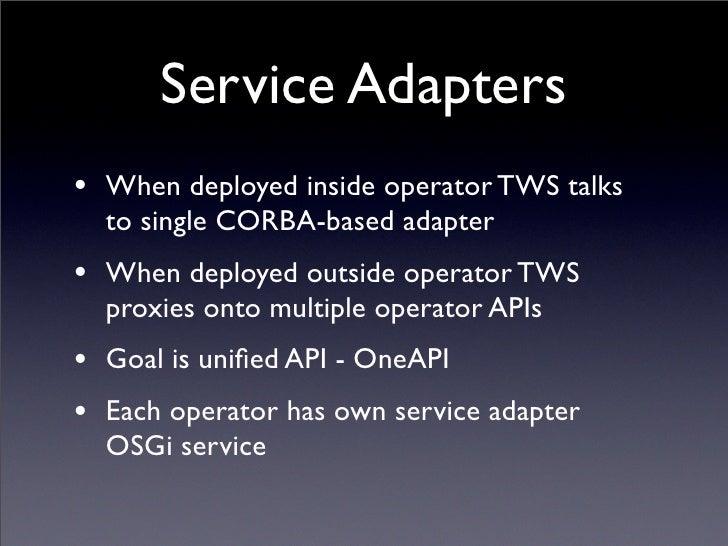

• When deployed inside operator TWS talks
  to single CORBA-based adapter
• When deployed outside operato...
Service Adapters
• Need to support new operator, simply drop
  new adapter bundle
             Exported as OSGi Service
  ...

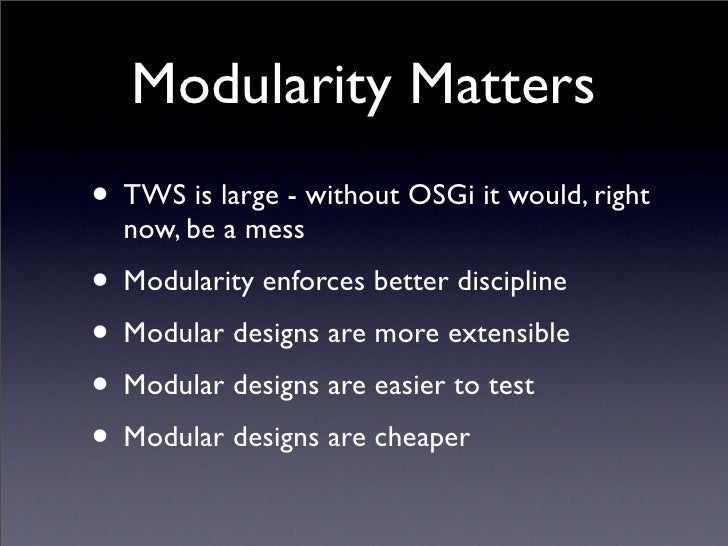

Modularity Matters
• TWS is large - without OSGi it would, right
  now, be a mess
• Modularity enforces better discipline
...

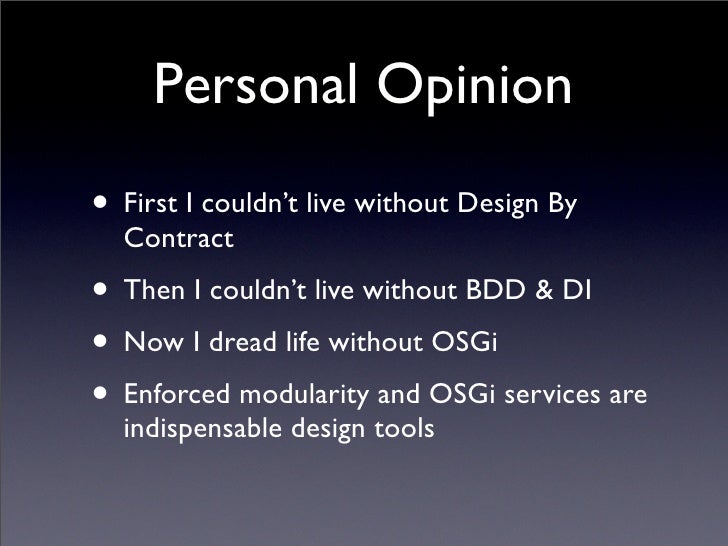

Personal Opinion
• First I couldn’t live without Design By
  Contract
• Then I couldn’t live without BDD & DI
• Now I drea...
